Product Description
Well-maintained 2022 Sany SY245H hydraulic excavator available from Sichuan, China. This mid-size crawler excavator has accumulated 4,000 verified operating hours, indicating moderate use with substantial service life remaining. The SY245H represents Sany's commitment to reliable performance in demanding construction and earthmoving applications.
Key features of this unit include:
- Operating weight class: approximately 24-25 tonnes
- Fuel-efficient engine meeting modern emission standards

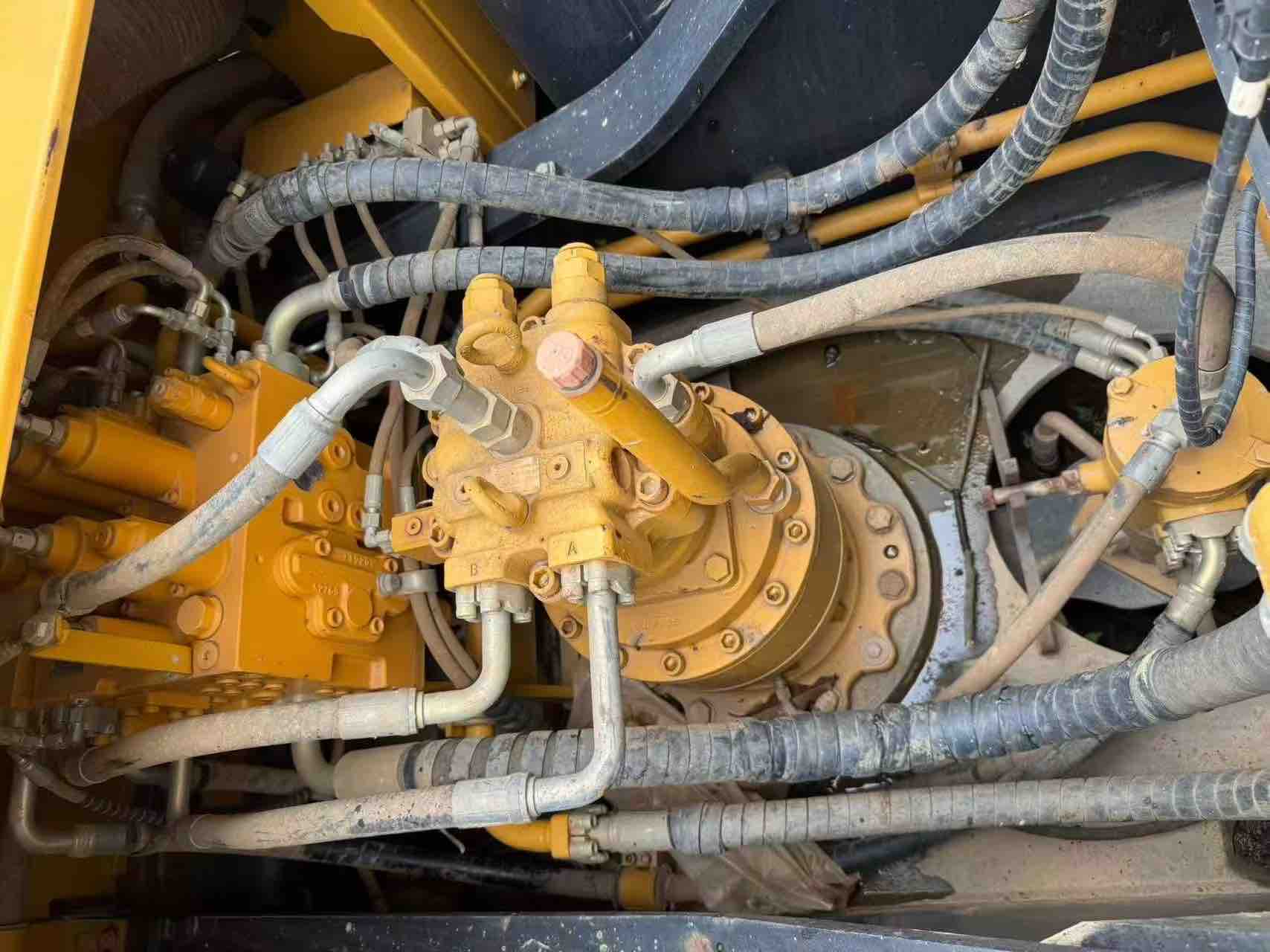

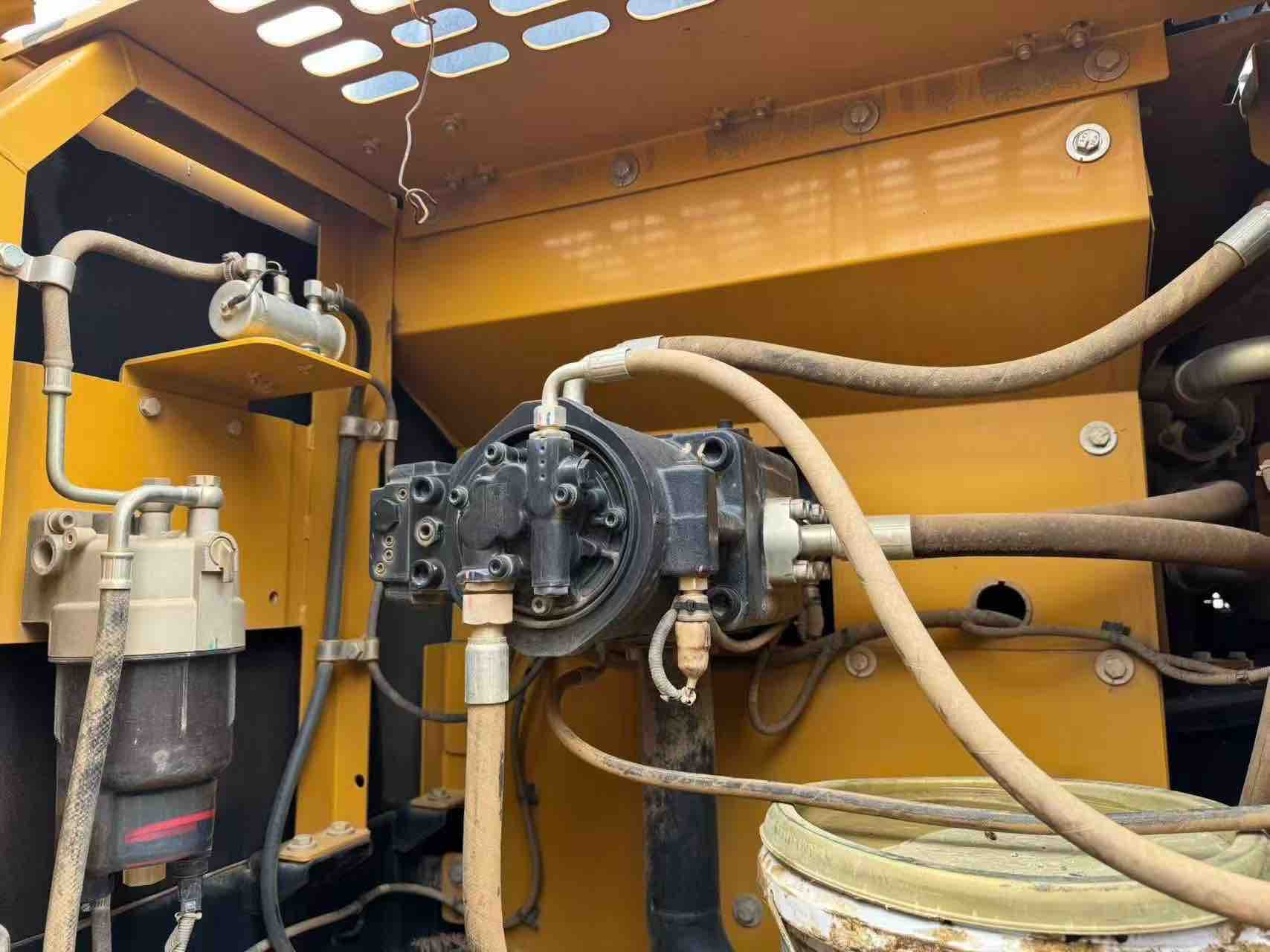

- Hydraulic system optimized for productivity and control

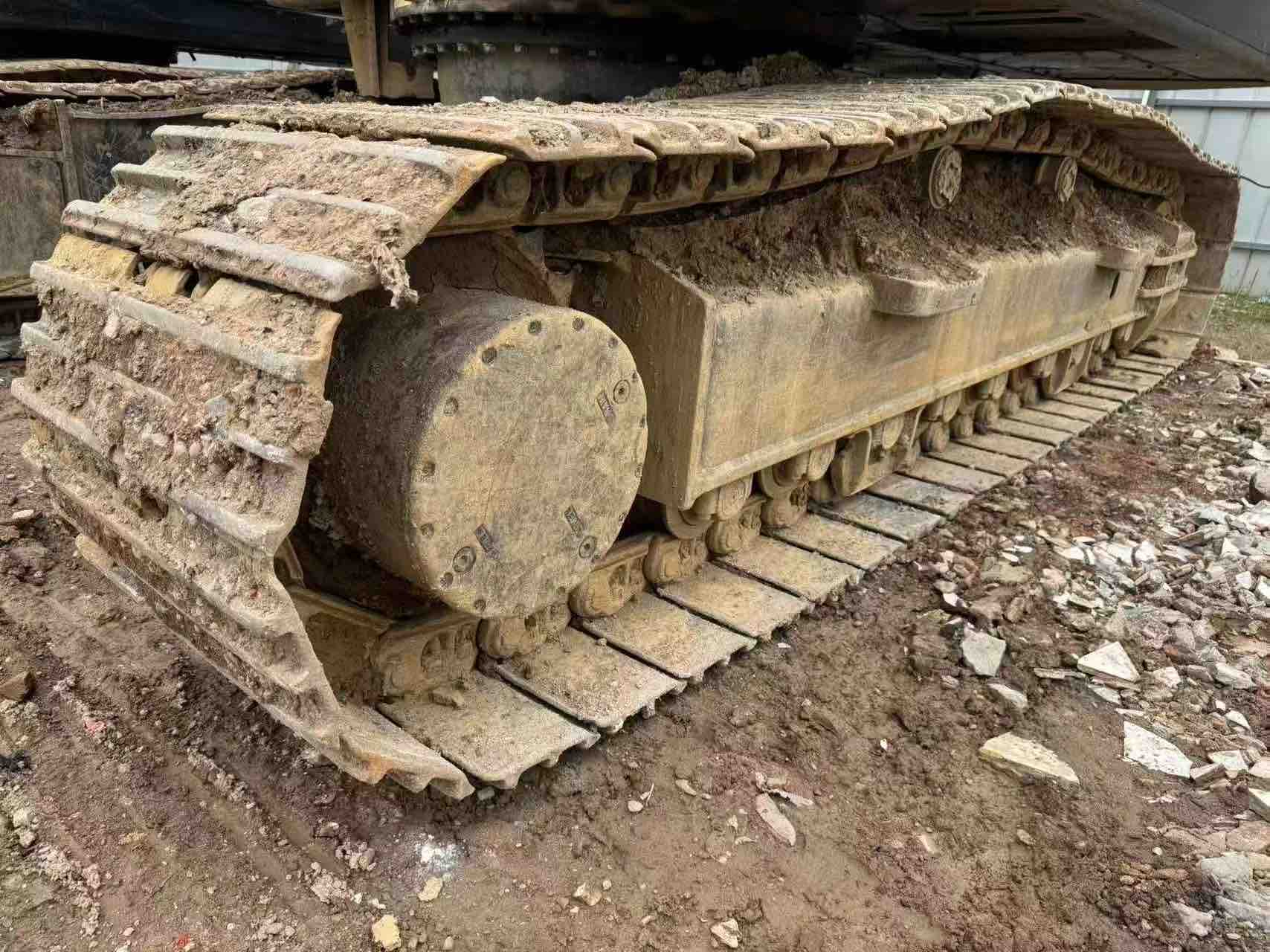

- Robust undercarriage designed for varied terrain conditions
- Spacious operator cabin with enhanced visibility
- Low actual hours with verifiable service records
This excavator is suitable for general construction, road building, material handling, and excavation projects. The machine's recent manufacturing year combined with conservative hour meter reading makes it an attractive option for contractors seeking dependable equipment at competitive value.
| Specifications | Value |
|---|---|
| No. | 1084321 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

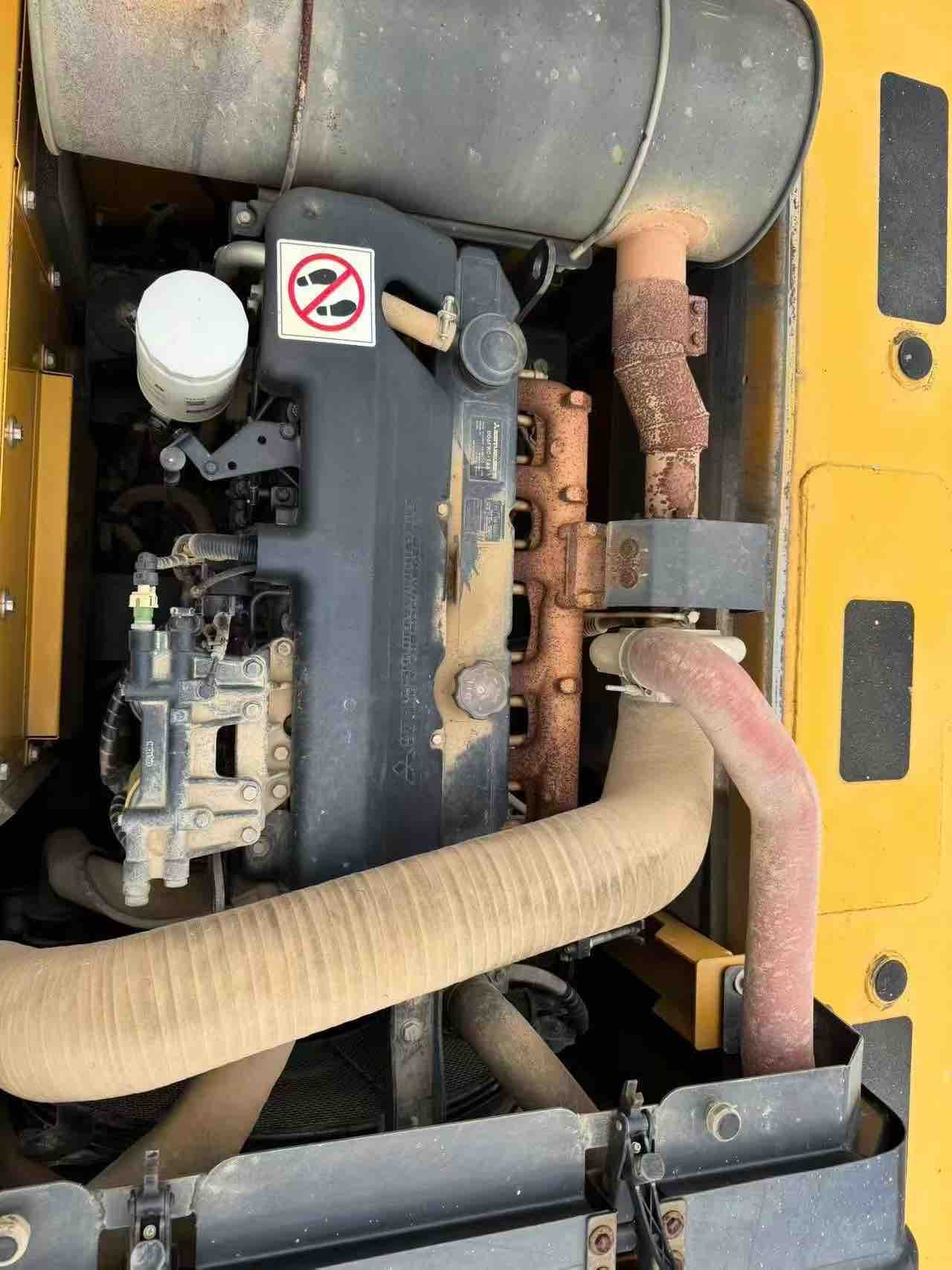

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
