Product Description

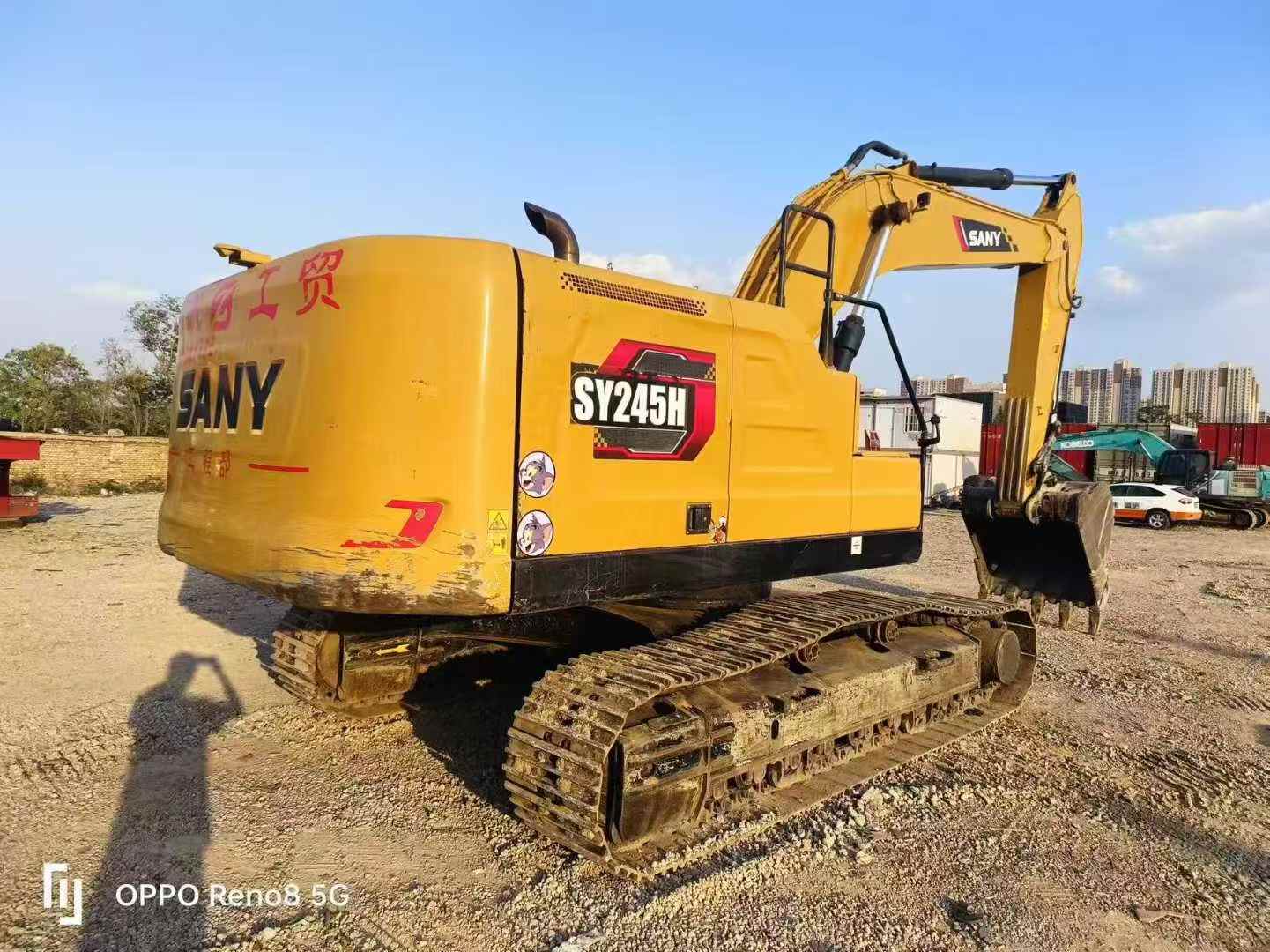

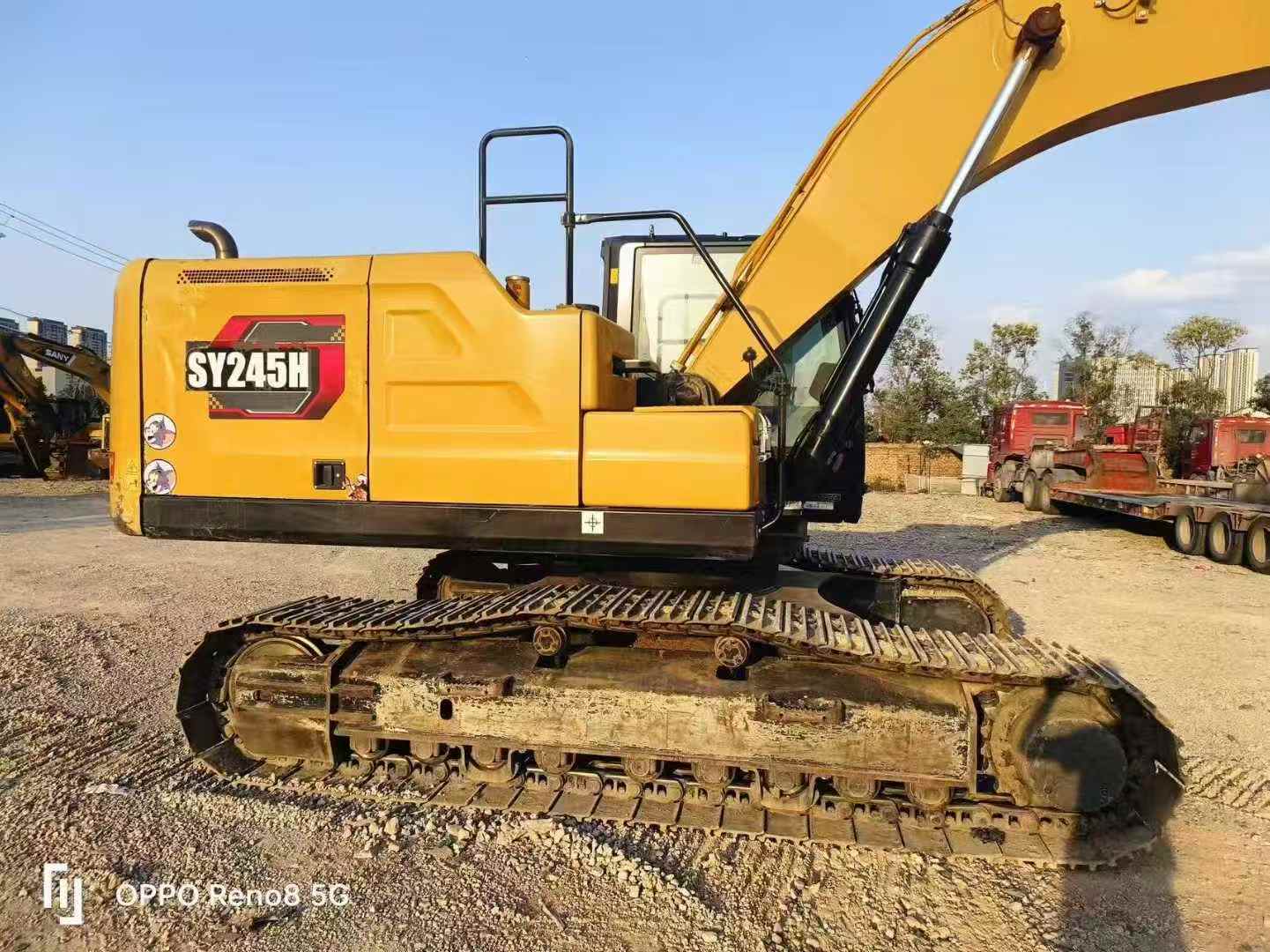

Engineered with precision hydraulics and a robust National IV emission standard engine, the 2023 Sany SY245H delivers exceptional performance in demanding excavation environments. This 24-ton class excavator features advanced hydraulic systems that optimize fuel efficiency while maintaining superior digging force and cycle times. Sany's proprietary engine technology ensures compliance with stringent emission standards without compromising power output.
Currently available in Hebei, this model represents Sany's commitment to technical excellence through:

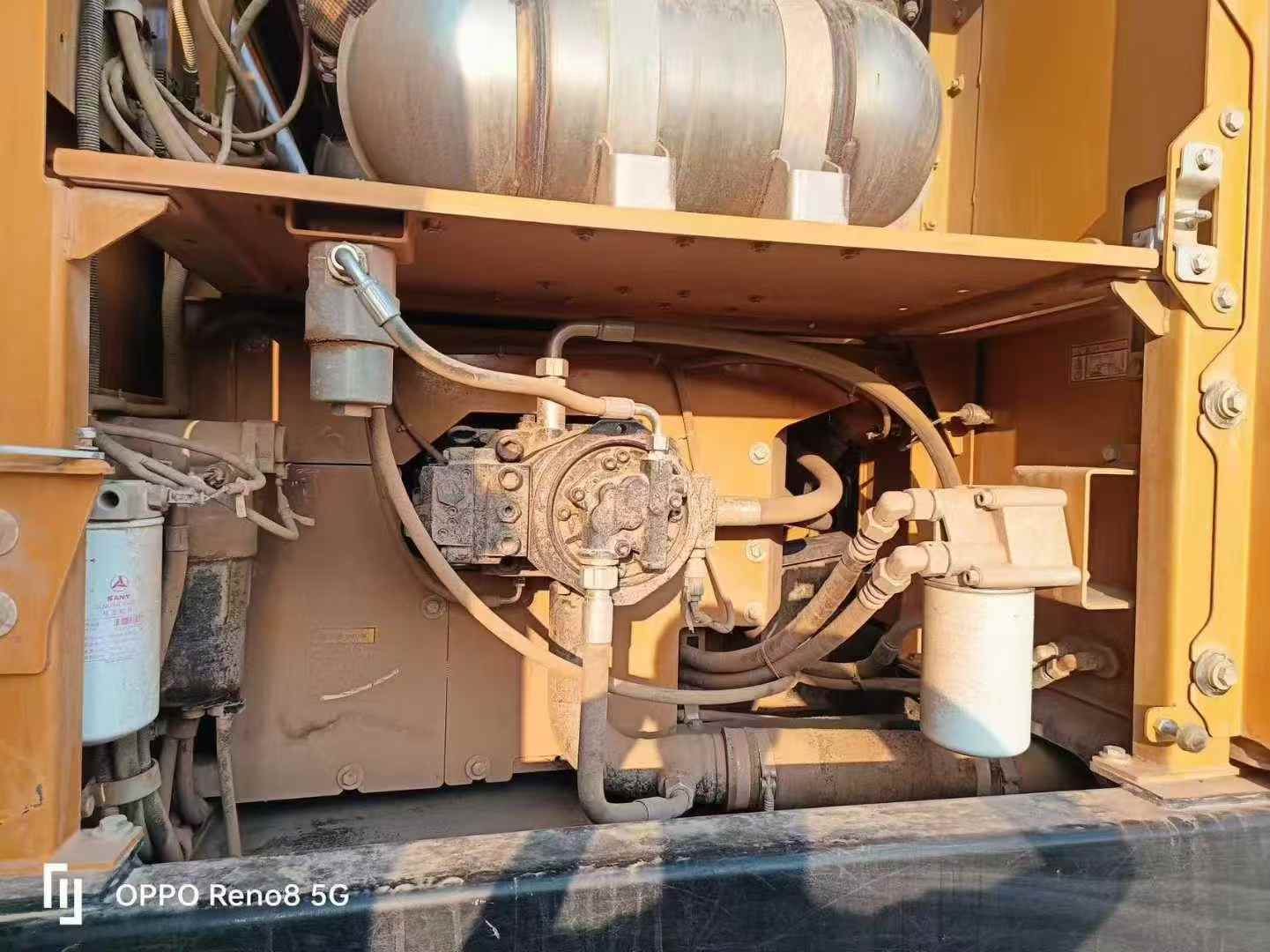

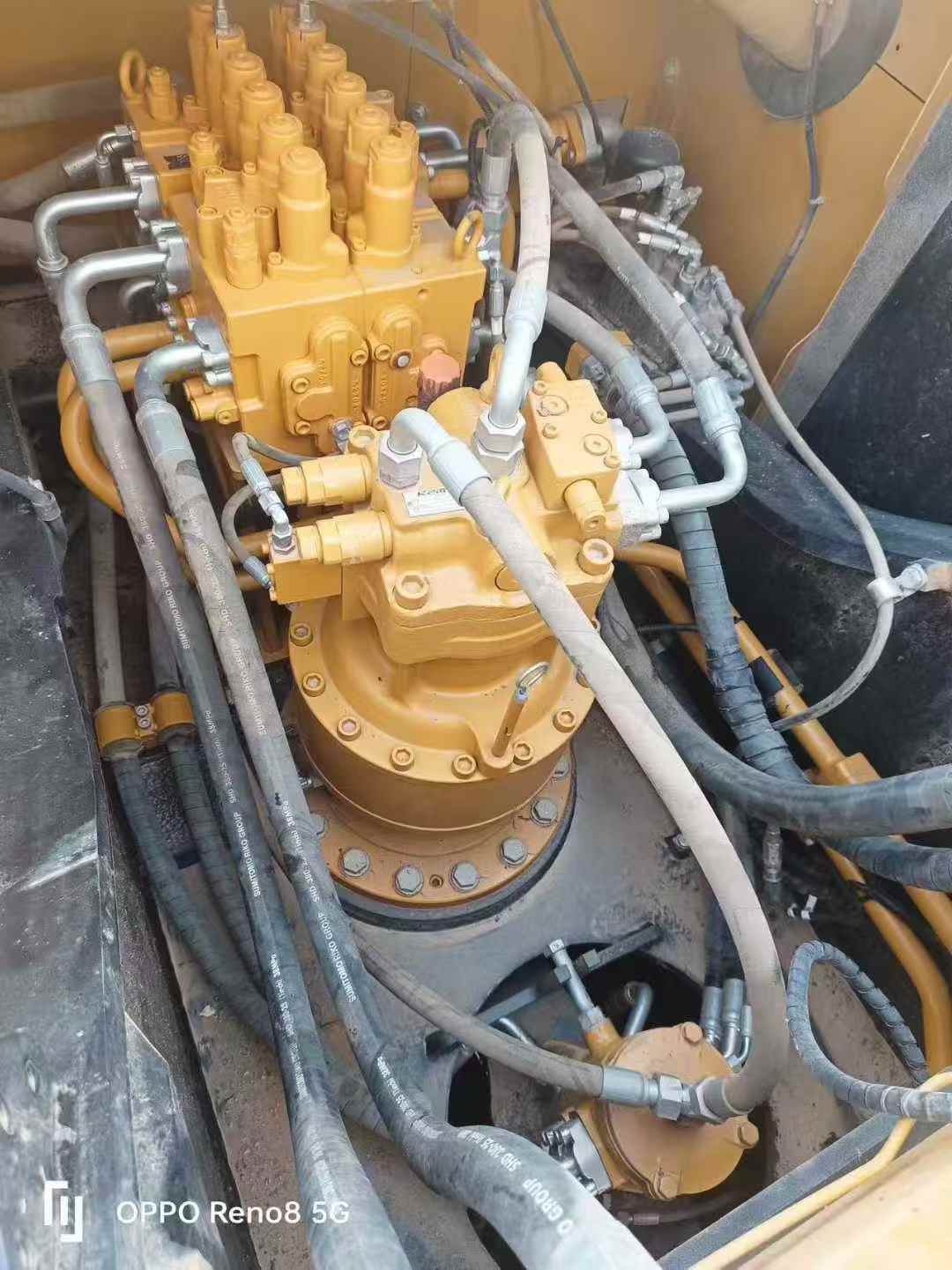

- High-efficiency hydraulic pump system with intelligent flow control

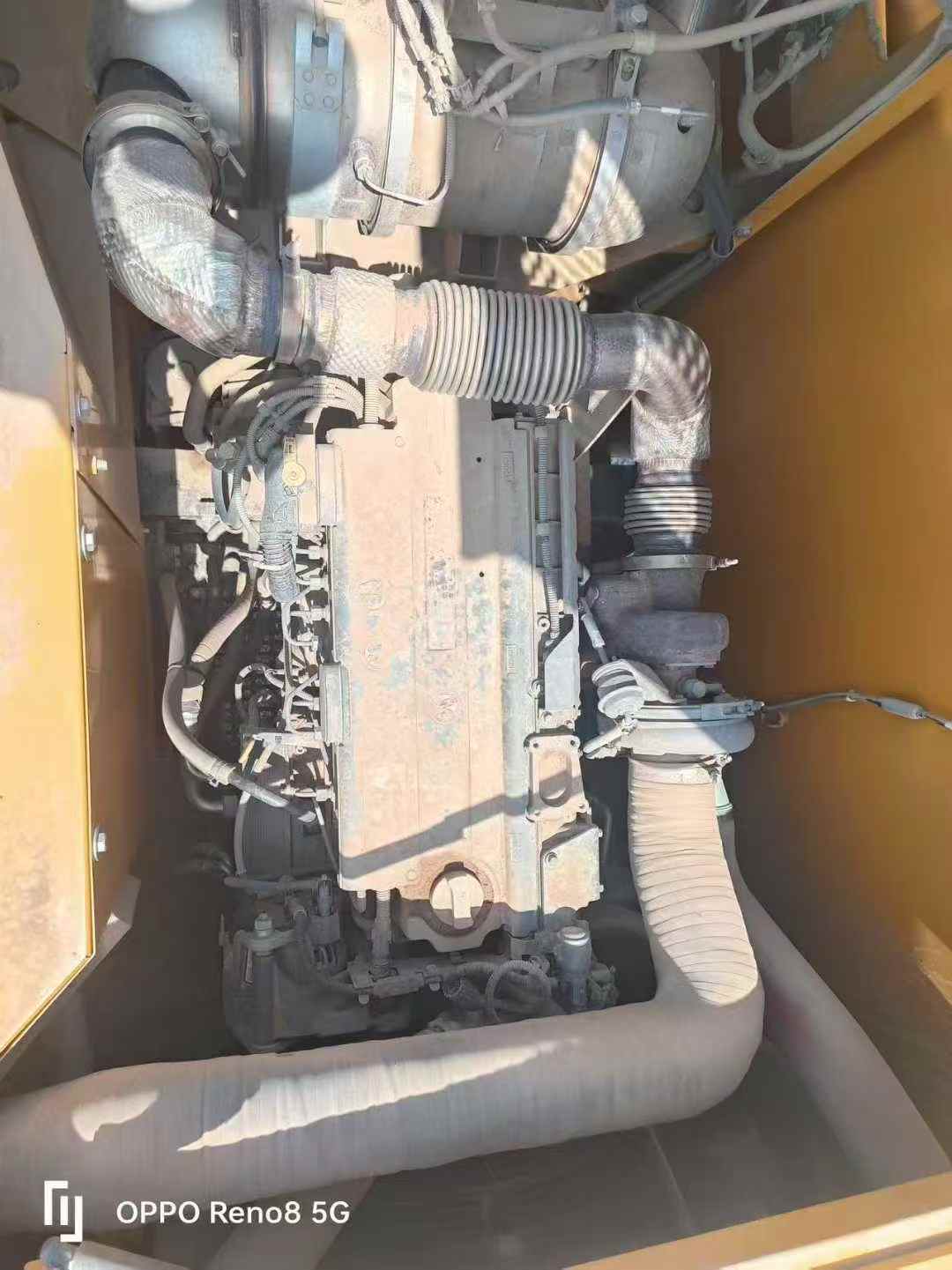

- National IV compliant engine with enhanced torque characteristics

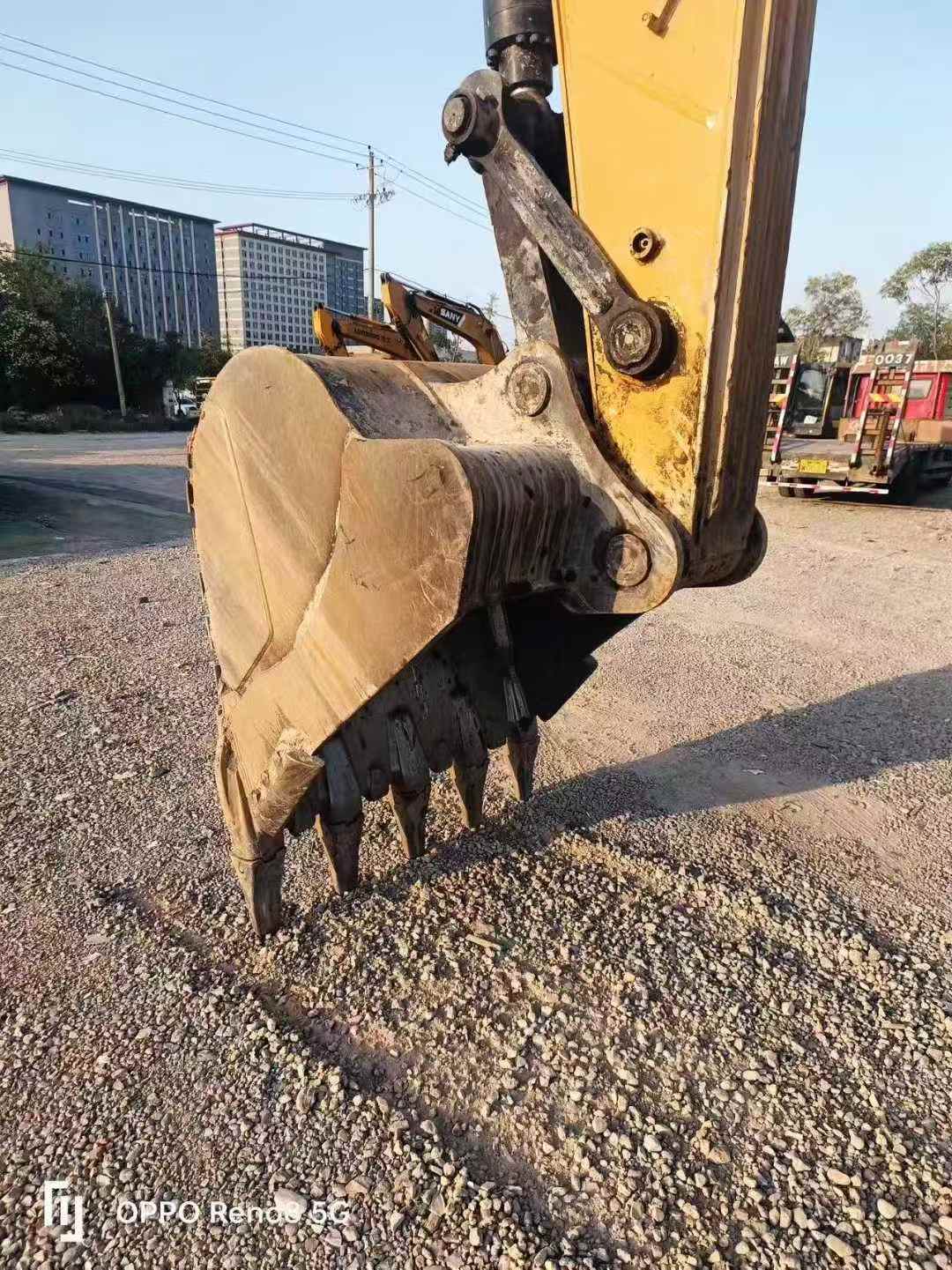

- Reinforced boom and arm structure for extended operational durability
- Advanced cooling system designed for continuous heavy-duty operation
- Precision-machined components ensuring minimal hydraulic pressure loss
Built on Sany's proven H-series platform, the SY245H combines German-influenced engineering standards with practical field-tested reliability. Operators benefit from responsive controls backed by sophisticated valve technology that translates input into precise bucket moveme
| Specifications | Value |
|---|---|
| No. | 1009025 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
