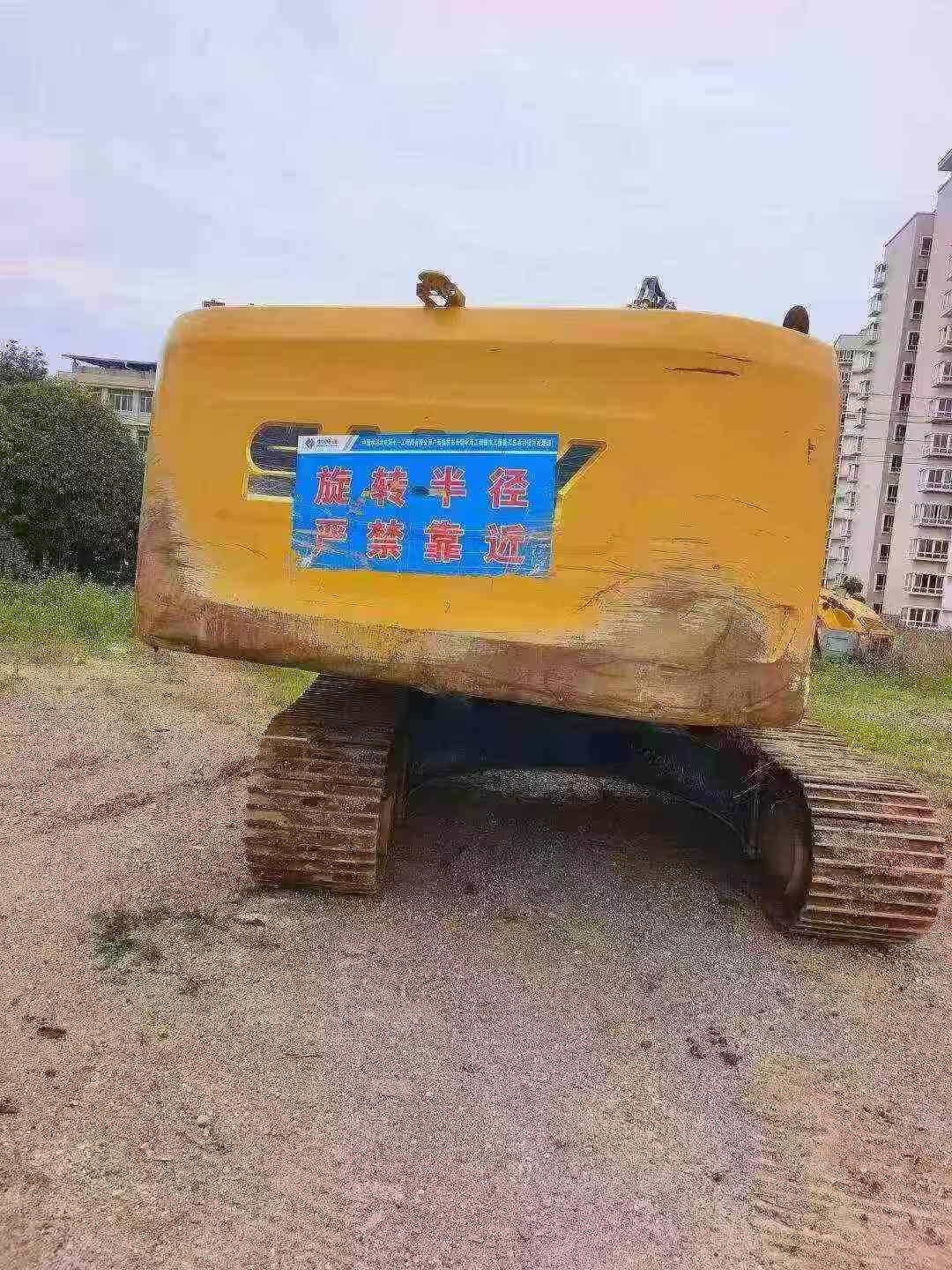

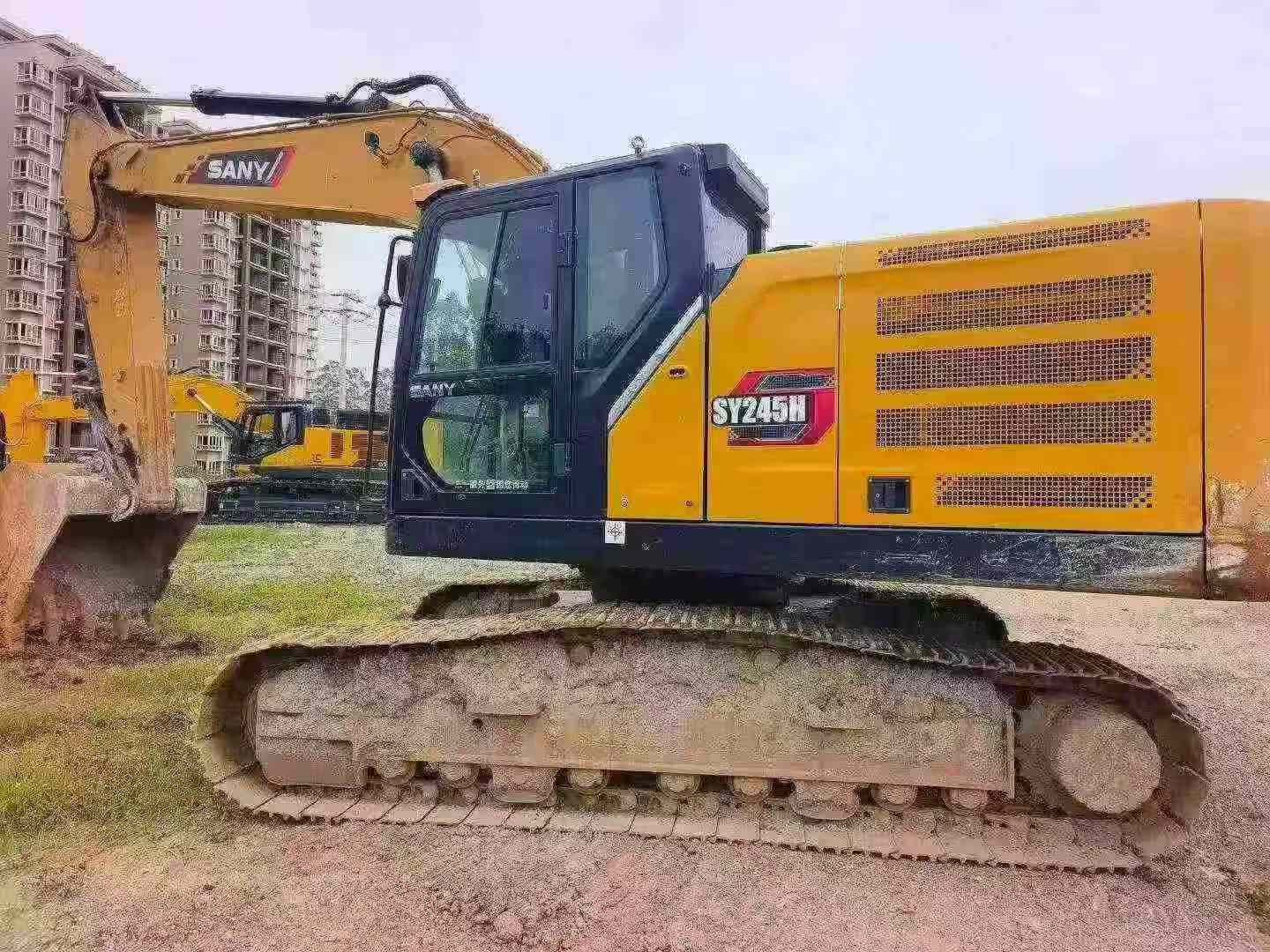

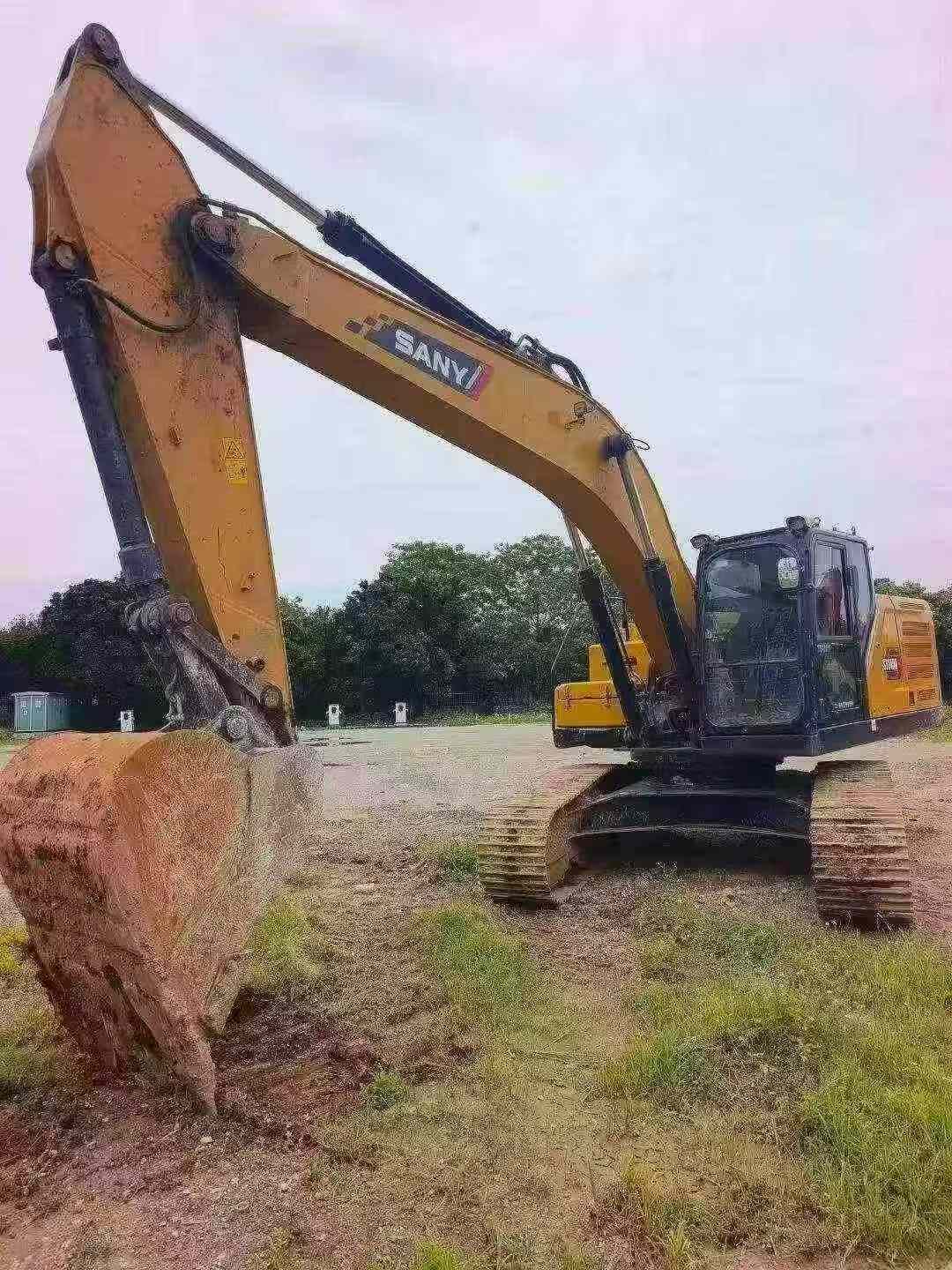

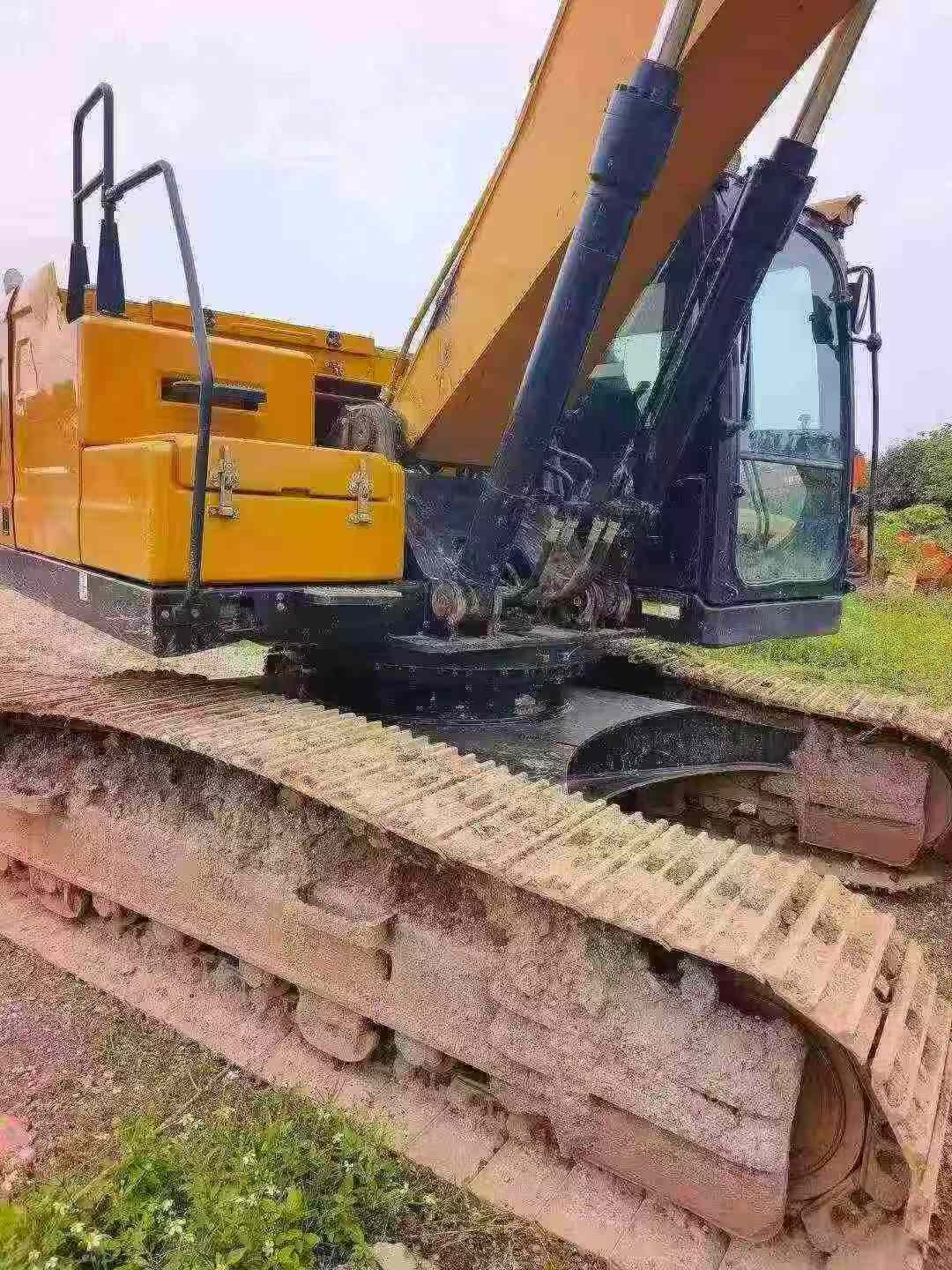

This 2023 Sany SY245H hydraulic excavator offers reliable performance for medium to heavy-duty earthmoving applications. With minimal operating hours in the low 30s, this machine presents an excellent opportunity for contractors seeking late-model equipment at competitive pricing.

The SY245H is engineered for fuel efficiency and productivity in construction, mining, and infrastructure projects. Its robust hydraulic system delivers consistent digging force and cycle times across demanding job sites.

<ul>
<li>Year: 2023</li>
<li>Model: Sany SY245H</li>
<li>Operating Hours: Approximately 30+</li>
<li>Location: Guangdong, China</li>
<li>Condition: Used, low hours</li>
</ul>

Currently located in Guangdong, China, this excavator is available for inspection. Ideal for buyers seeking proven Sany quality with minimal wear. Contact us for detailed specifications, current photos, and export assistance.

Hitachi EX200

Discover the reliability and efficiency of the 2018 XCMG XE55D, a robust excavator designed for various construction and excavation tasks. Located in Guangdong, China, this machine has been maintained to ensure optimal performance and durability. The XE55D is known for its powerful engine, smooth hydraulics, and versatile operation, making it a valuable asset for any construction fleet.
<ul>
<li>Year: 2018</li>
<li>Brand: XCMG</li>
<li>Model: XE55D</li>
<li>Location: Guangdong, China</li>
</ul>

XCMG XE55D

With a working weight of 5960 kg and a bucket capacity ranging from 0.09 to 0.23 m³, this 2020 XCMG XE60 excavator is ideal for a variety of tasks including digging, grading, and demolition. Equipped with a Yanmar 4TNV94L engine, it delivers 39.8 kW at 2200 rpm, ensuring reliable performance. The machine features a robust 3000 mm boom and 1600 mm rod, providing a maximum digging depth of 3830 mm and a maximum digging radius of 6130 mm. Its backhoe bucket and powerful hydraulic system, driven by a Rexroth main pump, ensure efficient operation. Designed for immediate site readiness, the XE60 boasts a travel speed of 4.2/2.2 km/h and a climbing ability of 35°, making it versatile for various terrains. Located in Guangdong, China, this excavator is ready to tackle your next project with precision and power.

XCMG XE60

This 2020 Komatsu PC120 hydraulic excavator is available from our Guangdong, China facility. The machine features an extended 13-meter long reach boom configuration, making it ideal for deep excavation, slope work, and applications requiring extended digging radius beyond standard configurations.

The PC120 is a proven mid-size excavator in Komatsu's construction equipment lineup, known for reliable hydraulic performance and fuel efficiency. The extended boom assembly enhances operational versatility for specialized earthmoving and construction projects.

<ul>
<li>Year of Manufacture: 2020</li>
<li>Model: Komatsu PC120</li>
<li>Configuration: 13-meter long reach boom</li>
<li>Location: Guangdong Province, China</li>
<li>Category: Hydraulic Excavator</li>
</ul>

This used machine offers cost-effective performance for contractors seeking extended reach capabilities. Contact our sales team for detailed inspection reports, shipping arrangements, and current availability.

Komatsu PC120

This 2019 Sany SY55 mini excavator is currently available from our facility in Zhejiang, China. With approximately 50,000 hours of operational use, this compact machine has been maintained through regular service intervals and remains in working condition. The SY55 represents Sany's reliable 5.5-ton class excavator, designed for urban construction, landscaping, and light earthmoving applications.

Key features of the Sany SY55 include:

<ul>
<li>Compact dimensions for confined worksite access</li>
<li>Hydraulic system optimized for efficient cycle times</li>
<li>Operator cabin with standard controls</li>
<li>Rubber tracks suitable for mixed terrain</li>
<li>Standard bucket and arm configuration</li>
</ul>

Documentation including operational photos and video footage is available upon request. This unit is ready for inspection by qualified buyers or their representatives. Export assistance and logistics coordination can be arranged to major ports worldwide.

Sany SY55

This 2018 Sany SY200C excavator represents a solid mid-size solution for contractors seeking reliable performance at competitive value. As a first-owner machine with documented service history, this unit has been maintained in Jiangxi province and shows consistent operational readiness.

The SY200C delivers dependable hydraulic performance and fuel efficiency typical of Sany's 20-ton class equipment. Standard features include reinforced undercarriage components, operator comfort controls, and straightforward maintenance access points that reduce downtime in demanding work environments.

<ul>
<li>Year: 2018</li>
<li>Model: Sany SY200C</li>
<li>Location: Jiangxi, China</li>
<li>Condition: First-owner unit</li>
<li>Availability: Ready for inspection</li>
</ul>

Suitable for earthmoving, site preparation, and general excavation applications. Contact us to arrange technical inspection or discuss logistics for your region.

Sany SY200C

Engineered for demanding excavation work, the Sany SY205C delivers 118 kW at 2,000 rpm through a proven traditional power drivetrain — paired with a bucket digging force of 138 kN and arm digging force of 109 kN. At 21,500 kg operating weight, this 20-ton class machine strikes a precise balance between raw digging capability and site mobility.

Built in China by Sany's established manufacturing infrastructure, the SY205C carries a ground pressure of just 47.3 kPa across 600 mm track plates — minimizing surface impact on sensitive terrain. A 70% gradeability rating and dual travel speeds of 5.4 / 3.3 km/h give operators confident control across varied ground conditions.

<ul>
 <li>Bucket capacity: 0.9–1.1 m³ (rated 1.0 m³) backhoe configuration</li>
 <li>Maximum digging depth: 6,600 mm</li>
 <li>Maximum digging radius: 10,280 mm</li>
 <li>Maximum excavation height: 9,600 mm</li>
 <li>Maximum unloading height: 6,730 mm</li>
 <li>Swing speed: 11 rpm | Back-end turning radius: 2,900 mm</li>
 <li>Transport dimensions: 9,680 × 2,980 × 3,440 mm</li>
</ul>

This 2019 unit is currently located in Guangxi, China — available for inspection and ready for export. Contact Fair Trade Machinery for pricing and logistics details.

Sany SY205C

This 2020 Caterpillar 349E hydraulic excavator represents a solid investment for contractors seeking proven performance in heavy earthmoving applications. Currently located in Guangxi, China, this machine comes from Caterpillar's respected 349 series, known for reliable operation in demanding construction and mining environments.

The 349E delivers substantial digging force and bucket capacity suited for large-scale excavation, trenching, and material handling projects. Its robust undercarriage and hydraulic systems are engineered for extended service life under challenging site conditions.

<ul>
<li>Year of Manufacture: 2020</li>
<li>Model: Caterpillar 349E</li>
<li>Location: Guangxi, China</li>
<li>Competitive pricing available</li>
</ul>

This excavator offers an opportunity to acquire late-model Caterpillar quality at an attractive price point. Ideal for contractors expanding fleet capacity or replacing aging equipment. Contact us for detailed specifications, current condition assessment, and shipping arrangements.

Caterpillar 349E

This 2018 Caterpillar 349E excavator represents a well-maintained heavy-duty machine currently located in Guangxi, China. With approximately 400,000 operational hours logged, this unit demonstrates proven durability in demanding applications. The excavator comes equipped with a Beilite hydraulic breaker attachment, expanding its versatility for demolition and rock-breaking tasks.

Key features include:
<ul>
<li>Caterpillar 349E platform with robust undercarriage</li>
<li>Factory-installed Beilite hammer attachment</li>
<li>Single-owner operational history</li>
<li>Suitable for quarrying, demolition, and heavy excavation</li>
<li>Available for immediate inspection in Guangxi</li>
</ul>

This machine offers reliable performance for contractors seeking proven Caterpillar engineering combined with specialized breaking capability. Ideal for operations requiring both excavation and material processing functionality in a single platform.

This 2016 Sany SY95C midi excavator offers reliable performance for contractors seeking proven Chinese engineering. With over 80,000 hours of operational use, this machine demonstrates the durability expected from Sany's 9-ton class equipment. Currently located in Fujian, China, the SY95C is well-suited for urban construction, utility work, and general excavation applications where maneuverability and reach are essential.

Key features include:
<ul>
<li>Sany SY95C midi excavator platform</li>
<li>2016 model year</li>
<li>Extensive operational history demonstrating longevity</li>
<li>Located in Fujian Province, China</li>
<li>Appropriate for medium-duty excavation and material handling</li>
</ul>

This unit represents an economical entry point for operators requiring a mid-sized excavator with established service records. Inspection welcomed. Export documentation can be arranged for international buyers.

Sany SY95C

This 2020 Komatsu PC130-7 hydraulic excavator is available from Fujian, China. With approximately 60,000 hours of operation, this mid-size crawler excavator has been actively used in the field and shows corresponding wear consistent with its service history.

The PC130-7 is a proven workhorse in the 13-ton class, known for its reliable Komatsu SAA4D95LE engine and efficient hydraulic system. This model offers a good balance of digging force, reach, and fuel economy for general earthmoving, trenching, and site preparation work.

Key features include:
<ul>
<li>Operating weight approximately 13 tons</li>
<li>Turbocharged diesel engine</li>
<li>Standard boom and arm configuration</li>
<li>Enclosed operator cab</li>
<li>Crawler undercarriage for stability</li>
</ul>

Suitable for contractors seeking a used excavator with established service history. Inspection recommended before purchase.

Komatsu PC130-7

This 2020 Hitachi EX200-3 excavator is currently located in Guangxi, China and available at a competitive price point. The EX200-3 represents Hitachi's proven mid-size excavator platform, designed for reliable performance across general construction, earthmoving, and site development applications.

Key features include:

<ul>
<li>Hitachi's durable hydraulic system for consistent digging performance</li>
<li>20-ton operating class suitable for medium-duty excavation work</li>
<li>Spacious operator cabin with good visibility</li>
<li>Robust undercarriage built for varied terrain conditions</li>
<li>Established parts availability and service network</li>
</ul>

This used machine offers an economical entry point for contractors seeking dependable excavation capacity. Inspection is recommended to verify current condition and maintenance history. Contact us for detailed specifications, pricing, and shipping arrangements to your location.

Hitachi EX200-3

This 2020 Sumitomo SH120 hydraulic excavator is available from our Guangdong, China facility. The SH120 is a reliable 12-ton class machine known for its fuel efficiency and operator comfort in medium-duty applications. Sumitomo's engineering delivers consistent performance across construction, demolition, and material handling tasks.

Key features include:
<ul>
<li>12-ton operating weight for versatile job site deployment</li>
<li>Fuel-efficient engine meeting modern emission standards</li>
<li>Spacious operator cabin with ergonomic controls</li>
<li>Durable undercarriage designed for extended service life</li>
<li>Hydraulic system optimized for smooth operation and productivity</li>
</ul>

This unit has been maintained in working condition and is ready for inspection. Contact our team for detailed specifications, current machine hours, and shipping arrangements to your location.

Sumitomo SH120

This 2020 Kato HD513MR-6 excavator is a field-proven machine sourced from an active construction site in Guangdong, China. The HD513MR-6 represents Kato's commitment to reliable mid-range excavation equipment, designed for contractors who need dependable performance without unnecessary complexity.

Key highlights:
<ul>
<li>2020 model year with documented site usage history</li>
<li>Kato HD513MR-6 platform engineered for versatility</li>
<li>Currently located in Guangdong, China for inspection</li>
<li>Suitable for general excavation, trenching, and material handling</li>
<li>Well-maintained field machine ready for continued service</li>
</ul>

This excavator has been evaluated as appropriate for end-user operations, offering a practical solution for contractors seeking proven Japanese engineering at a competitive price point. Available for immediate purchase and export coordination from our Guangdong facility.

Kato HD513MR-6

This 2020 Caterpillar 336EL hydraulic excavator represents a solid mid-size solution for contractors and operators seeking proven performance in demanding applications. With approximately 300,000 RMB hours of operation, this machine has been maintained in excellent condition and is currently located in Guangdong, China.

The 336EL is known for its 36-ton operating weight and reliable fuel efficiency in its class. Caterpillar's hydraulic system delivers responsive control for precision work, while the spacious cab provides operator comfort during extended shifts.

<ul>
<li>Year: 2020</li>
<li>Model: Caterpillar 336EL</li>
<li>Location: Guangdong Province, China</li>
<li>Condition: Well-maintained, competitively priced</li>
<li>Suitable for: Excavation, material handling, site development</li>
</ul>

This unit is available for immediate inspection and delivery. Contact us for detailed service records and current pricing.

Caterpillar 336EL

This 2021 XCMG ZL20E(D) wheel loader is currently located in Chongqing, China and available for immediate inspection. As a compact loader from XCMG's reliable ZL series, this machine offers practical performance for material handling, construction site work, and light earthmoving applications.

Key features include:
<ul>
<li>Compact design suitable for confined work areas</li>
<li>Proven XCMG engineering and build quality</li>
<li>Low operating hours for a 2021 model year</li>
<li>Ready for viewing and operational assessment</li>
</ul>

This unit represents a cost-effective solution for contractors and operators seeking dependable loading capacity without the premium of new equipment. The machine is priced competitively for the current market. Interested buyers are encouraged to schedule an on-site inspection to verify condition and performance firsthand.

Specifications	Value
No.	1074296
Tonnage (tons)	24
Working weight (kg)	25500
Bucket capacity (m³)	1.3~1.5(1.5)
power	Traditional power
manufacturer	Made in China
bucket	backhoe

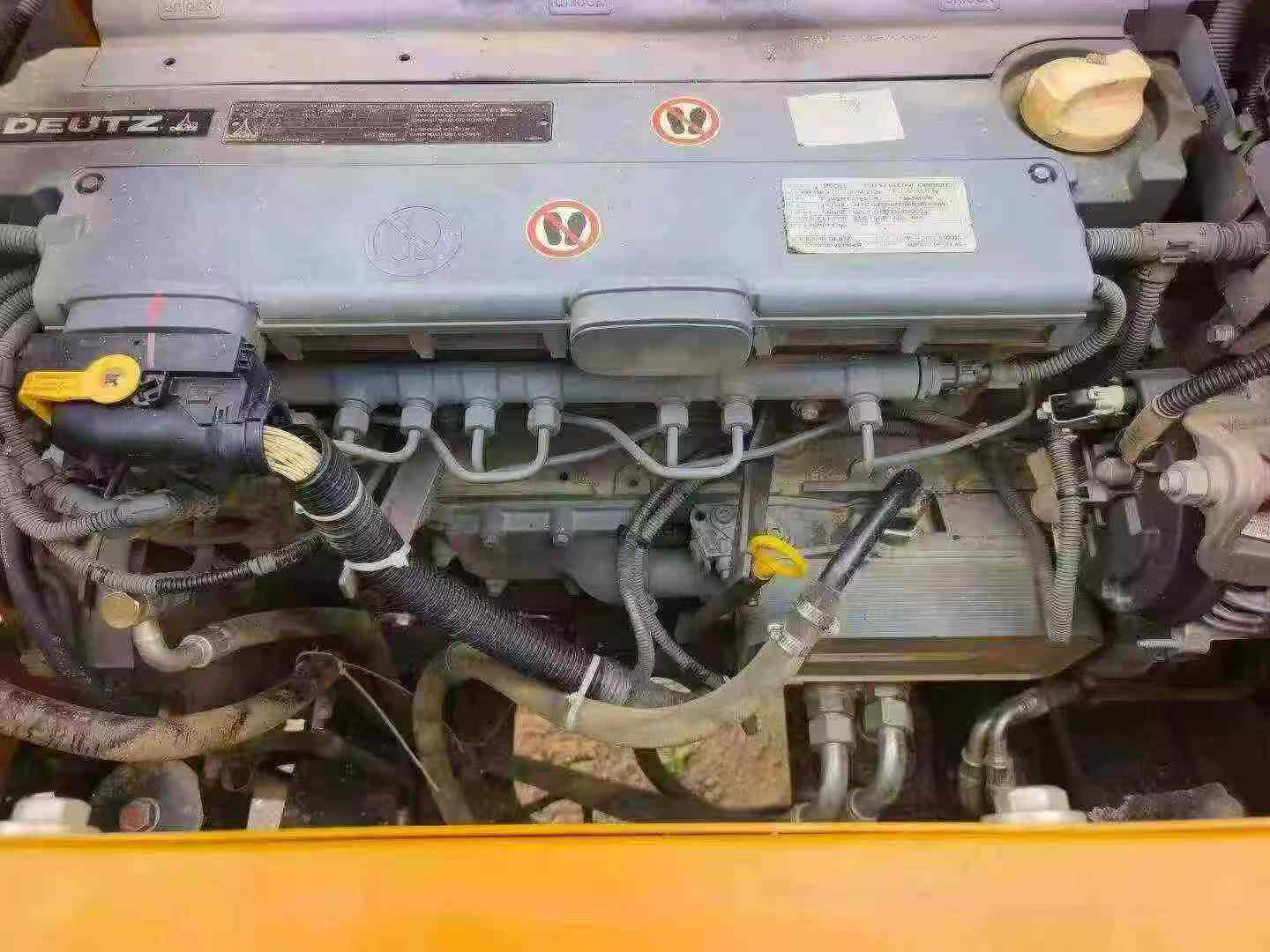

Engine type	D06FRC
Rated power (kw/rpm)	147/2100
Cooling mode	water-cooling
Maximum torque (N.m)	750/1350
Number of cylinders (PCS)	6
Displacement (L)	6.373
Ground specific pressure (Kpa)	53.2
Rotation speed (rpm)	10.6
Climbing ability (%)	70
Bucket digging force (kN)	175
Rod digging force (kN)	120
Travel speed (km/h)	5.4/3.4
Fuel Tank (L)	475
Hydraulic Tank (L)	277
Engine Oil changes (L)	29
Total transport length (mm)	10290
Total transport width (mm)	3190
Total transport height (mm)	3190
Full cab height (mm)	3255
Minimum ground clearance (mm)	470
Minimum turning radius of front working device (mm)	3800
Back end turning radius (mm)	3105
Onboard width (mm)	3045
Total track length (mm)	4445
Track gauge (mm)	2590
Track plate width (mm)	600
Track ground length (mm)	3640
Maximum height at minimum turning radius (mm)	8016
Number of sprockets (single side) (each)	2
Number of wheels (single side) (each)	9
Number of track plates (single side) (PCS)	49
Maximum digging radius (mm)	10225
Maximum digging depth (mm)	6705
Maximum excavation height (mm)	9745
Maximum unloading height (mm)	6715
