Product Description

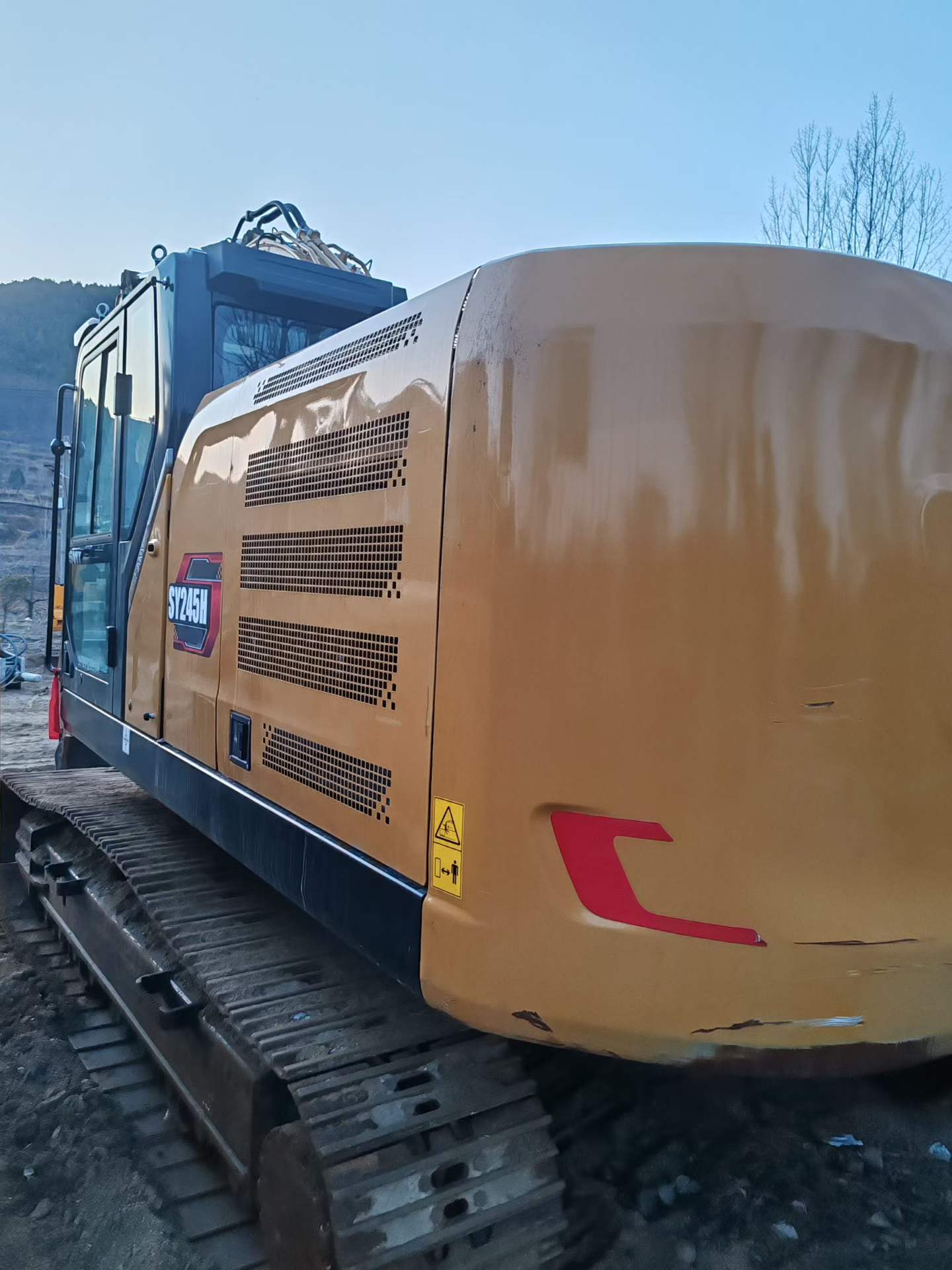

Designed for demanding excavation work, this 2024 Sany SY245H delivers exceptional operator control and all-day comfort. Equipped with China IV emission standards, this 24-ton class excavator combines regulatory compliance with proven hydraulic performance. Currently available in Linyi, Shandong, this machine represents Sany's commitment to operator-focused engineering.
Operator advantages include:

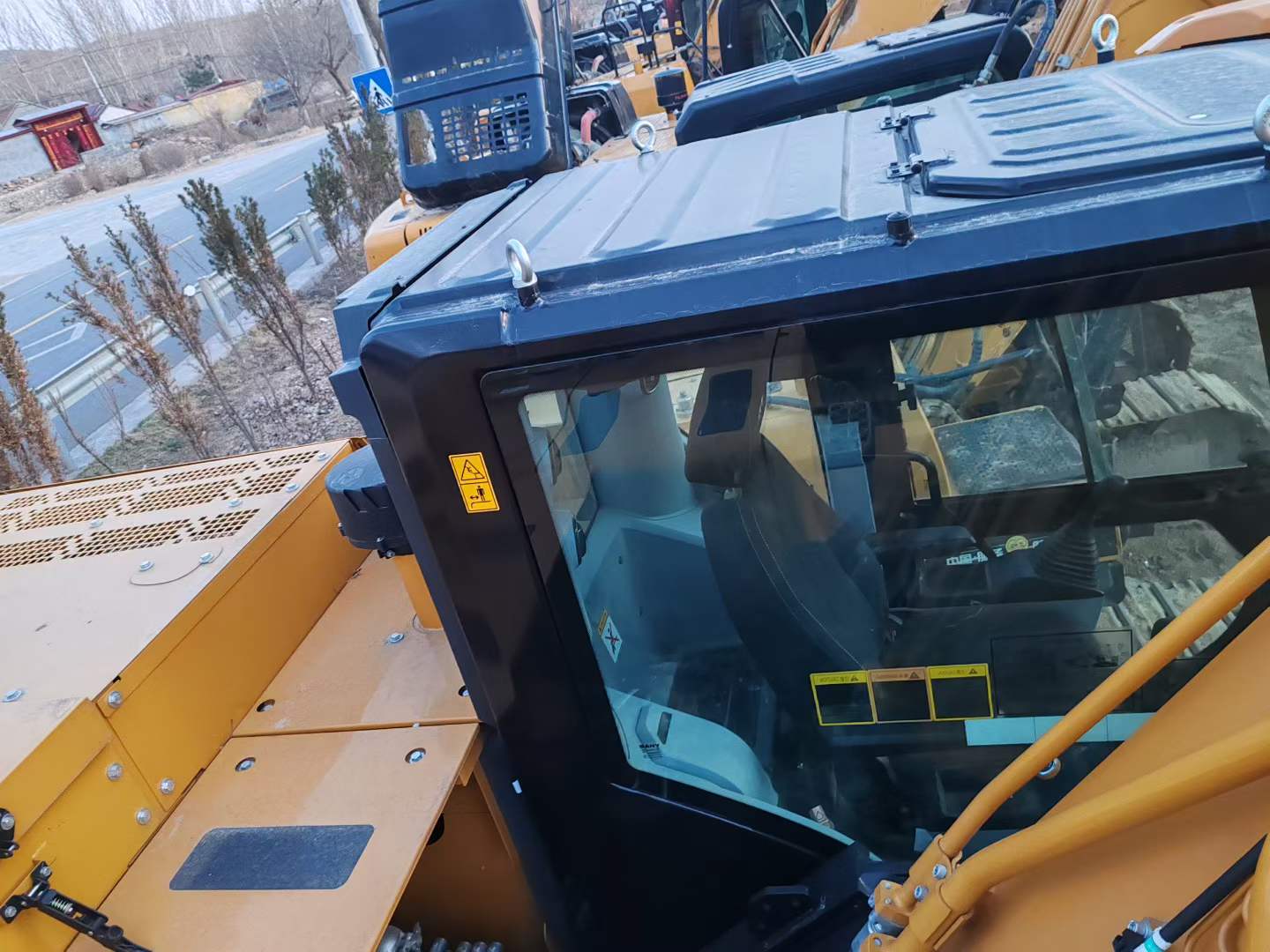

- Spacious cabin with panoramic visibility for enhanced site awareness and precision digging
- Ergonomic control layout reduces fatigue during extended shifts
- Advanced suspension seat and climate control maintain productivity in challenging conditions
- Low-vibration design and sound insulation create a stable working environment
- Intuitive monitor system provides real-time machine data at a glance
- Wide front window and slim A-pillars optimize sightlines to bucket and attachment points
Stability remains paramount with a reinforced undercarriage and optimized counterweight distribution. Hydraulic responsiveness allows precise load handling across varied terrain. For contractors prioritizing operator retention and job site efficiency, this SY245H offers a practical so
| Specifications | Value |
|---|---|
| No. | 1009394 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
