Product Description

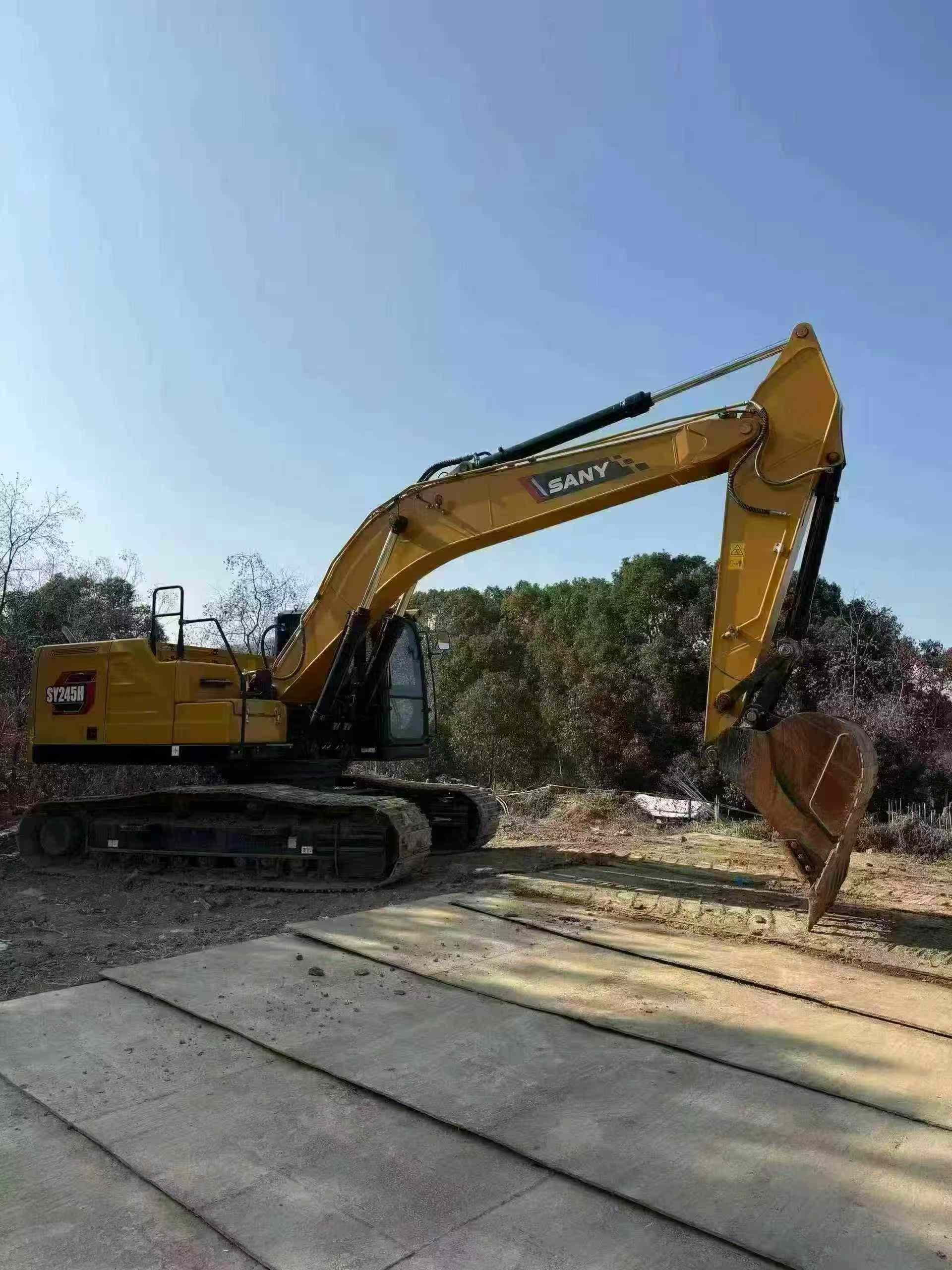

With a robust 24-ton working weight and a powerful D06FRC engine, the Sany SY245H excavator is designed for efficiency and reliability. Located in 浙江杭州, this machine is available now, allowing you to skip the factory lead times and achieve fast deployment to your site. Featuring a bucket capacity of 1.3~1.5 m³ and a maximum digging depth of 6705 mm, it excels in various construction and excavation tasks. The SY245H boasts a travel speed of up to 5.4 km/h, ensuring swift movement on-site. Its 475-liter fuel tank and 277-liter hydraulic tank support extended operational hours without frequent refueling. With a ground specific pressure of 53.2 Kpa and a climbing ability of 70%, this excavator is well-suited for challenging terrains. Trust the Sany SY245H for its speed, power, and immediate availability.
| Specifications | Value |
|---|---|
| No. | 1020660 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

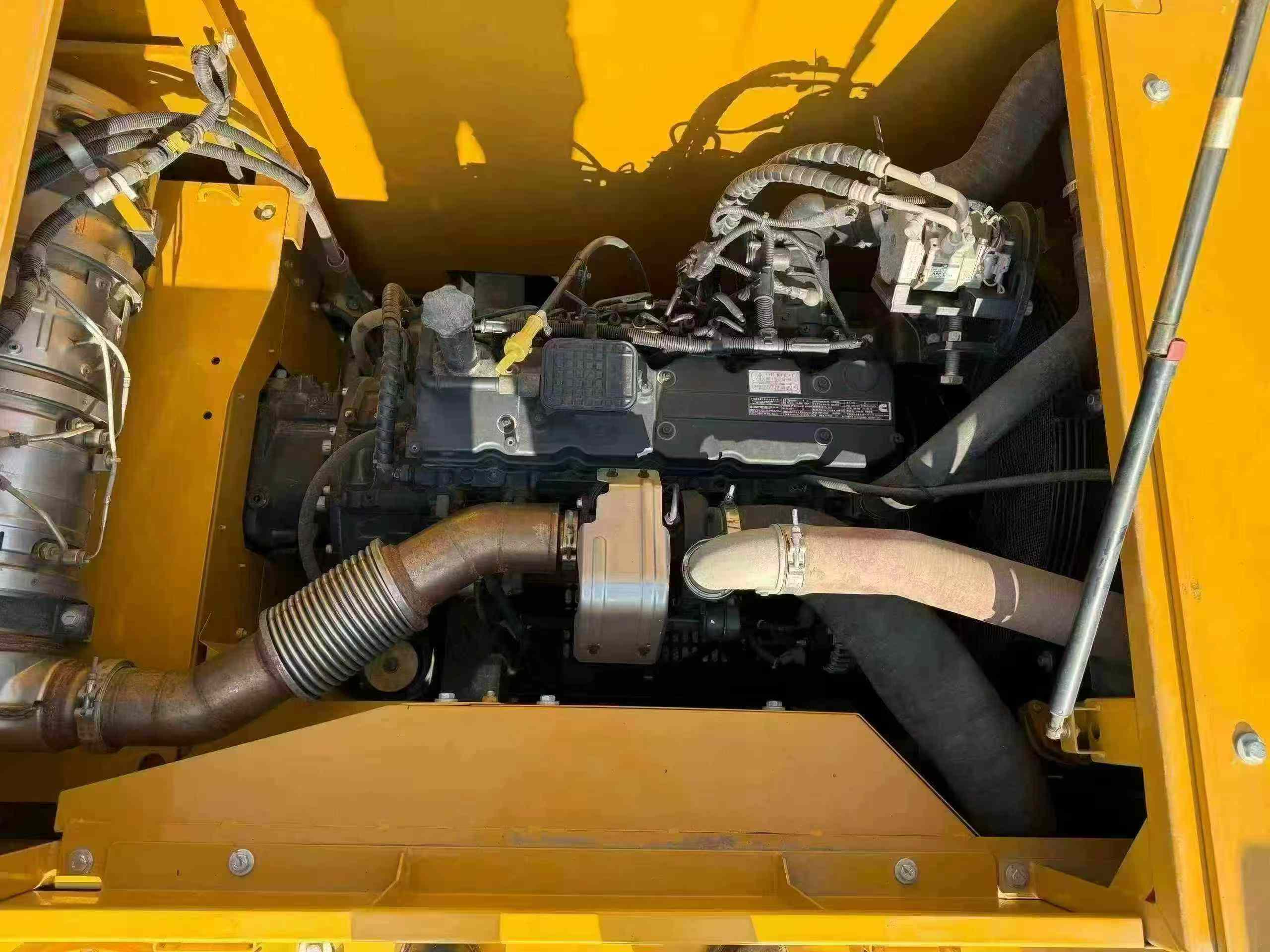

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
