Product Description

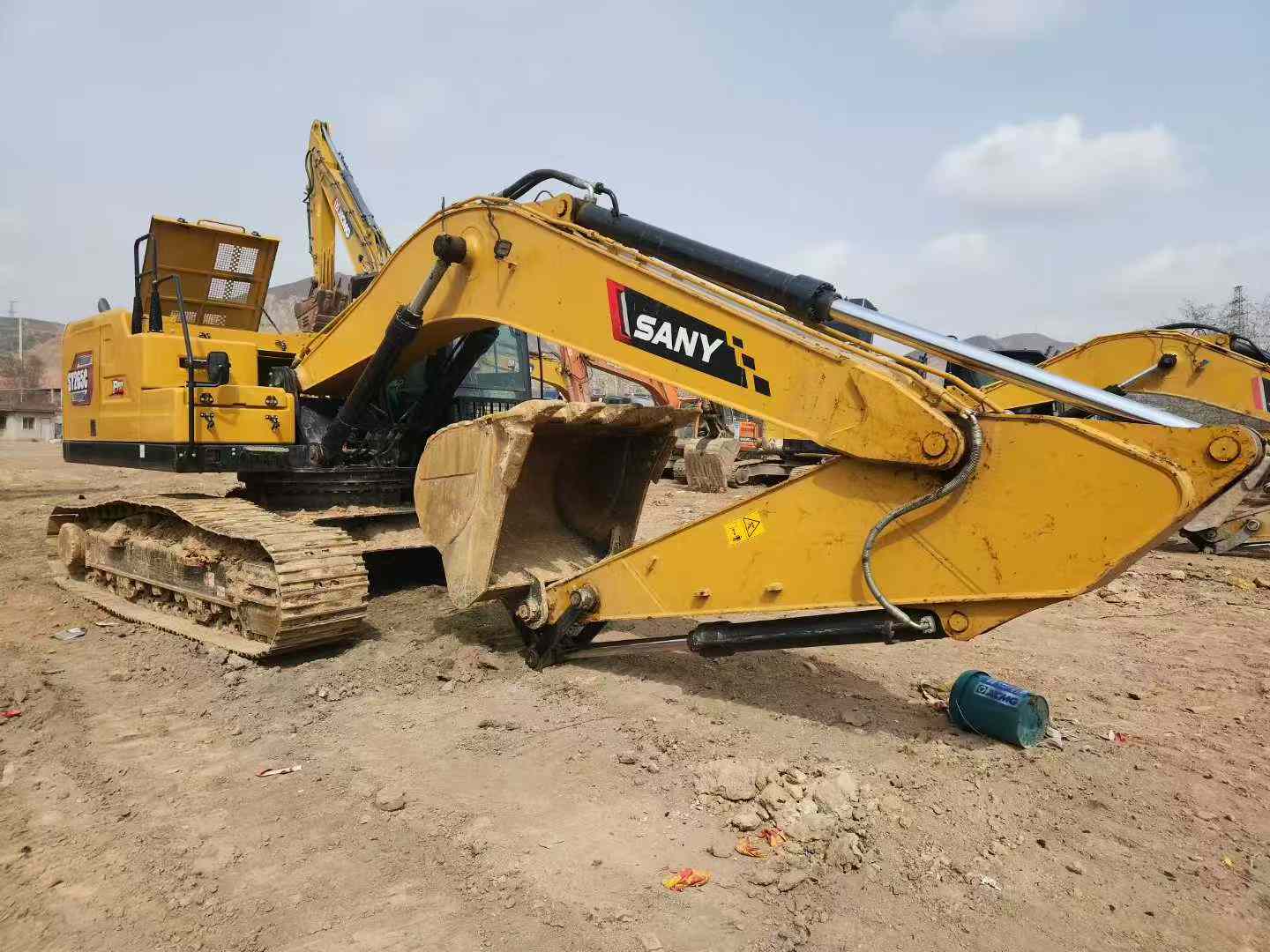

Expand your operational capacity with this 2024 Sany SY245H excavator, a proven 24-ton workhorse engineered for demanding jobsites across Gansu and beyond. Built with Sany's robust D06FRC engine delivering 147kW at 2100rpm, this machine integrates seamlessly into existing fleets requiring reliable backup power or additional capacity during peak project cycles.
Contractors managing multiple sites benefit from its versatile 1.3-1.5m³ bucket capacity and impressive reach specifications: 10,225mm maximum digging radius and 6,705mm depth capability handle everything from foundation work to mass excavation. With 175kN bucket digging force and 120kN arm force, productivity remains consistent across soil conditions. The water-cooled system and 475L fuel tank support extended operating shifts without frequent refueling interruptions.
- Working weight: 25,500kg with 600mm track plates for stability
- Transport dimensions: 10,290mm × 3,190mm × 3,190mm

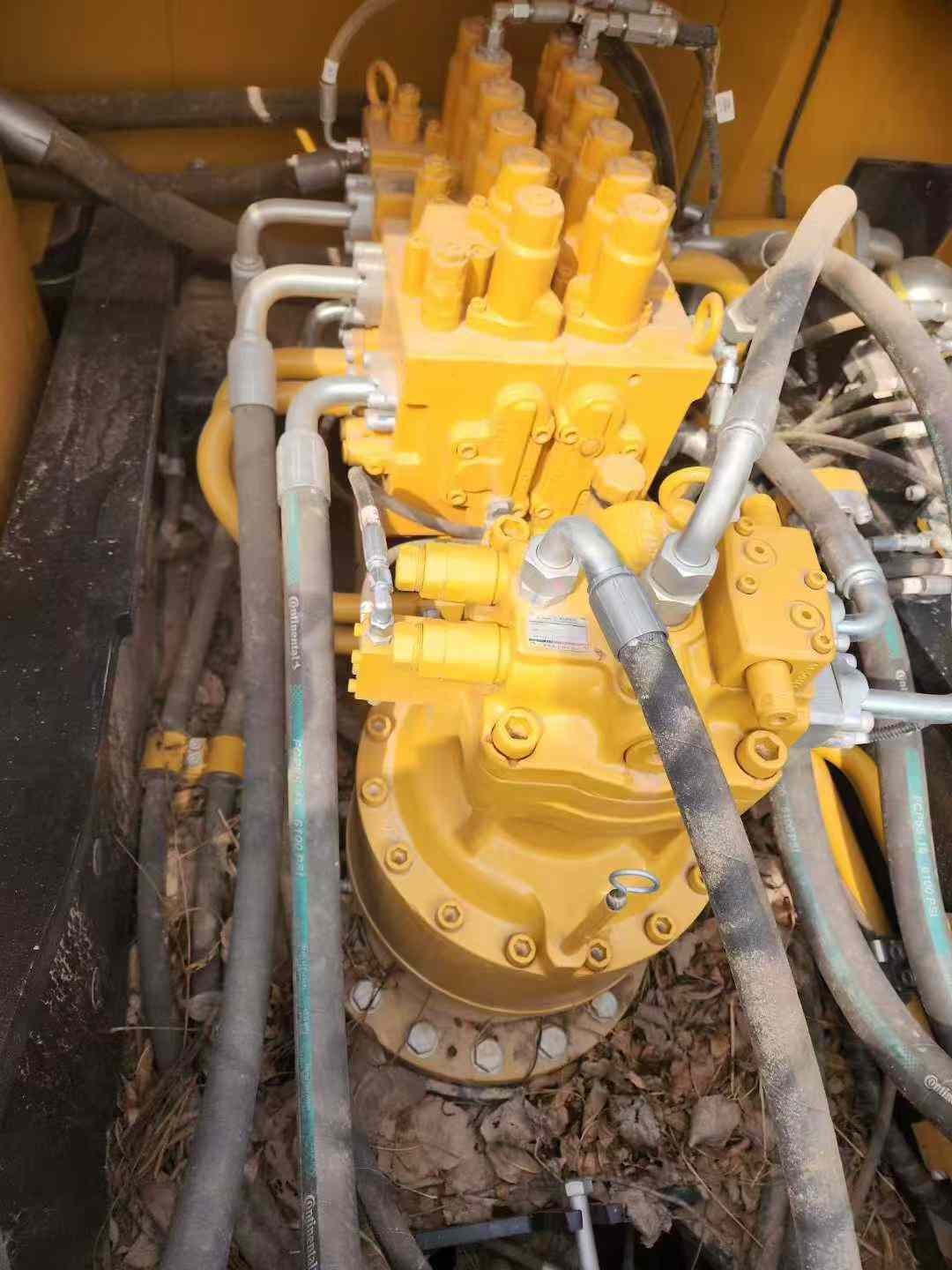

- Hydraulic efficiency: 277L tank capacity, 10.6rpm rotation speed
- Mobility: 70% grading ability, 5.4/3.4km/h travel speeds
- Made in China quality with traditional power reliability
Available now from Gansu—ready for immediate flee
| Specifications | Value |
|---|---|
| No. | 1033704 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

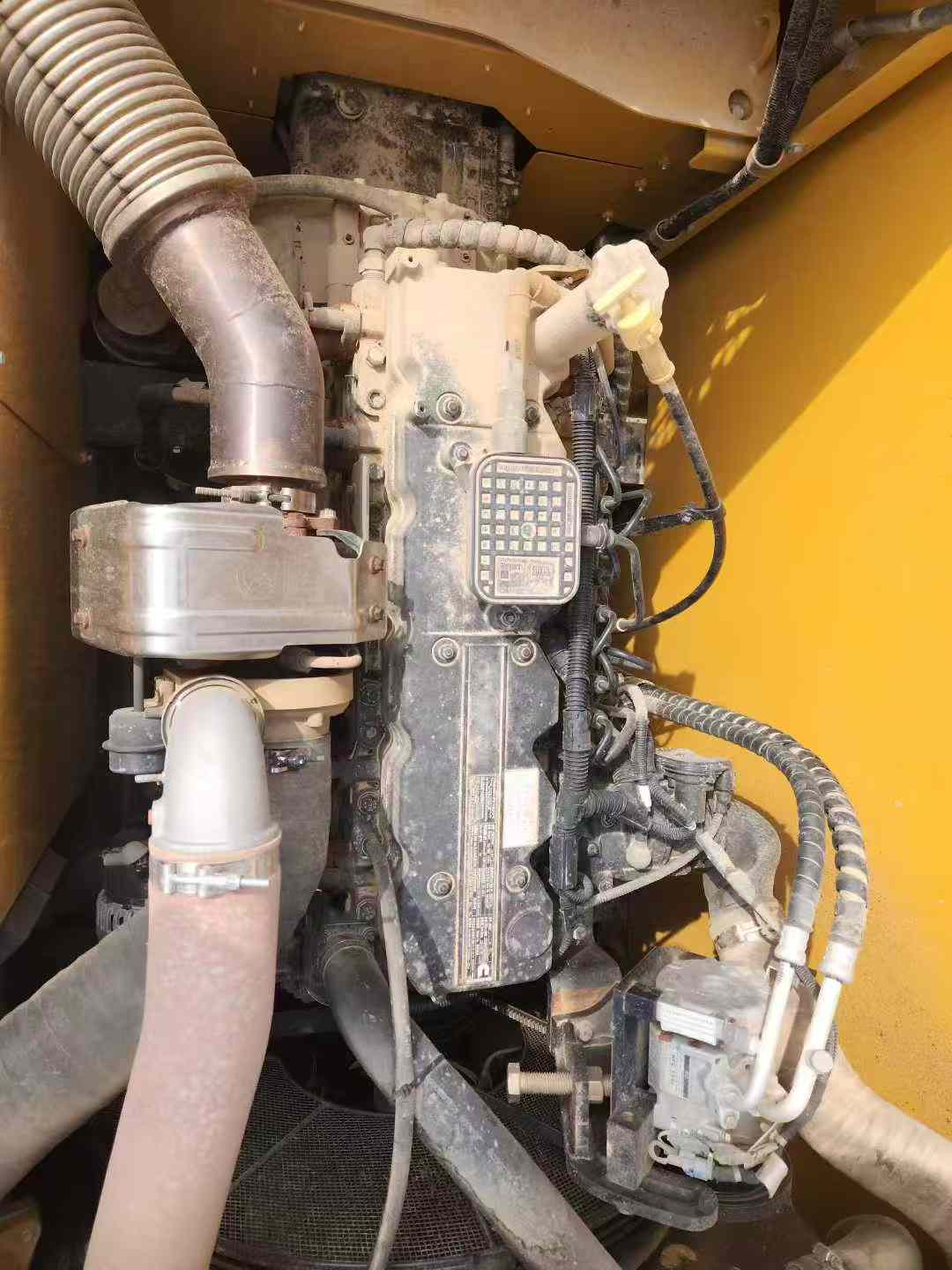

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
