Product Description

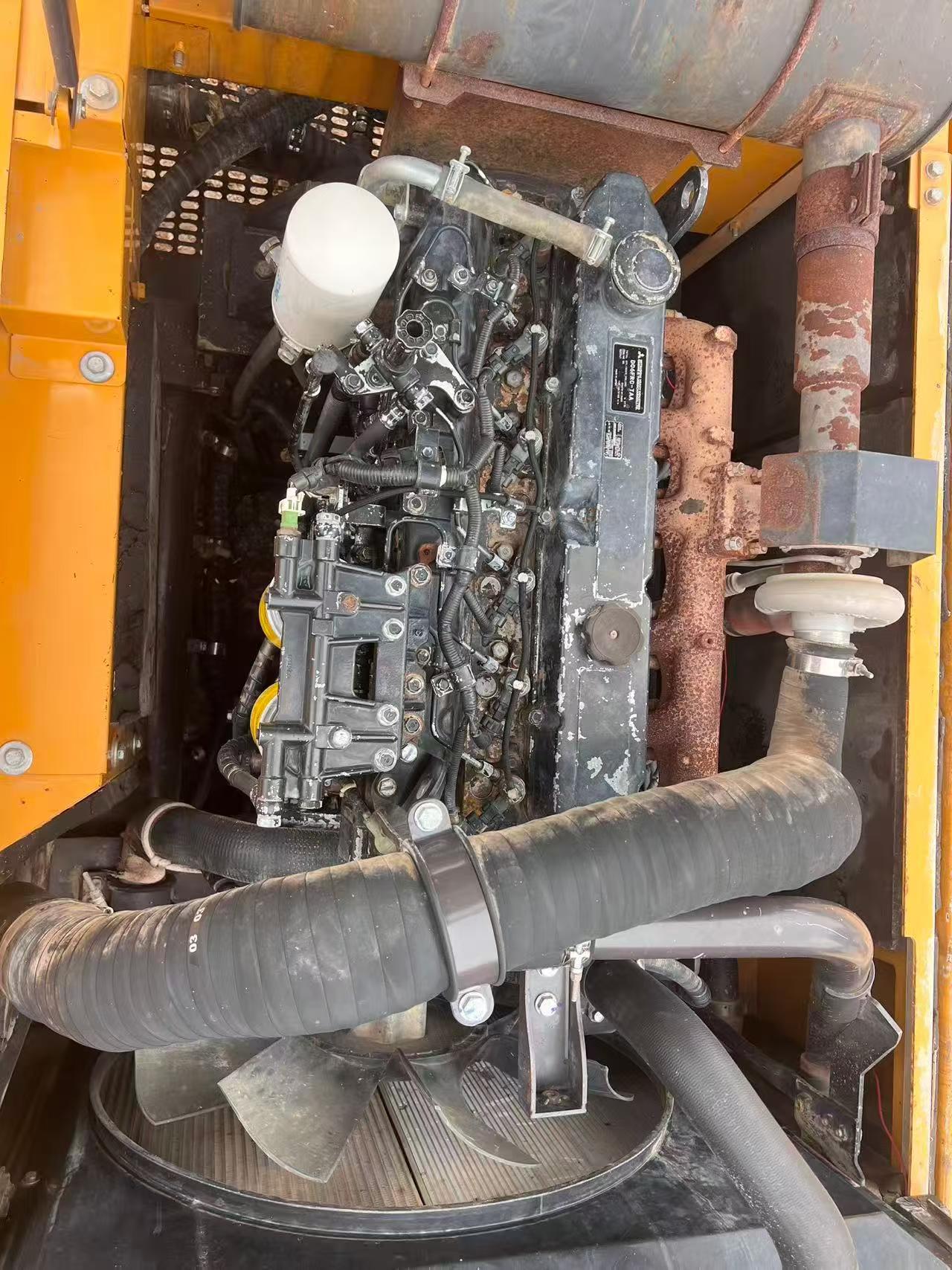

Expand your fleet capacity with this robust 2015 Sany SY265C excavator, purpose-built for contractors managing multiple jobsites simultaneously. Powered by a reliable Mitsubishi D06FRC engine delivering 147kW at 2100rpm, this 26-ton workhorse provides consistent performance when your primary equipment is deployed elsewhere. Operating weight of 26,500kg and 1.3m³ bucket capacity handle serious earthmoving tasks without compromise.
Key fleet-ready specifications include:
- Maximum digging reach of 10,225mm and depth capability to 6,705mm for versatile site applications
- Impressive 175kN bucket digging force tackles compacted materials efficiently
- 475L fuel tank and water-cooled system support extended operational shifts
- 70% climbing ability (35°) ensures mobility across challenging terrain
- Transport dimensions (10,290 × 3,190 × 3,255mm) allow standard trailer movement between sites
Currently located in Shenzhen, Guangdong, this machine serves as an immediate production solution for contractors requiring backup capacity during peak demand periods or concurrent project scheduling.
| Specifications | Value |
|---|---|
| No. | 1026867 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.8/3.7 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3105 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
