Product Description

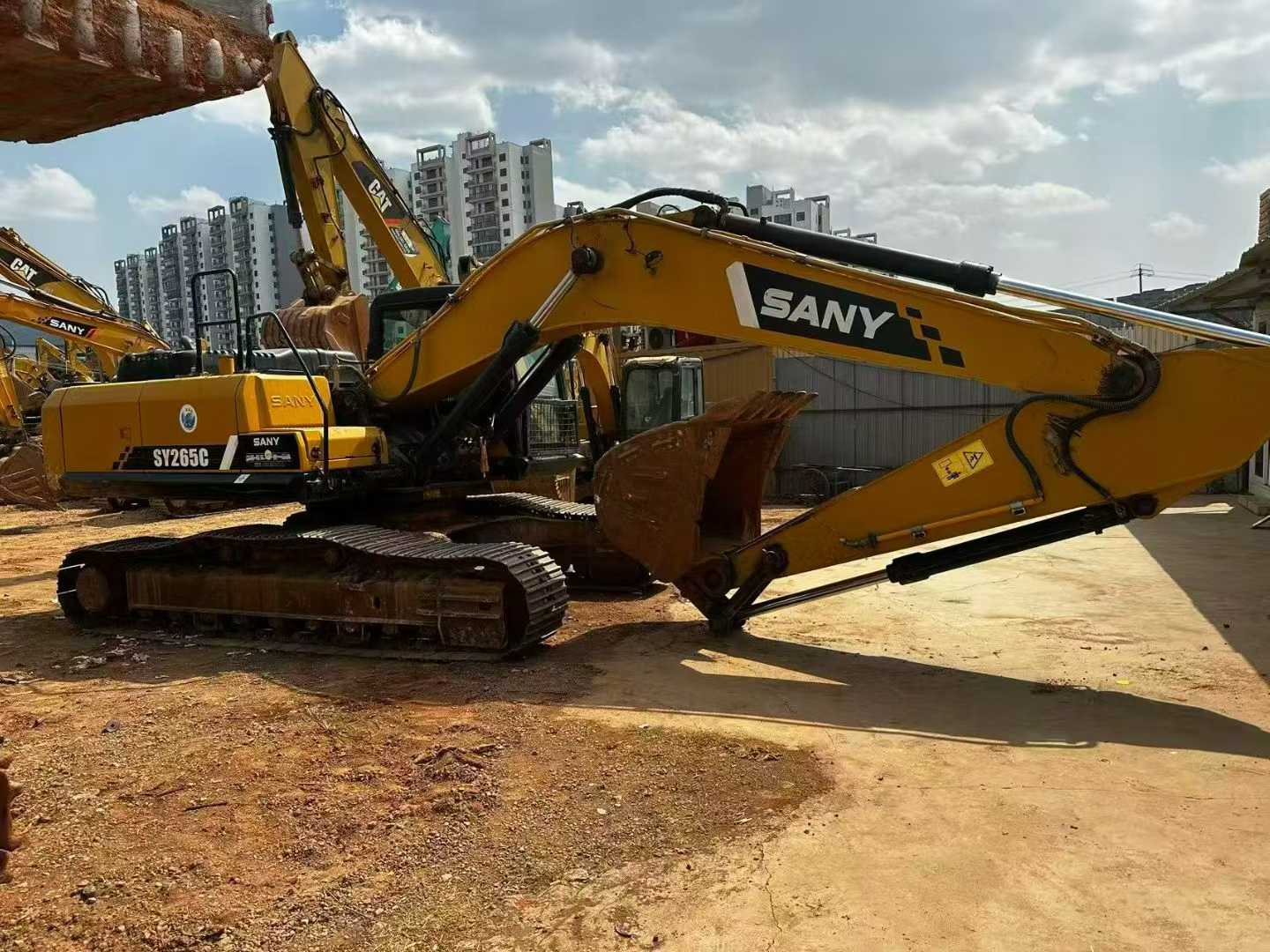

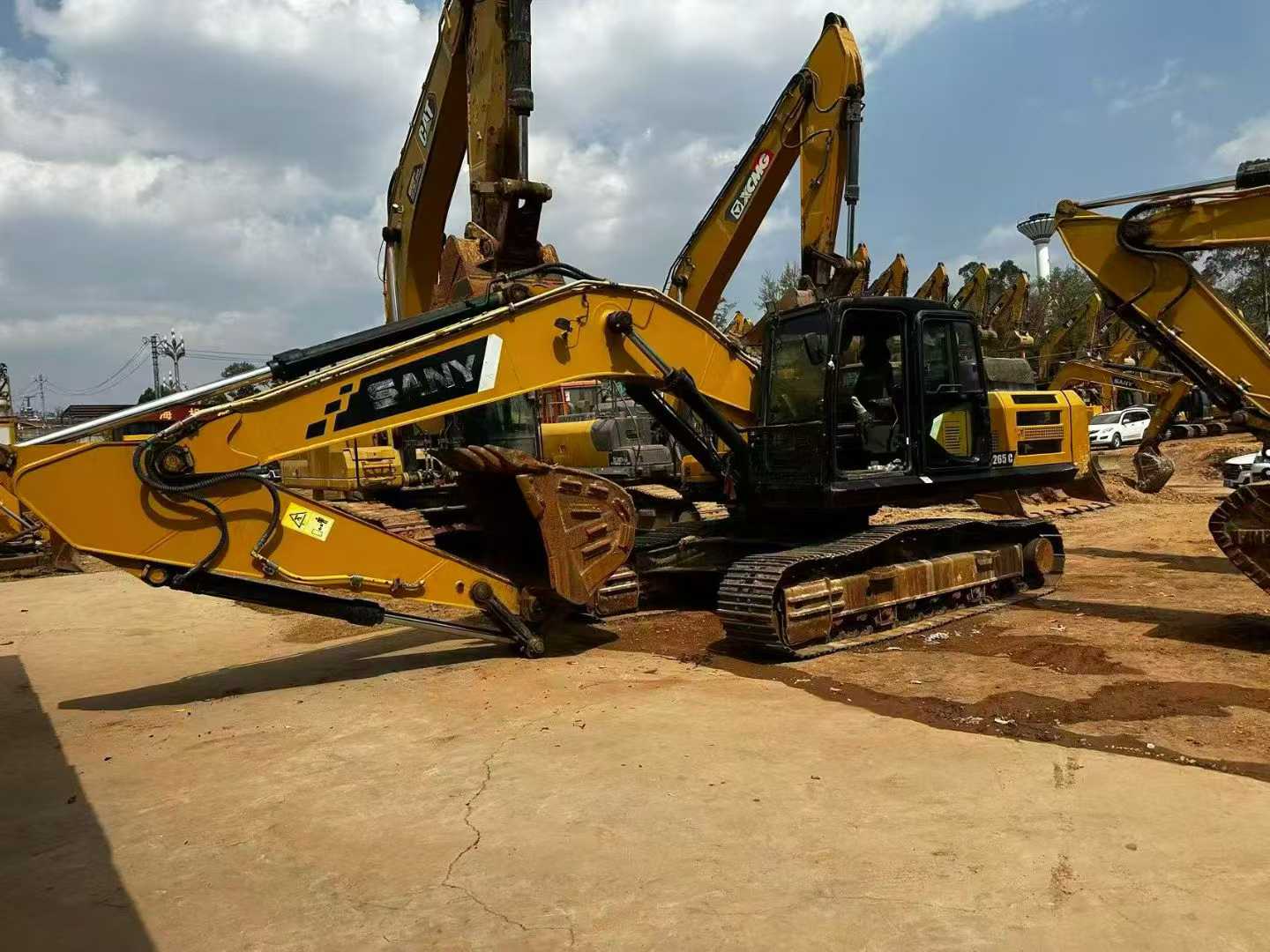

Built for endurance and proven in demanding conditions, this 2017 Sany SY265C excavator demonstrates the robust engineering that has made it a reliable workhorse across construction sites. Operating at 26 tons with a 147kW Mitsubishi D06FRC engine, this machine combines substantial digging power with dependable performance. The backhoe configuration delivers 175kN bucket digging force and reaches a maximum depth of 6,705mm, handling heavy-duty excavation tasks with consistent results.

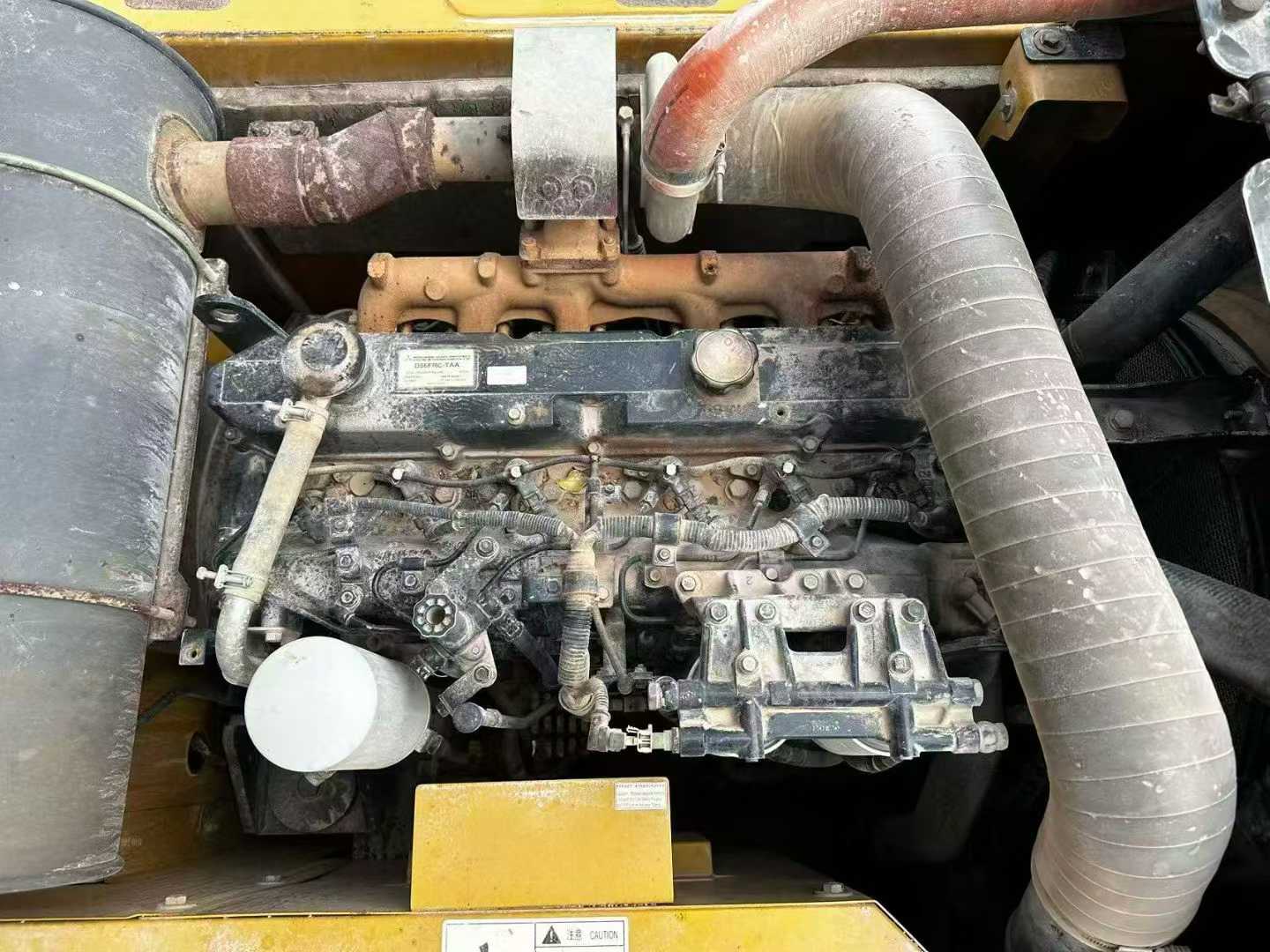

- Mitsubishi 6-cylinder water-cooled engine (147kW/2100rpm) with proven reliability
- Impressive 10,225mm maximum digging radius and 9,745mm excavation height
- 1.3m³ bucket capacity for substantial material handling
- 70% (35°) climbing ability for challenging terrain
- 475L fuel tank and 277L hydraulic tank for extended operation
- Currently located in Yunnan, China—ready for global shipping
With six years of field operation behind it, this SY265C represents exceptional value for operators seeking a dependable mid-size excavator backed by Sany's manufacturing standards and Mitsubishi power technology.
| Specifications | Value |
|---|---|
| No. | 1023838 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.8/3.7 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3105 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
