Product Description

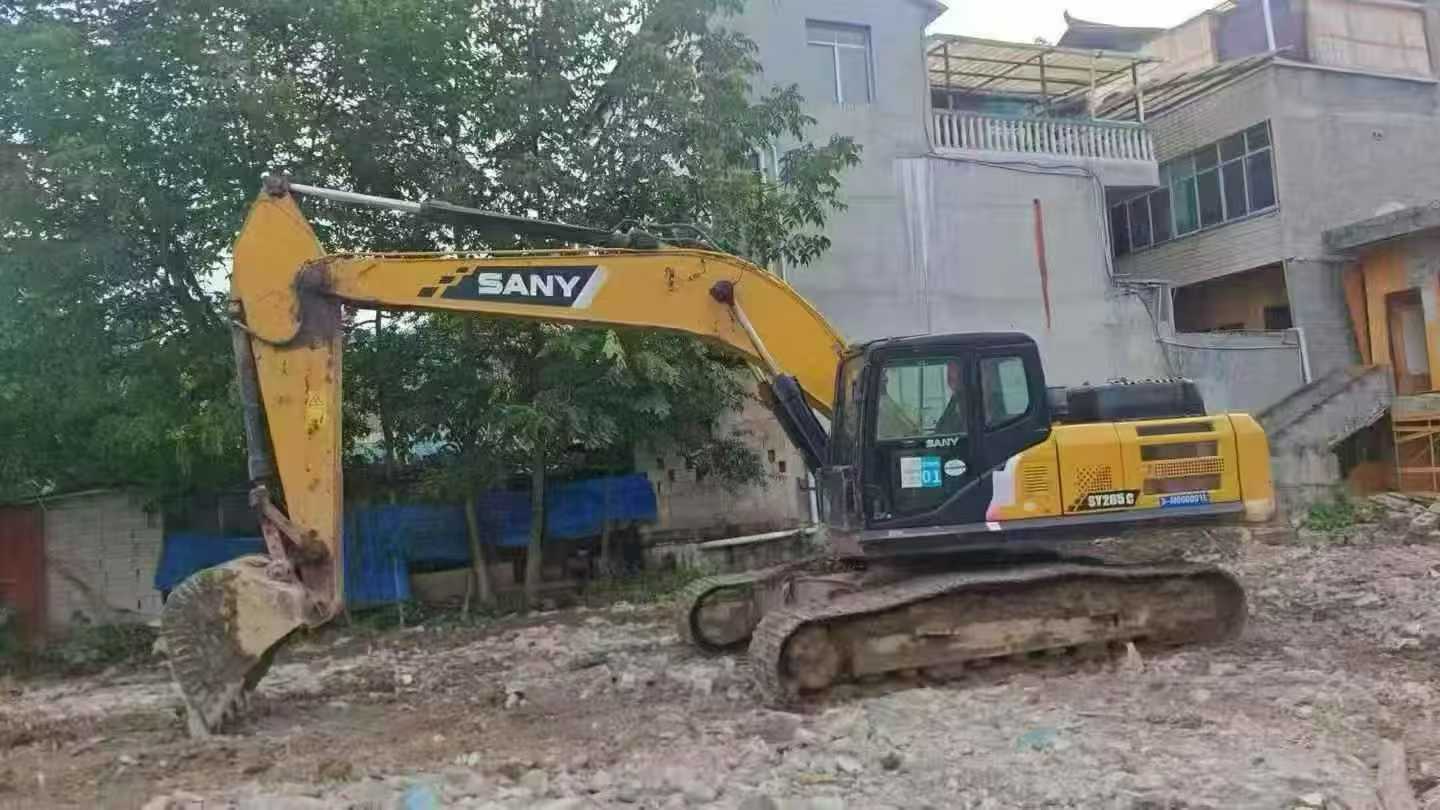

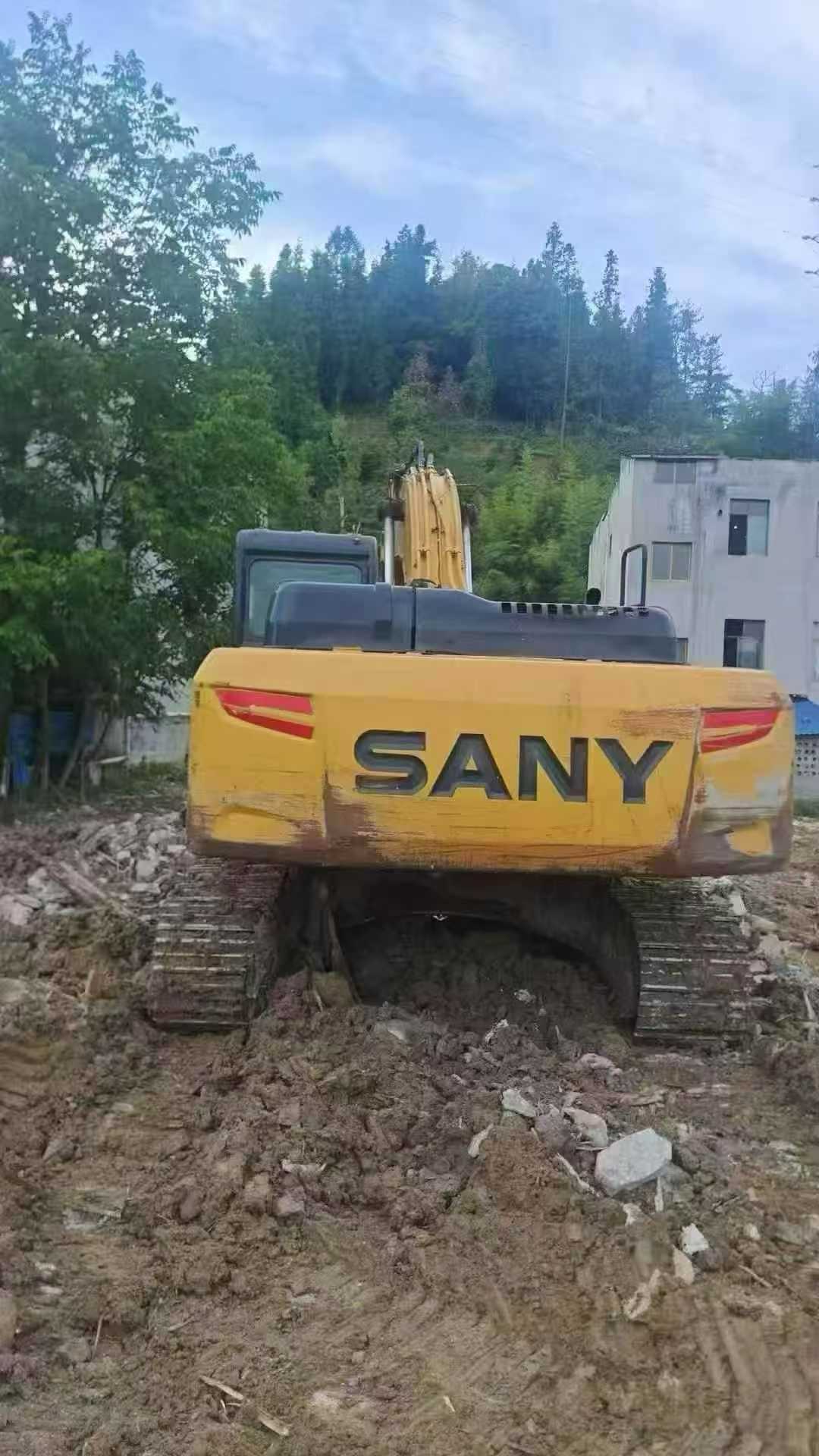

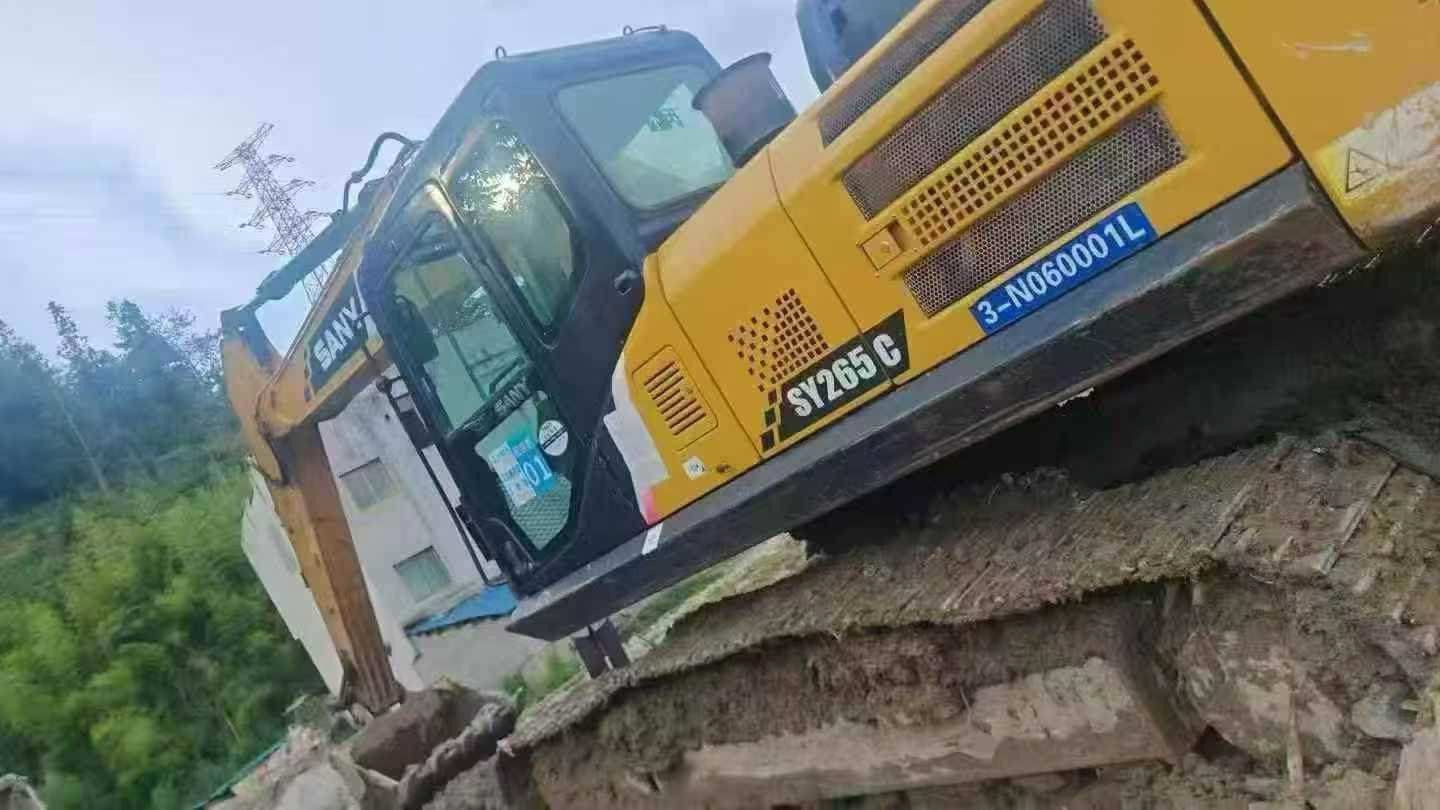

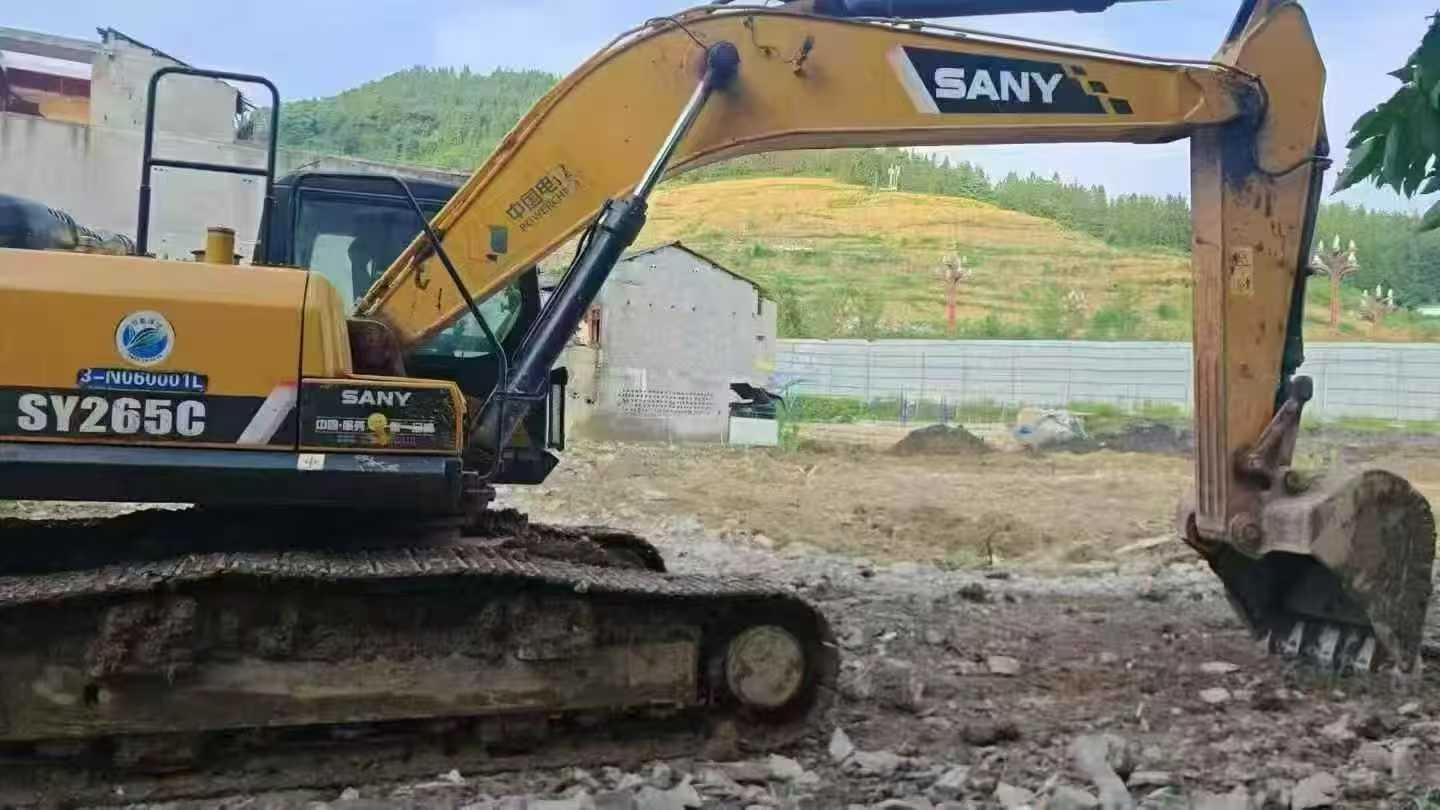

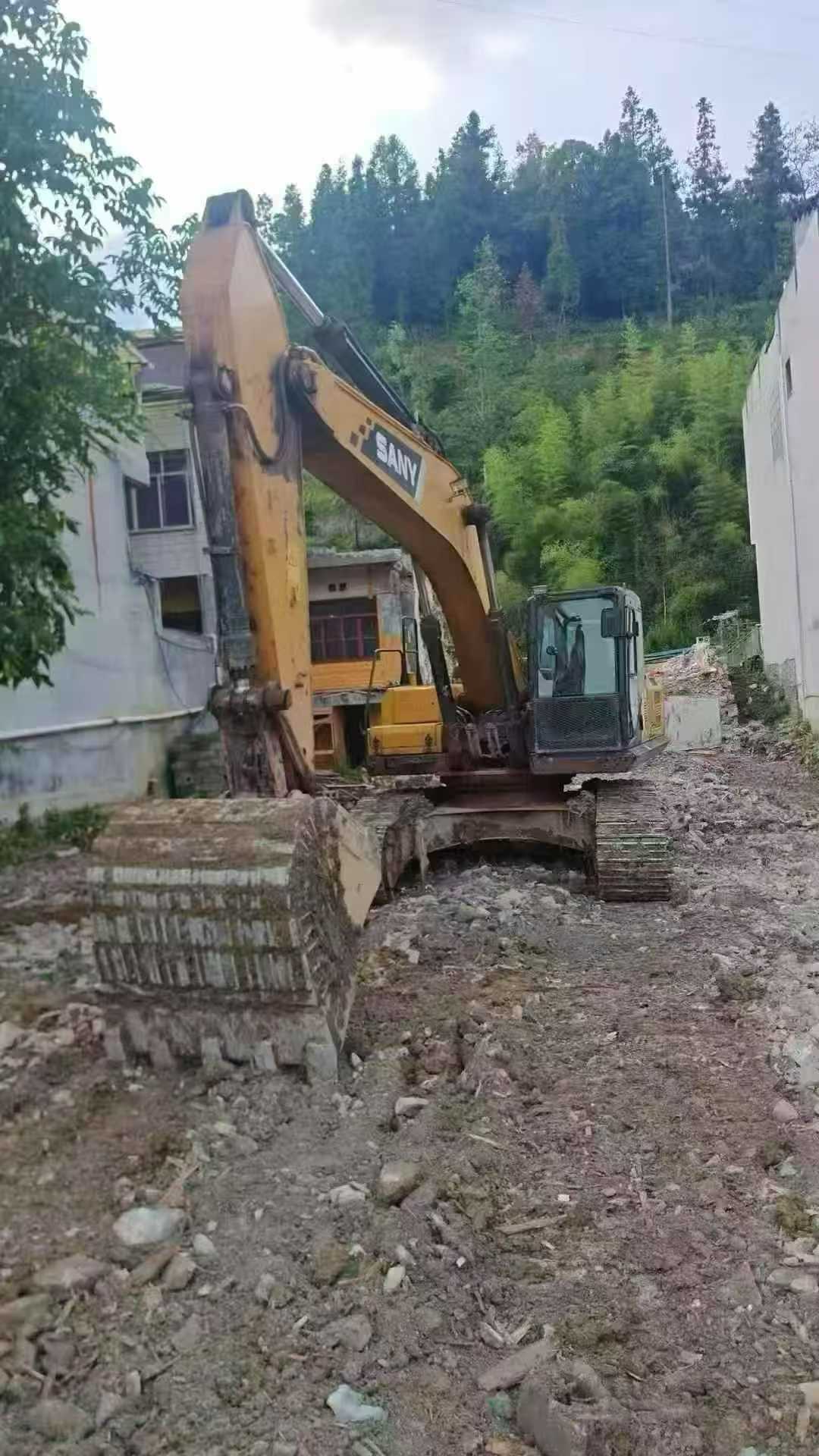

Engineered for demanding excavation work, this 2018 Sany SY265C delivers 26-ton performance with operator-focused design. Powered by a Mitsubishi D06FRC engine producing 147 kW at 2100 rpm, this machine combines reliable power delivery with precise hydraulic control across all digging operations.
Operators benefit from exceptional stability during heavy lifting and trenching tasks. The 3830 mm track ground length and 600 mm wide track plates distribute the 26,500 kg working weight evenly, resulting in just 52.5 kPa ground pressure. A tight 3105 mm rear turning radius enables confident maneuvering in confined spaces, while the elevated cabin position provides clear sightlines to the 10,225 mm maximum digging radius.
- Bucket digging force: 175 kN with 1.3 m³ capacity
- Maximum digging depth: 6,705 mm for deep foundation work
- Travel speed: 5.8 km/h (high) / 3.7 km/h (low)
- Fuel capacity: 475 L for extended operation
- Climbing ability: 70% (35°) on challenging terrain
Currently located in Yunnan, China, this backhoe-configured excavator offers proven mid-size performance for contractors requiring dependable daily productivity.
| Specifications | Value |
|---|---|
| No. | 1031393 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

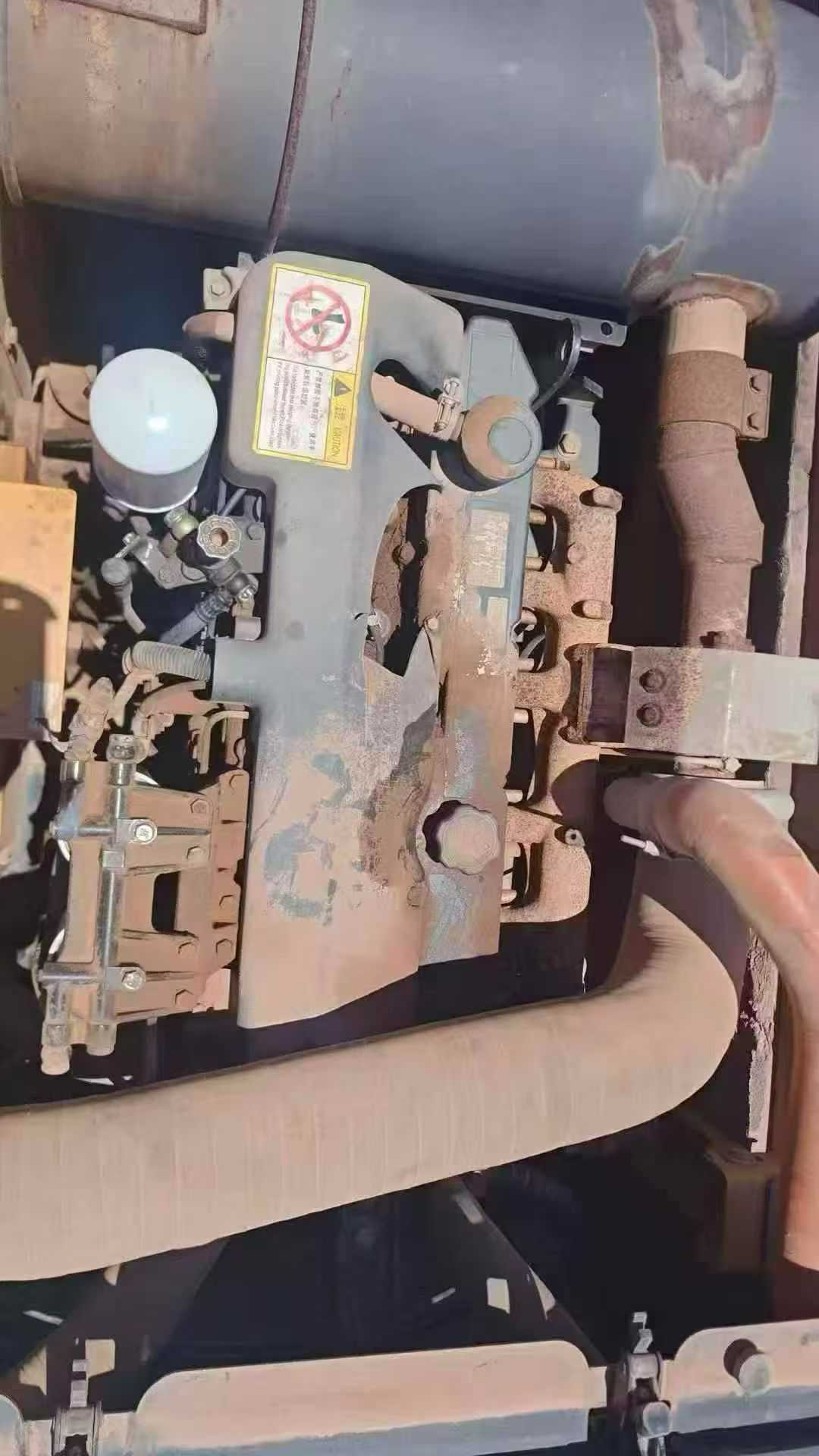

| Engine type | Mitsubishi D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.8/3.7 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3105 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
