Product Description

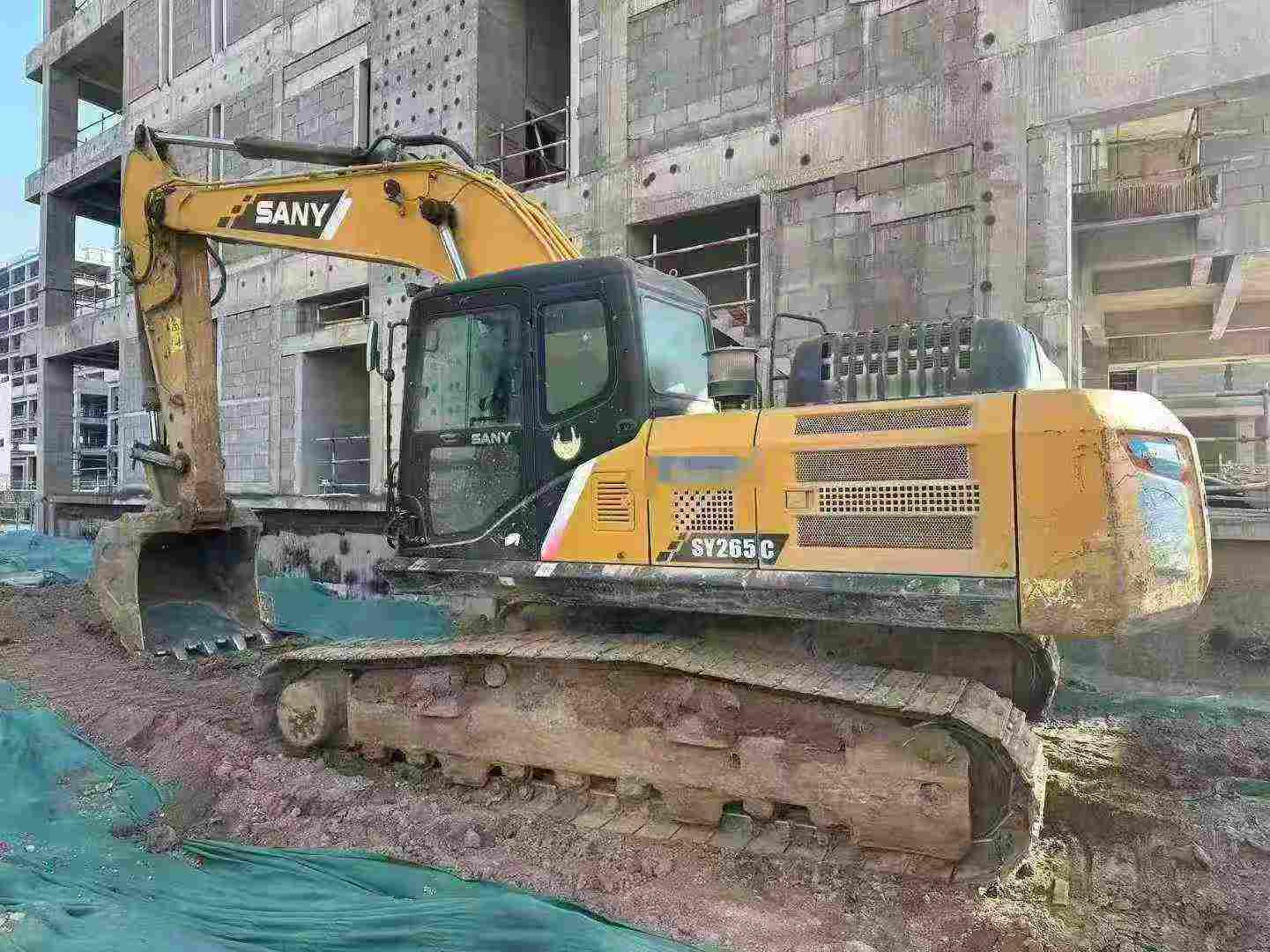

With a robust 26-ton working weight and a powerful Mitsubishi D06FRC engine, this 2019 Sany SY265C excavator is an ideal addition to any busy contractor's fleet. Featuring a 1.3 m³ bucket capacity and a maximum digging depth of 6705 mm, it ensures efficient and effective performance on various job sites. The water-cooled, 6-cylinder engine delivers 147 kW at 2100 rpm, providing the necessary power for demanding tasks. Equipped with a backhoe bucket, this excavator offers a 175 kN bucket digging force and a 120 kN rod digging force, making it a reliable choice for heavy-duty operations.
- Working weight: 26,500 kg
- Bucket capacity: 1.3 m³
- Maximum digging depth: 6705 mm
- Travel speed: 5.8/3.7 km/h
- Ground specific pressure: 52.5 Kpa
- Engine: Mitsubishi D06FRC, 6.373 L displacement
| Specifications | Value |
|---|---|
| No. | 1000144 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.8/3.7 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3105 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
