Product Description
Commanding a 26-ton working weight with precision, this 2021 Sany SY265C medium excavator delivers operator-focused engineering for demanding jobsites. Powered by a Mitsubishi D06FRC engine generating 147 kW at 2100 rpm, the machine combines robust performance with stable, predictable handling across varied terrain. Water-cooled reliability meets a 70% climbing ability, ensuring confident operation on slopes and uneven ground.
Operator efficiency centers on exceptional visibility and control. The cabin positioning provides clear sightlines to a maximum digging radius of 10,225 mm and digging depth reaching 6,705 mm. Stability is reinforced through optimized ground specific pressure of 52.5 kPa and a 3,830 mm track ground length, minimizing ground disturbance while maintaining solid footing. Hydraulic precision translates to 175 kN bucket digging force and 120 kN arm force, responsive to operator input for accurate material handling.
- 26,500 kg working weight with 1.3 m³ bucket capacity

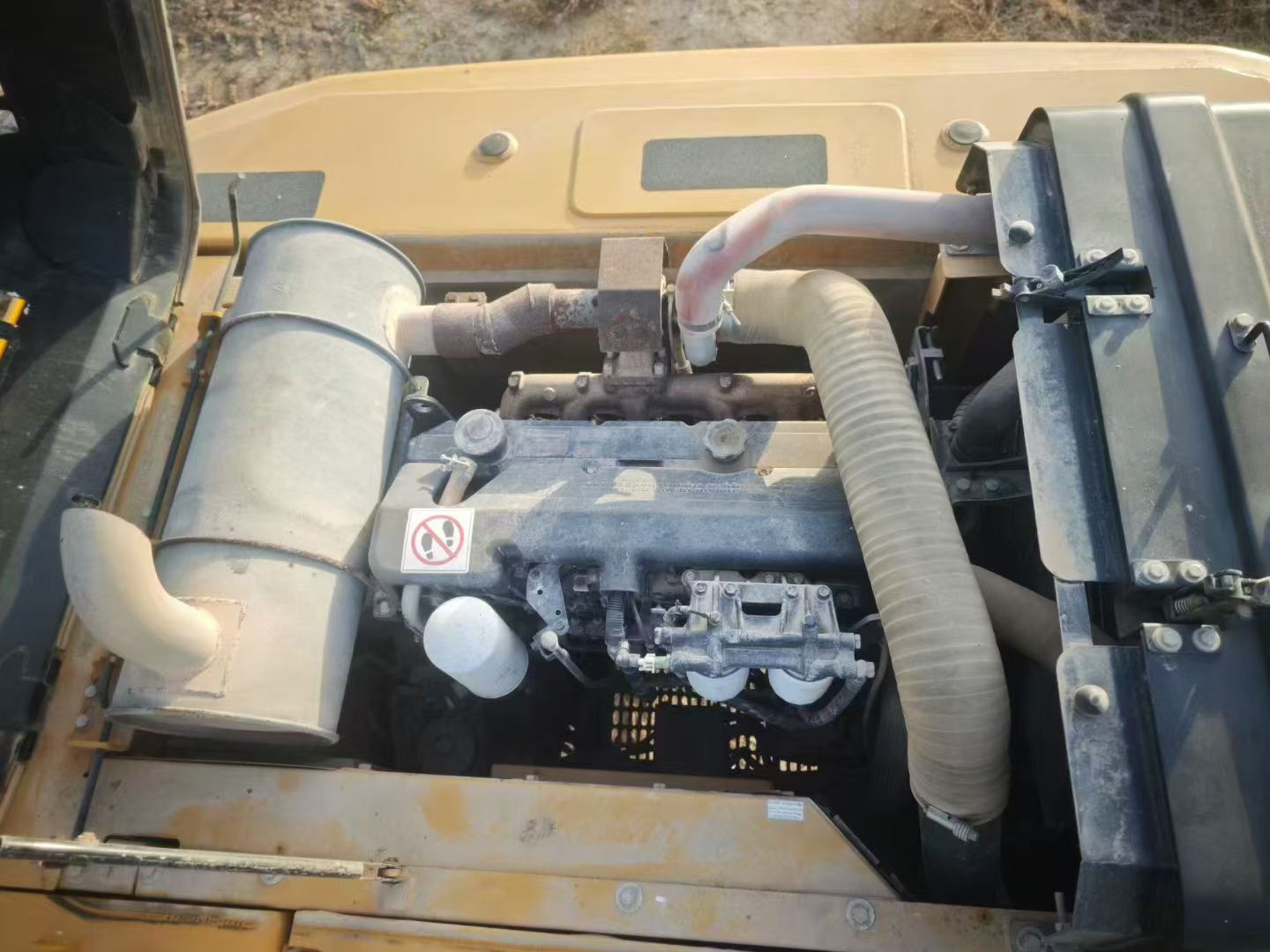

- Mitsubishi 6-cylinder engine: 147 kW, 750 N·m maximum torque
- 10,225 mm reach, 6,705 mm digging depth
- 475 L fuel tank for extended shifts
- Currently located in Shaanxi, China
| Specifications | Value |
|---|---|
| No. | 1013546 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.8/3.7 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3105 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |

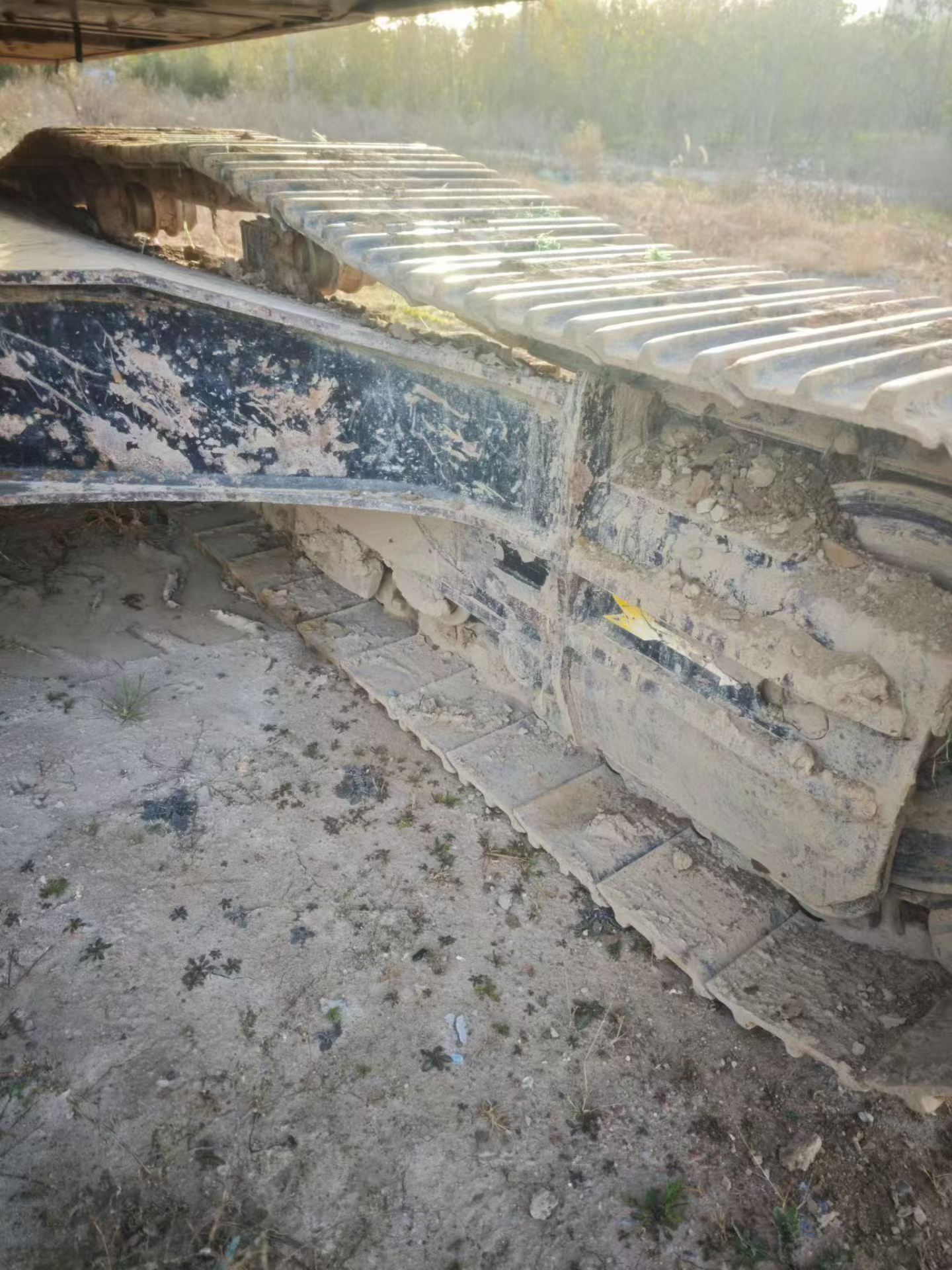

| Track ground length (mm) | 3830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
