Product Description

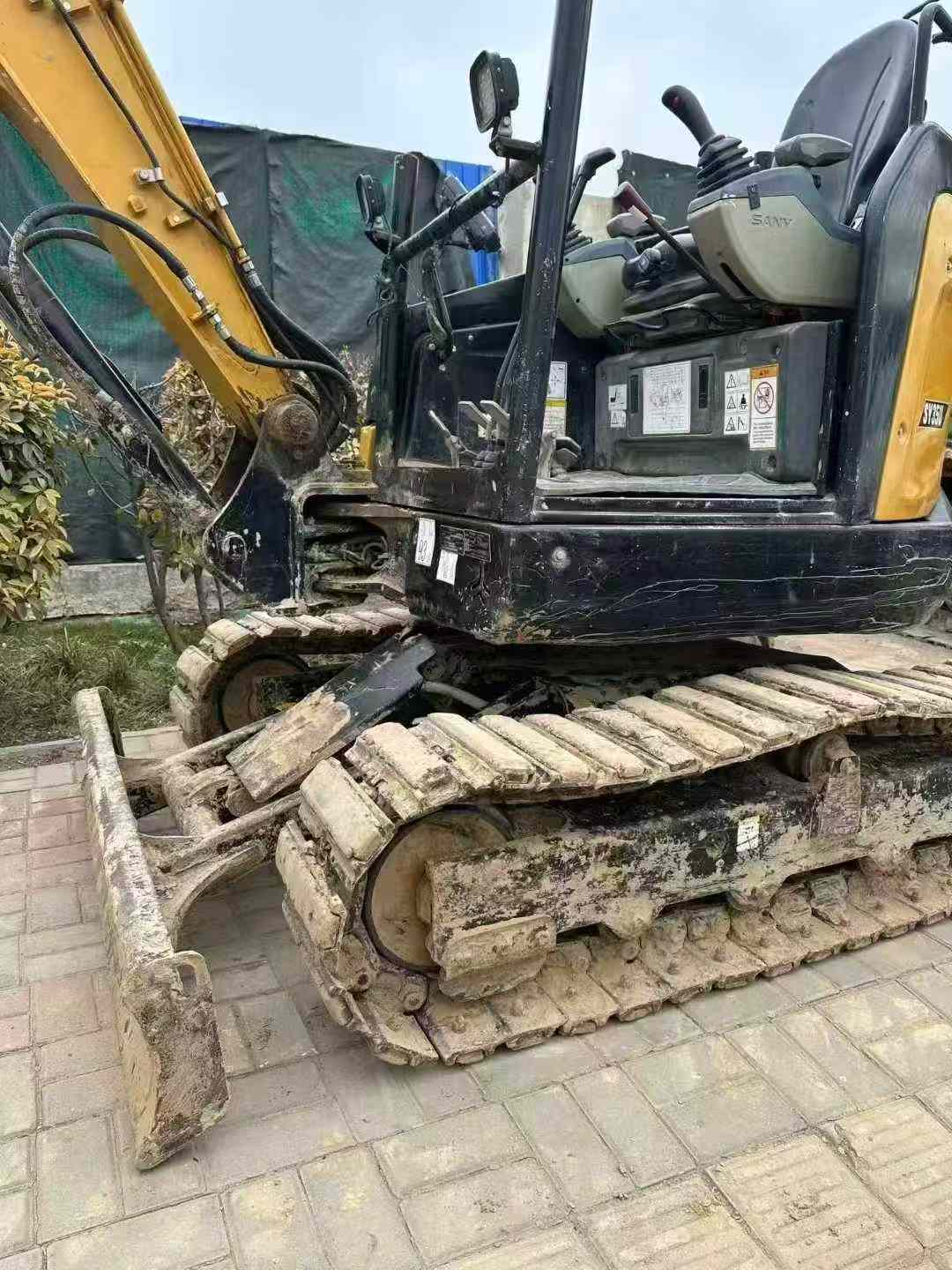

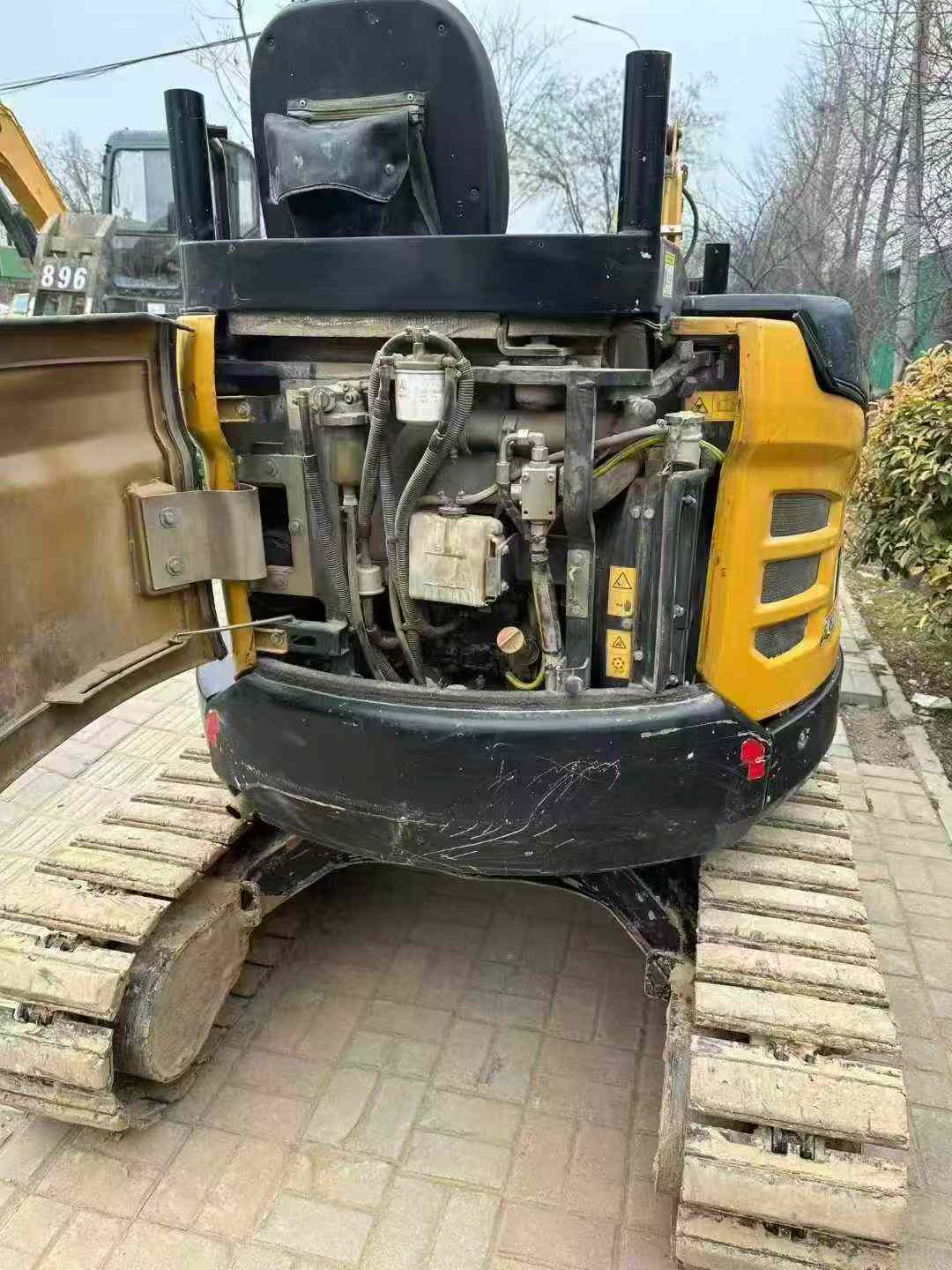

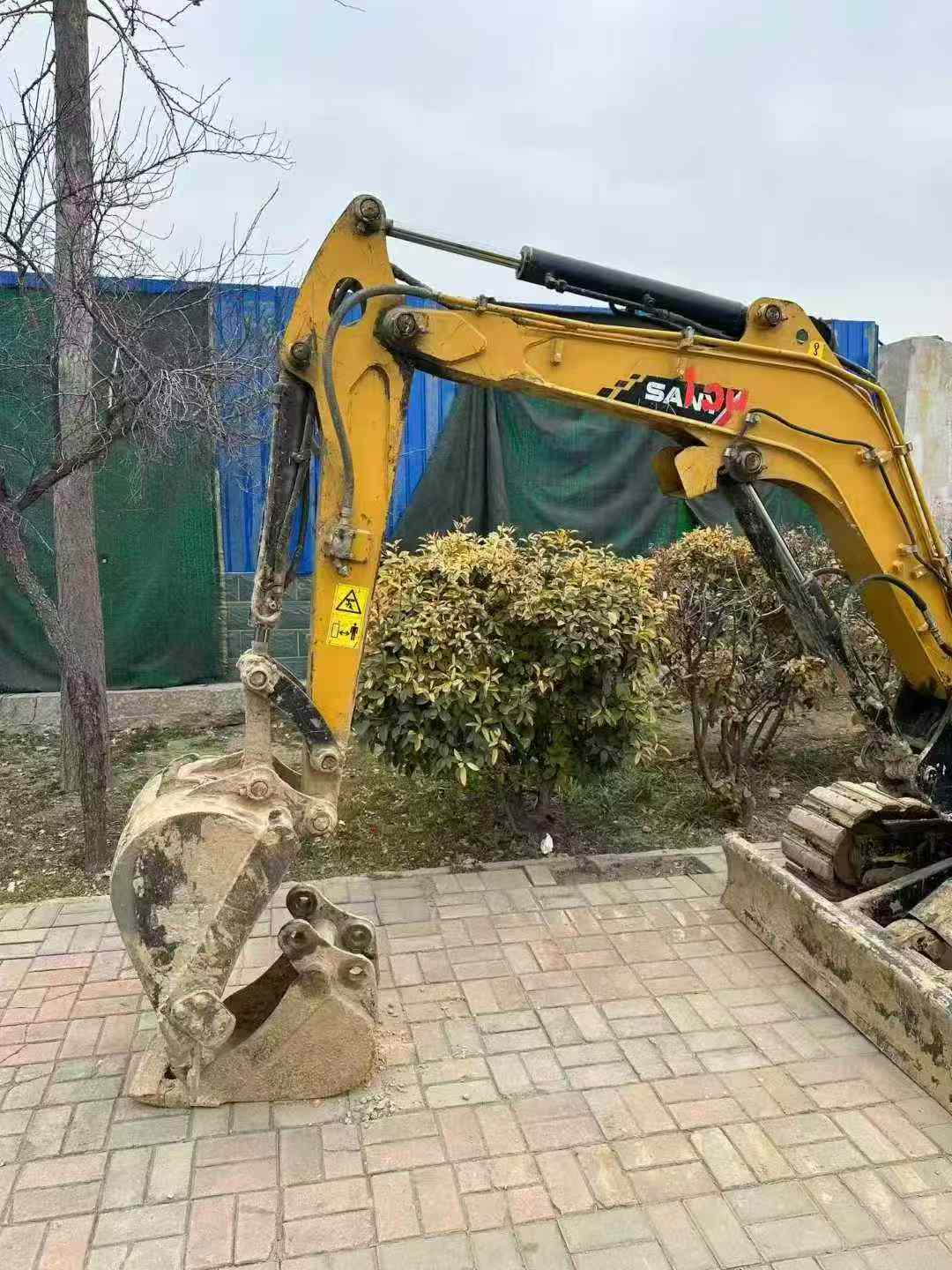

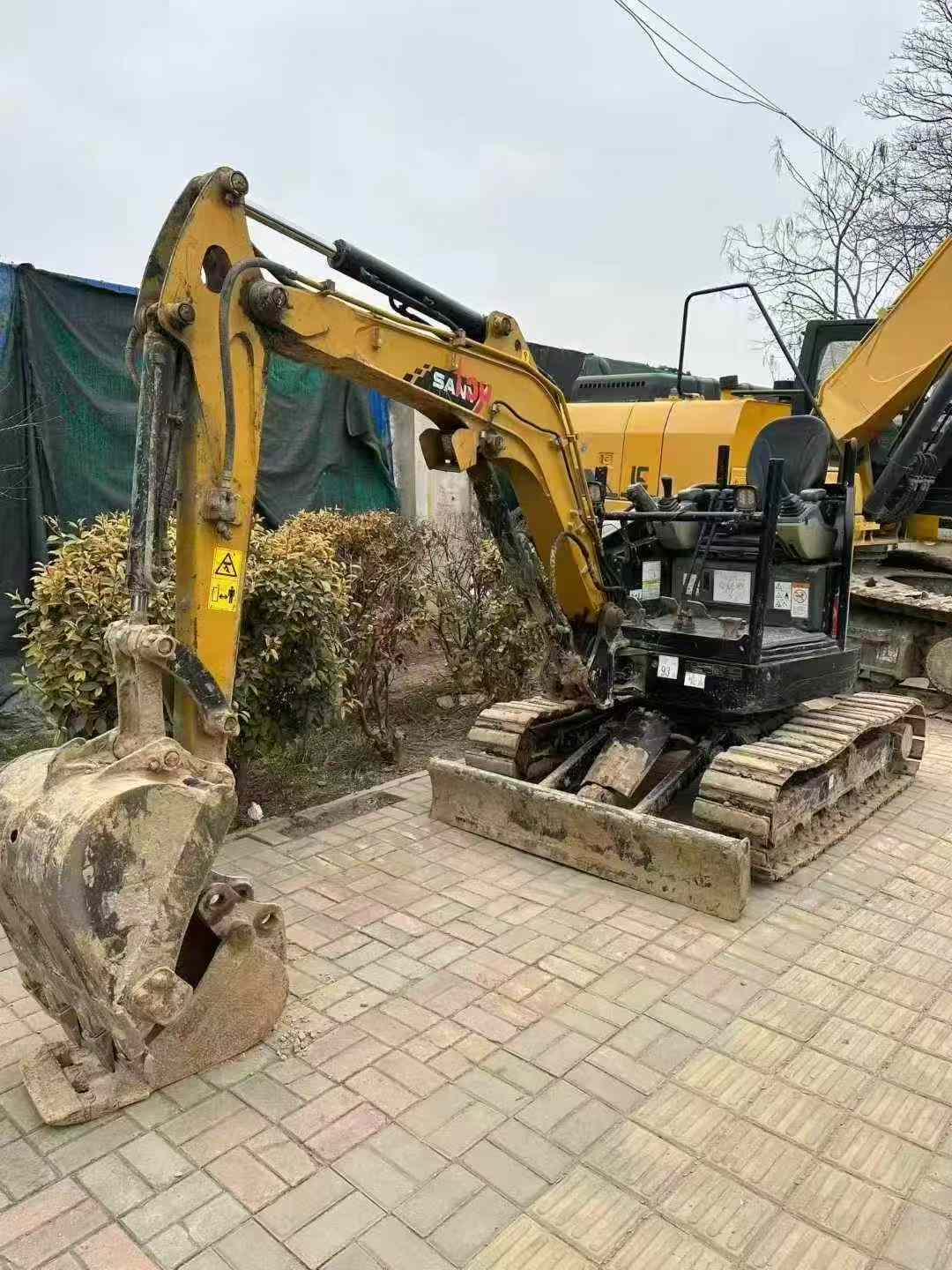

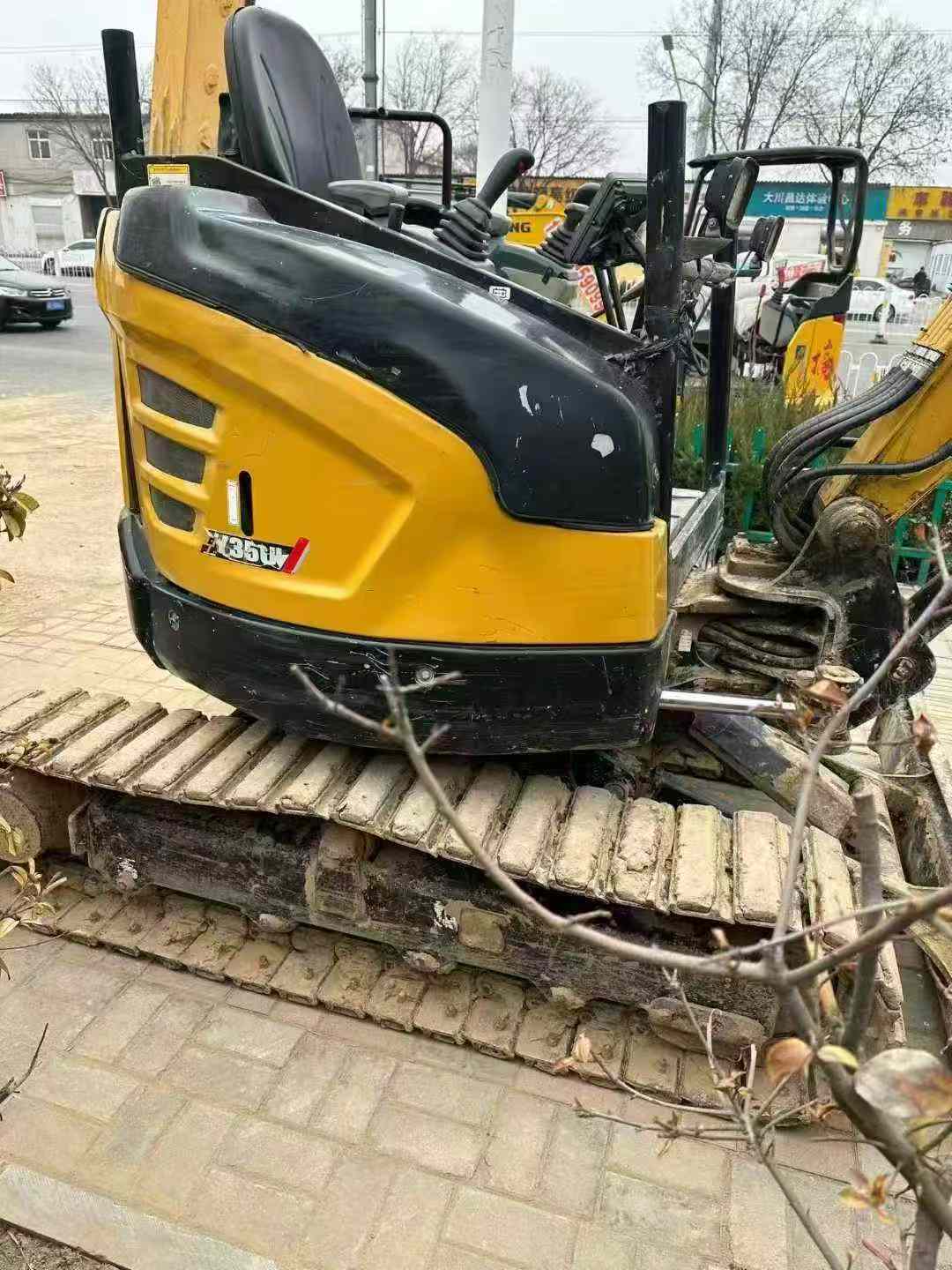

Built for confined jobsites and urban construction, this 2021 Sany SY26U mini excavator delivers dependable performance in a compact 2.68-ton package. Powered by a proven Yanmar 3TNV80F engine producing 15.2 kW at 2500 rpm, this machine handles trenching, utility work, and landscaping tasks with professional-grade efficiency. Maximum digging depth reaches 2,820 mm while maintaining a tight 2,110 mm minimum turning radius—ideal for working around existing structures or in restricted access areas.
- Bucket digging force: 24.3 kN for solid material penetration
- Maximum digging reach: 4,850 mm for extended operational range
- Transport dimensions: 4,285 mm × 1,550 mm × 2,430 mm—fits standard trailers
- 47% climbing ability tackles sloped terrain confidently

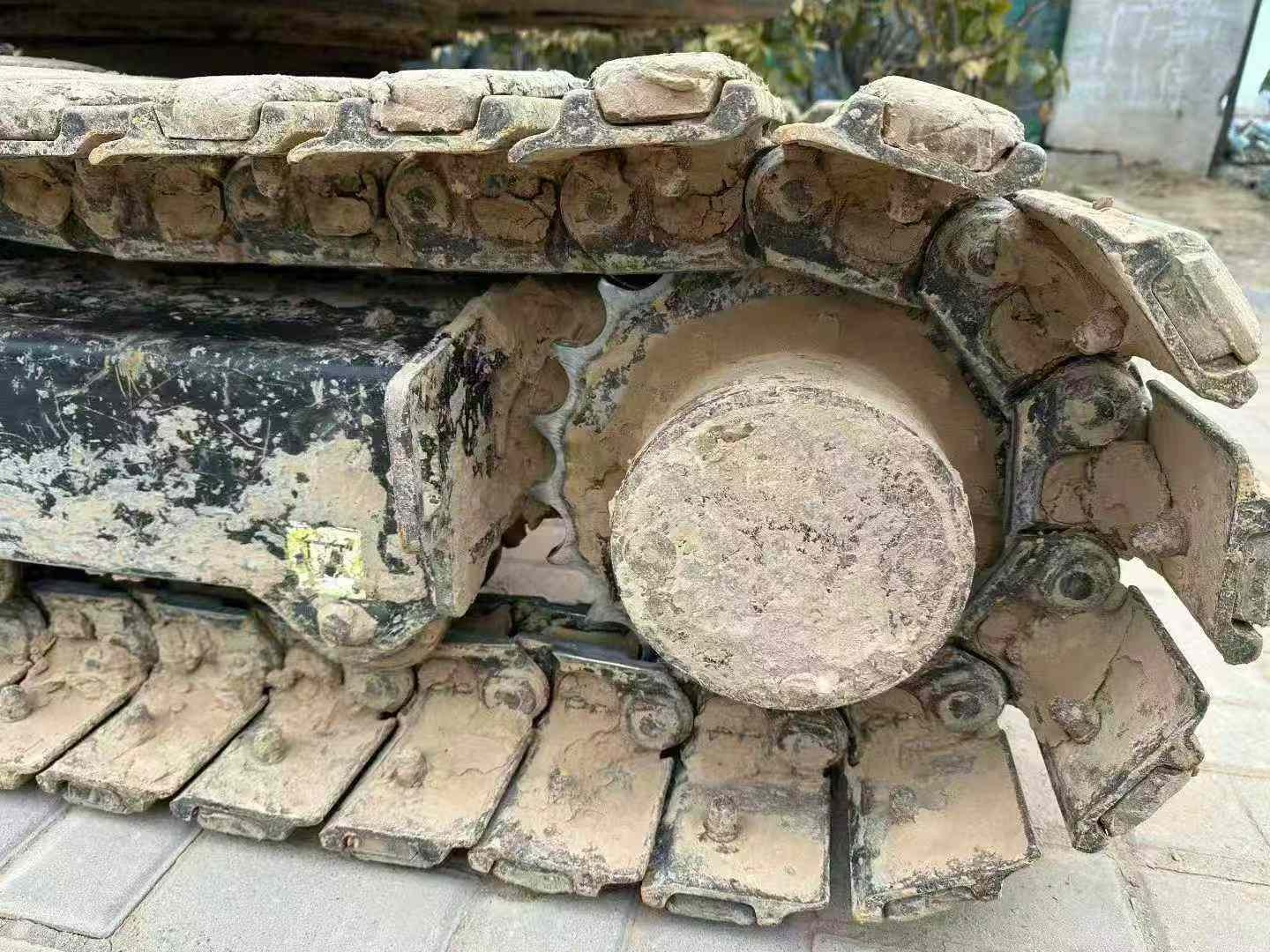

- 300 mm track plates provide stable ground contact across soft surfaces
- 34-liter fuel tank supports full-day operation without frequent refueling
Currently located in Beijing, this Chinese-manufactured excavator arrives site-ready with backhoe bucket configuration. Traditional power design ensures straightforward maintenance and reliable cold-weather starts. Whether digging foundations, installing drainage,
| Specifications | Value |
|---|---|
| No. | 1022588 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 2680 |
| Bucket capacity (m³) | 0.04-0.08(0.06) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

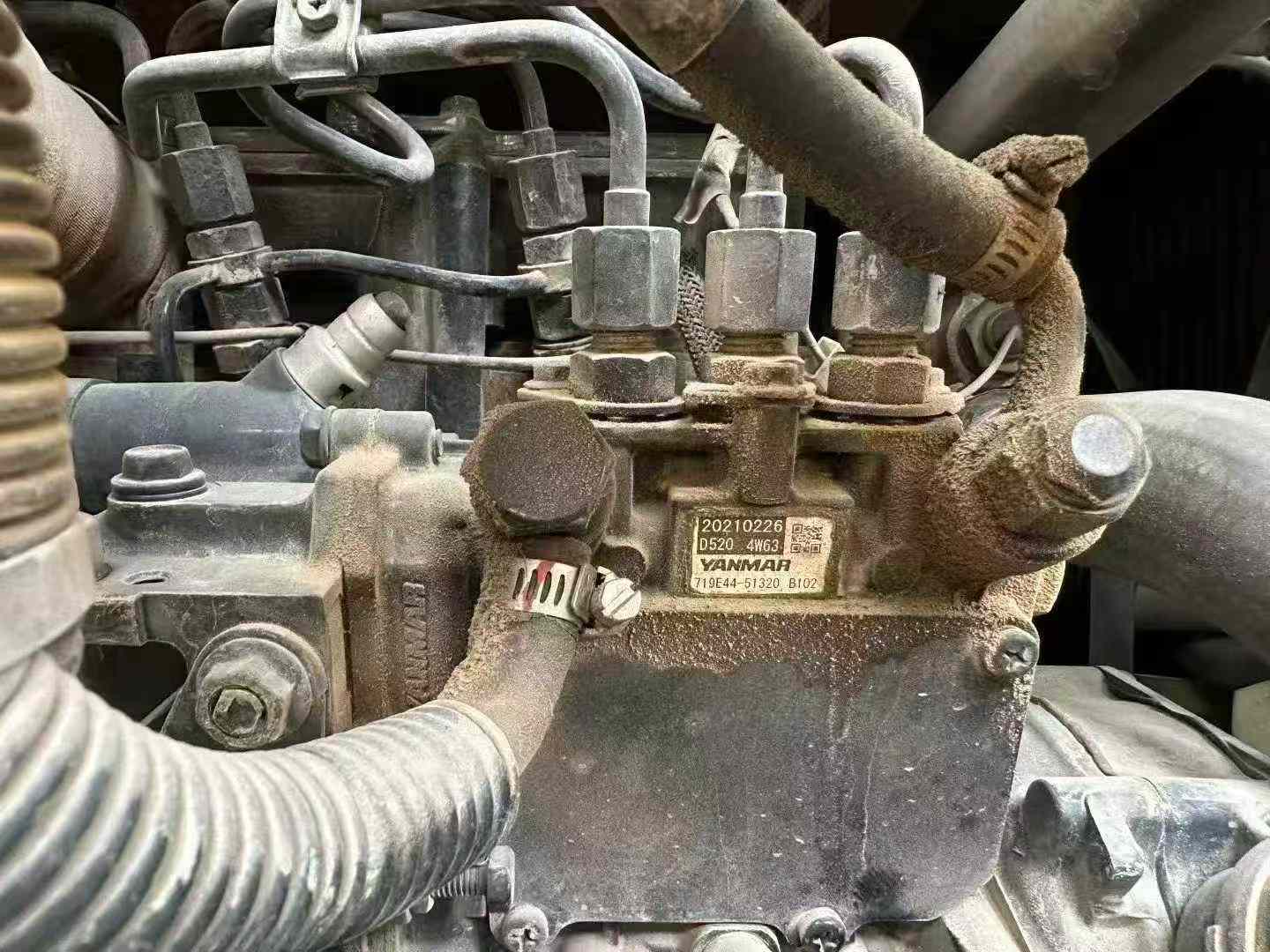

| Engine type | Yanmar 3TNV80F |
| Rated power (kw/rpm) | 15.2/2500 |
| Maximum torque (N.m) | 63.2-67.4/1800-100 |
| Displacement (L) | 1.266 |
| Ground specific pressure (Kpa) | 25.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 47 |
| Bucket digging force (kN) | 24.3 |
| Rod digging force (kN) | 14.2 |
| Travel speed (km/h) | 4.5/2.6 |
| Fuel Tank (L) | 34 |
| Hydraulic Tank (L) | 30 |
| Engine Oil changes (L) | 3.4/1.6 |
| Total transport length (mm) | 4285 |
| Total transport width (mm) | 1550 |
| Total transport height (mm) | 2430 |
| Minimum ground clearance (mm) | 290 |
| Minimum turning radius of front working device (mm) | 2110 |
| Back end turning radius (mm) | 775 |
| Total track length (mm) | 2005 |
| Track gauge (mm) | 1250 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1560 |
| Maximum height at minimum turning radius (mm) | 3200 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4850 |
| Maximum digging depth (mm) | 2820 |
| Maximum excavation height (mm) | 4410 |
| Maximum unloading height (mm) | 3100 |
| Maximum vertical digging depth (mm) | 2585 |
| Bulldozer lift or depth (mm) | 360/330 |
| Dodging plate width × height (mm) | 300 (height) |
