Product Description

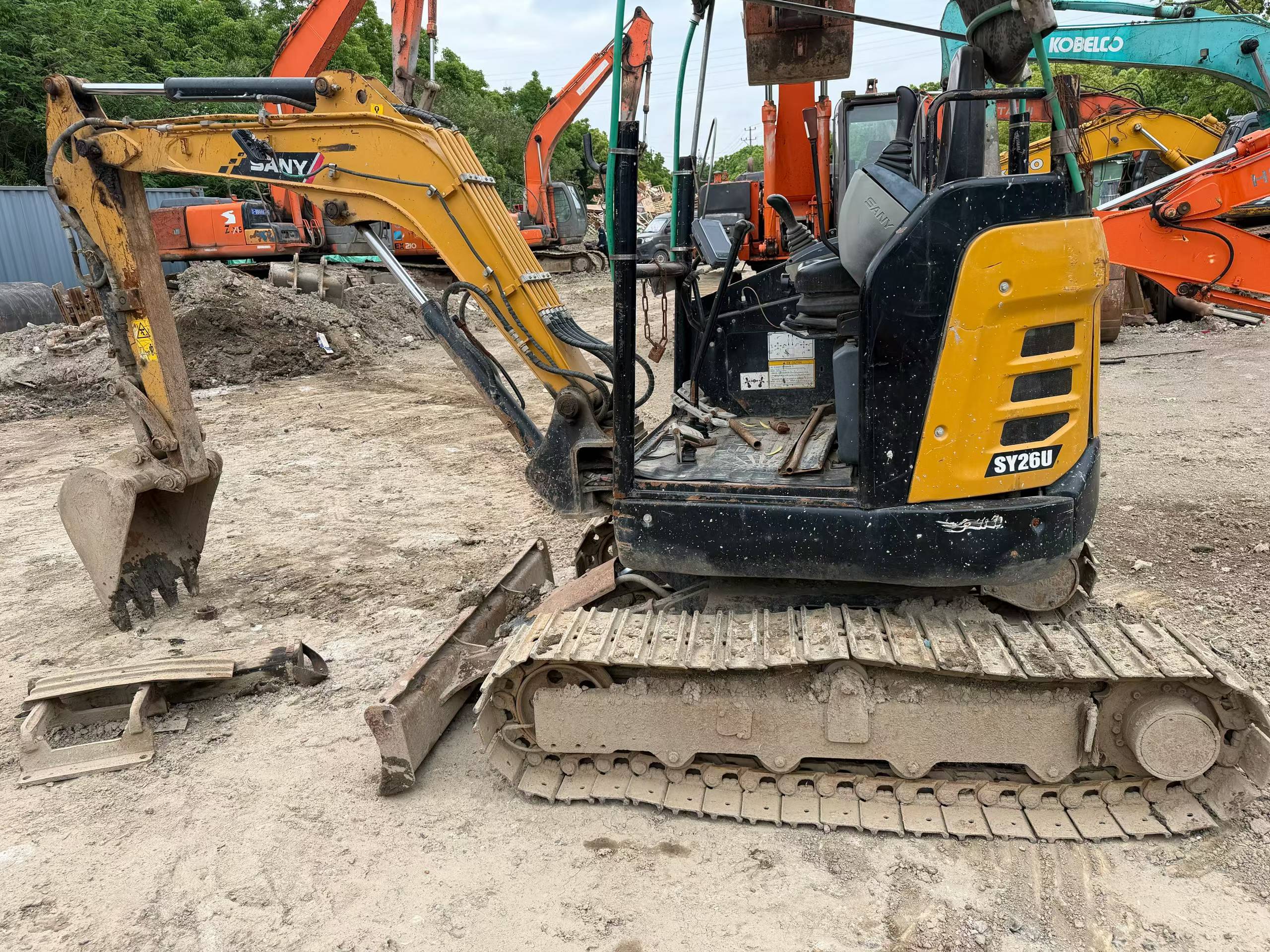

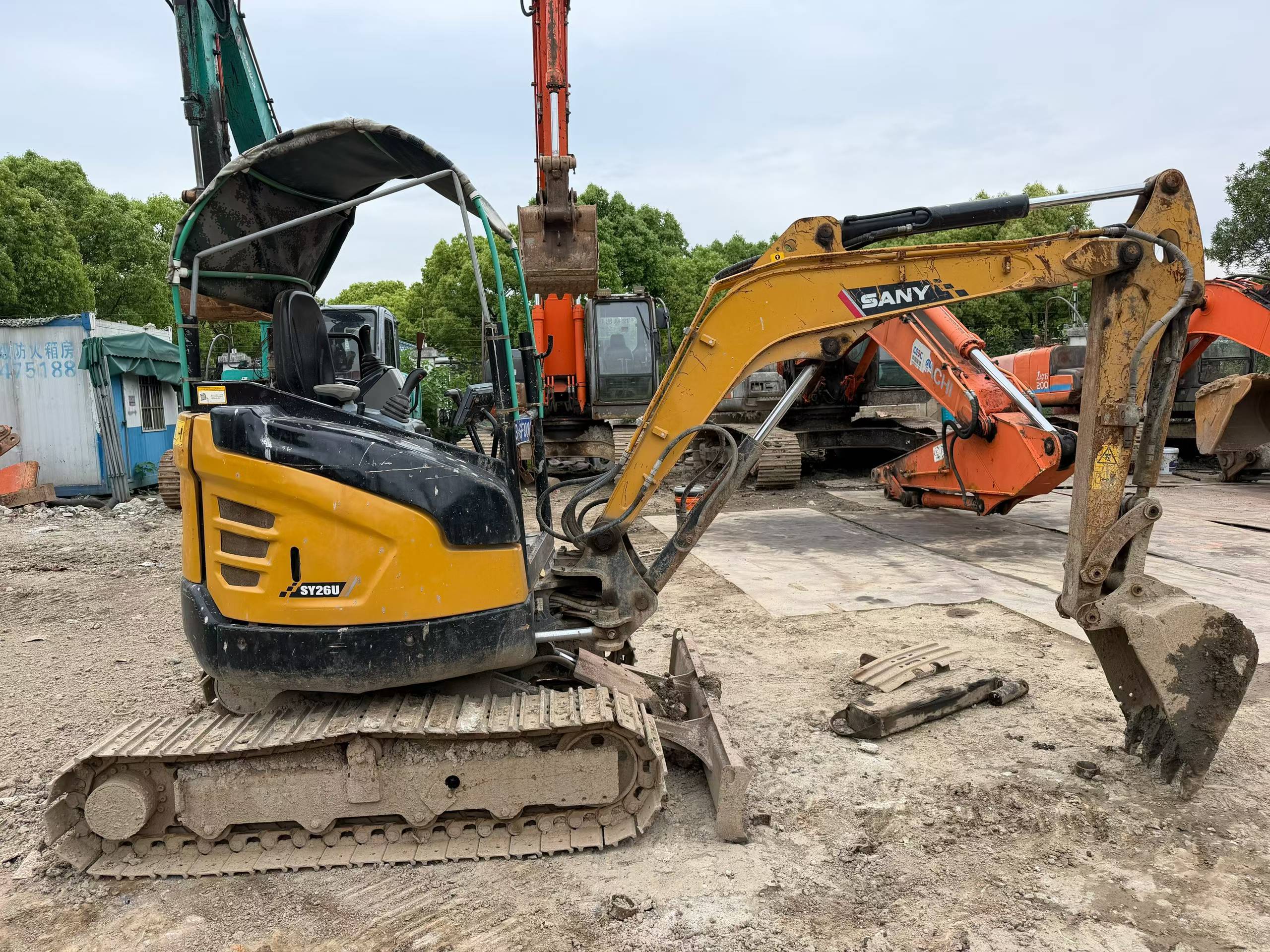

With a working weight of 2680 kg and a bucket capacity ranging from 0.04 to 0.08 m³, the Sany SY26U mini excavator is designed for precision and efficiency. Powered by a Yanmar 3TNV80F engine, it delivers 15.2 kW at 2500 rpm, ensuring robust performance on any job site. This machine boasts a maximum digging force of 24.3 kN and a rod digging force of 14.2 kN, making it ideal for tough digging, grading, and demolition tasks.
- Maximum travel speed: 4.5/2.6 km/h
- Ground specific pressure: 25.5 Kpa
- Maximum digging depth: 2820 mm
- Maximum unloading height: 3100 mm
- Fuel tank capacity: 34 L
Located in Zhejiang, China, this 2021 model is ready to work immediately, equipped with a backhoe bucket and a total transport length of 4285 mm, ensuring easy maneuverability and transport. Its compact design and powerful performance make it an essential asset for any construction project.
| Specifications | Value |
|---|---|
| No. | 1056787 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 2680 |
| Bucket capacity (m³) | 0.04-0.08(0.06) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

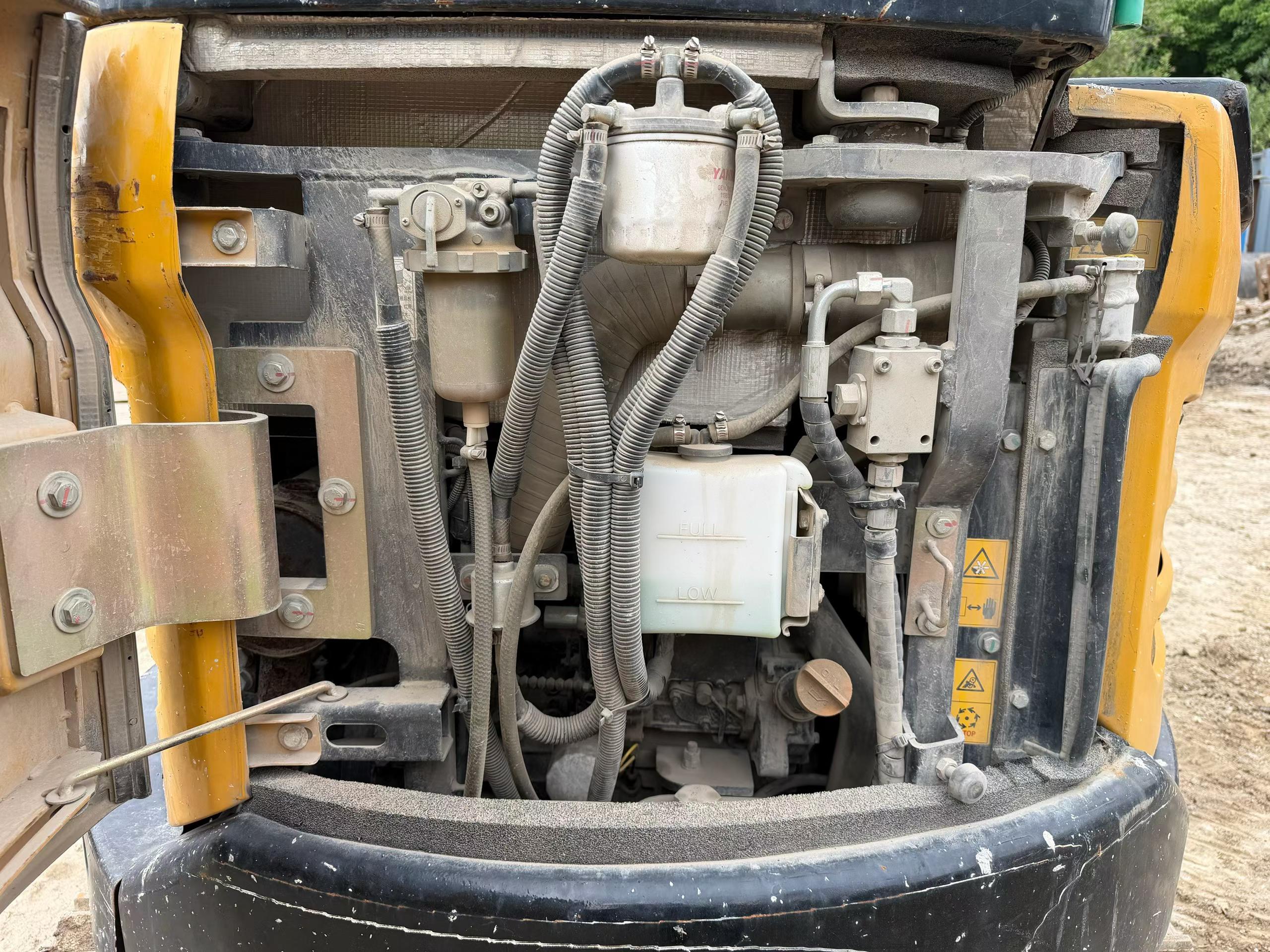

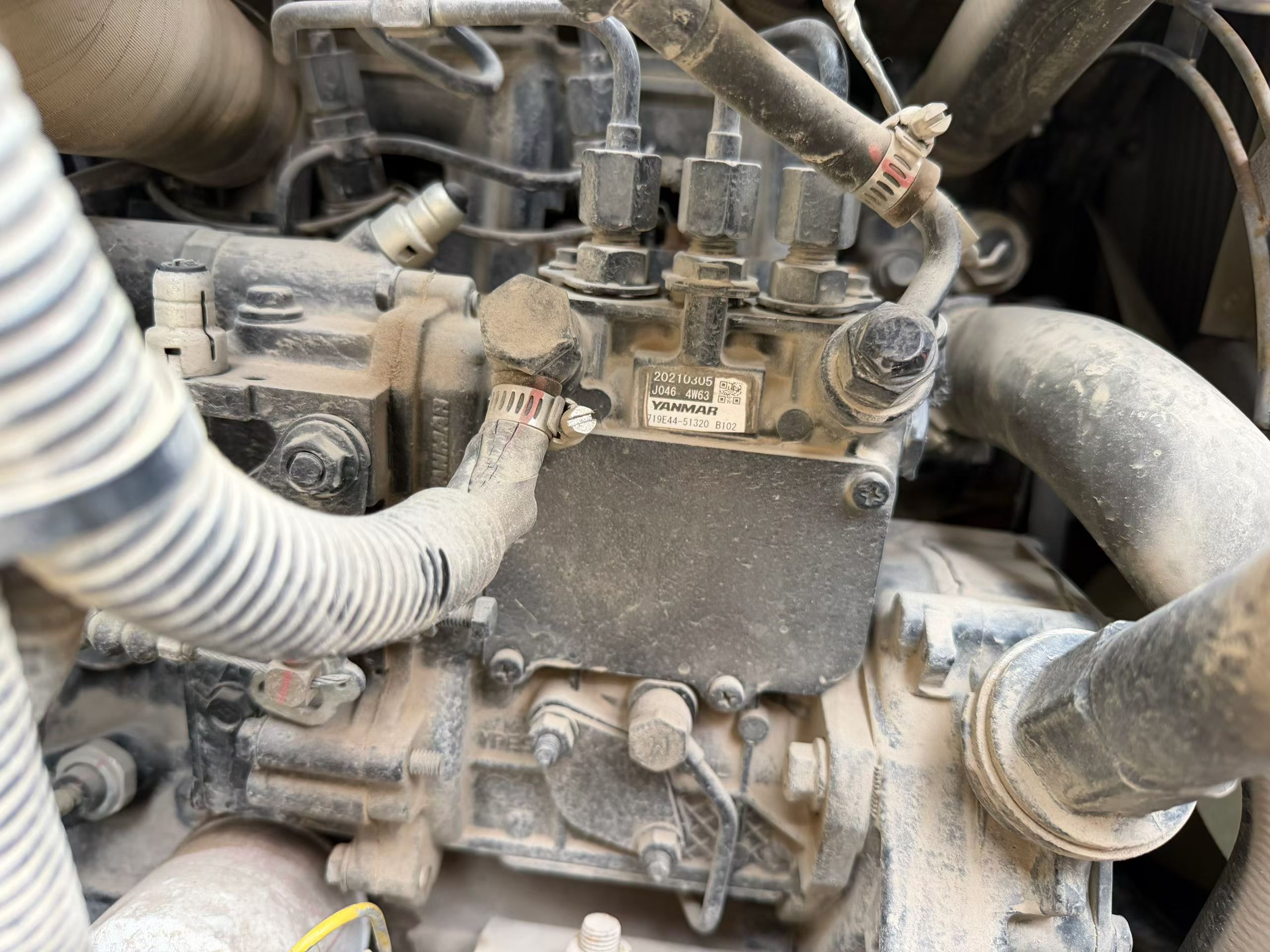

| Engine type | Yanmar 3TNV80F |
| Rated power (kw/rpm) | 15.2/2500 |
| Maximum torque (N.m) | 63.2-67.4/1800-100 |
| Displacement (L) | 1.266 |
| Ground specific pressure (Kpa) | 25.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 47 |
| Bucket digging force (kN) | 24.3 |
| Rod digging force (kN) | 14.2 |
| Travel speed (km/h) | 4.5/2.6 |
| Fuel Tank (L) | 34 |
| Hydraulic Tank (L) | 30 |
| Engine Oil changes (L) | 3.4/1.6 |
| Total transport length (mm) | 4285 |
| Total transport width (mm) | 1550 |
| Total transport height (mm) | 2430 |
| Minimum ground clearance (mm) | 290 |
| Minimum turning radius of front working device (mm) | 2110 |
| Back end turning radius (mm) | 775 |

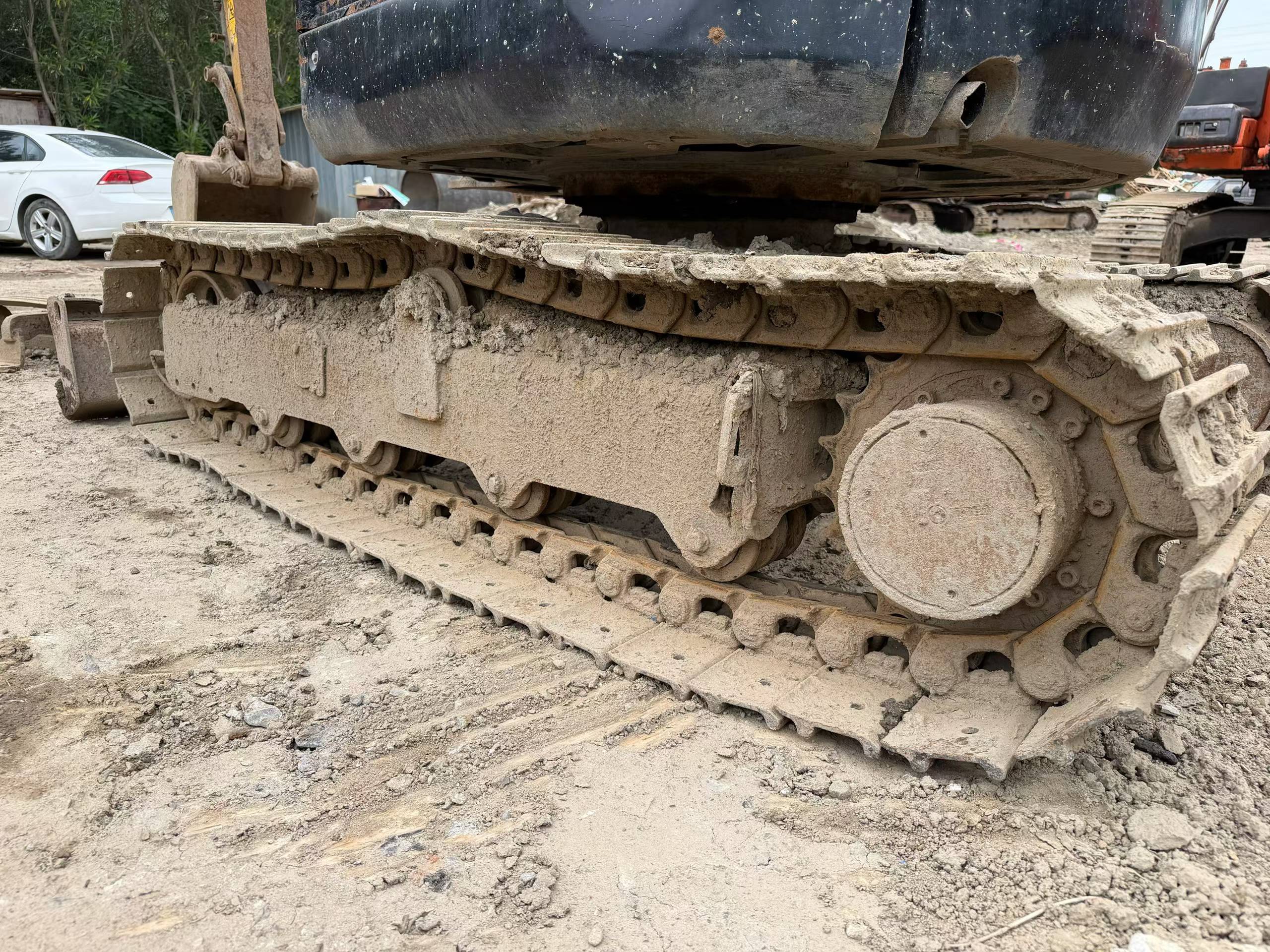

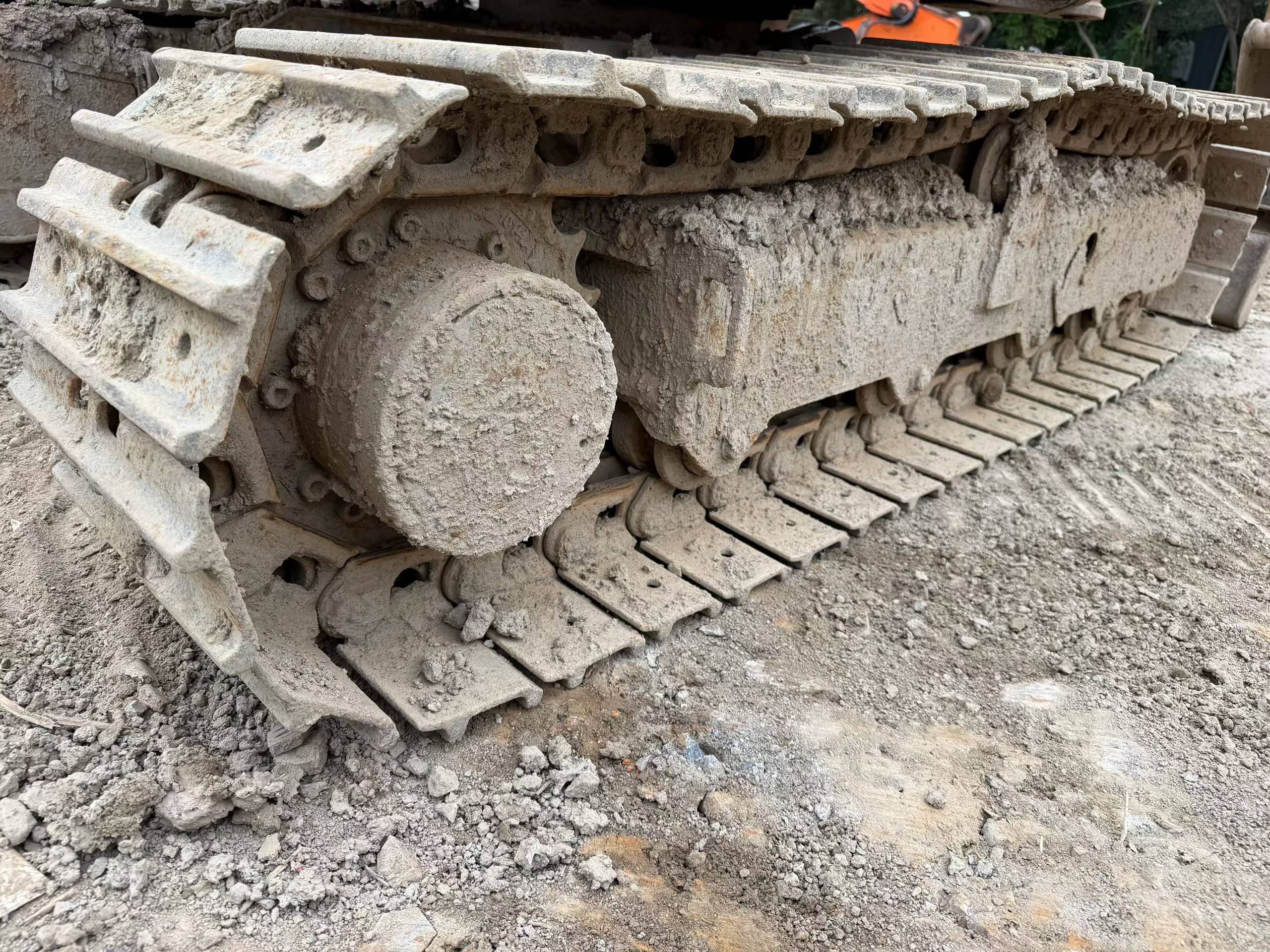

| Total track length (mm) | 2005 |
| Track gauge (mm) | 1250 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1560 |
| Maximum height at minimum turning radius (mm) | 3200 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4850 |
| Maximum digging depth (mm) | 2820 |
| Maximum excavation height (mm) | 4410 |
| Maximum unloading height (mm) | 3100 |
| Maximum vertical digging depth (mm) | 2585 |
| Bulldozer lift or depth (mm) | 360/330 |
| Dodging plate width × height (mm) | 300 (height) |
