Product Description

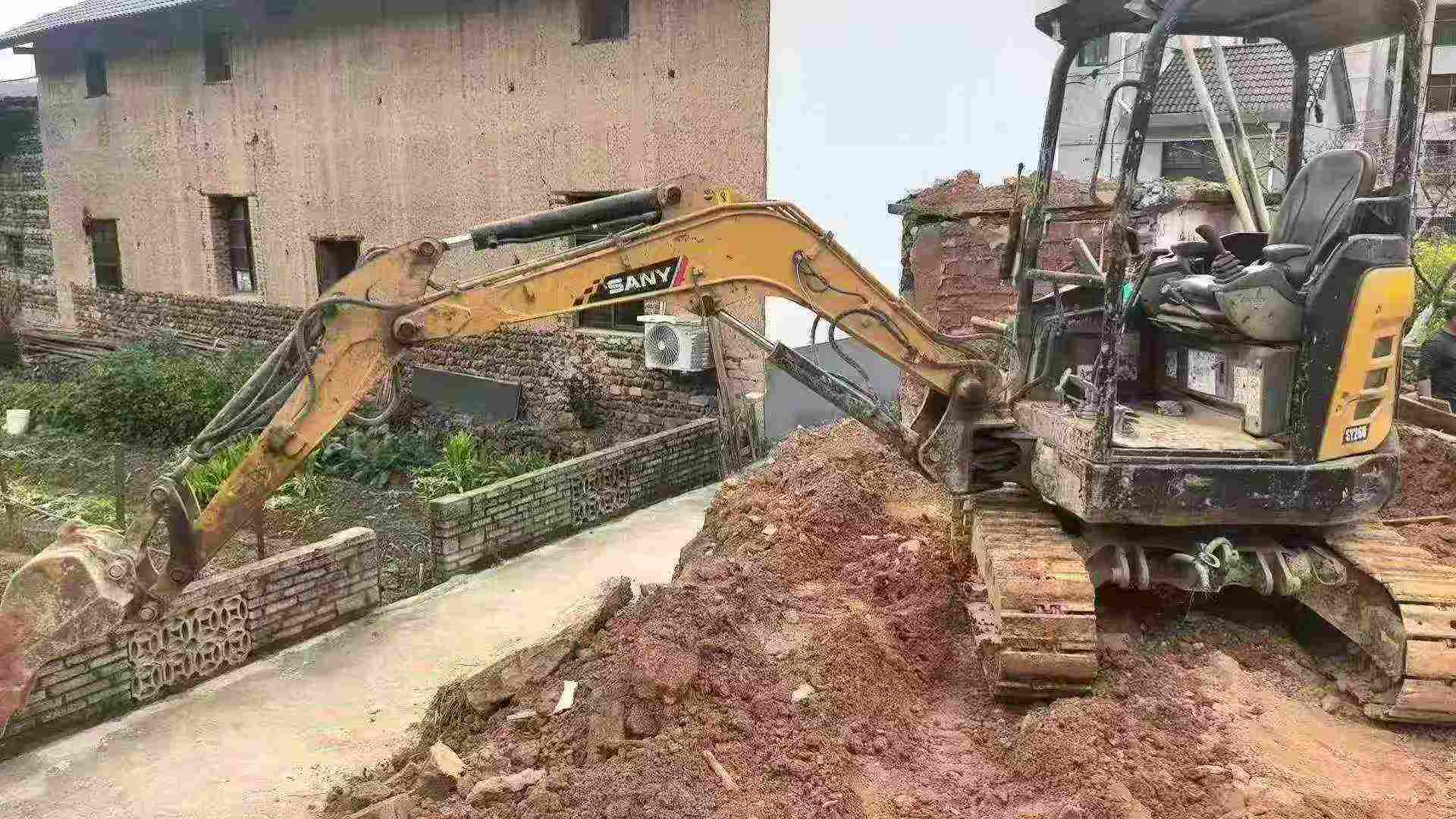

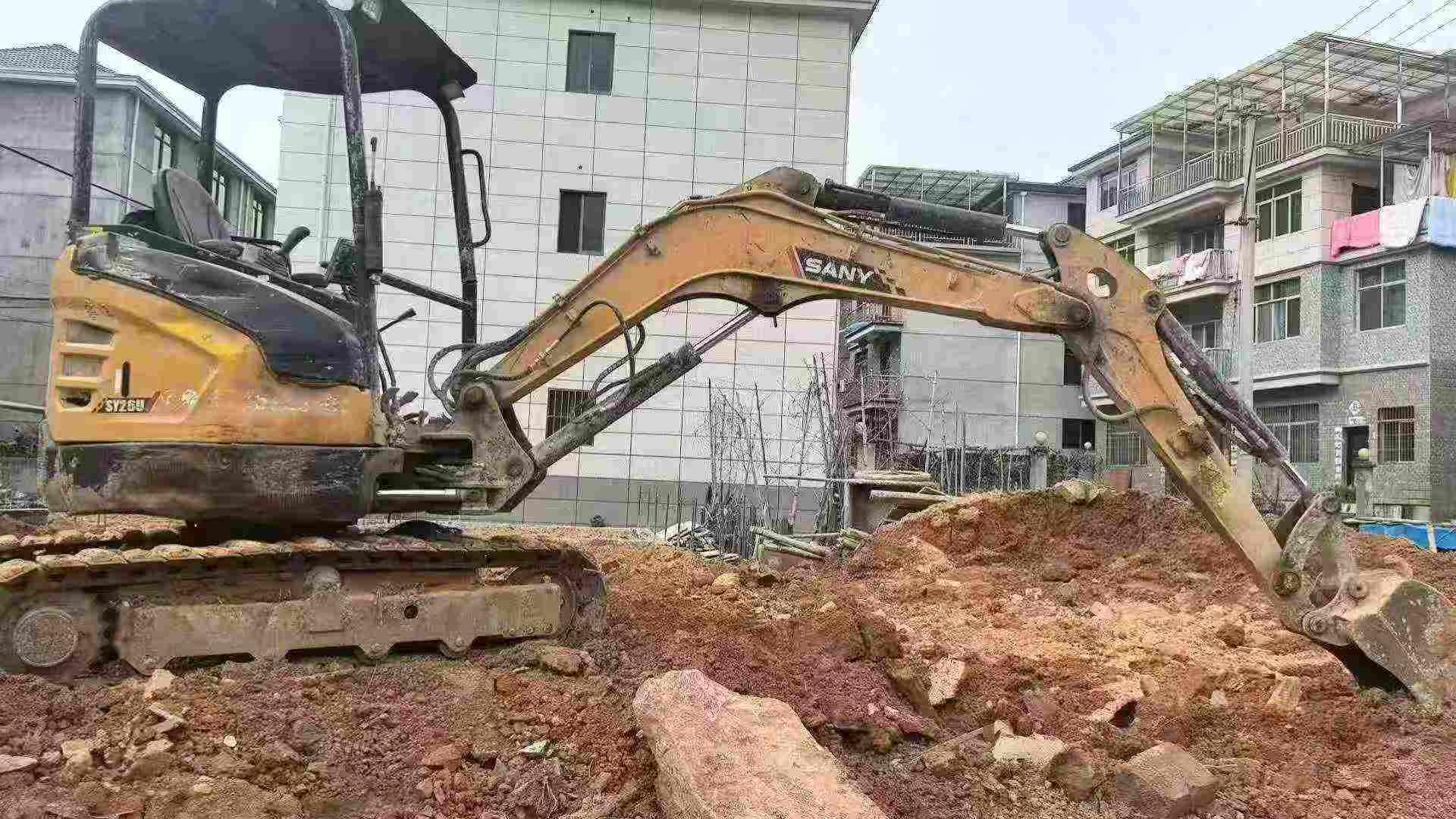

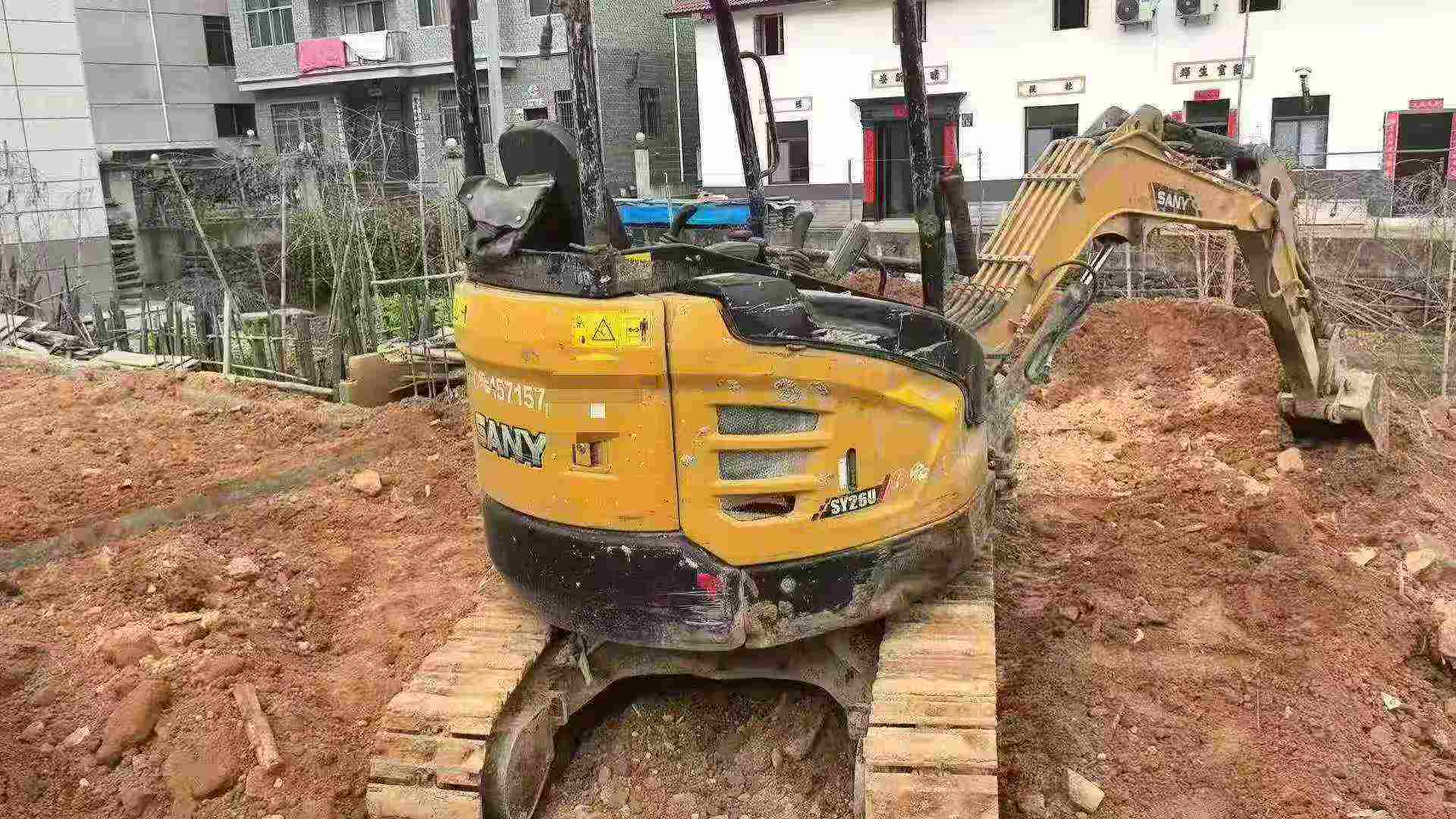

With a working weight of 2680 kg and a bucket capacity ranging from 0.04 to 0.08 m³, the Sany SY26U mini excavator is an ideal fleet addition for busy contractors. Equipped with a Yanmar 3TNV80F engine, this 2-ton machine delivers a rated power of 15.2 kW at 2500 rpm, ensuring reliable performance. Its maximum torque of 63.2-67.4 N.m at 1800-100 rpm and a climbing ability of 47% make it versatile for various terrains. The SY26U offers a travel speed of 4.5/2.6 km/h, making it efficient for on-site maneuvering. Key features include a 34-liter fuel tank, 30-liter hydraulic tank, and a total transport length of 4285 mm, enhancing its practicality for transportation and storage. This compact excavator, with a backhoe bucket, is perfect for tight spaces, boasting a minimum turning radius of 2110 mm and a back end turning radius of 775 mm. Add the Sany SY26U to your fleet for enhanced productivity and reliability.
| Specifications | Value |
|---|---|
| No. | 1057076 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 2680 |
| Bucket capacity (m³) | 0.04-0.08(0.06) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV80F |
| Rated power (kw/rpm) | 15.2/2500 |
| Maximum torque (N.m) | 63.2-67.4/1800-100 |
| Displacement (L) | 1.266 |
| Ground specific pressure (Kpa) | 25.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 47 |
| Bucket digging force (kN) | 24.3 |
| Rod digging force (kN) | 14.2 |
| Travel speed (km/h) | 4.5/2.6 |
| Fuel Tank (L) | 34 |
| Hydraulic Tank (L) | 30 |
| Engine Oil changes (L) | 3.4/1.6 |
| Total transport length (mm) | 4285 |
| Total transport width (mm) | 1550 |
| Total transport height (mm) | 2430 |
| Minimum ground clearance (mm) | 290 |
| Minimum turning radius of front working device (mm) | 2110 |
| Back end turning radius (mm) | 775 |

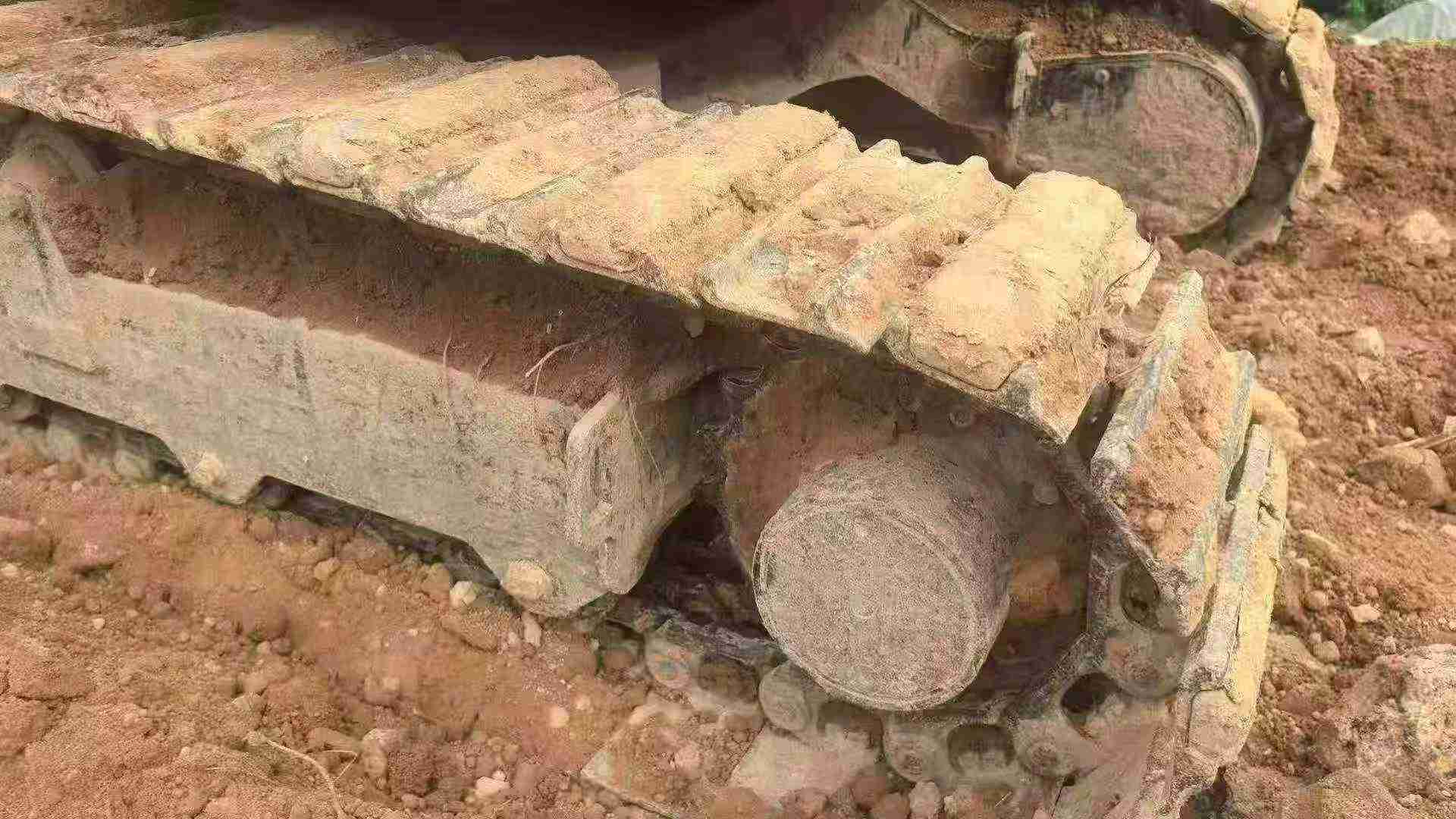

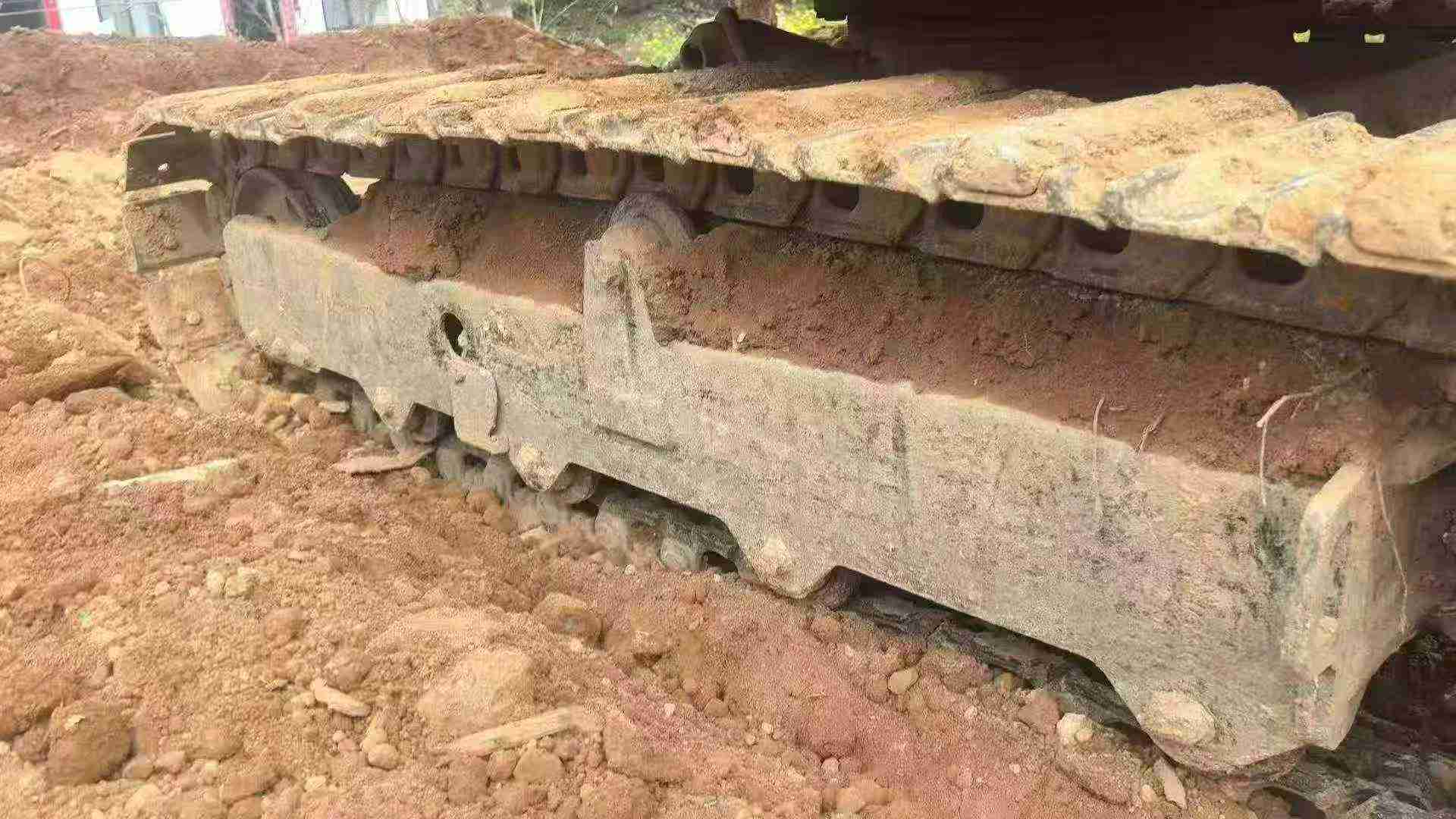

| Total track length (mm) | 2005 |
| Track gauge (mm) | 1250 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1560 |
| Maximum height at minimum turning radius (mm) | 3200 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4850 |
| Maximum digging depth (mm) | 2820 |
| Maximum excavation height (mm) | 4410 |
| Maximum unloading height (mm) | 3100 |
| Maximum vertical digging depth (mm) | 2585 |
| Bulldozer lift or depth (mm) | 360/330 |
| Dodging plate width × height (mm) | 300 (height) |
