Product Description

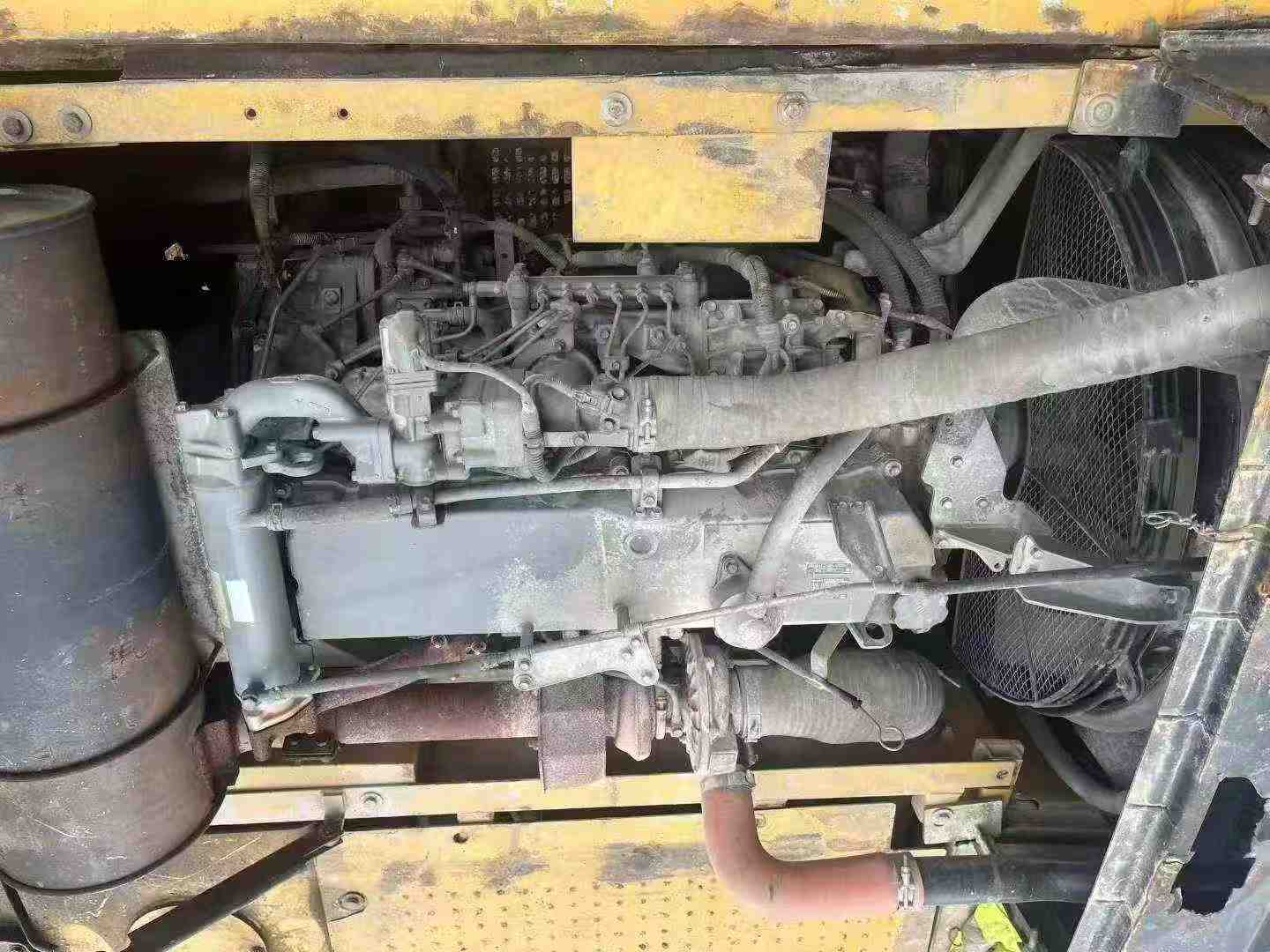

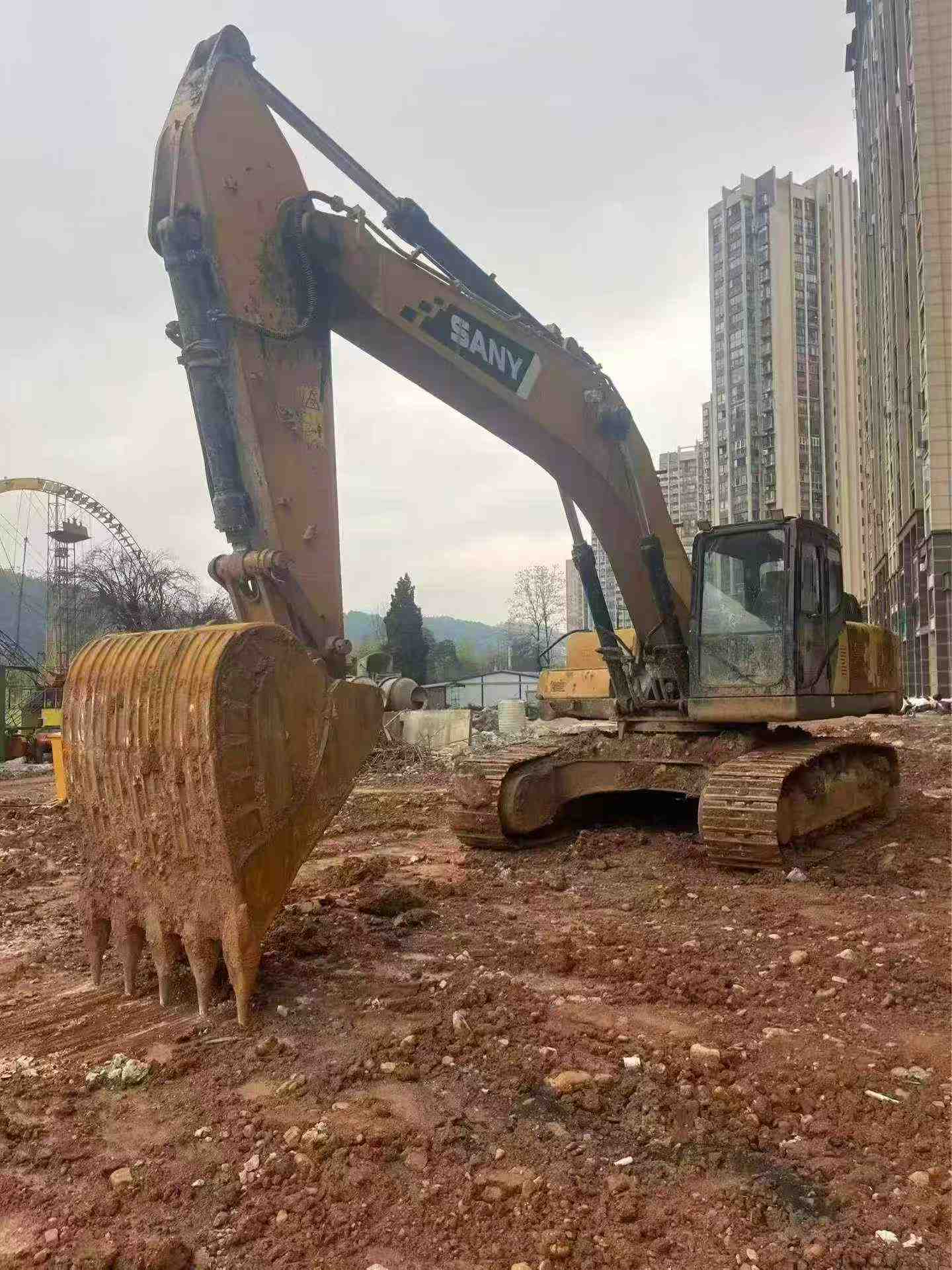

Engineered with a robust GH-6HK1XKSC-01 engine delivering 212 kW at 2000 rpm and 1080 N·m maximum torque, this 2017 Sany SY285C excavator represents precision-grade construction machinery built for demanding jobsites. Operating at 28 tons with a 29,120 kg working weight, this machine combines hydraulic efficiency with structural integrity across a 7.79L displacement platform.
Technical specifications demonstrate superior performance characteristics:
- Bucket digging force of 185 kN and rod digging force of 143 kN for exceptional breakout power
- 1.35 m³ backhoe bucket capacity optimized for high-volume excavation
- 540L fuel tank and 380L hydraulic reservoir for extended operational cycles
- 9.5 rpm rotation speed with 70% (35°) climbing capability on challenging terrain
- 58 Kpa ground specific pressure minimizing surface impact
- Dual-speed travel system: 5.1/3.2 km/h for operational flexibility
Currently located in Luzhou, Sichuan, this Chinese-manufactured excavator features a proven undercarriage configuration with 600mm track width, dual sprockets, and 45 track plates per side ensuring stability and longevity in heavy-duty applications.
| Specifications | Value |
|---|---|
| No. | 1037590 |
| Tonnage (tons) | 28 |
| Working weight (kg) | 29120 |
| Bucket capacity (m³) | 1.35 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC-01 |
| Rated power (kw/rpm) | 212/2000 |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 58 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 143 |
| Travel speed (km/h) | 5.1/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 35 |
| Total track length (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
