Product Description

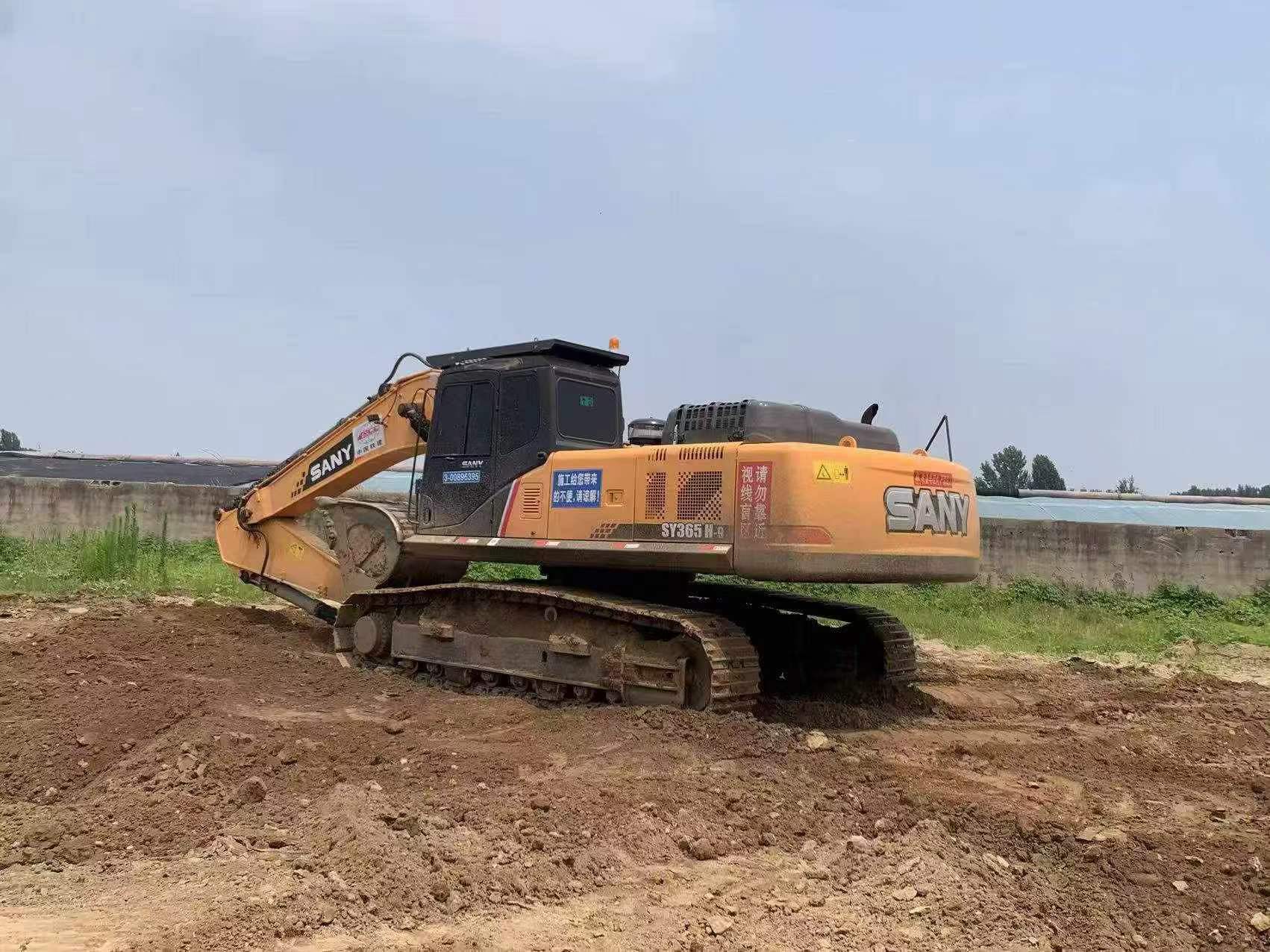

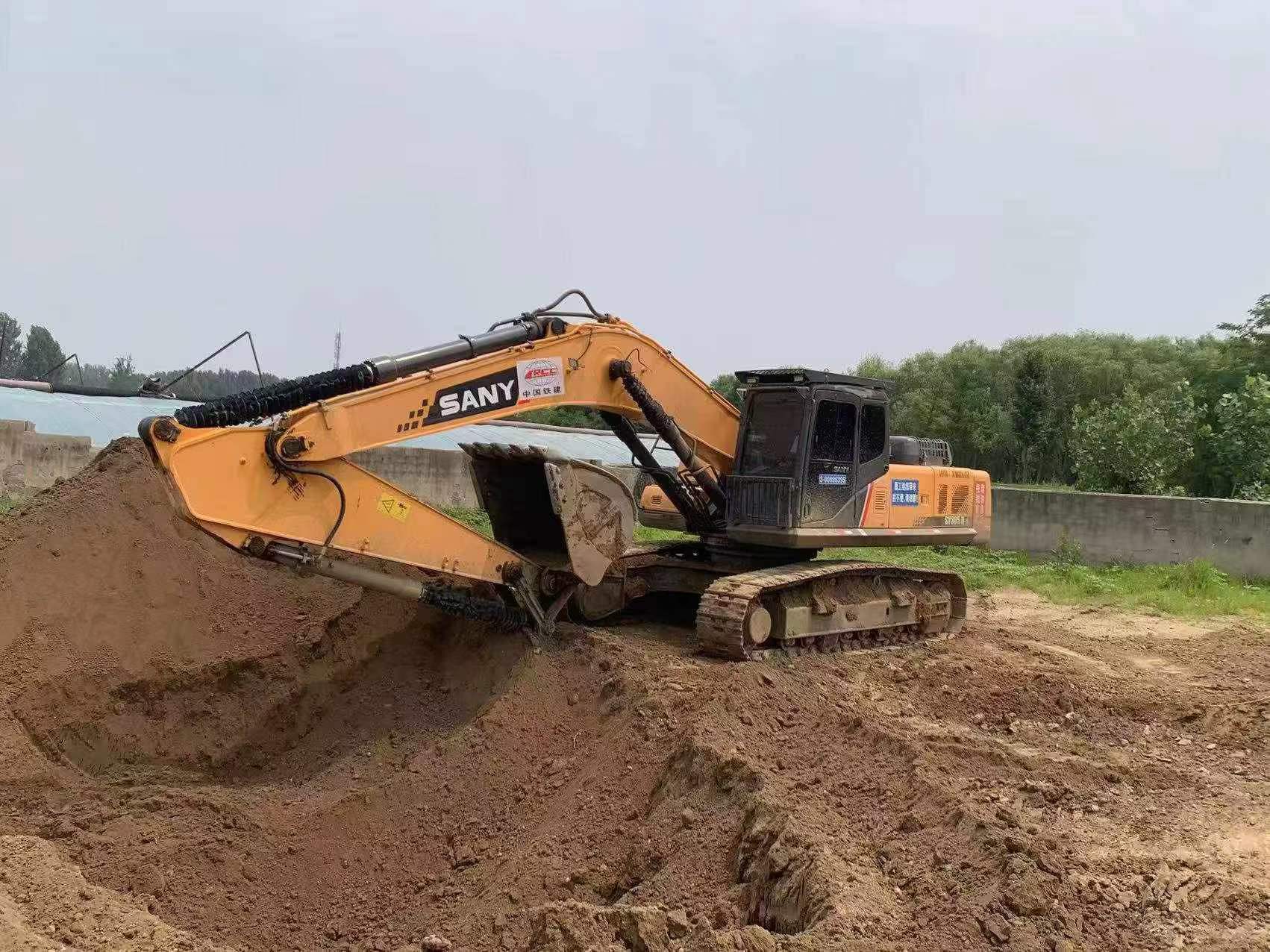

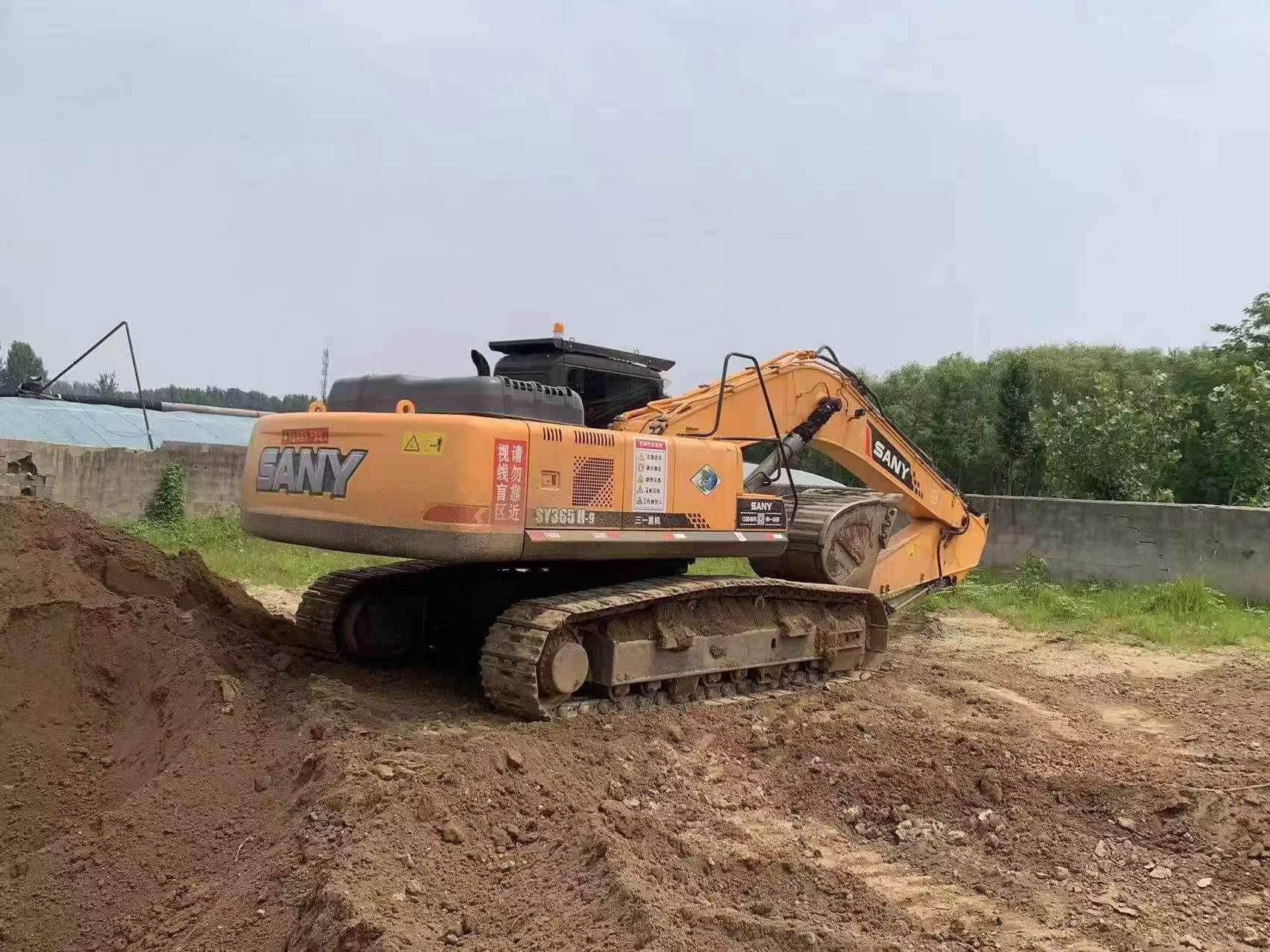

Built for serious earthmoving, this 2020 Sany SY305H delivers 30-ton class performance at a fraction of new equipment cost. Powered by an Isuzu GH-6HK1 6-cylinder engine producing 212 kW and 1,080 N·m of peak torque, this machine handles demanding excavation cycles without compromise. Available now from Hebei, China, it represents a smart capital investment for contractors and fleet operators who demand output over overhead.

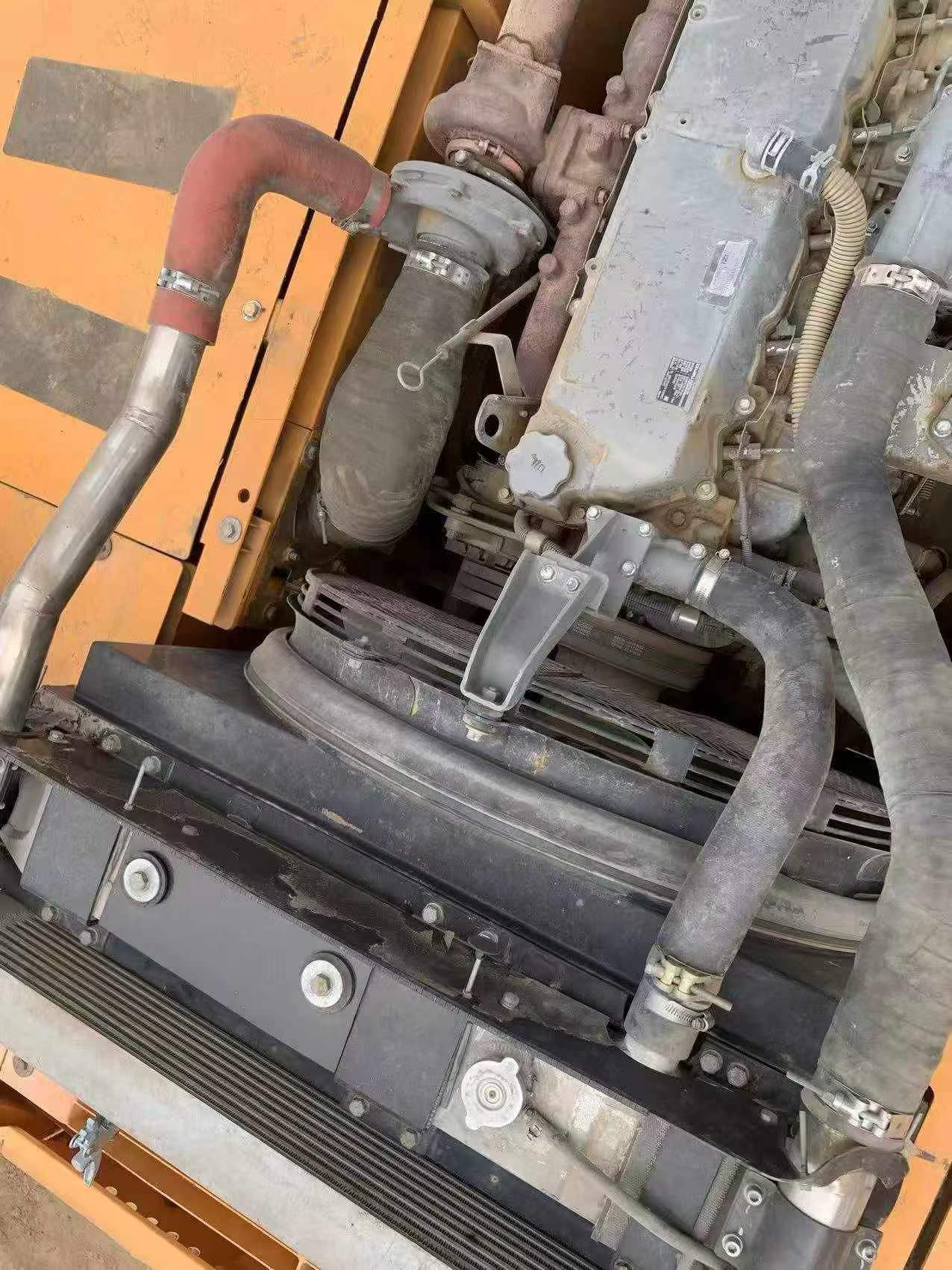

- Engine: Isuzu GH-6HK1 | 212 kW / 2,000 rpm | 1,080 N·m torque | Water-cooled, 6-cylinder, 7.79L displacement
- Digging Performance: Bucket force 204 kN | Arm force 153 kN | Max digging depth 6,815 mm | Max digging radius 10,870 mm
- Bucket Capacity: 1.65–2.0 m³ backhoe bucket | Suited for high-volume soil and rock removal

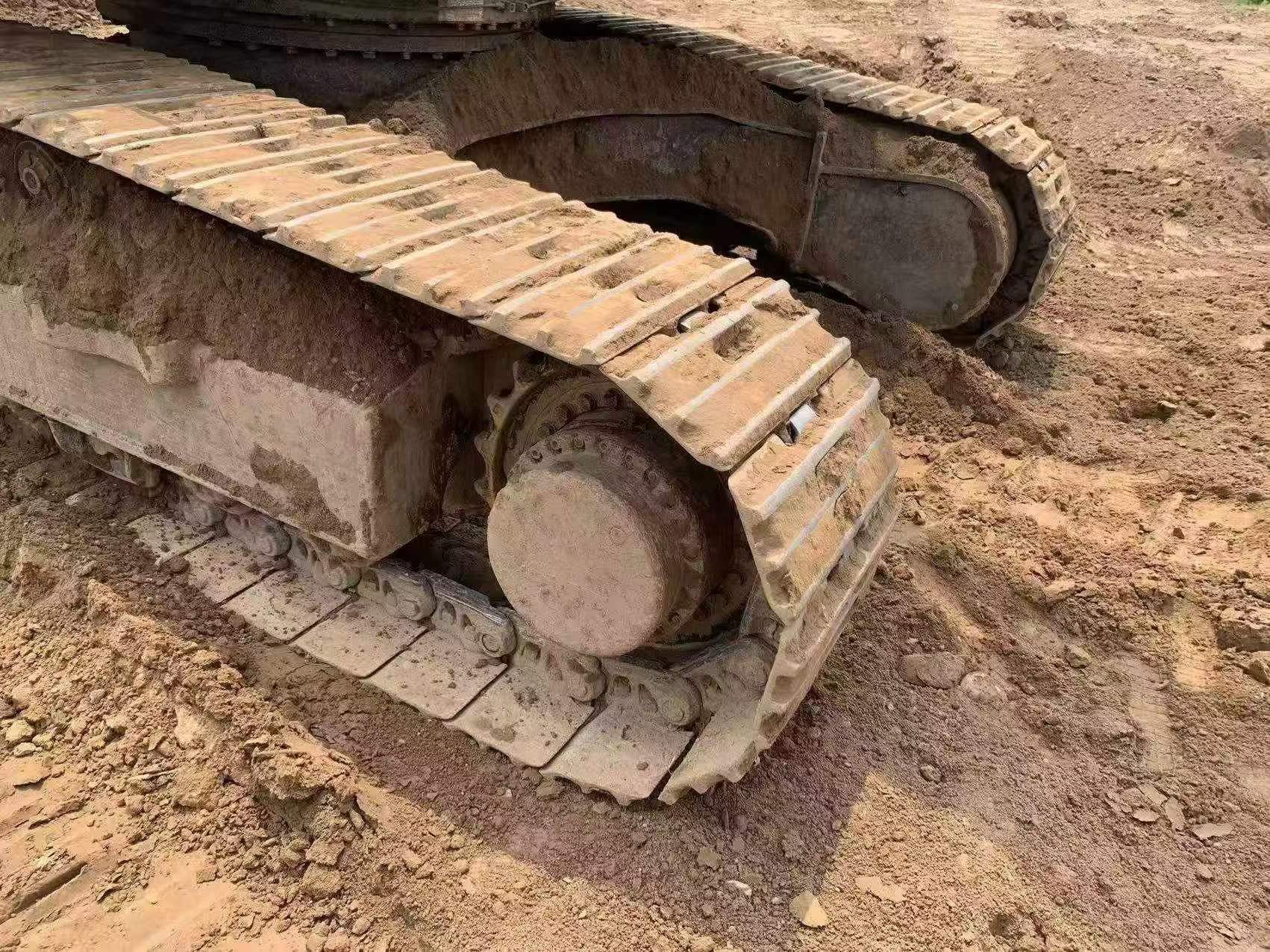

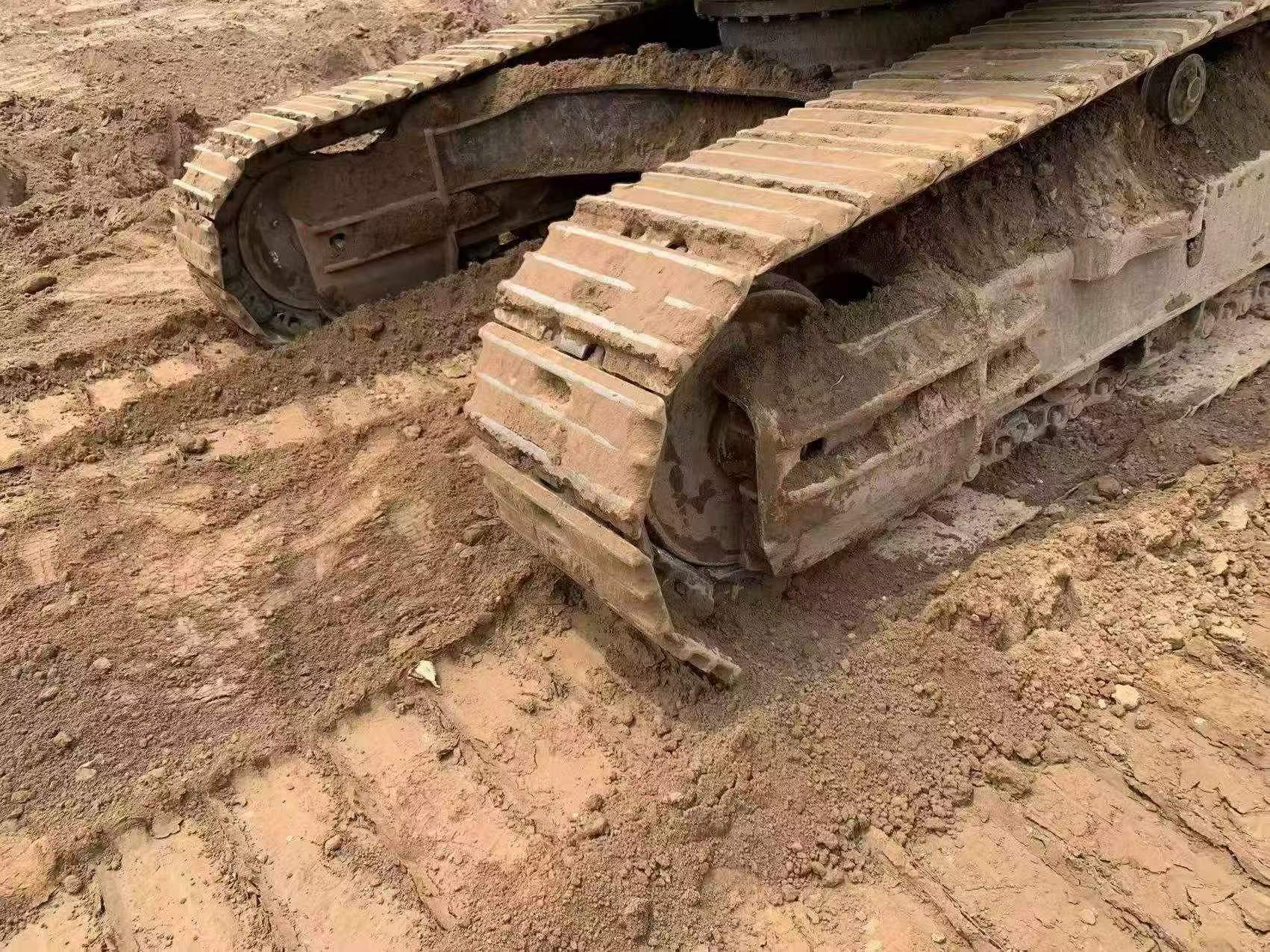

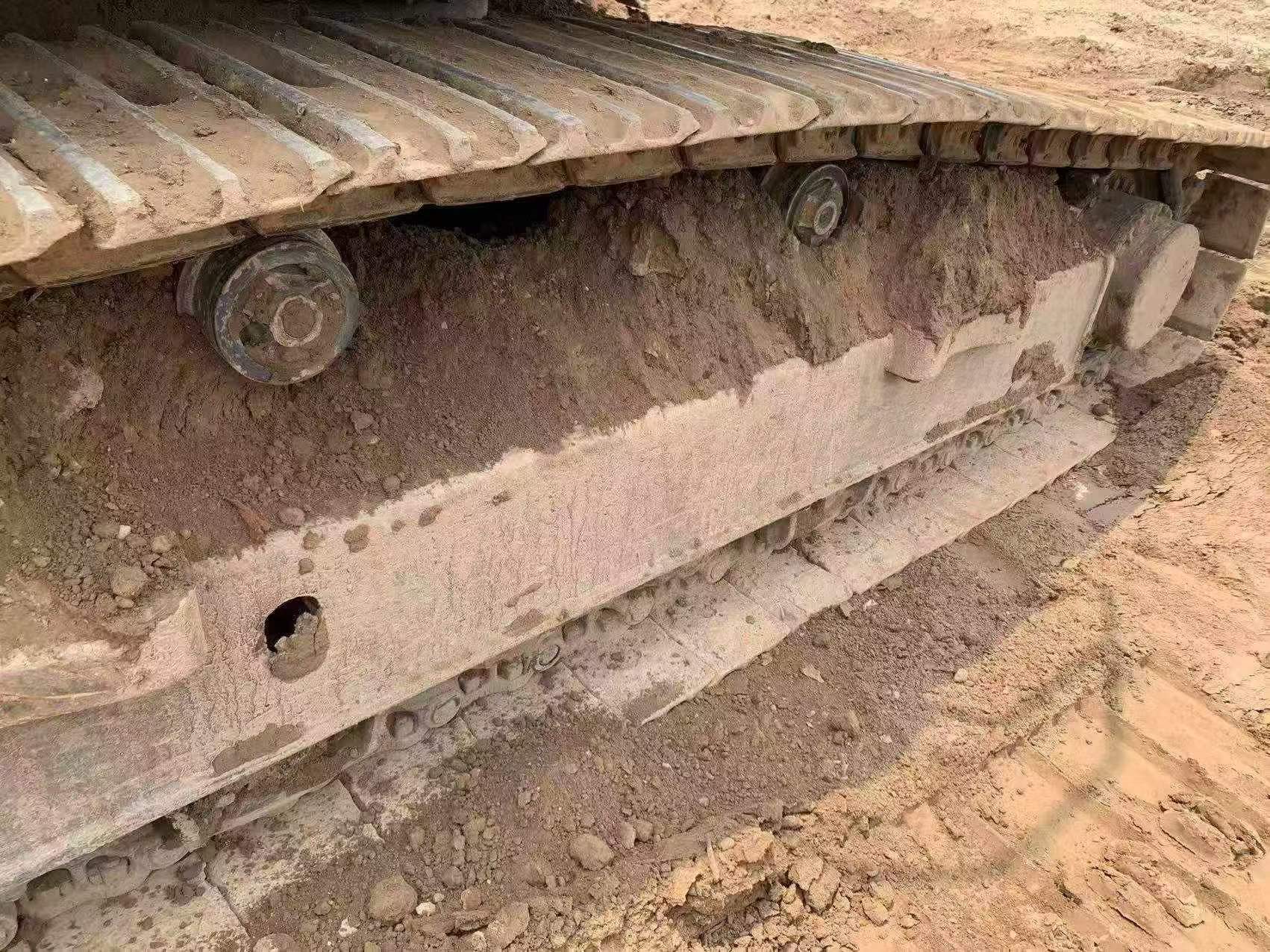

- Undercarriage: 600 mm track plates | Ground pressure 62.3 kPa | Climbing ability 70% (35°) | Travel speed up to 5.4 km/h
- Fuel Tank: 540 L capacity | Hydraulic tank 380 L | Supports extended shifts with reduced downtime
- Transport Dimensions: 10,667 mm (L) × 3,190 mm (W) × 3,470 mm (H) | Shipping-ready from China
Purchasing used means acquiring proven, field-tested capability — same specs, lower acquisition cost, faster ROI. Inspect-ready and competitively priced for immediate deployment on infrastructure, mining, or civil construction projects.
| Specifications | Value |
|---|---|
| No. | 1093704 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31500 |
| Bucket capacity (m³) | 1.65~2.0(1.65) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1 |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 62.3 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 204 |
| Rod digging force (kN) | 153 |
| Travel speed (km/h) | 5.4/3.2 |
| Fuel Tank (L) | 540 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 2*4.0 |
| Coolant (L) | 35 |
| Total transport length (mm) | 10667 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3470 |
| Full cab height (mm) | 3280 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4000 |
| Back end turning radius (mm) | 3315 |
| Onboard width (mm) | 3175 |
| Total track length (mm) | 4840 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3916 |
| Maximum height at minimum turning radius (mm) | 8405 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10870 |
| Maximum digging depth (mm) | 6815 |
| Maximum excavation height (mm) | 10497 |
| Maximum unloading height (mm) | 7359 |
| Maximum vertical digging depth (mm) | 6170 |
