Product Description

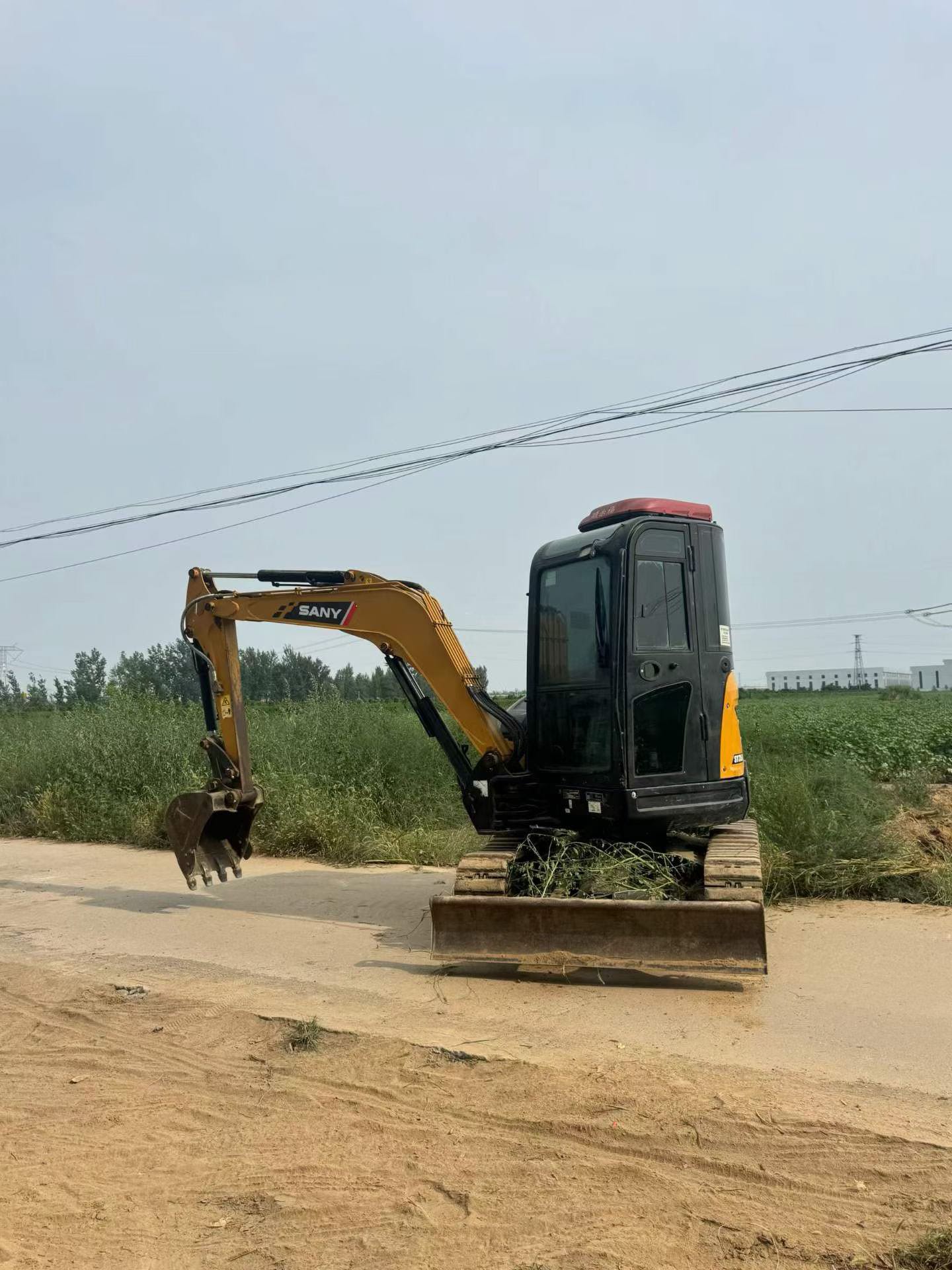

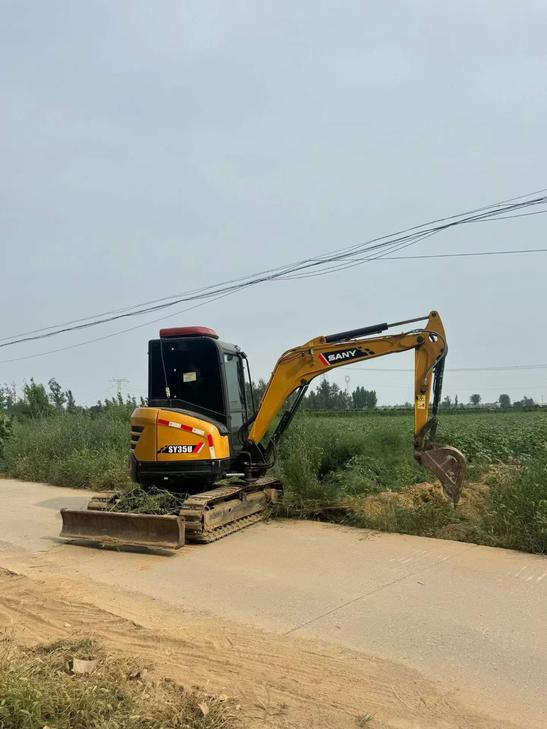

Discover the 2020 Sany SY35U-10, a premium compact excavator in outstanding condition, currently available in Hebei, China. This machine has been meticulously maintained, featuring a full repaint and all major components in pristine, original state. Equipped with an efficient air conditioning system, it ensures operator comfort even in demanding conditions. Originally purchased for village road construction, this excavator is now being offered at a competitive price, making it a cost-effective solution for various small to medium-scale projects. Ideal for contractors and builders looking for reliable performance and durability, the Sany SY35U-10 is ready to meet your operational needs.
- Year: 2020
- Brand: Sany
- Model: SY35U-10
- Location: Hebei, China
| Specifications | Value |
|---|---|
| No. | 1129732 |
| Tonnage (tons) | 3 |
| Working weight (kg) | 3500 |
| Bucket capacity (m³) | 0.12 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88 Stages3A EPA int4 |
| Rated power (kw/rpm) | 20.4/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 107/1300 |
| Displacement (L) | 1.642 |
| Ground specific pressure (Kpa) | 32 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 30.4 |
| Rod digging force (kN) | 18.2 |
| Travel speed (km/h) | 4.4 /2.4 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 40 |
| Engine Oil changes (L) | 6 |
| Total transport length (mm) | 4915 |
| Total transport width (mm) | 1720 |
| Total transport height (mm) | 2515 |
| Minimum ground clearance (mm) | 295 |
| Minimum turning radius of front working device (mm) | 2475 |
| Back end turning radius (mm) | 860 |
| Total track length (mm) | 2155 |
| Track gauge (mm) | 1420 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1670 |
| Maximum height at minimum turning radius (mm) | 3685 |
| Number of wheels (single side) (each) | 4 |
| Maximum digging radius (mm) | 5465 |
| Maximum digging depth (mm) | 3105 |
| Maximum excavation height (mm) | 4855 |
| Maximum unloading height (mm) | 3460 |
| Maximum vertical digging depth (mm) | 2700 |
| Bulldozer lift or depth (mm) | 375/370 |
| Dodging plate width × height (mm) | Height: 350 |
