2022 Sany SY35U-10

1/9
Buy Sany SY35U-10 Used Excavator / 1

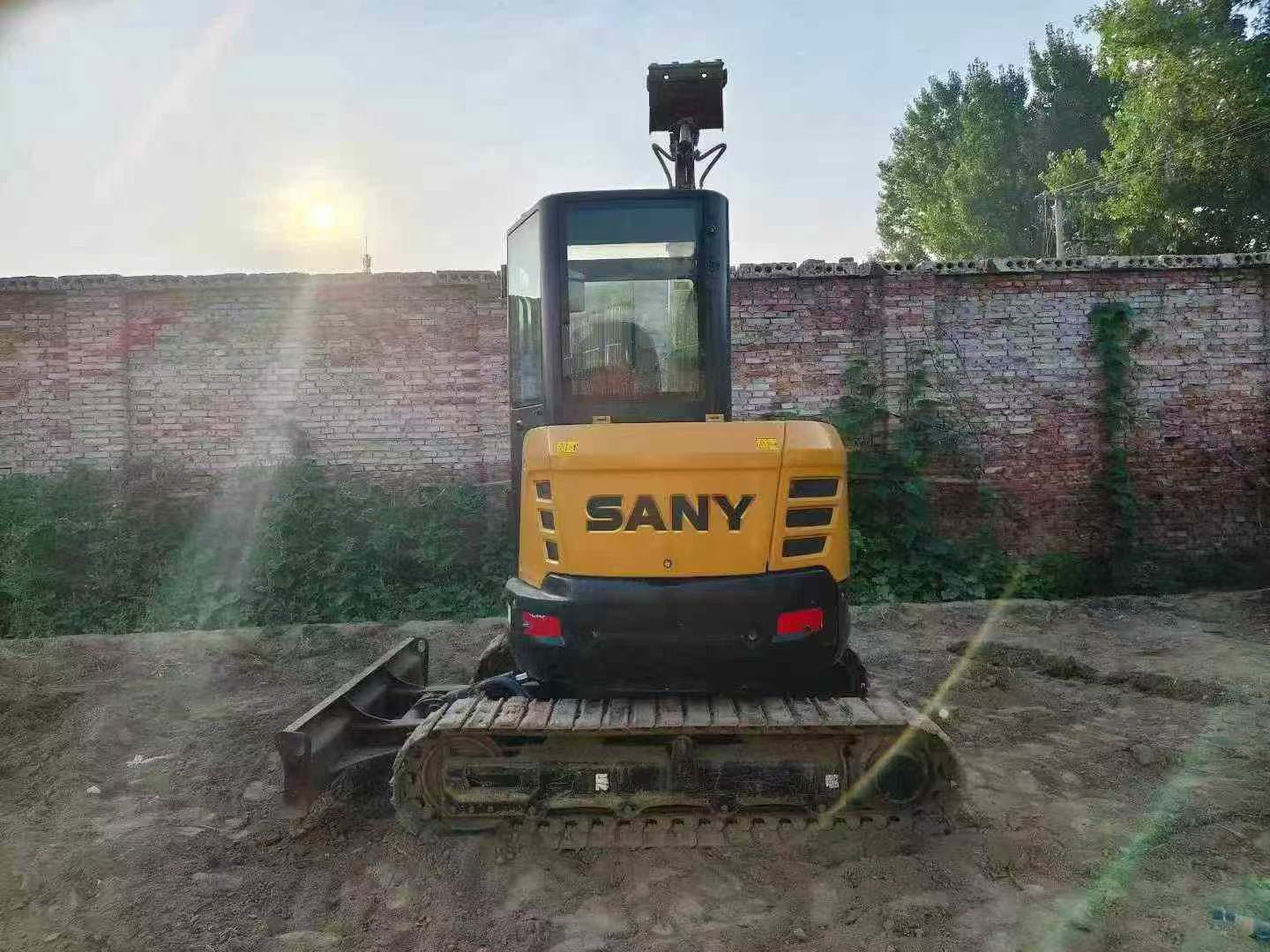

Buy Sany SY35U-10 Used Excavator / 2

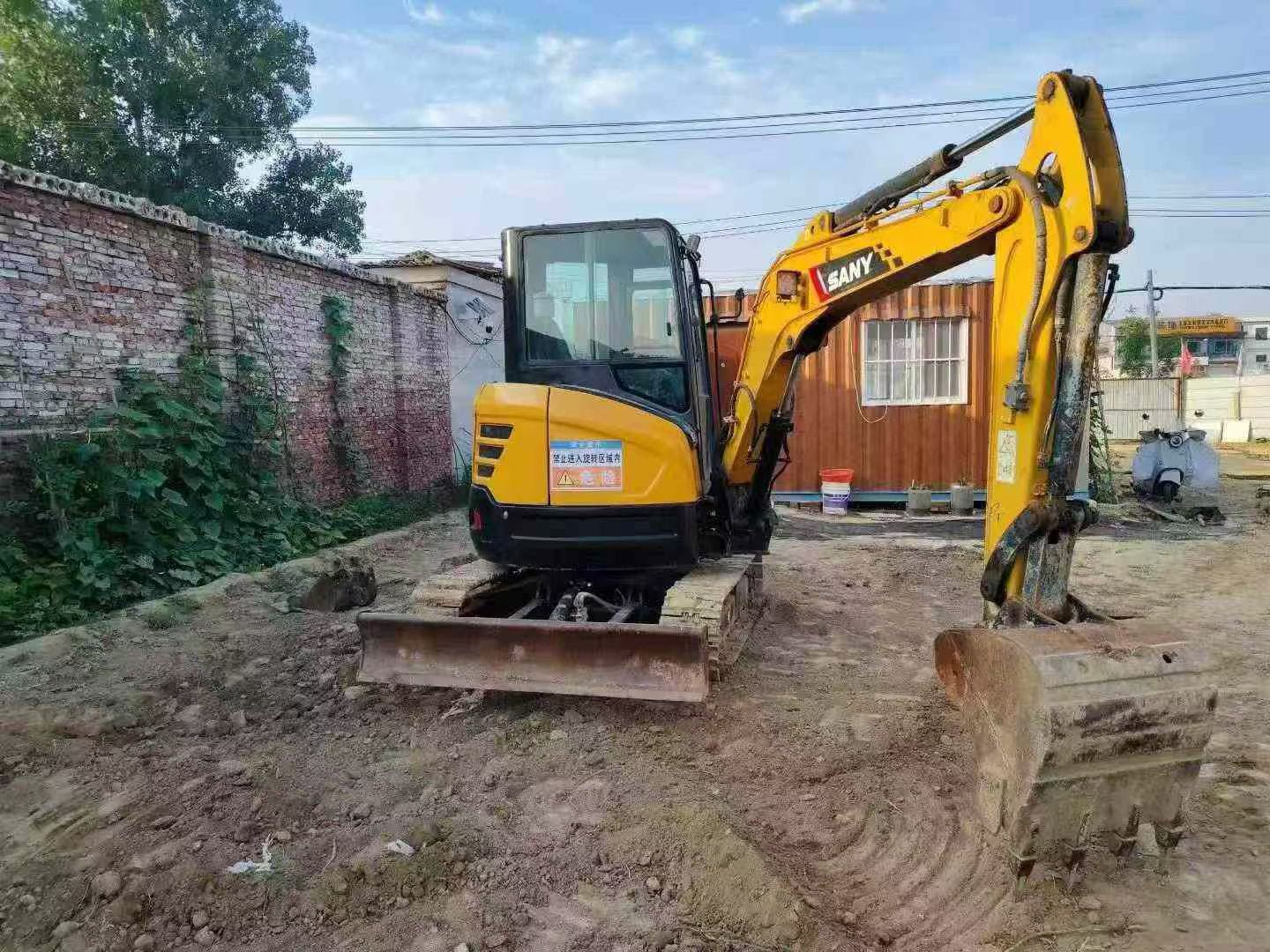

Buy Sany SY35U-10 Used Excavator / 3

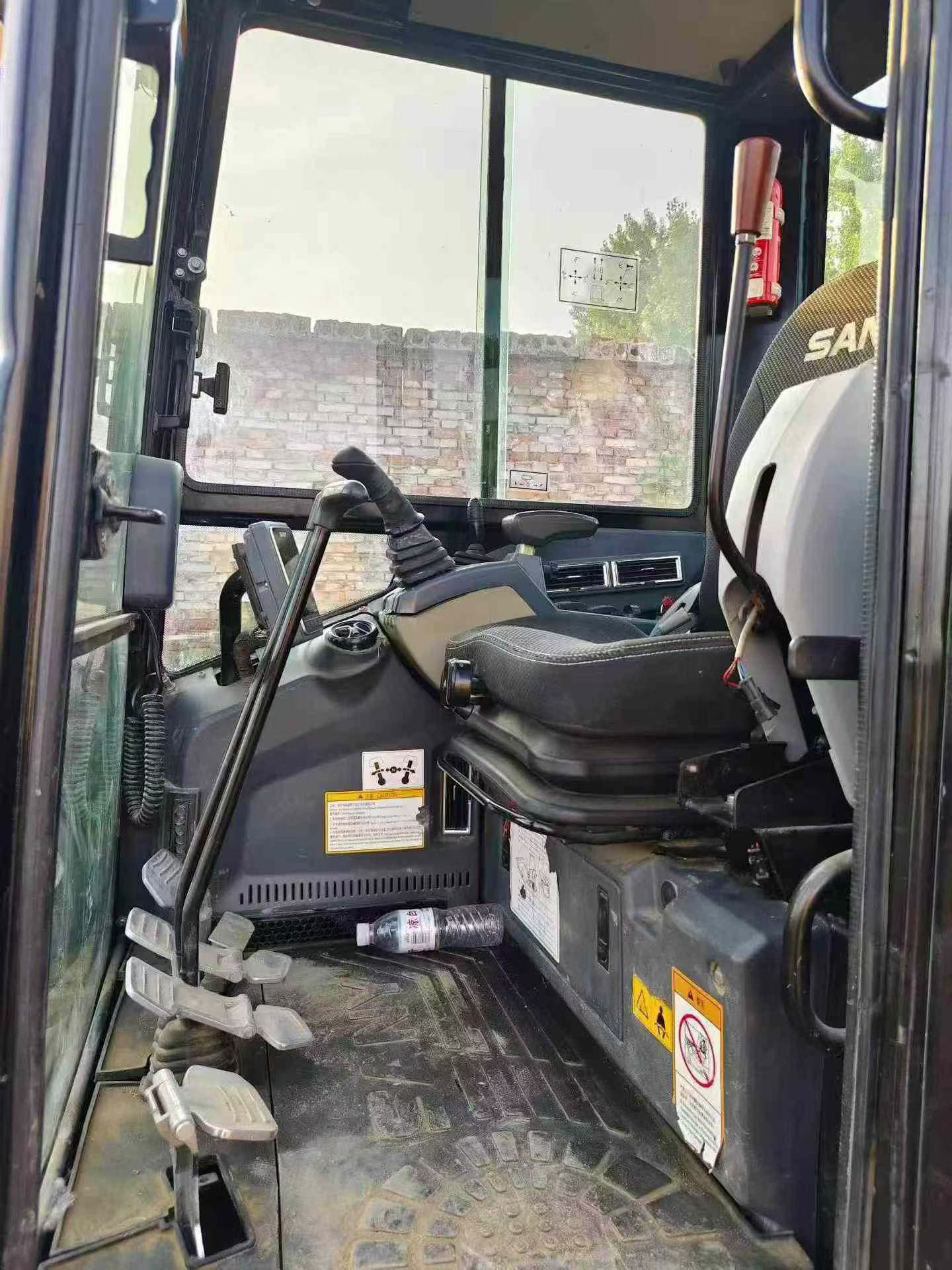

Buy Sany SY35U-10 Used Excavator / 4

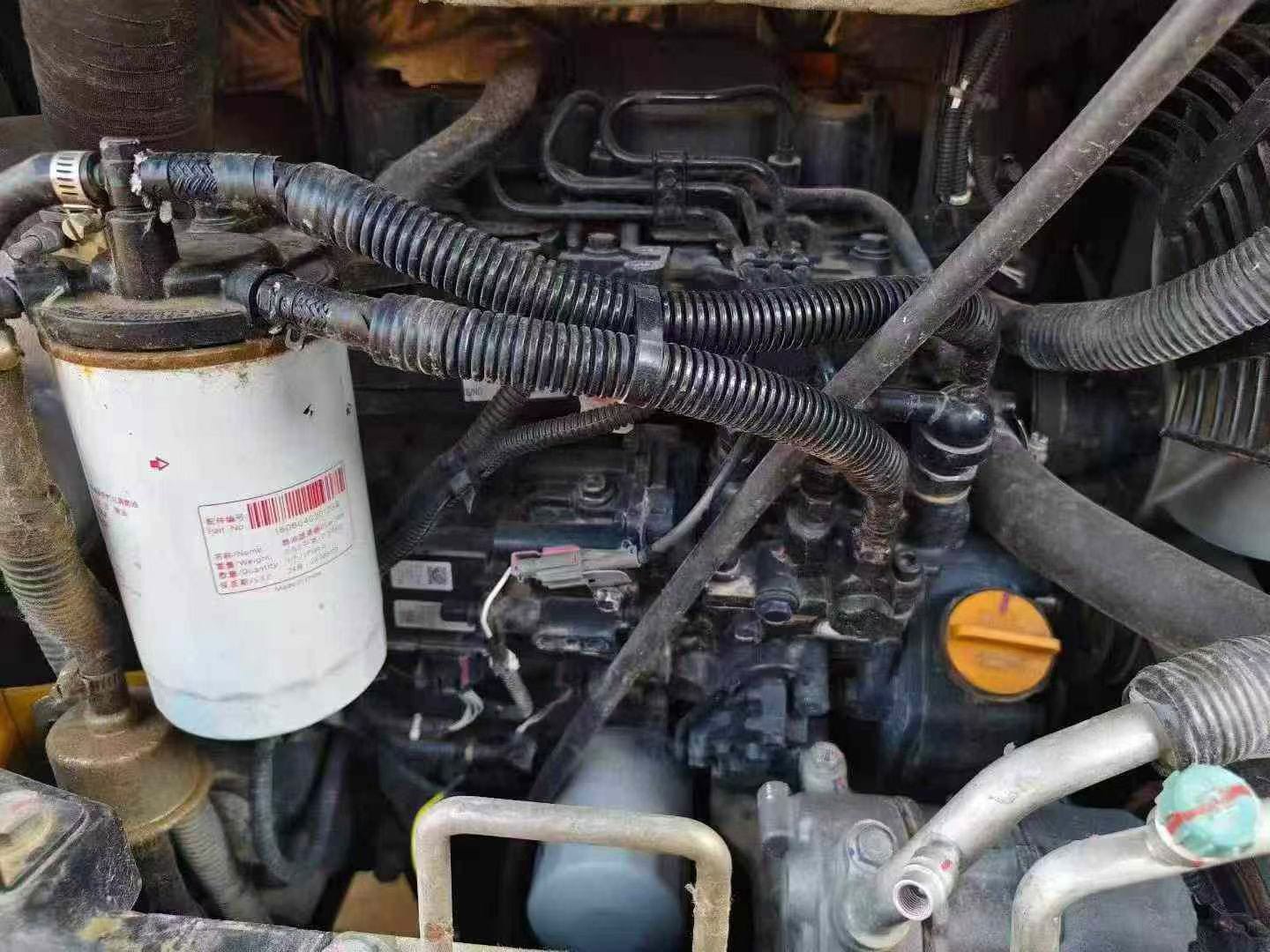

Buy Sany SY35U-10 Used Excavator / 5

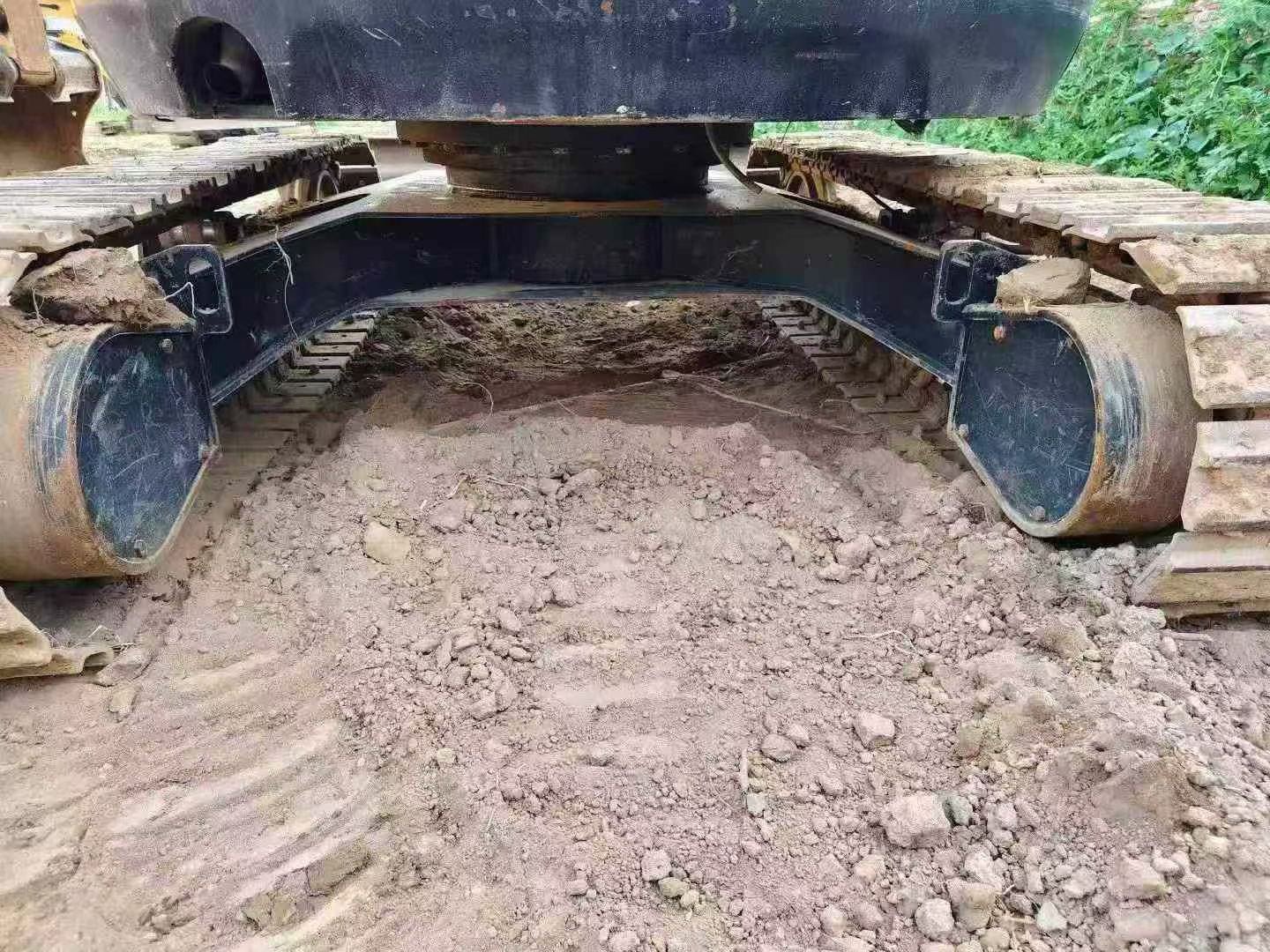

Buy Sany SY35U-10 Used Excavator / 6

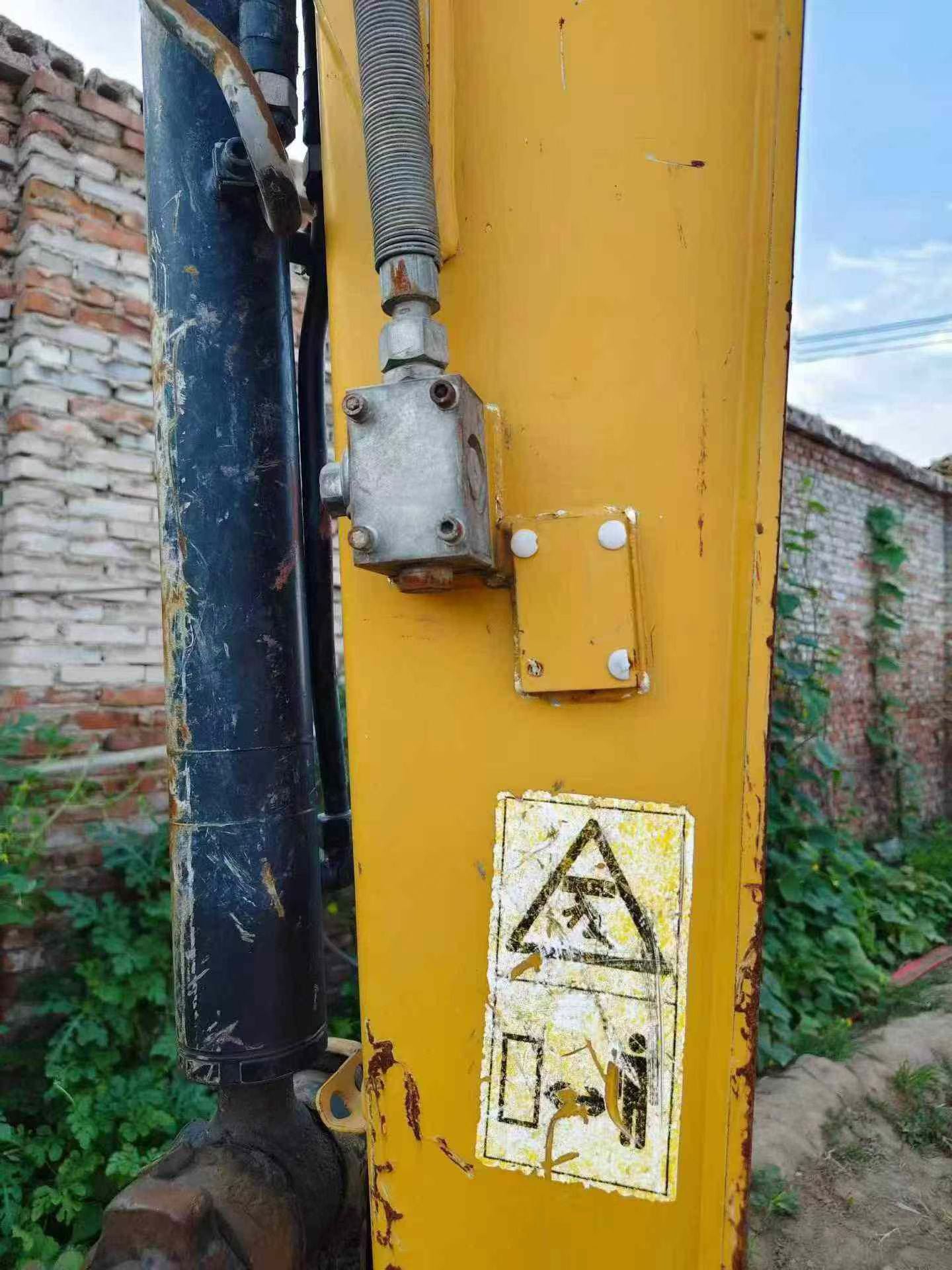

Buy Sany SY35U-10 Used Excavator / 7

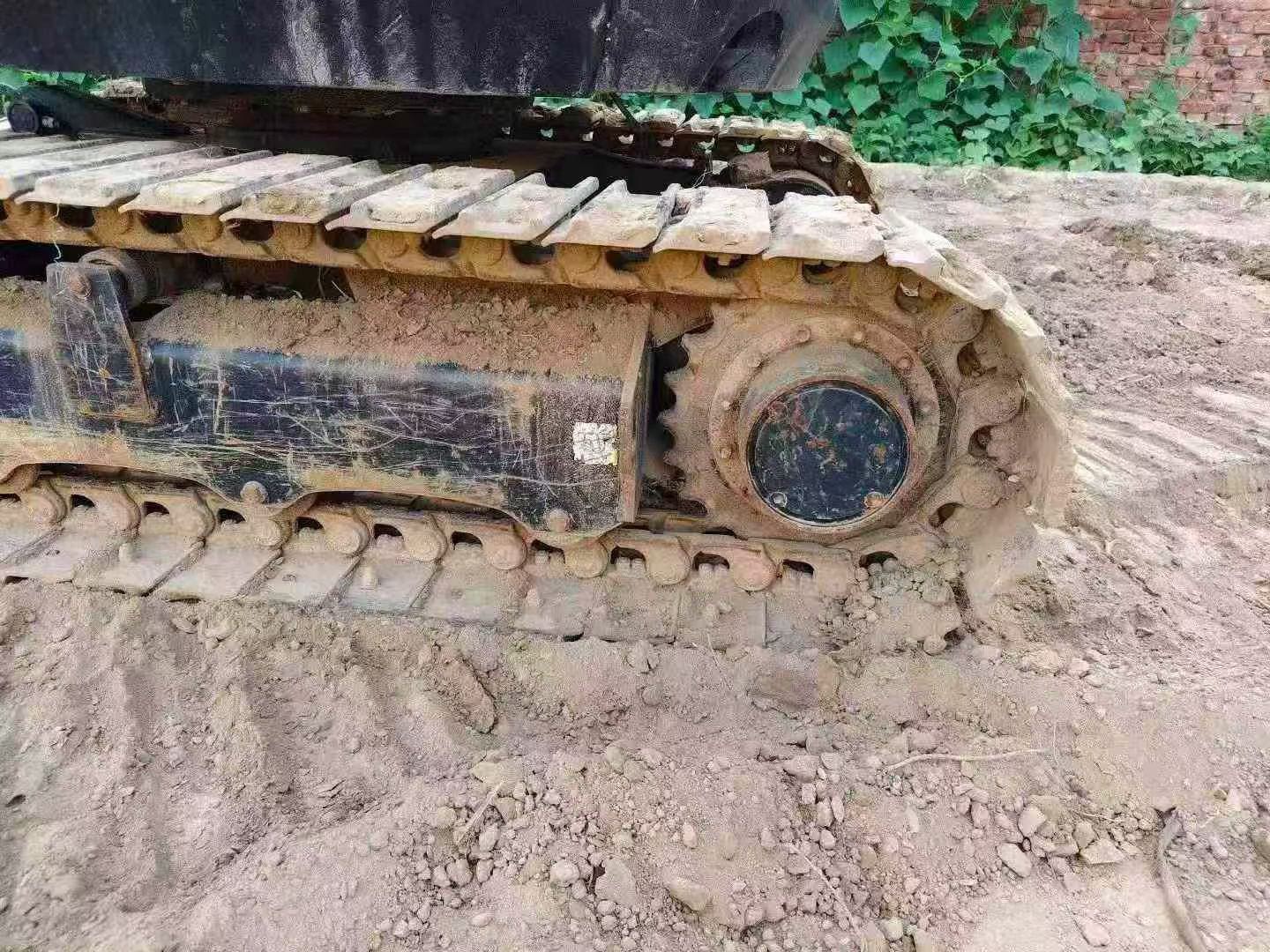

Buy Sany SY35U-10 Used Excavator / 8

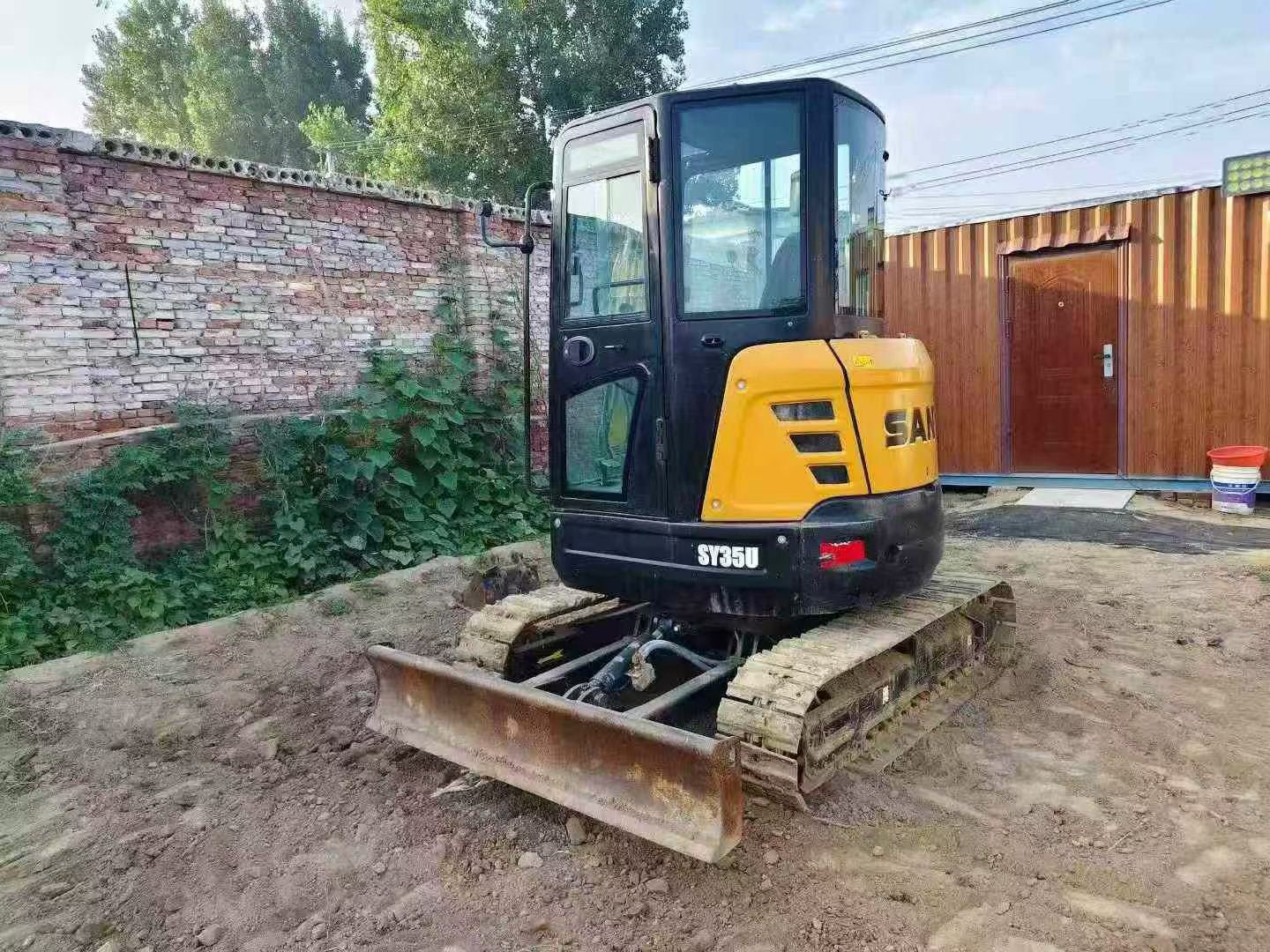

Buy Sany SY35U-10 Used Excavator / 9

Product Description

Discover the exceptional 2022 Sany SY35U-10, a compact excavator renowned for its reliability and performance. This machine, currently located in Hebei, China, has been exclusively used for earthwork, ensuring it is well-maintained and in prime condition. The SY35U-10 is known for its robust build and efficient operation, making it a valuable addition to any construction fleet. With its genuine mileage and impeccable maintenance record, this excavator offers an outstanding value for money, ideal for contractors and industrial operators looking for a dependable and cost-effective solution.

  • Year: 2022
  • Brand: Sany
  • Model: SY35U-10
  • Location: Hebei, China
  • Condition: Excellent, primarily used for earthwork
SpecificationsValue
No.1136079
Tonnage (tons)3
Working weight (kg)3500
Bucket capacity (m³)0.12
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type3TNV88 Stages3A EPA int4
Rated power (kw/rpm)20.4/2200
Cooling modewater-cooling
Maximum torque (N.m)107/1300
Displacement (L)1.642
Ground specific pressure (Kpa)32
Rotation speed (rpm)9
Climbing ability (%)58
Bucket digging force (kN)30.4
Rod digging force (kN)18.2
Travel speed (km/h)4.4 /2.4
Fuel Tank (L)40
Hydraulic Tank (L)40
Engine Oil changes (L)6
Total transport length (mm)4915
Total transport width (mm)1720
Total transport height (mm)2515
Minimum ground clearance (mm)295
Minimum turning radius of front working device (mm)2475
Back end turning radius (mm)860
Total track length (mm)2155
Track gauge (mm)1420
Track plate width (mm)300
Track ground length (mm)1670
Maximum height at minimum turning radius (mm)3685
Number of wheels (single side) (each)4
Maximum digging radius (mm)5465
Maximum digging depth (mm)3105
Maximum excavation height (mm)4855
Maximum unloading height (mm)3460
Maximum vertical digging depth (mm)2700
Bulldozer lift or depth (mm)375/370
Dodging plate width × height (mm)Height: 350
