Product Description

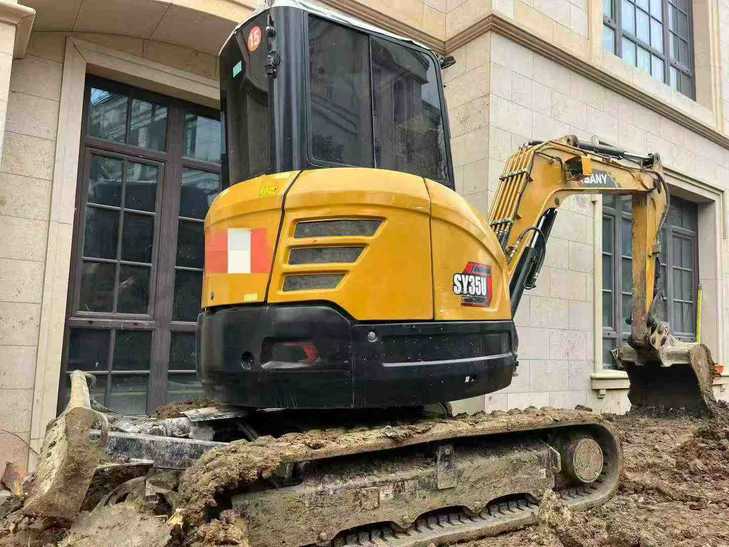

Maximize your ROI with this 2024 Sany SY35U mini excavator—delivering new-machine performance without the premium price tag. Built for compact jobsites, this 3.78-ton workhorse combines a proven Yanmar 3TNV88 engine (20.4 kW) with exceptional digging power: 30.4 kN bucket force and 3,105 mm maximum depth. Currently located in Hangzhou, Zhejiang, this machine offers the reliability of Sany's Chinese manufacturing with minimal operational hours.
- Power & Efficiency: Yanmar EPA Tier 3/Stage 3A compliant engine with water-cooling ensures consistent performance
- Compact Versatility: 1,720 mm transport width and 860 mm rear swing radius for tight-access projects
- Productivity: 5,465 mm maximum reach, 0.12 m³ bucket capacity, and 58% grading capability
- Cost-Effective Operation: 40L fuel tank, low ground pressure (32 kPa), and 4.4 km/h travel speed reduce operational costs
Acquire proven 2024 technology at a fraction of new equipment pricing. Smart contractors recognize the value: full capability, reduced capital outlay, immediate availability from China's manufacturing hub.
| Specifications | Value |
|---|---|
| No. | 1021930 |
| Tonnage (tons) | 3 |
| Working weight (kg) | 3780 |
| Bucket capacity (m³) | 0.06-0.15(0.12) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV88 Stages3A EPA int4 |
| Rated power (kw/rpm) | 20.4/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 107/1300 |
| Displacement (L) | 1.642 |
| Ground specific pressure (Kpa) | 32 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 30.4 |
| Rod digging force (kN) | 18.2 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 40 |
| Engine Oil changes (L) | 6 |
| Total transport length (mm) | 4915 |
| Total transport width (mm) | 1720 |
| Total transport height (mm) | 2515 |
| Minimum ground clearance (mm) | 295 |
| Back end turning radius (mm) | 860 |
| Total track length (mm) | 2155 |
| Track gauge (mm) | 1420 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1670 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 4 |
| Maximum digging radius (mm) | 5465 |
| Maximum digging depth (mm) | 3105 |
| Maximum excavation height (mm) | 4855 |
| Maximum unloading height (mm) | 3460 |
| Maximum vertical digging depth (mm) | 2700 |
| Bulldozer lift or depth (mm) | 375/370 |
