Product Description

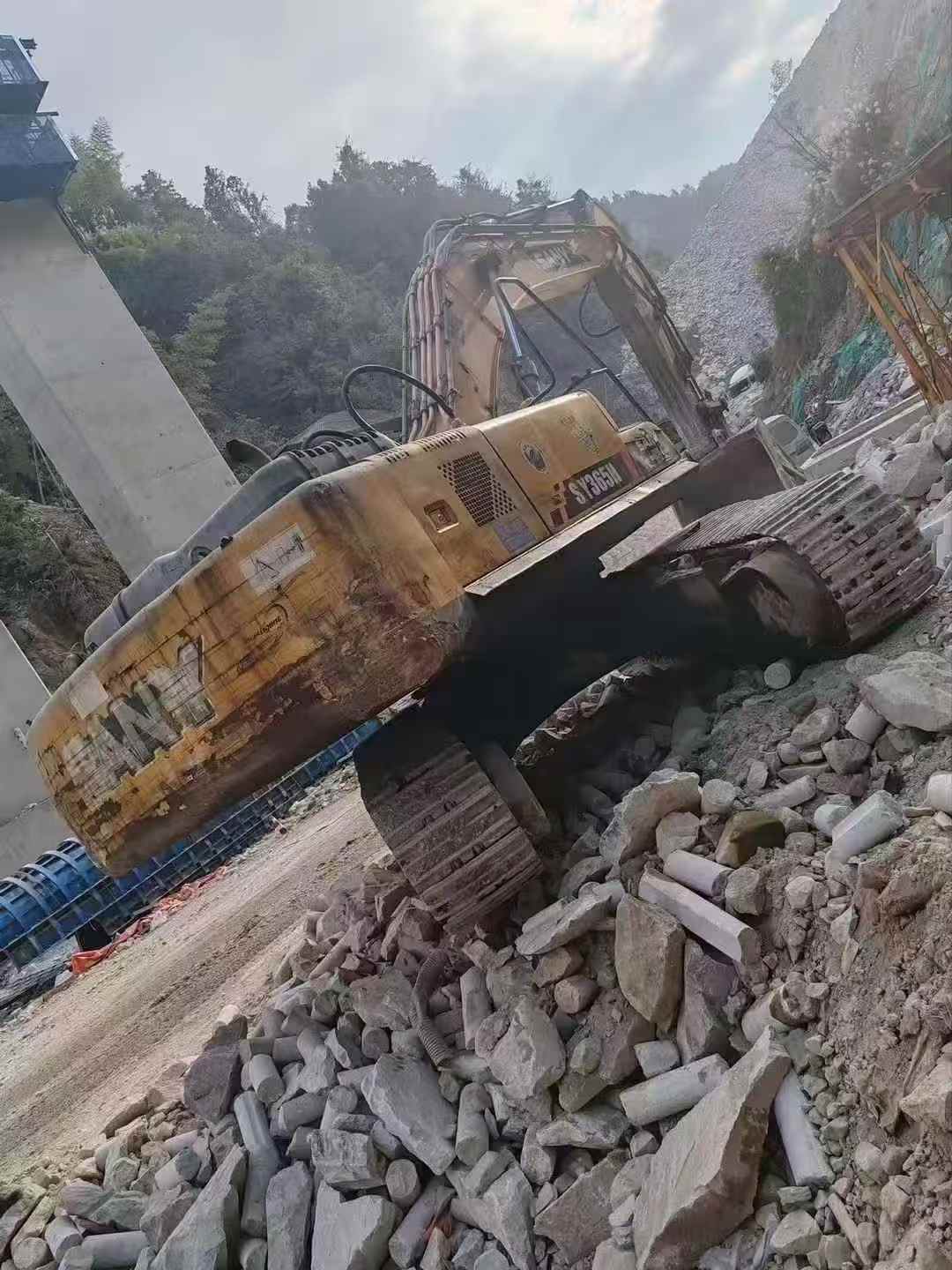

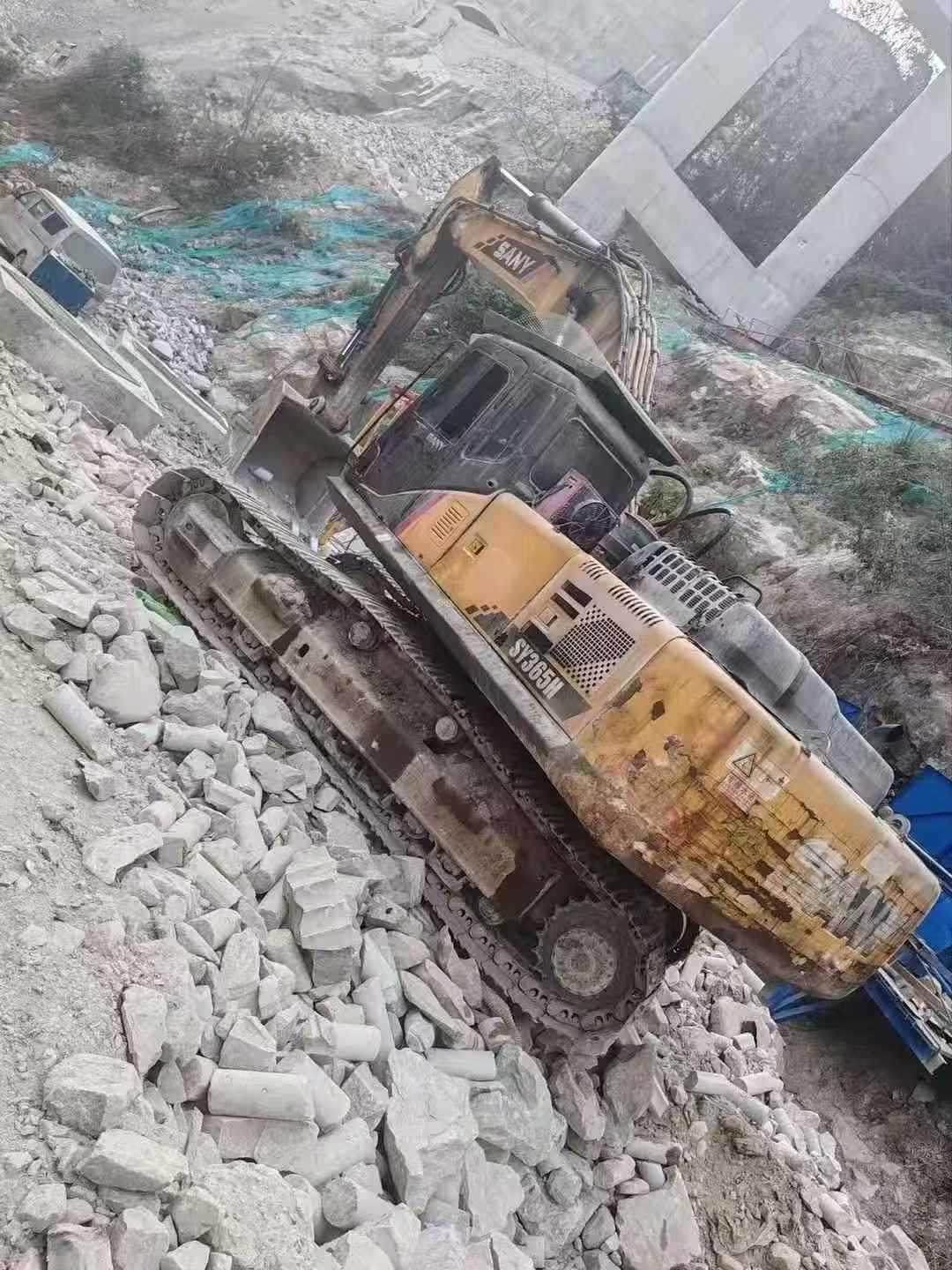

Powering through demanding excavation projects since 2014, this Sany SY365C-8 delivers proven performance in the 36-ton class. Built in China with a robust Isuzu engine generating 190.5 kW at 2000 rpm, this crawler excavator combines serious digging force—220 kN bucket force and 180 kN arm force—with a maximum reach of 10,615 mm and excavation depth of 7,040 mm. Operating weight of 34,100 kg ensures stability across challenging terrain in Guizhou and beyond.
Sany's market dominance translates directly into ownership advantages. Parts availability remains exceptional throughout Asia and expanding global networks, minimizing downtime and repair costs. Strong resale values reflect the brand's reputation for durability, making this SY365C-8 a strategic investment rather than a depreciating asset. The 1.6 m³ bucket capacity handles substantial material volumes, while the 70% gradeability tackles steep jobsites with confidence.
Key Specifications:

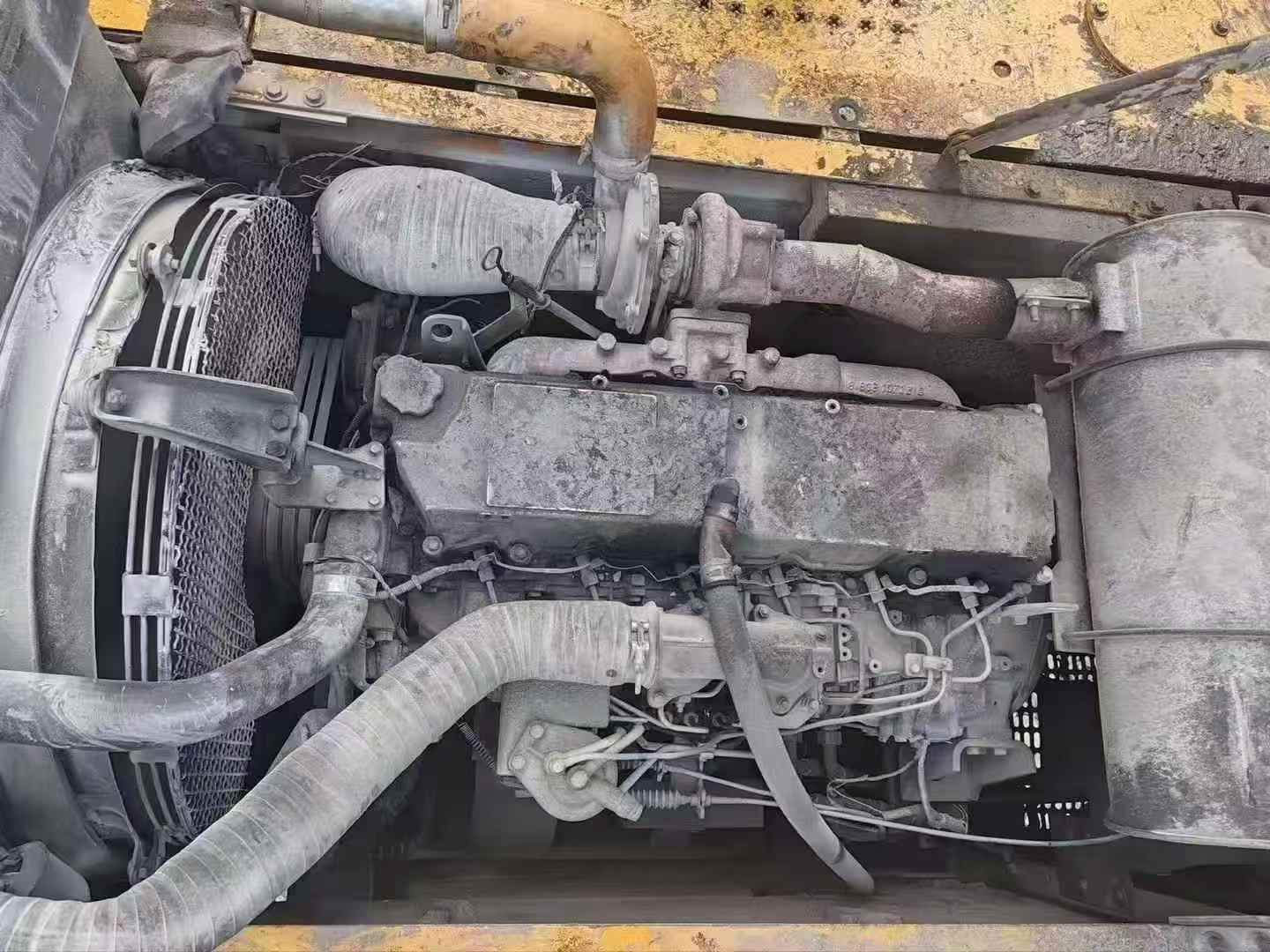

- Engine: Isuzu, 190.5 kW rated power
- Digging forces: 220 kN (bucket) / 180 kN (arm)
- Maximum reach: 10,615 mm
- Transport dimensions: 11,015 × 3,190 × 3,315 mm
- Travel speed: 5.5 / 3.5 km/h
| Specifications | Value |
|---|---|
| No. | 1032310 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 34100 |
| Bucket capacity (m³) | 1.6 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu |
| Rated power (kw/rpm) | 190.5/2000 |
| Ground specific pressure (Kpa) | 59.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 220 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 11015 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3315 |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3300 |
| Total track length (mm) | 5050 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4140 |
| Maximum digging radius (mm) | 10615 |
| Maximum digging depth (mm) | 7040 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
