Product Description

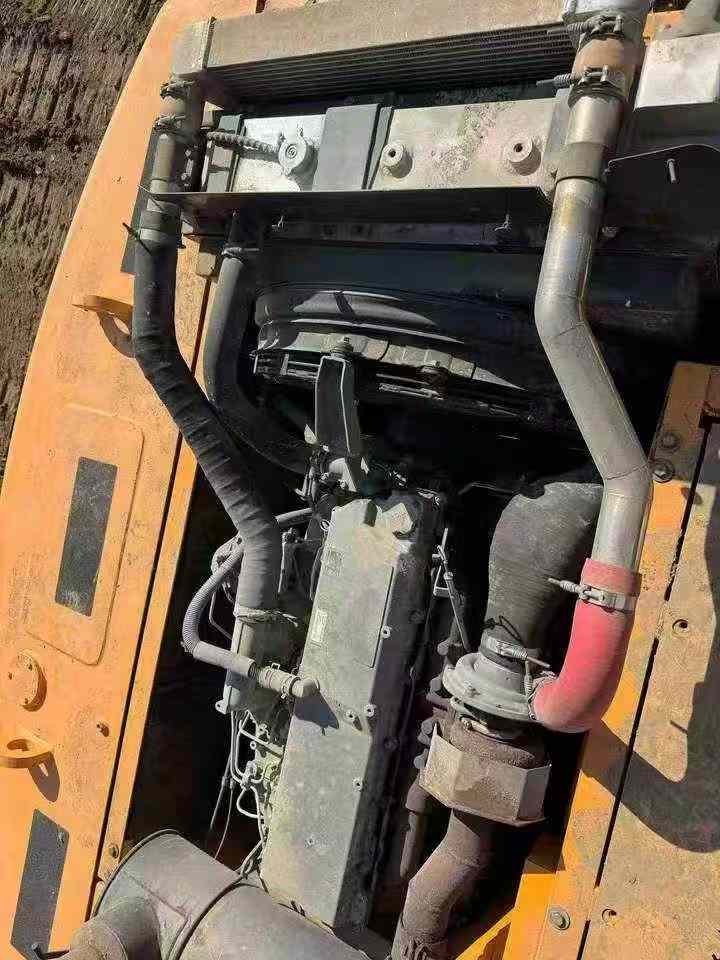

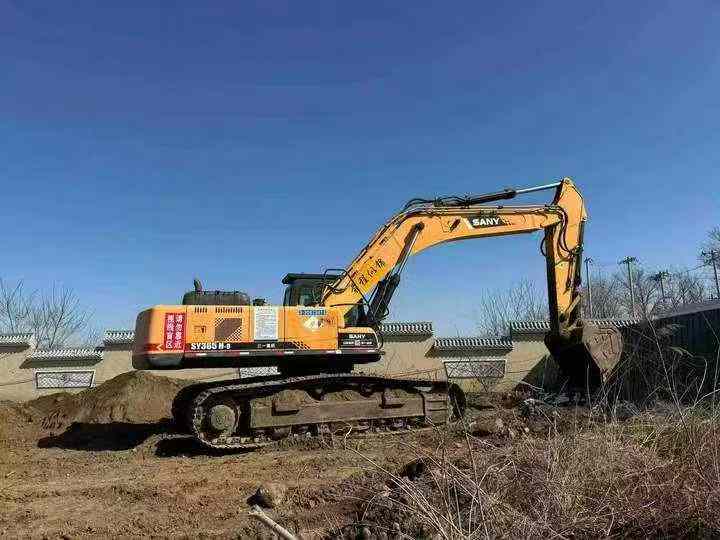

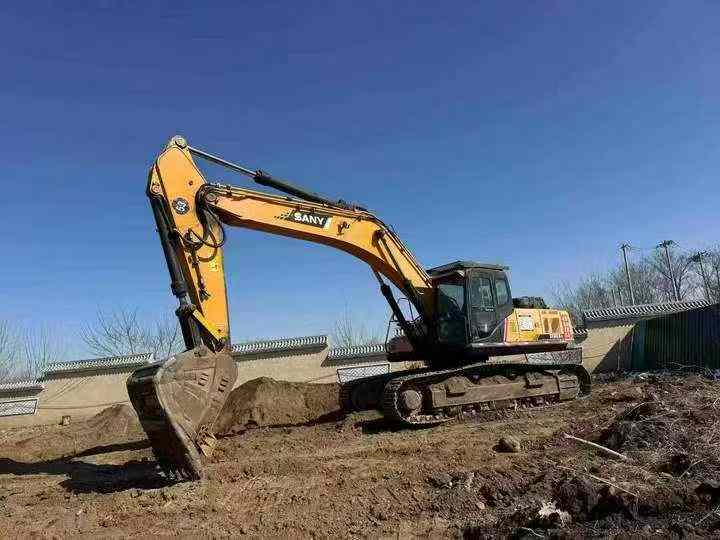

Expand your fleet capacity with this reliable 2016 Sany SY365C-8 hydraulic excavator, currently stationed in Beijing and ready for immediate deployment. Built in China with proven Isuzu power, this 36-ton workhorse delivers 190.5 kW at 2000 rpm, providing consistent performance for contractors managing multiple jobsites or seasonal demand spikes.

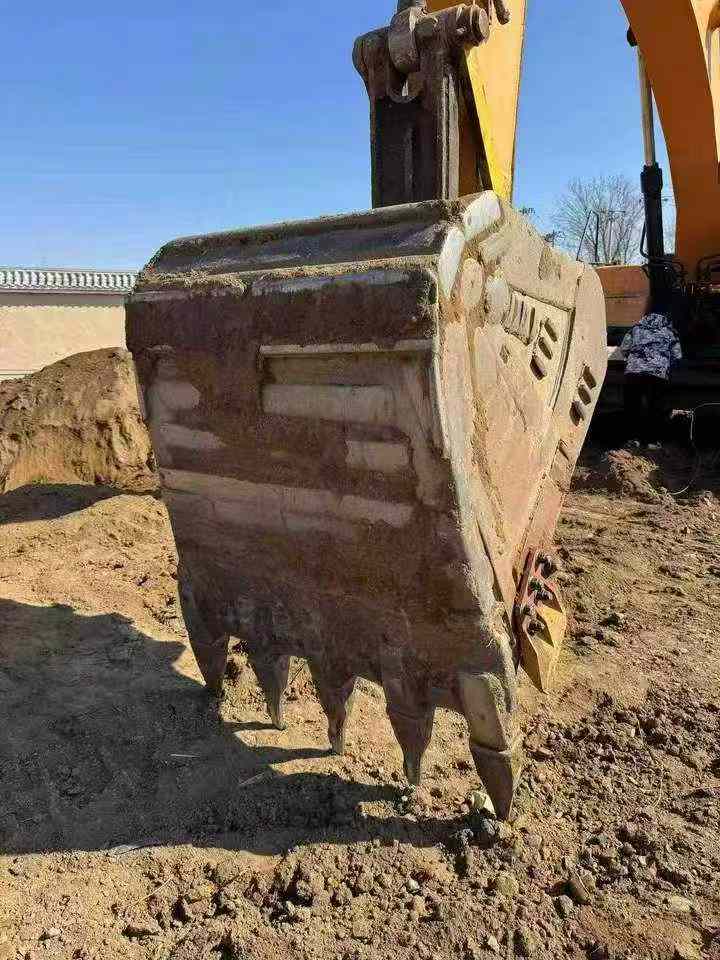

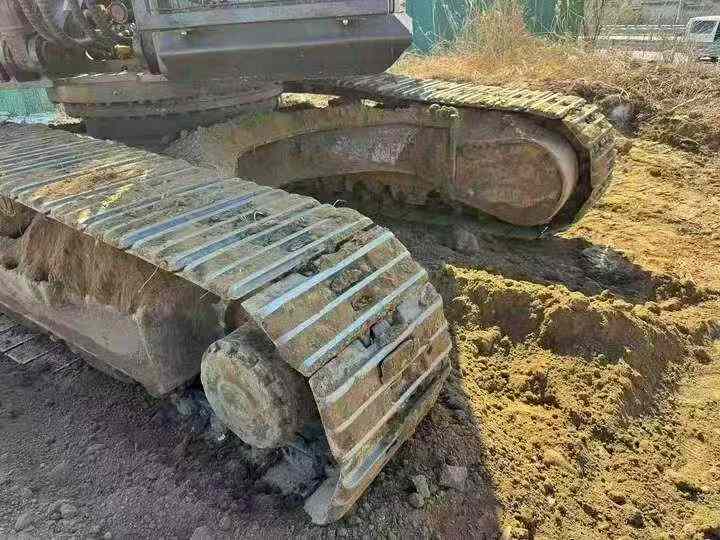

Equipped with a 1.6 m³ backhoe bucket and 220 kN digging force, this mid-size excavator handles deep excavation work with a maximum digging depth of 7,040 mm and reach extending to 10,615 mm. Operating weight of 34,100 kg ensures stability during heavy-duty operations, while the 600 mm track plates distribute ground pressure to just 59.9 kPa for versatile terrain capability.
Key Specifications:
- Isuzu engine: 190.5 kW rated power
- Maximum digging depth: 7,040 mm
- Bucket digging force: 220 kN
- Transport dimensions: 11,015 × 3,190 × 3,315 mm
- Travel speed: 5.5/3.5 km/h (high/low)
- Climbing ability: 70% (35°)
Perfect as a backup unit or fleet addition for contractors requiring dependable excavation capacity without premium investment.
| Specifications | Value |
|---|---|
| No. | 1031363 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 34100 |
| Bucket capacity (m³) | 1.6 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu |
| Rated power (kw/rpm) | 190.5/2000 |
| Ground specific pressure (Kpa) | 59.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 220 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 11015 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3315 |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3300 |
| Total track length (mm) | 5050 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4140 |
| Maximum digging radius (mm) | 10615 |
| Maximum digging depth (mm) | 7040 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
