Product Description
Engineered for precision and power, this 2021 Sany SY365C-8 excavator delivers 36 tons of proven performance for heavy-duty operations. Powered by a robust Isuzu engine generating 190.5 kW at 2000 rpm, operators benefit from responsive hydraulics and exceptional digging force—220 kN bucket force and 180 kN arm force tackle the toughest materials with confidence.

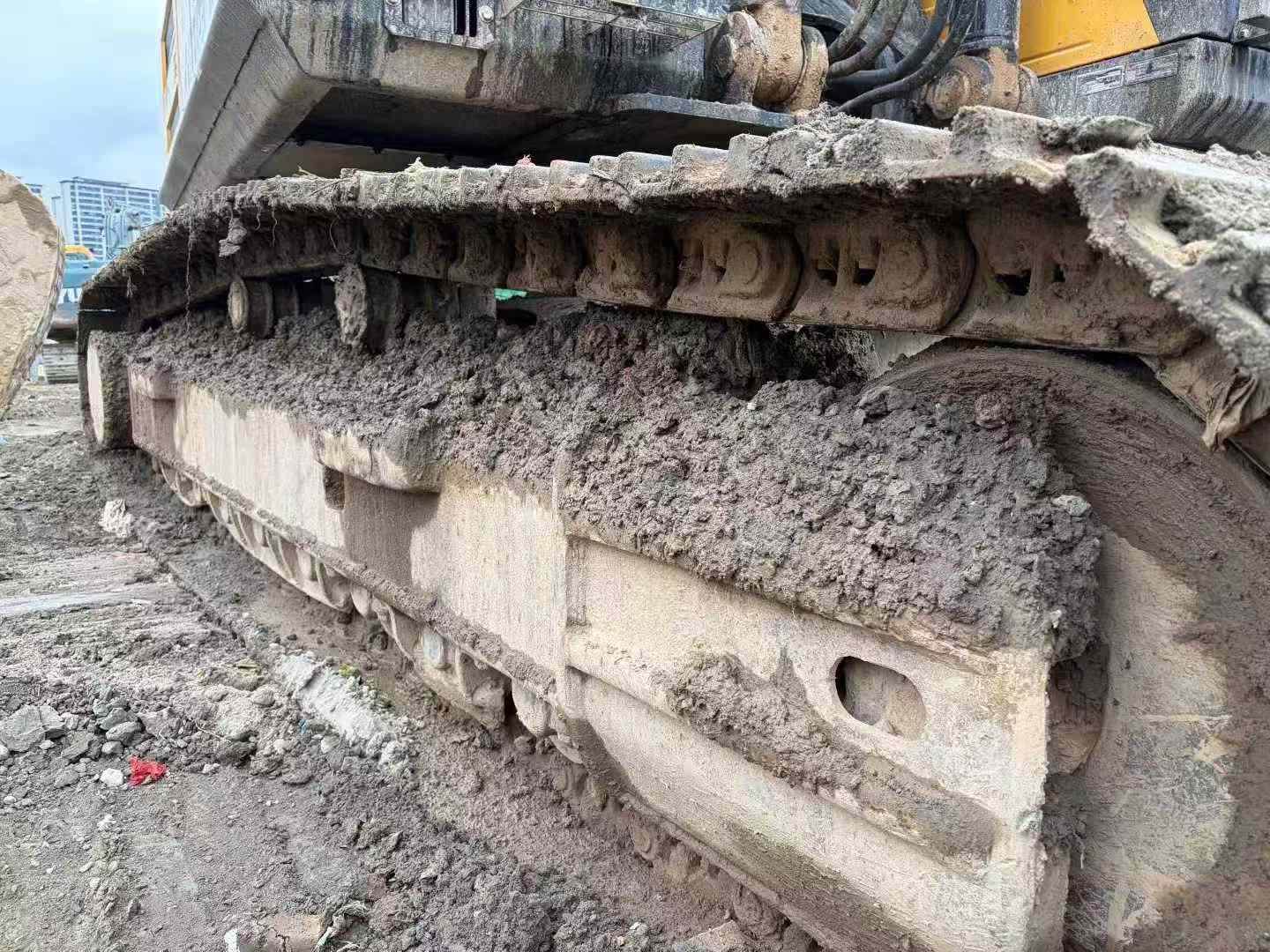

Cabin design prioritizes operator comfort during extended shifts. Wide glazing provides clear sightlines to the working envelope, with a maximum digging radius of 10,615 mm and depth reaching 7,040 mm. Stable undercarriage geometry, featuring a 2,590 mm track gauge and 4,140 mm ground contact length, ensures minimal ground pressure (59.9 kPa) while maintaining a 70% grading capability on challenging terrain.
- 1.6 m³ bucket capacity for productive cycle times
- 9.5 rpm rotation speed enables smooth, controlled positioning
- 550 mm ground clearance handles uneven jobsites
- Currently located in Lishui, Zhejiang—ready for inspection
Built in China with factory-standard components, this machine combines proven Sany reliability with operator-focused engineering for demanding excavation projects.
| Specifications | Value |
|---|---|
| No. | 1027861 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 34100 |
| Bucket capacity (m³) | 1.6 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu |
| Rated power (kw/rpm) | 190.5/2000 |
| Ground specific pressure (Kpa) | 59.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 220 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 11015 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3315 |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3300 |
| Total track length (mm) | 5050 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4140 |
| Maximum digging radius (mm) | 10615 |
| Maximum digging depth (mm) | 7040 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
