Product Description

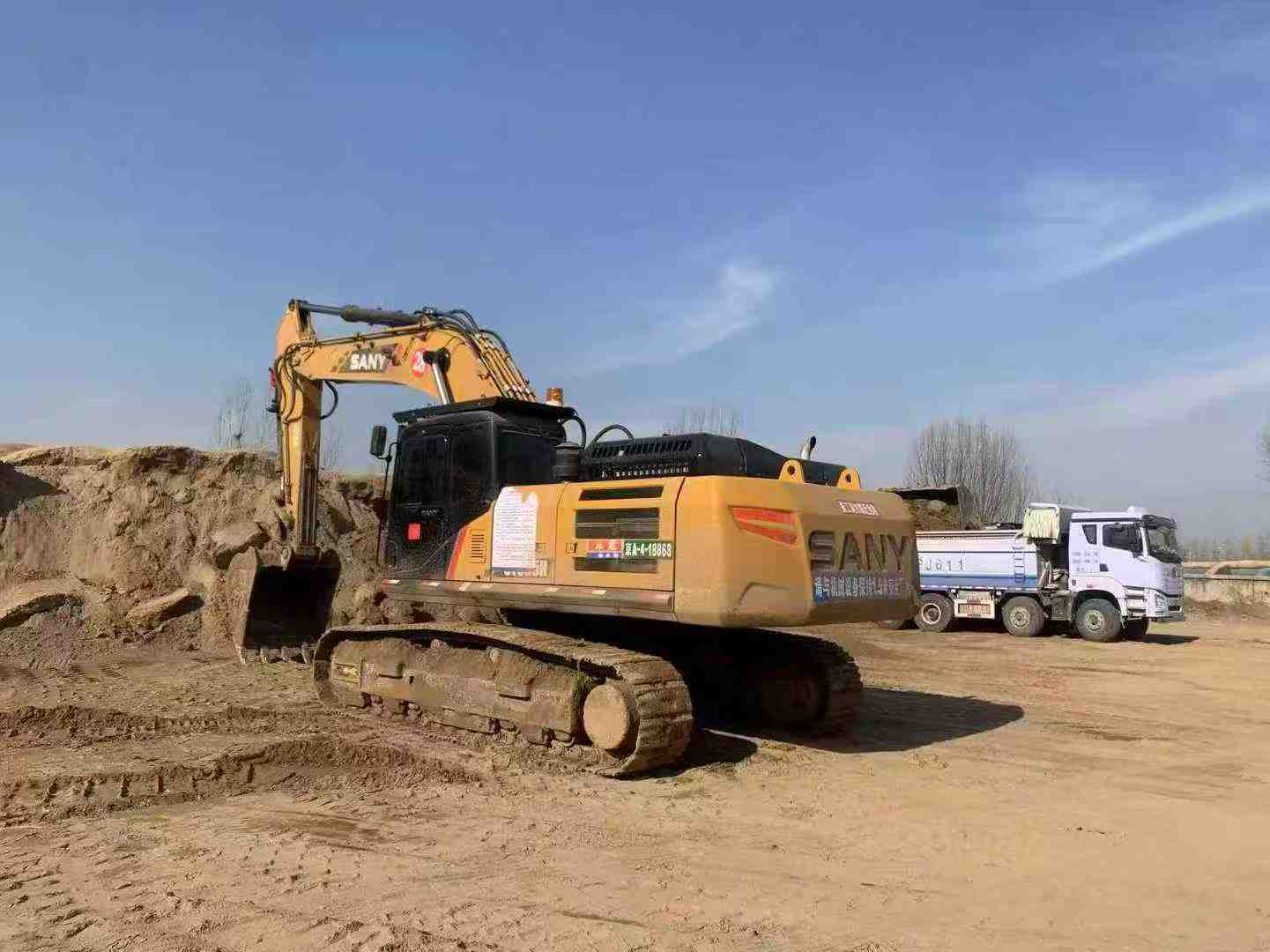

Strengthen your excavator lineup with this 2016 Sany SY365H-10, a proven 36-ton workhorse built for contractors managing multiple jobsites simultaneously. Powered by a robust 212 kW engine and delivering 235 kN bucket digging force, this machine handles demanding excavation, trenching, and material handling without compromising productivity. Currently located in Beijing, it arrives ready to integrate seamlessly into existing fleets requiring immediate operational capacity.
- Operating weight: 36,000 kg with 1.6–1.8 m³ bucket capacity
- Maximum digging reach: 10,780 mm / Maximum digging depth: 7,050 mm
- Efficient travel speeds: 5.5 km/h high / 3.5 km/h low
- Reliable rotation speed: 9.5 rpm for consistent cycle times
- Transport dimensions: 11,530 × 3,190 × 3,550 mm
Ideal as a backup unit during peak seasons or as a dedicated asset for secondary crews, this SY365H-10 reduces downtime risks while maintaining consistent performance standards across your operations. Chinese-manufactured reliability meets contractor-grade durability in a machine designed to keep projects moving forward.
| Specifications | Value |
|---|---|
| No. | 1016954 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~1.8 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 212/2000 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | High: 5.5 / Low: 3.5 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3550 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
