2019 Sany SY365H-10

1/7
Used Sany SY365H-10 Excavator 2019 Model / 1

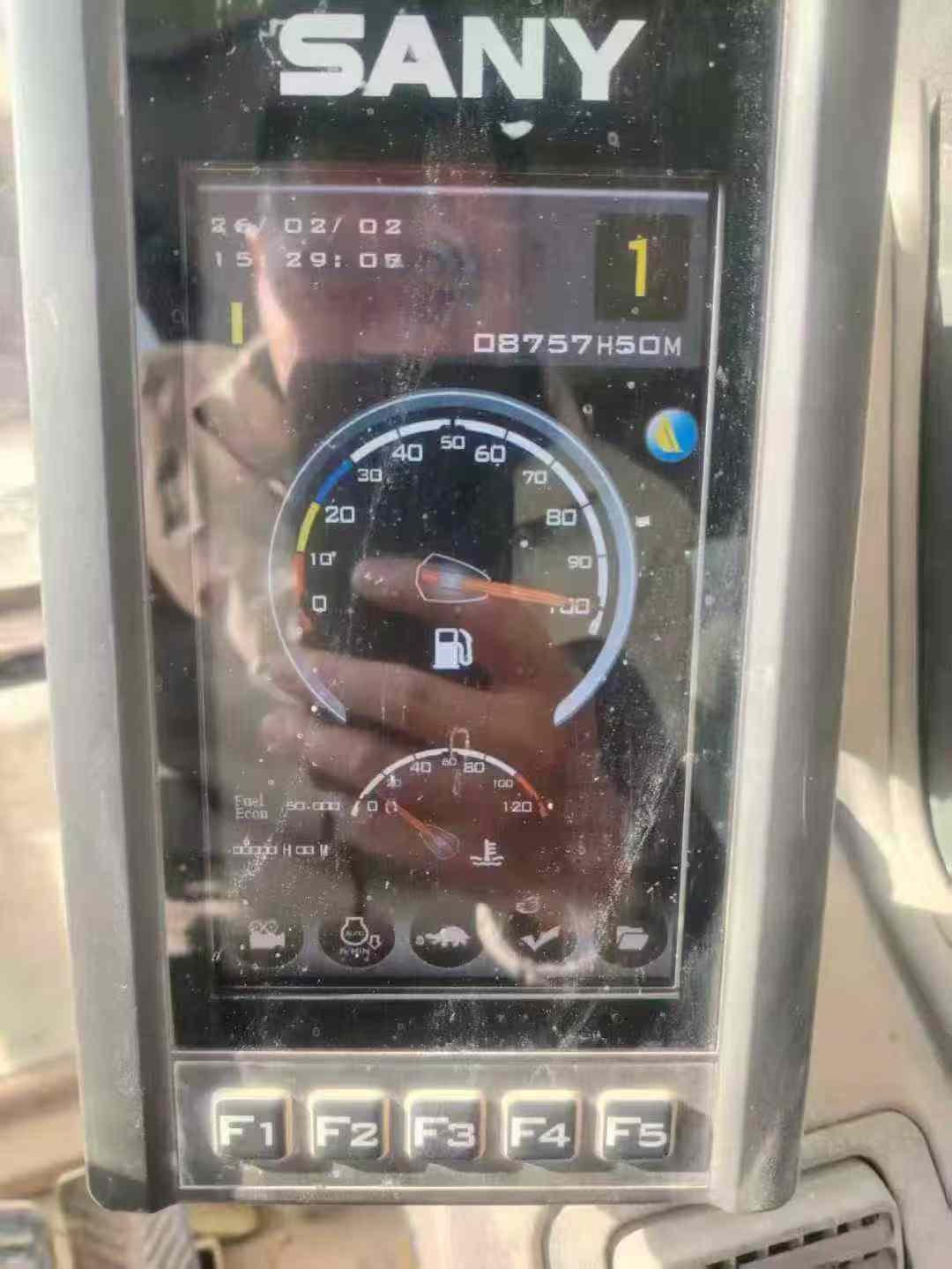

Used Sany SY365H-10 Excavator 2019 Model / 2

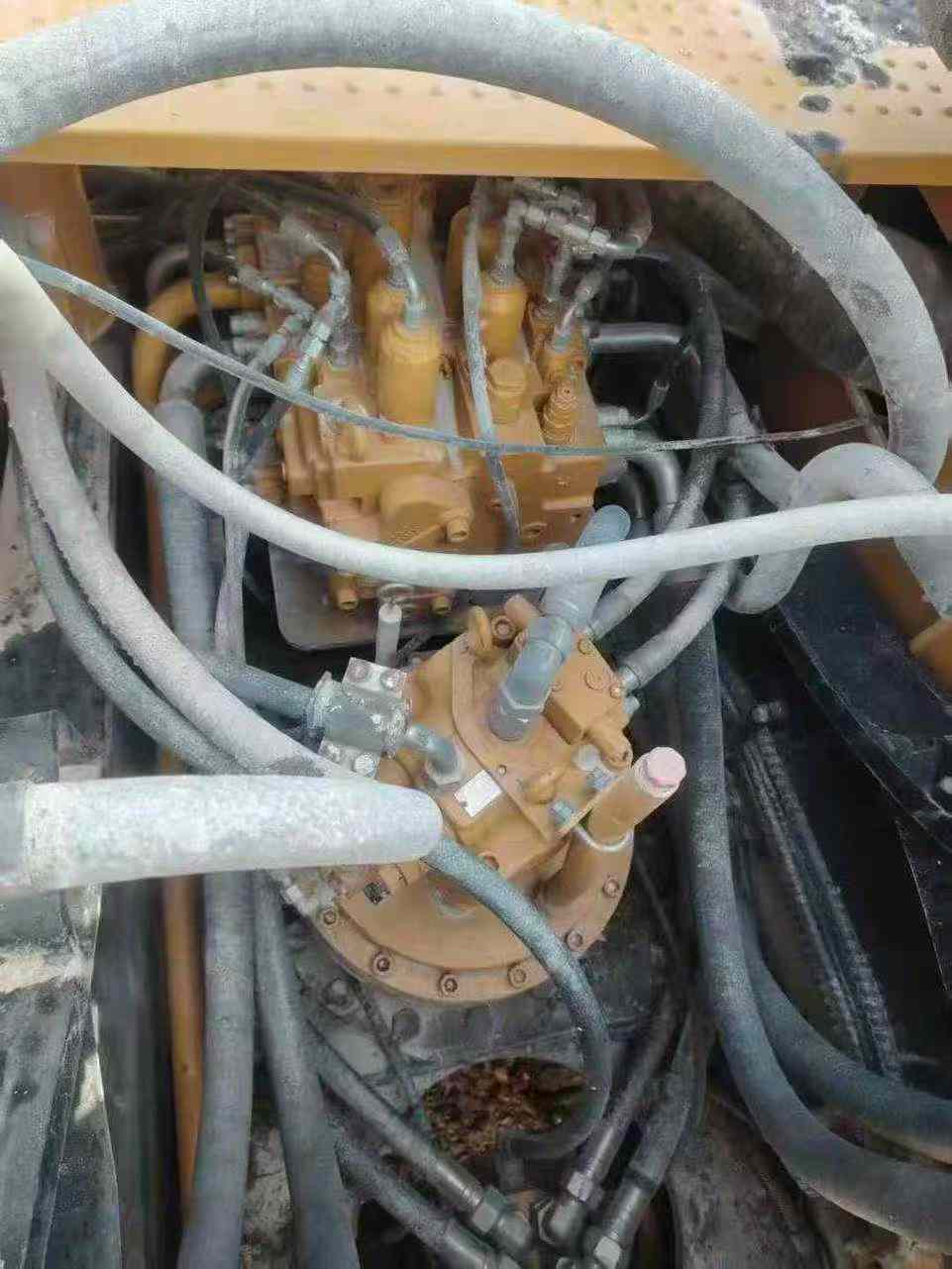

Used Sany SY365H-10 Excavator 2019 Model / 3

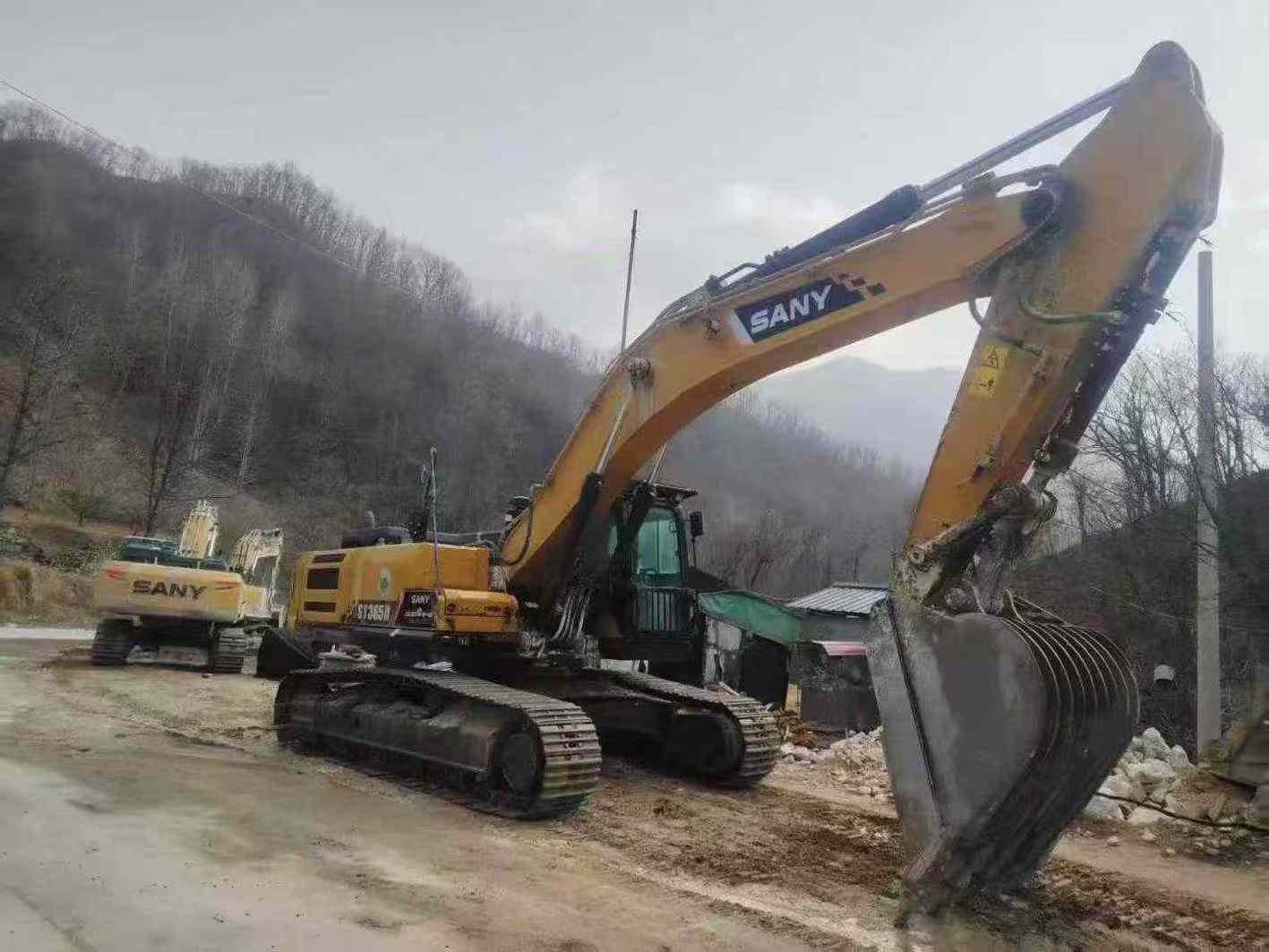

Used Sany SY365H-10 Excavator 2019 Model / 4

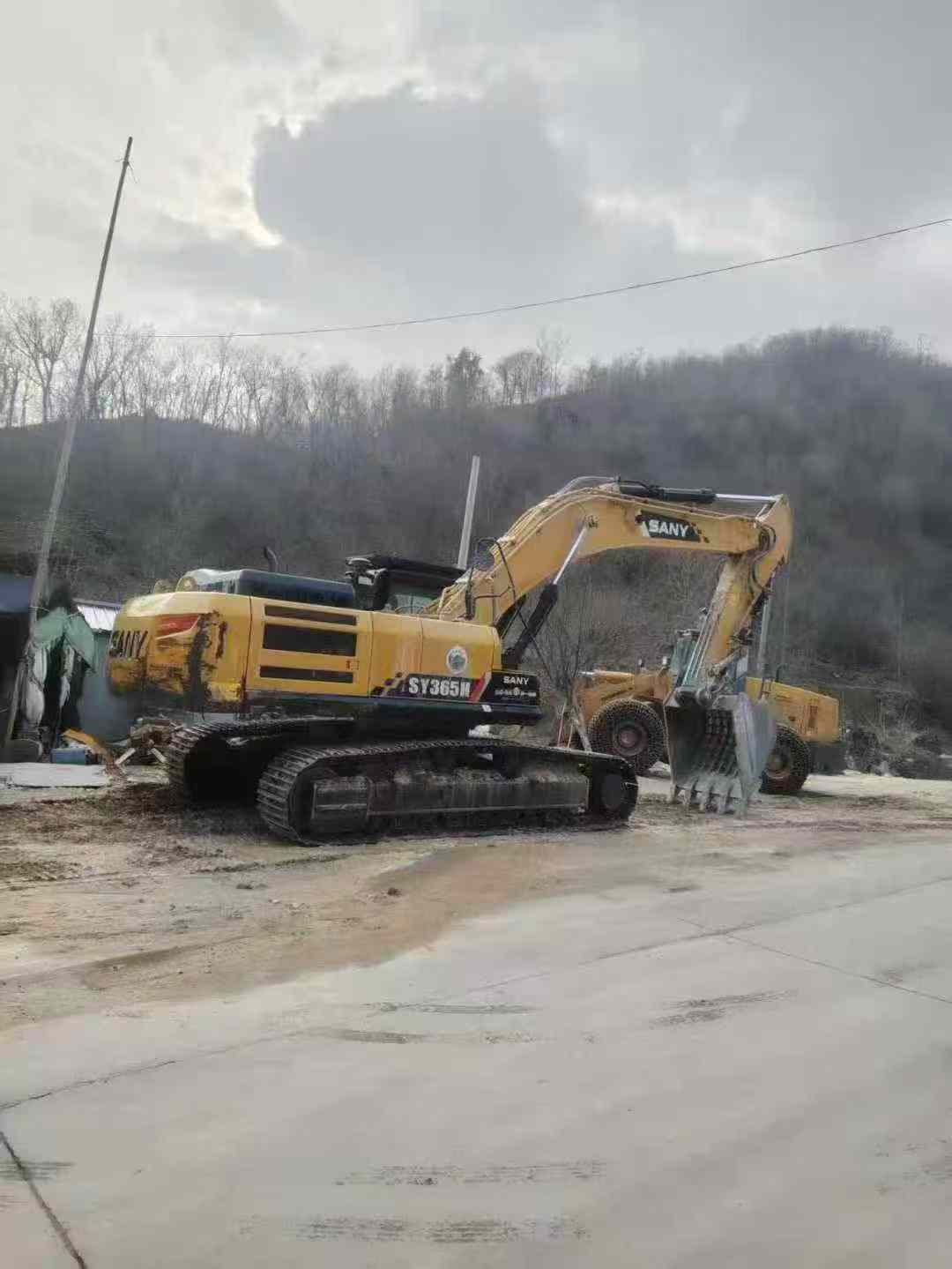

Used Sany SY365H-10 Excavator 2019 Model / 5

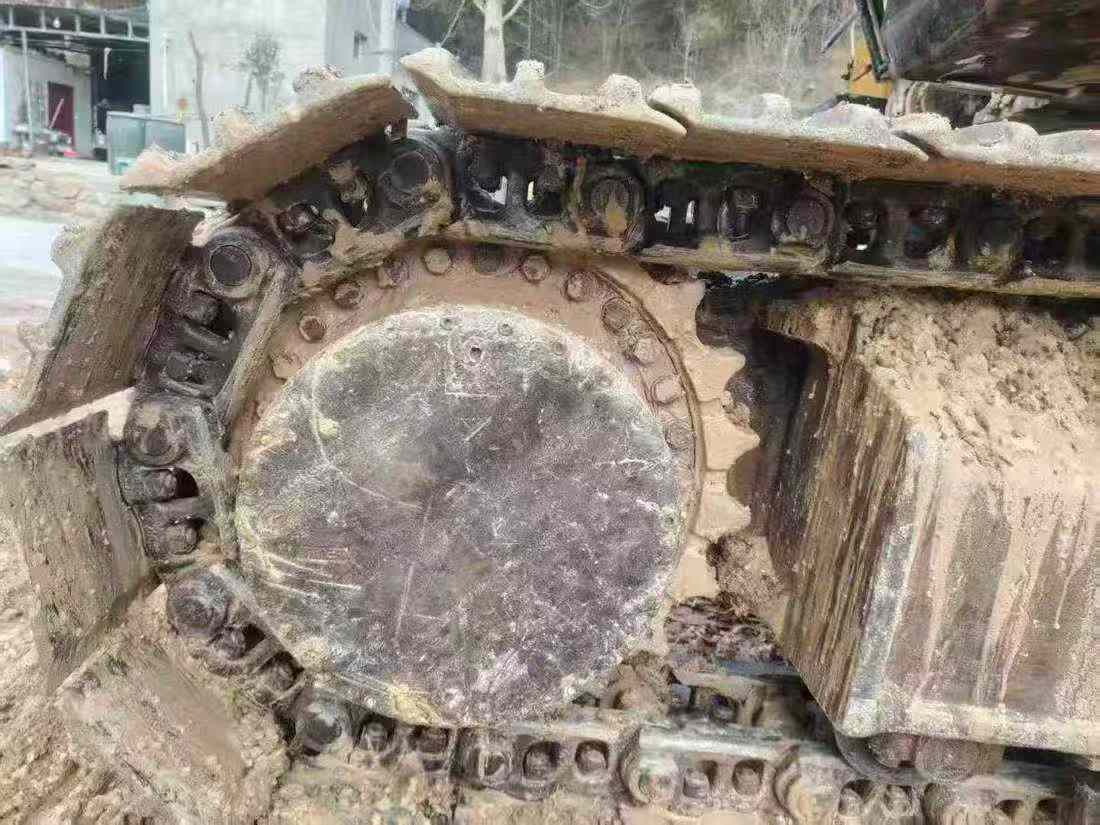

Used Sany SY365H-10 Excavator 2019 Model / 6

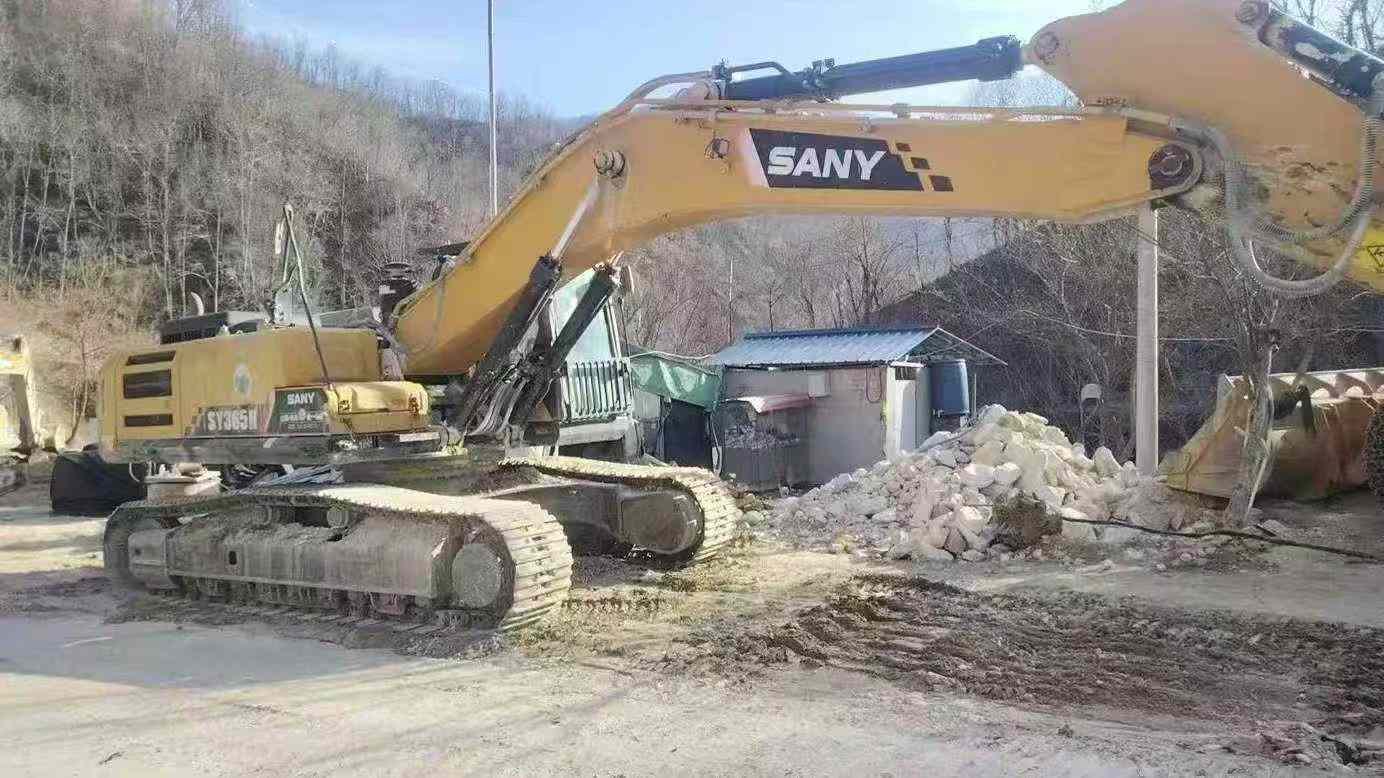

Used Sany SY365H-10 Excavator 2019 Model / 7

Product Description

Built to endure the toughest jobsite conditions, this 2019 Sany SY365H-10 excavator demonstrates proven reliability through years of consistent performance. Operating at 36 tons with a robust 212kw rated power output, this machine delivers exceptional digging force of 235kN for bucket operations and 180kN for rod work. Currently located in Zhejiang Shaoxing, this workhorse represents Chinese manufacturing excellence with a track record that speaks for itself.

Engineered for demanding applications, key specifications include:

  • Maximum digging reach of 10,780mm with 7,050mm depth capability
  • 1.6-1.8m³ bucket capacity for optimal productivity
  • Superior climbing ability at 70% grade performance
  • Efficient travel speeds: 5.5km/h high / 3.5km/h low
  • Compact transport dimensions: 11,530mm length × 3,190mm width
  • Low ground pressure of 65kPa minimizing surface impact

With over four years of operational history, this SY365H-10 model proves its durability as a dependable heavy-duty excavator. Traditional power systems ensure straightforward maintenance and long-term serviceability for contractors seeking reliable equipment with established performance credentials.

SpecificationsValue
No.1006146
Tonnage (tons)36
Working weight (kg)36000
Bucket capacity (m³)1.6~1.8
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)212/2000
Ground specific pressure (Kpa)65
Rotation speed (rpm)9.5
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)180
Travel speed (km/h)High: 5.5 / Low: 3.5
Total transport length (mm)11530
Total transport width (mm)3190
Total transport height (mm)3550
Full cab height (mm)3320
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4495
Back end turning radius (mm)3560
Onboard width (mm)3150
Total track length (mm)5065
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8600
Maximum digging radius (mm)10780
Maximum digging depth (mm)7050
Maximum excavation height (mm)9890
Maximum unloading height (mm)6920
Maximum vertical digging depth (mm)3970
see more

Overview

No.1006146

Brand Name:

Sany

Model Number:

SY365H-10

Year:

2019

Location:

Zhejiang China

Pub Date:
