Product Description

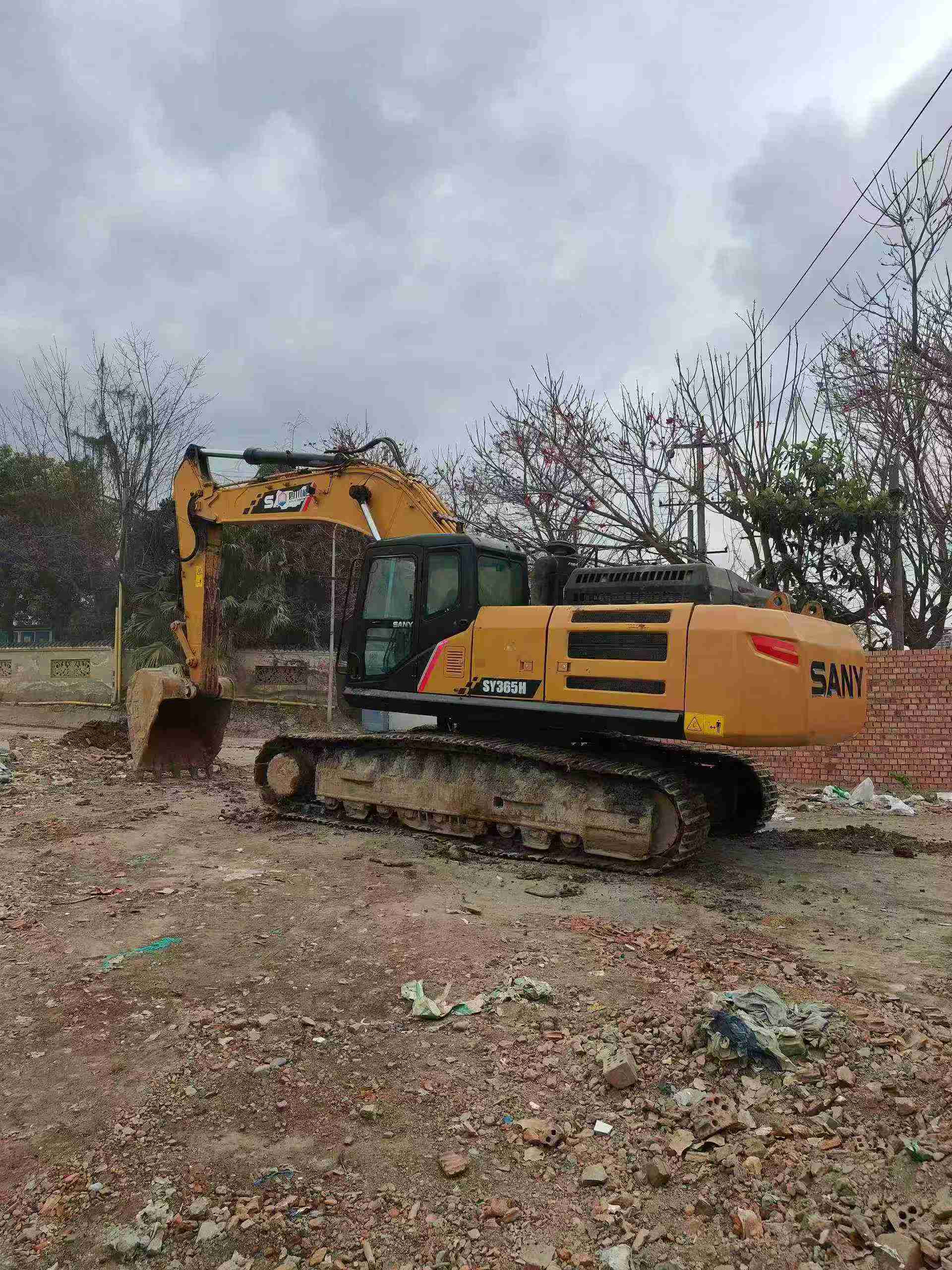

Expand your operational capacity with this 2017 Sany SY365H excavator, a proven 36-ton workhorse engineered for contractors managing multiple jobsites. Powered by a robust GH-6HK1XKSC engine delivering 212kW at 2000rpm, this China-manufactured machine provides reliable backup when your primary fleet is deployed across concurrent projects. Currently located in Luzhou, Sichuan, it combines substantial digging force—235kN bucket and 180kN arm—with a generous 1.6–2.32m³ bucket capacity for high-volume earthmoving tasks.
- Working Weight: 36,000kg with optimal 65kPa ground pressure
- Reach & Depth: 10,780mm maximum digging radius, 7,050mm excavation depth
- Performance: 7.79L water-cooled engine, 1,080N·m peak torque, 70% gradient capability
- Productivity: 9.5rpm rotation speed, 5.5km/h travel speed
- Capacity: 690L fuel tank, 380L hydraulic reservoir for extended shifts
Built to supplement existing crews without workflow interruption, this SY365H handles quarry development, utility installation, and site preparation with consistent output. Add seamless coverage to your equipment roster today.
| Specifications | Value |
|---|---|
| No. | 1033176 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~2.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

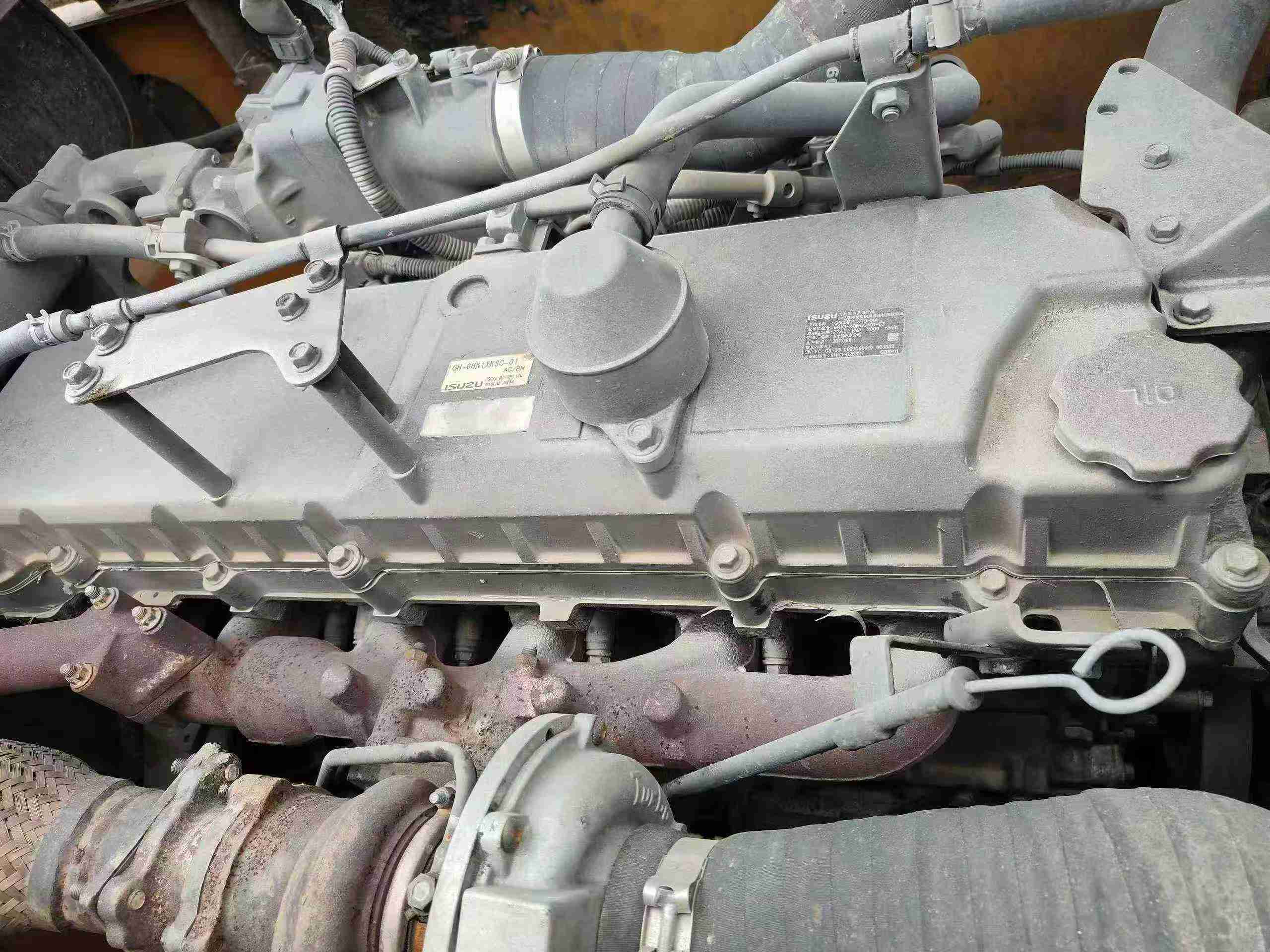

| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 690 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3545 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
