2017 Sany SY365H

1/9
Buy Sany SY365H Used Excavator / 1

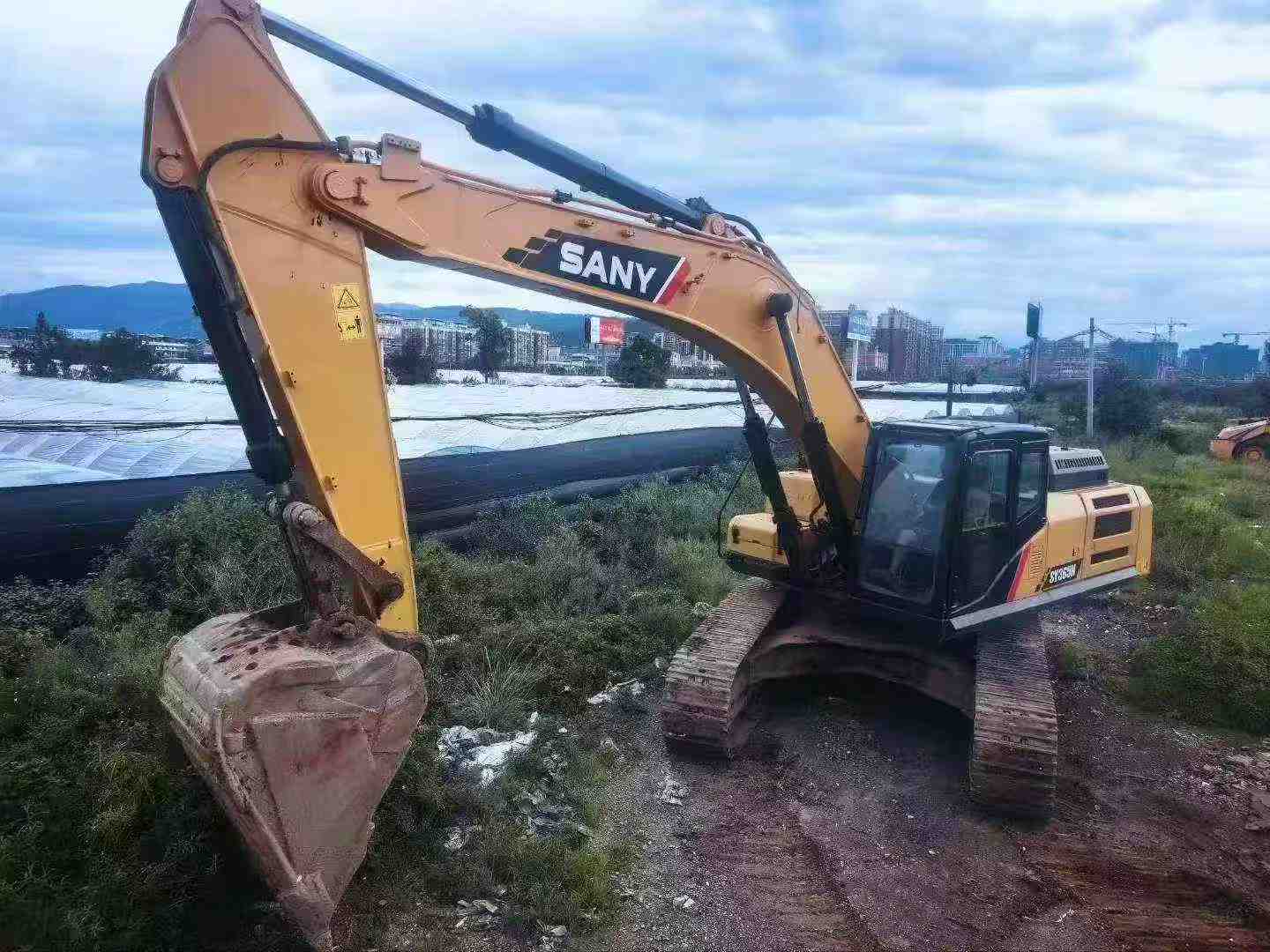

Buy Sany SY365H Used Excavator / 2

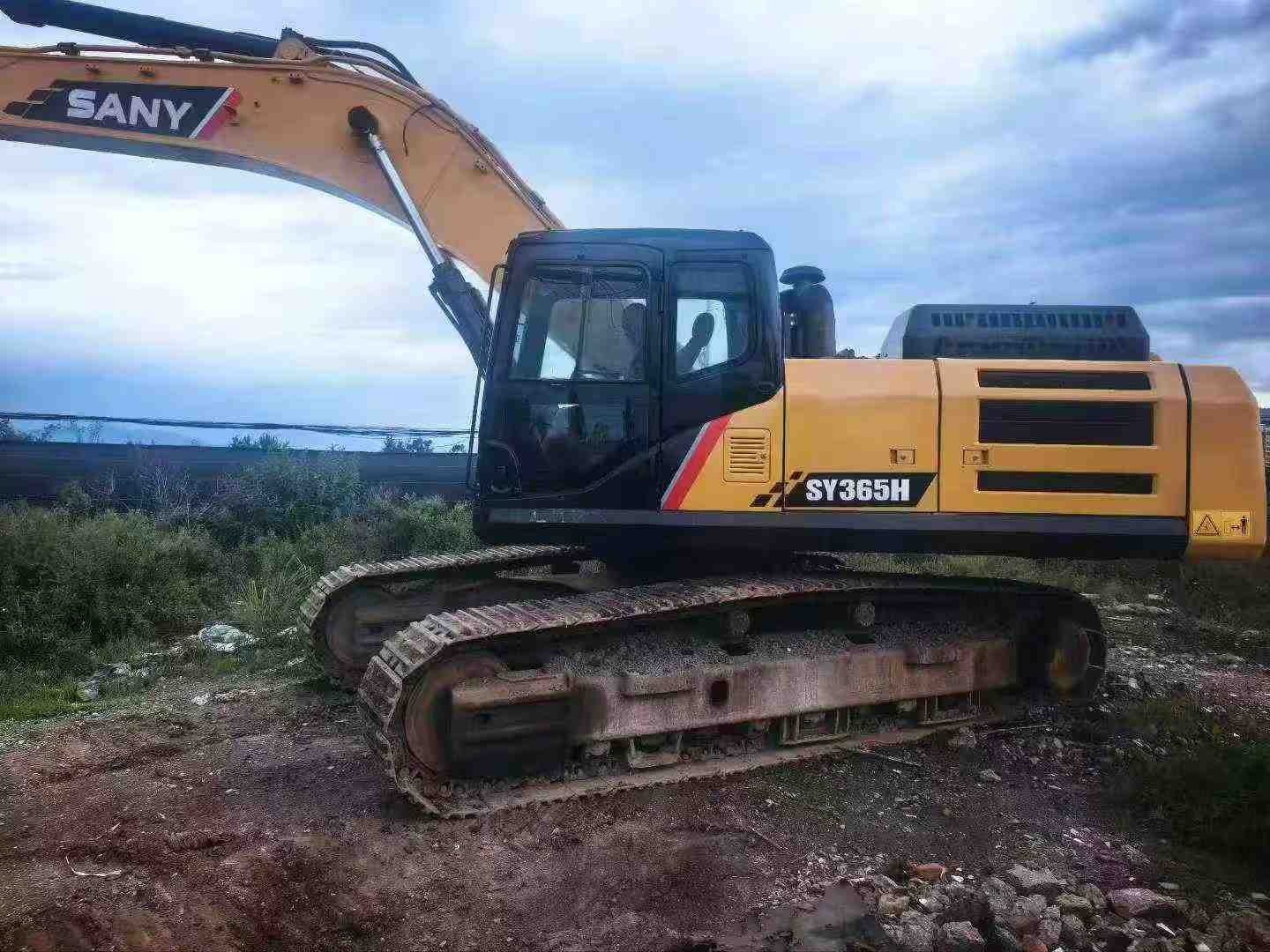

Buy Sany SY365H Used Excavator / 3

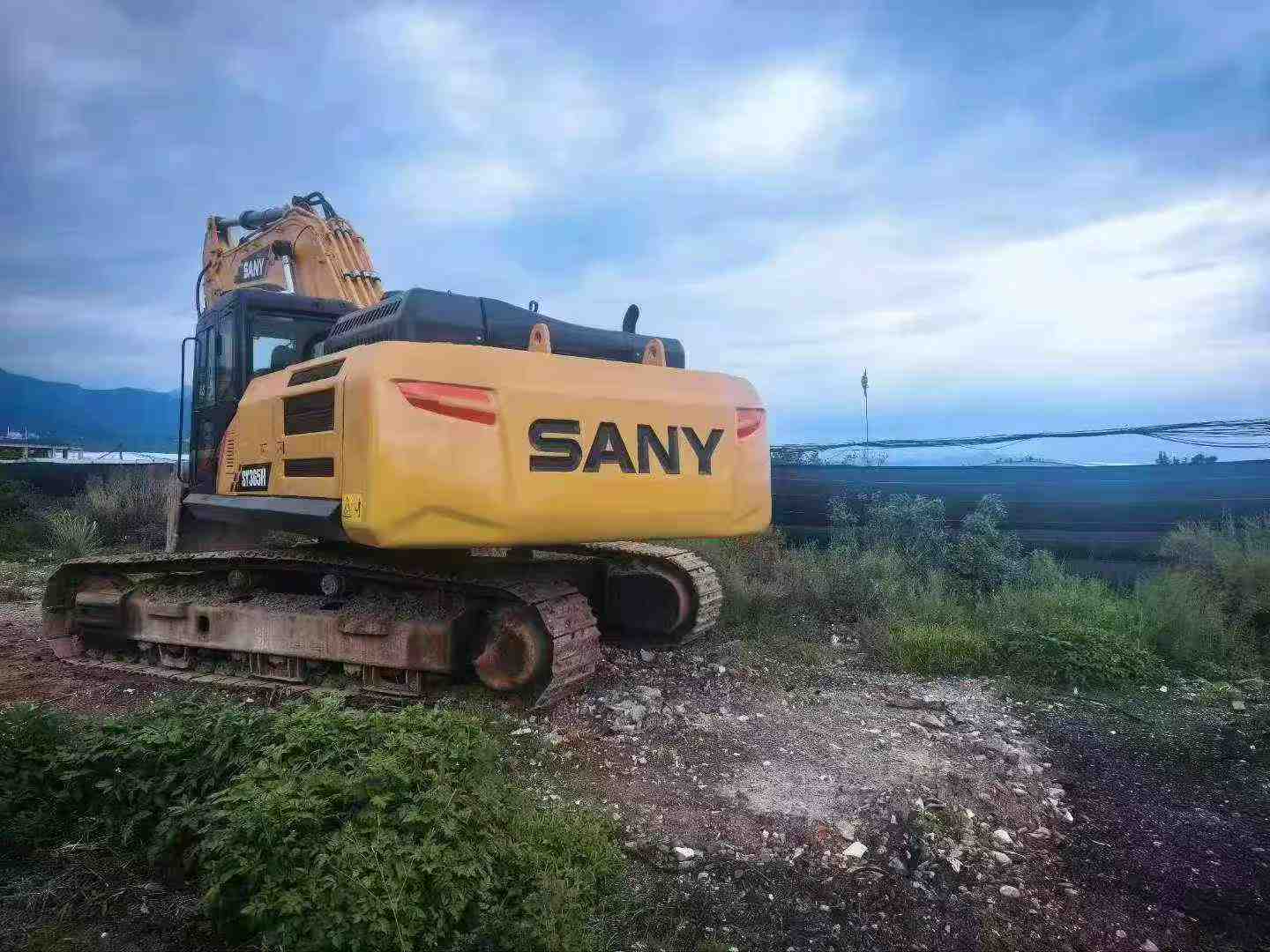

Buy Sany SY365H Used Excavator / 4

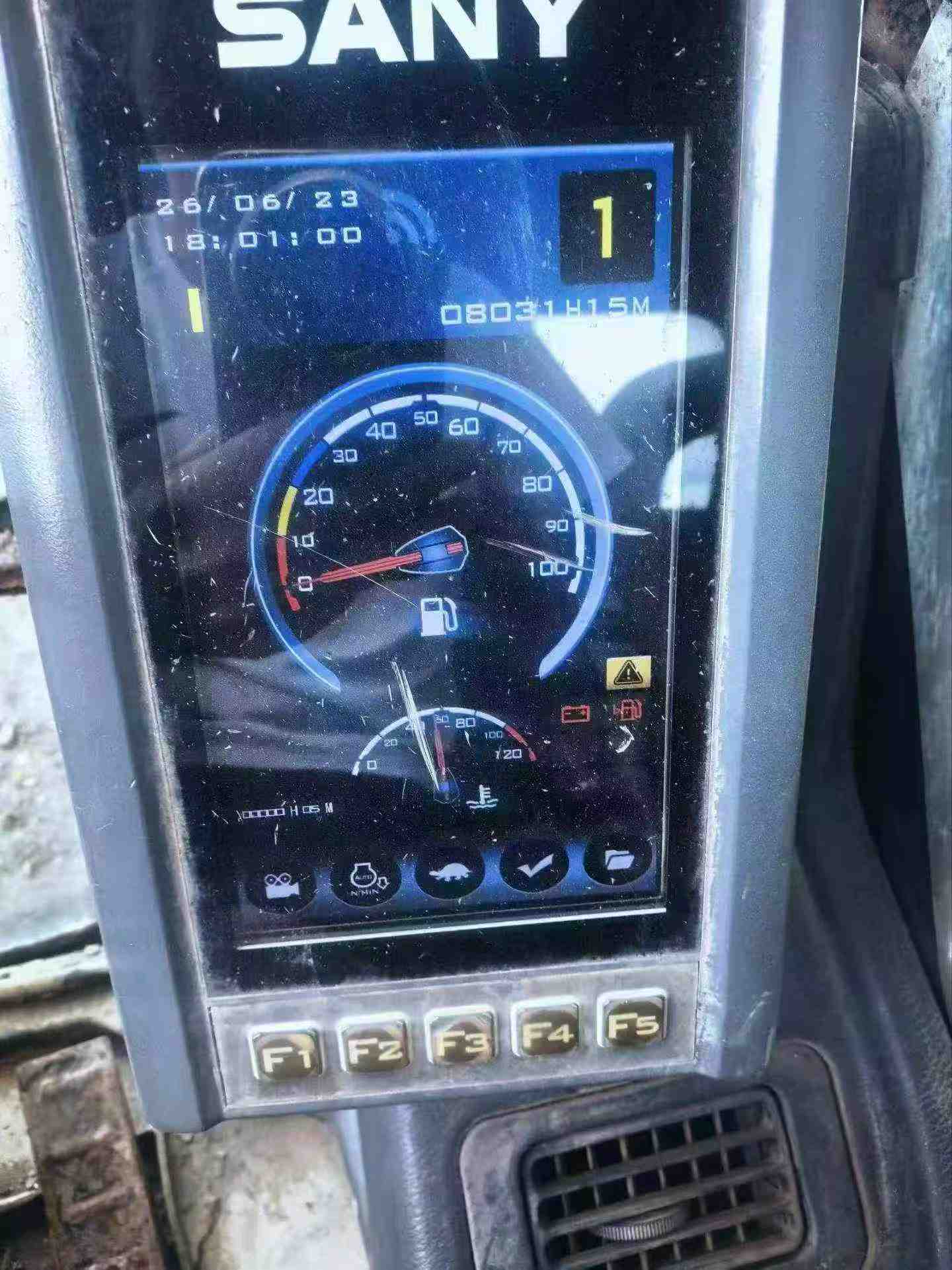

Buy Sany SY365H Used Excavator / 5

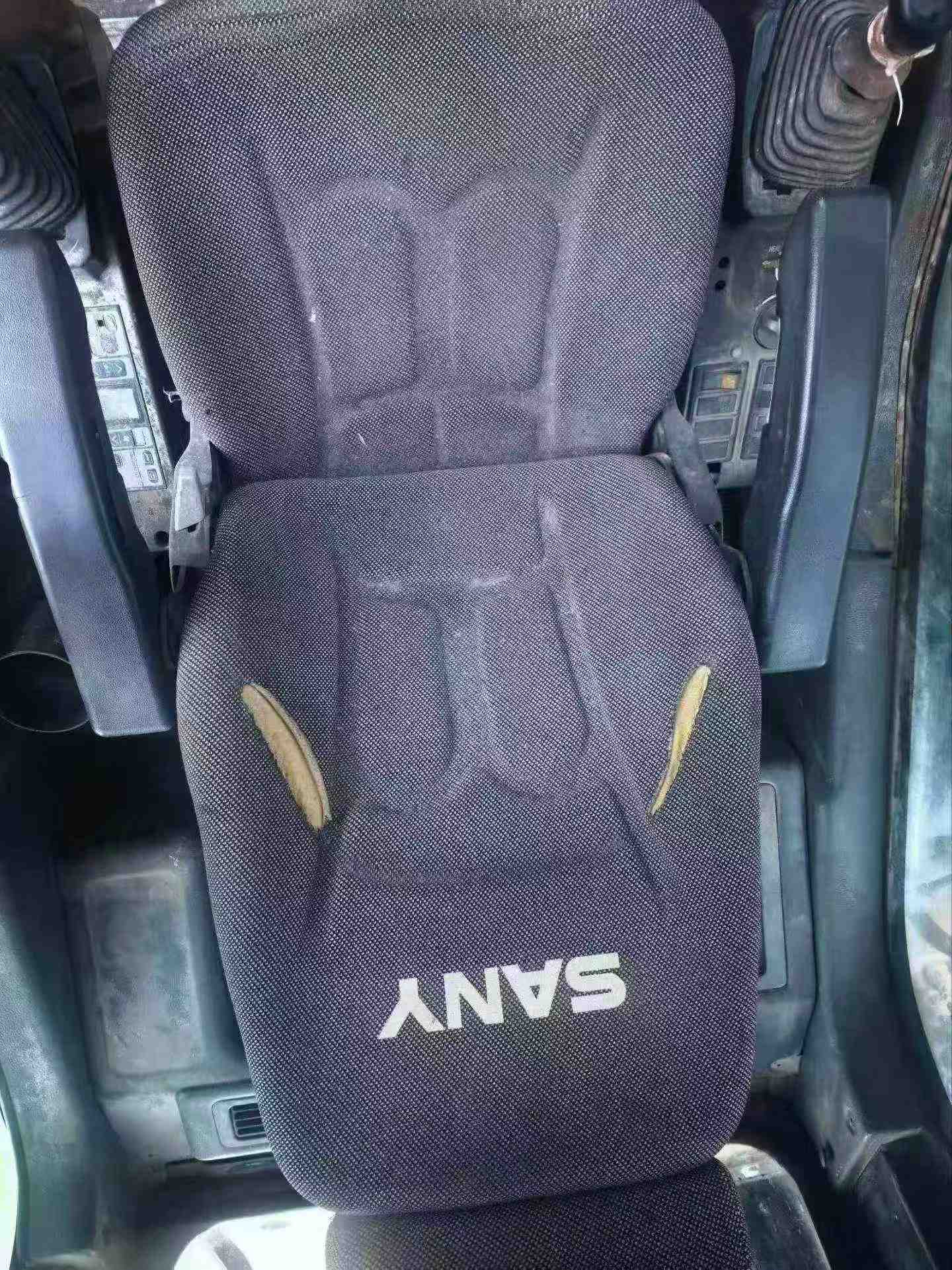

Buy Sany SY365H Used Excavator / 6

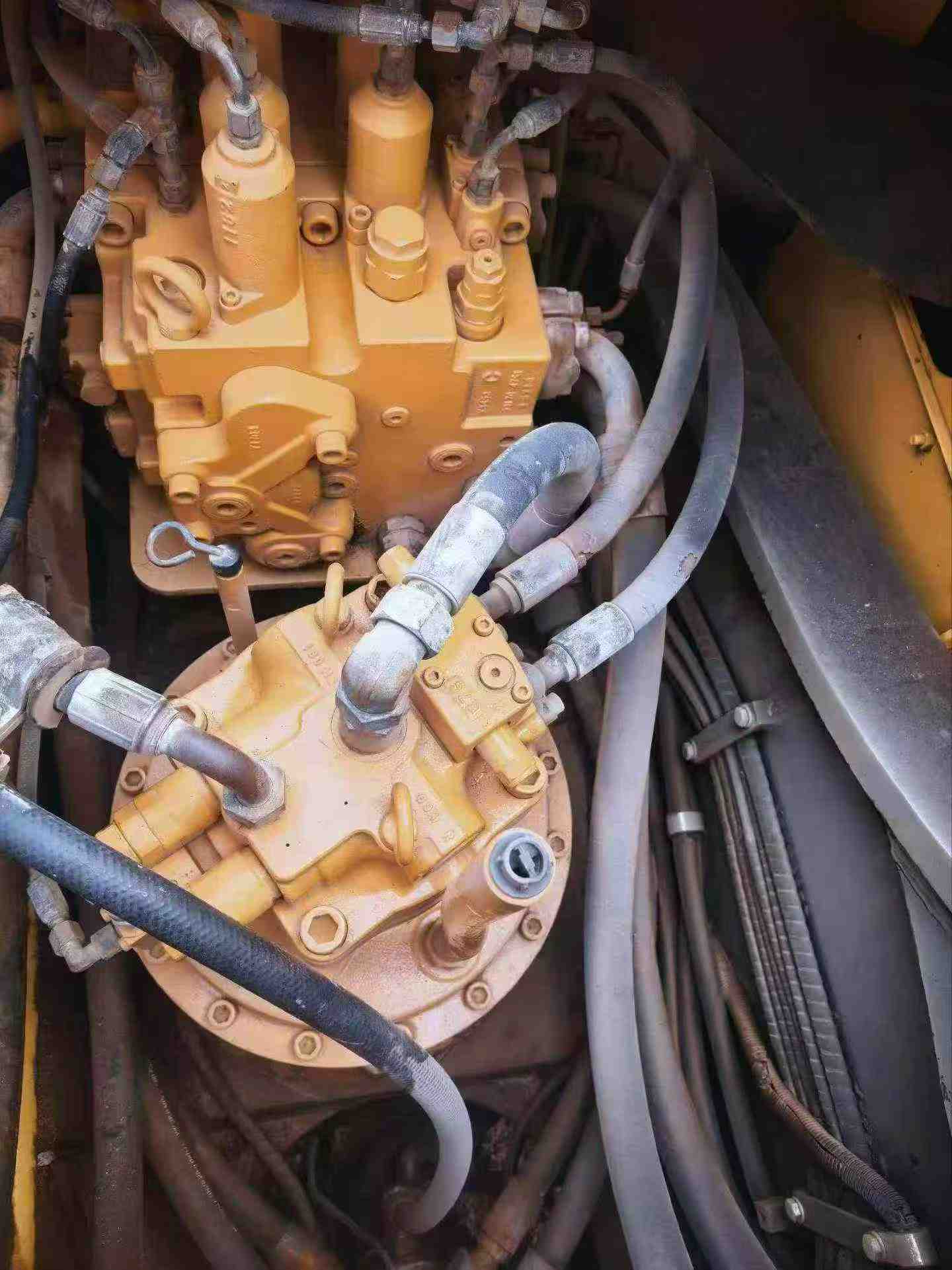

Buy Sany SY365H Used Excavator / 7

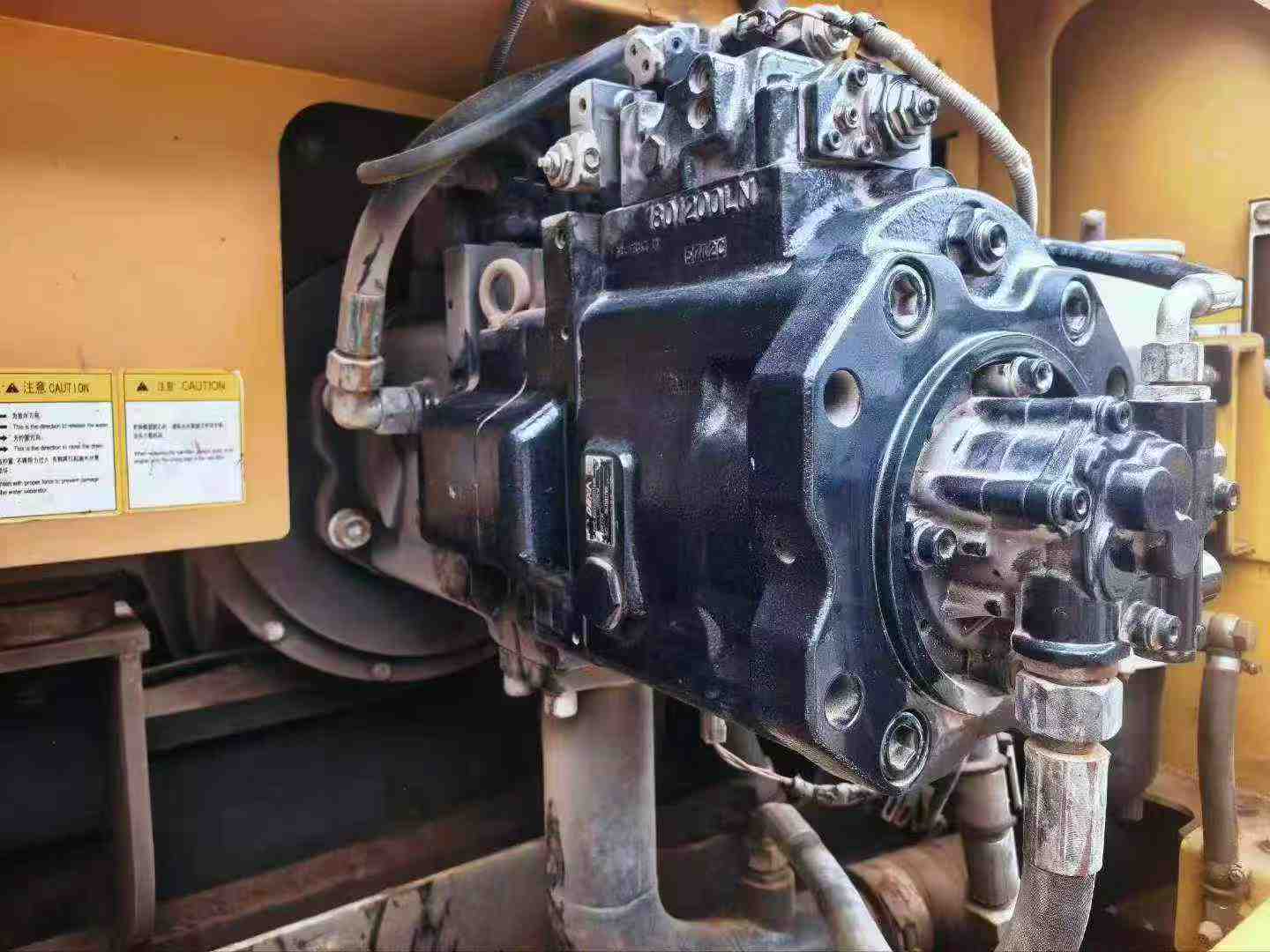

Buy Sany SY365H Used Excavator / 8

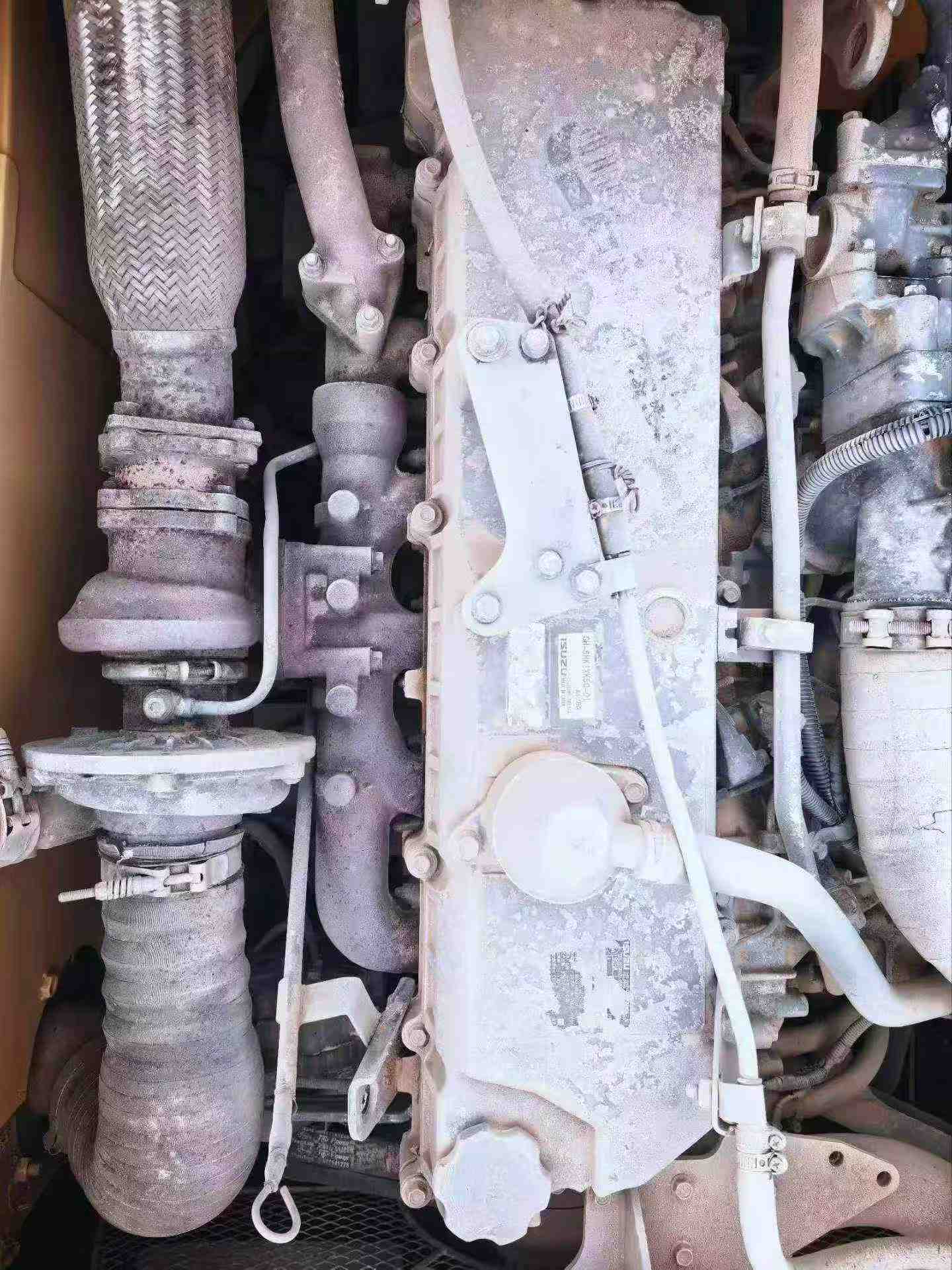

Buy Sany SY365H Used Excavator / 9

Product Description

2017 Sany SY365H hydraulic excavator available from Sichuan, China. This 36-ton class machine comes from a direct first-owner source, offering straightforward provenance for buyers seeking reliable mid-size excavation equipment.

The SY365H is built on Sany's proven platform for demanding earthmoving applications. Standard features include a robust undercarriage, hydraulic quick coupler compatibility, and operator controls designed for extended shift work. This unit has been maintained in China's active construction market.

  • Year: 2017
  • Model: Sany SY365H
  • Operating Weight: Approximately 36 tonnes
  • Location: Sichuan Province, China
  • Ownership: Single previous owner

Suitable for infrastructure projects, site preparation, and general contracting work. Inspection and international shipping arrangements can be coordinated through our network.

SpecificationsValue
No.1139547
Tonnage (tons)36
Working weight (kg)36000
Bucket capacity (m³)1.6~2.32
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Displacement (L)7.79
Ground specific pressure (Kpa)65
Rotation speed (rpm)9.5
Climbing ability (%)70% (35°)
Bucket digging force (kN)235
Rod digging force (kN)180
Travel speed (km/h)5.5/3.5
Fuel Tank (L)690
Hydraulic Tank (L)380
Engine Oil changes (L)36
Total transport length (mm)11530
Total transport width (mm)3190
Total transport height (mm)3545
Full cab height (mm)3320
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4495
Back end turning radius (mm)3560
Onboard width (mm)3150
Total track length (mm)5065
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10780
Maximum digging depth (mm)7050
Maximum excavation height (mm)9890
Maximum unloading height (mm)6920
Maximum vertical digging depth (mm)3970
see more

Overview

No.1139547

Brand Name:

Sany

Model Number:

SY365H

Year:

2017

Location:

Sichuan China

Pub Date
