Product Description

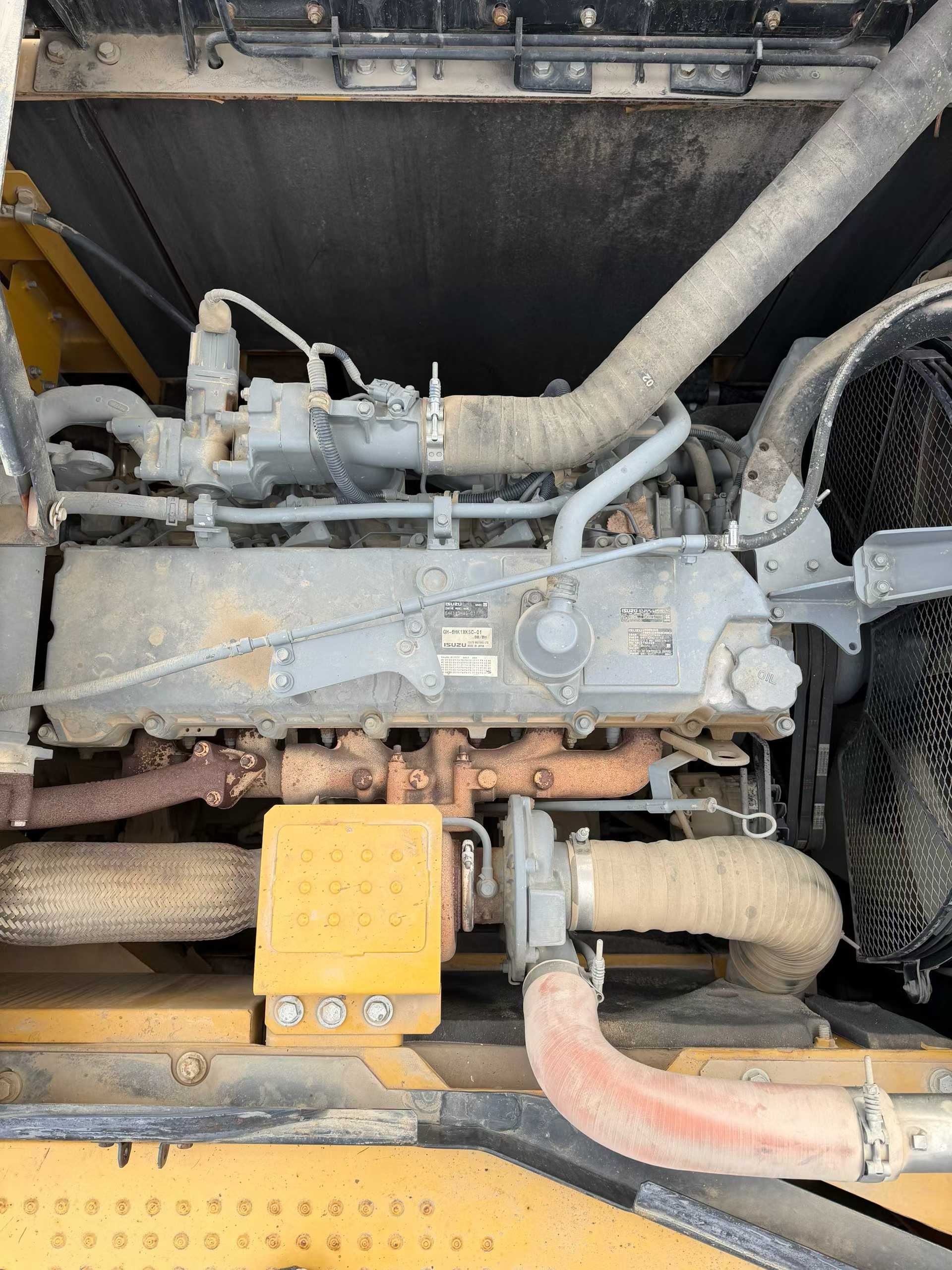

Engineered with precision for demanding excavation operations, this 2018 Sany SY365H delivers professional-grade performance through its robust GH-6HK1XKSC engine. Generating 212 kW at 2000 rpm with a substantial 1080 N·m maximum torque, the water-cooled 7.79L powerplant provides reliable output for extended duty cycles. Hydraulic superiority defines this 36-ton machine, featuring an impressive 235 kN bucket digging force and 180 kN rod digging force that tackle challenging ground conditions efficiently.
- Maximum digging reach: 10,780 mm with 7,050 mm depth capability
- Bucket capacity range: 1.6–2.32 m³ for versatile material handling
- Operating weight: 36,000 kg with optimized 65 kPa ground pressure
- Fuel capacity: 690L for sustained operational periods
- 70% gradeability (35°) ensures mobility on steep terrain
- Currently located in Shandong Linyi, ready for international shipment
Built to Chinese manufacturing standards, this SY365H combines proven mechanical components with practical design geometry. Fair Trade Machinery offers complete export documentation and logistics support for this professionally maintained excavator.
| Specifications | Value |
|---|---|
| No. | 1014237 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~2.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 690 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3545 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
