Product Description

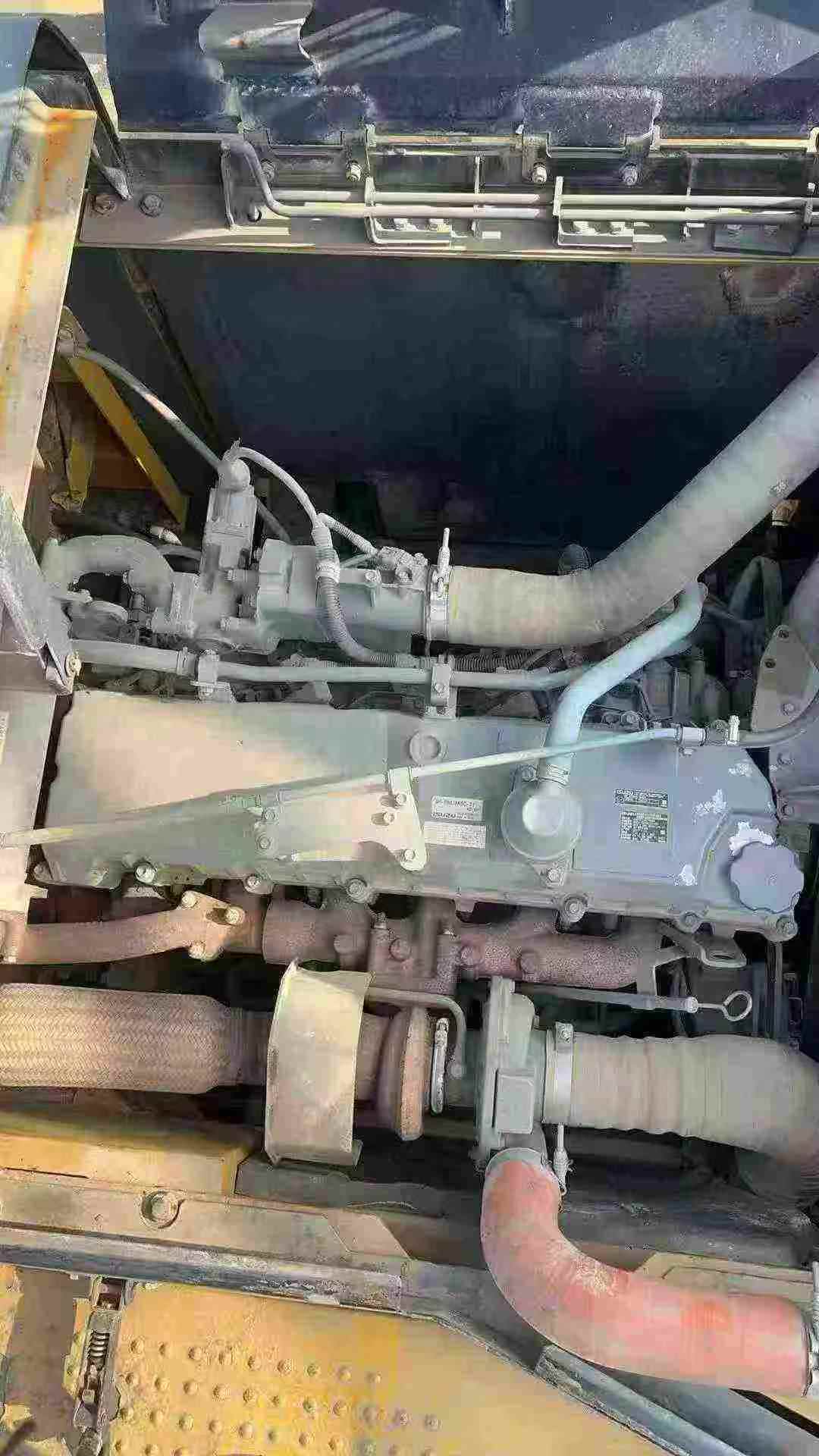

Expand your operational capacity with this 2018 Sany SY365H excavator, currently located in Sichuan and ready for immediate fleet deployment. Built around a robust 36-ton platform, this machine delivers reliable performance through its GH-6HK1XKSC engine producing 212 kW at 2000 rpm. With 235 kN bucket digging force and a maximum digging reach of 10,780 mm, it matches the output of your primary equipment without the premium price tag.
- 36-ton working weight with 1.6-2.32 m³ bucket capacity for versatile applications
- 690L fuel tank and 380L hydraulic reservoir minimize downtime on extended shifts
- 70% climbing ability and 550 mm ground clearance handle challenging terrain
- Water-cooled engine with proven durability for demanding contractor workloads
- Compact transport dimensions (11,530 × 3,190 × 3,545 mm) simplify logistics
Contractors managing multiple jobsites require dependable backup units that integrate seamlessly into existing operations. This SY365H provides the tonnage and reach to keep projects moving when primary machines are deployed elsewhere or undergoing maintenance.
| Specifications | Value |
|---|---|
| No. | 1034057 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~2.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 690 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3545 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
