Product Description

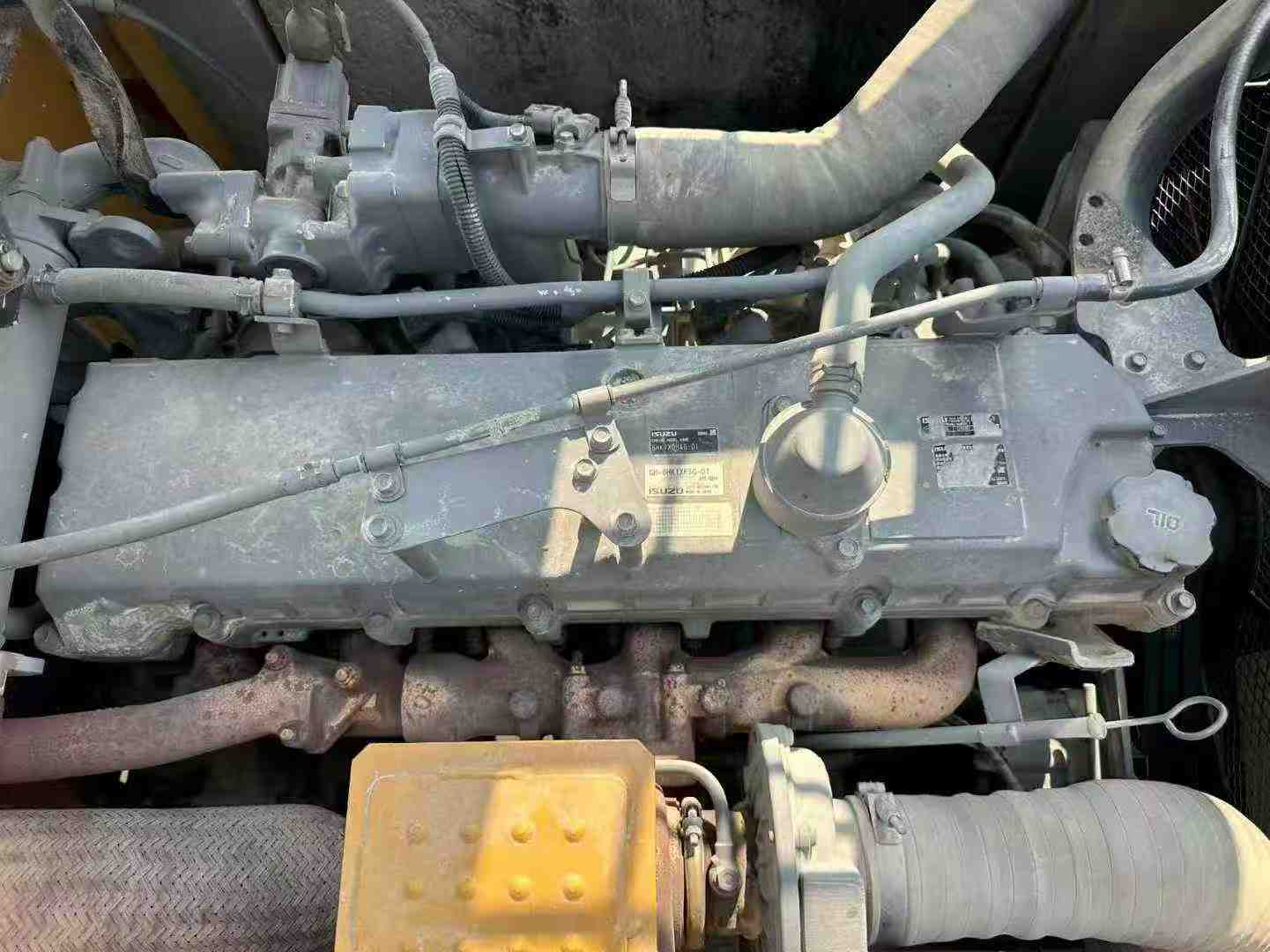

Commanding a 36-ton operating weight, this 2018 Sany SY365H delivers robust performance for demanding excavation projects in Zhejiang Shaoxing and beyond. Powered by a GH-6HK1XKSC engine generating 212 kW at 2000 rpm, operators benefit from consistent hydraulic response and reliable torque delivery across varied terrain. With a 70% climbing ability and 65 kPa ground pressure, stability remains assured even on challenging slopes.

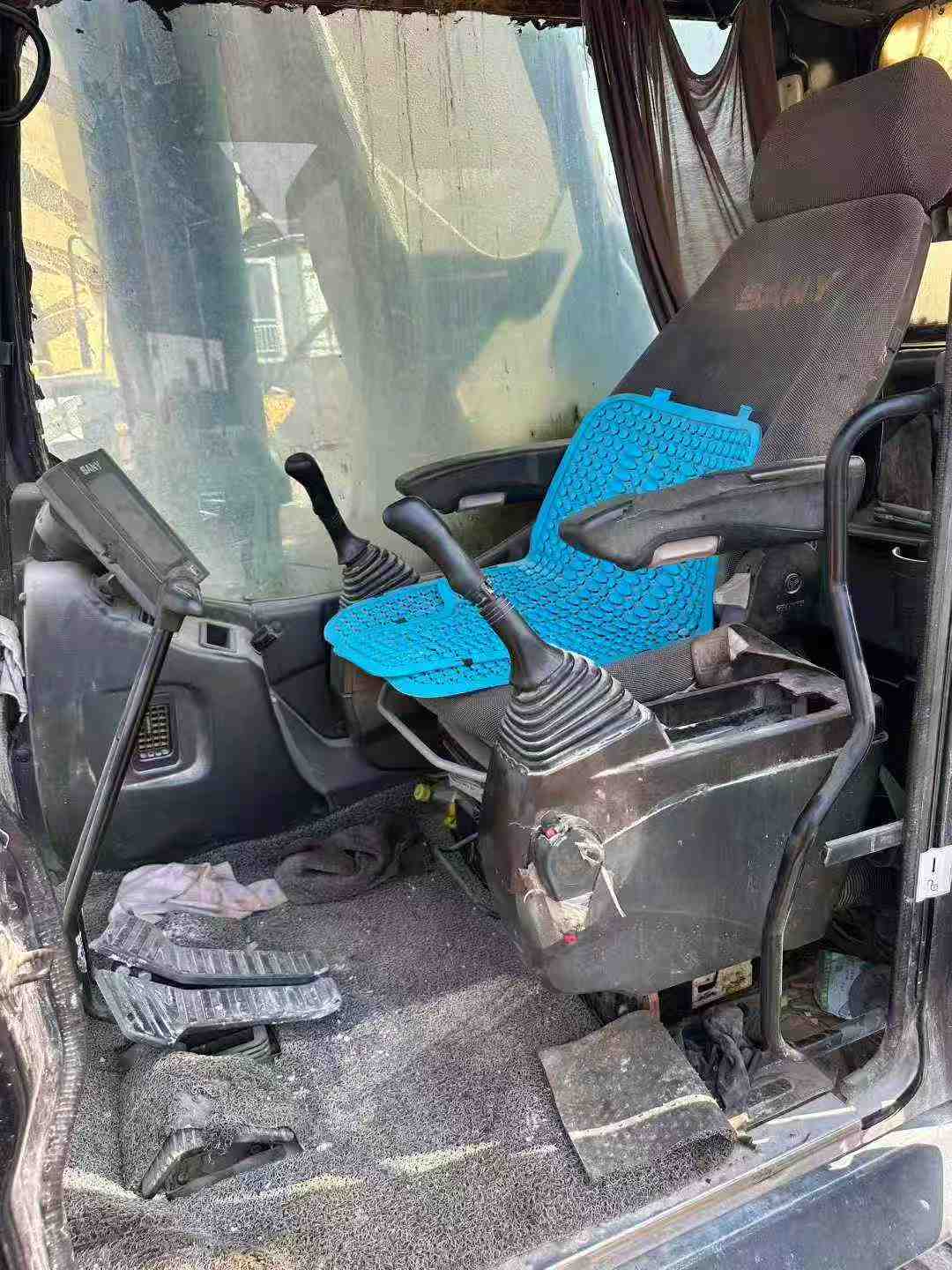

Operator-focused design enhances daily productivity through thoughtful engineering. A 9.5 rpm rotation speed enables smooth positioning, while the spacious cab provides commanding visibility across the 10,780 mm maximum digging radius. Dual-speed travel at 5.5/3.5 km/h allows precise maneuvering around job sites. The backhoe configuration, paired with 235 kN bucket digging force and 180 kN arm force, tackles dense materials with confidence.
- Bucket capacity: 1.6~2.32 m³
- Maximum digging depth: 7,050 mm
- Fuel capacity: 690 L for extended shifts
- Minimum turning radius: 4,495 mm (front device)
- Water-cooled engine with 7.79 L displacement
Built in China with proven traditional power systems, this model balances handling precision with operatio
| Specifications | Value |
|---|---|
| No. | 997039 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~2.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 690 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3545 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
