Product Description
```html

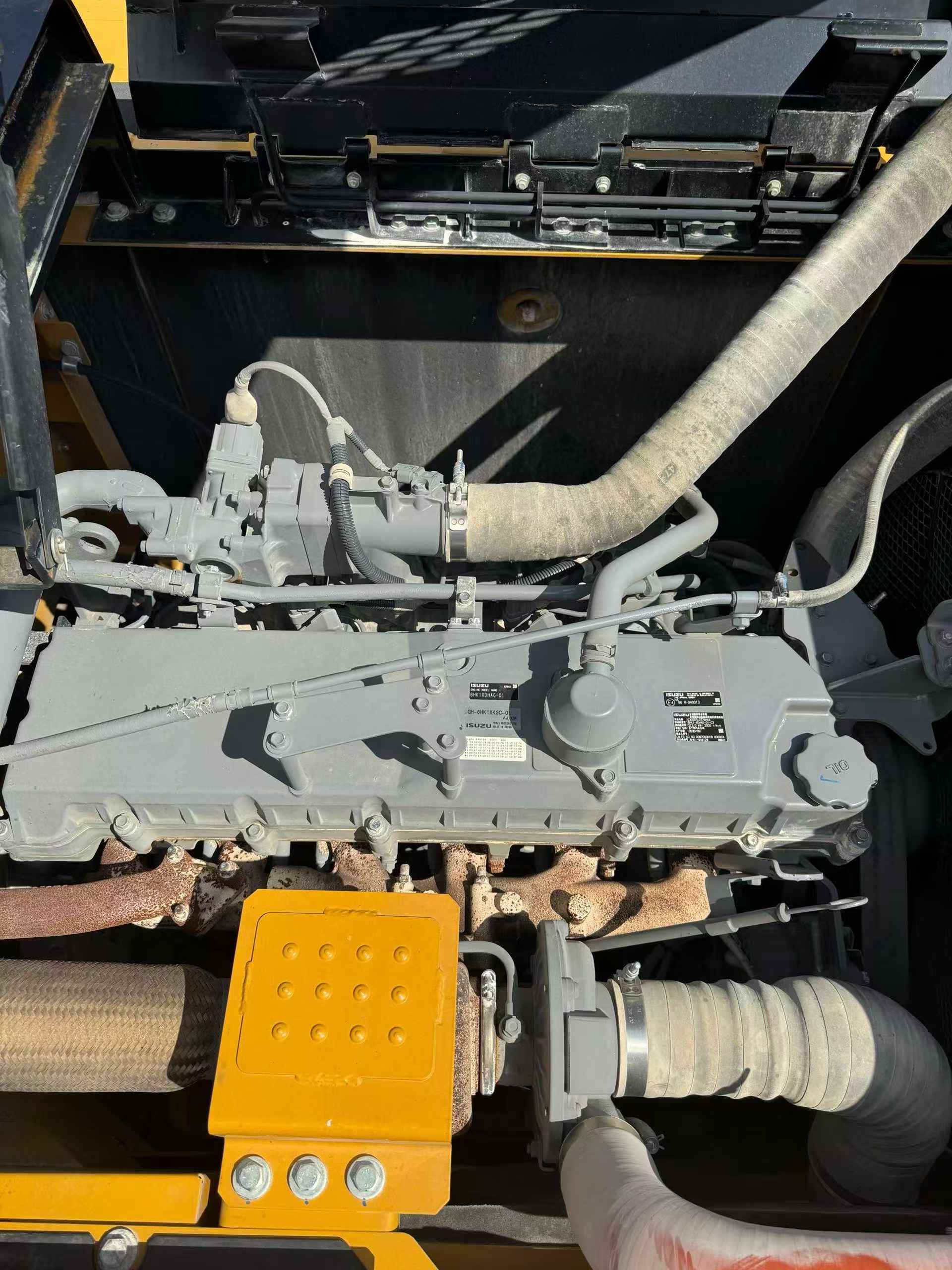

Engineered for demanding excavation operations, this 2021 SY365H represents Sany's commitment to hydraulic excellence and robust mechanical design. At its core sits a GH-6HK1XKSC engine delivering 212 kW at 2000 rpm, paired with a 7.79L displacement system that generates 1080 N·m of maximum torque. The hydraulic architecture produces exceptional digging forces: 235 kN bucket force and 180 kN arm force, enabling efficient material handling across diverse applications.
Key technical specifications include:
- 36-ton operating weight with 1.6-2.32 m³ bucket capacity range
- 10,780 mm maximum digging reach and 7,050 mm digging depth
- Water-cooled engine with 690L fuel capacity for extended operation
- 65 kPa ground pressure minimizing surface impact
- 70
| Specifications | Value |
|---|---|
| No. | 1005638 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36000 |
| Bucket capacity (m³) | 1.6~2.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 690 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11530 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3545 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4495 |
| Back end turning radius (mm) | 3560 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10780 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 6920 |
| Maximum vertical digging depth (mm) | 3970 |
