Product Description

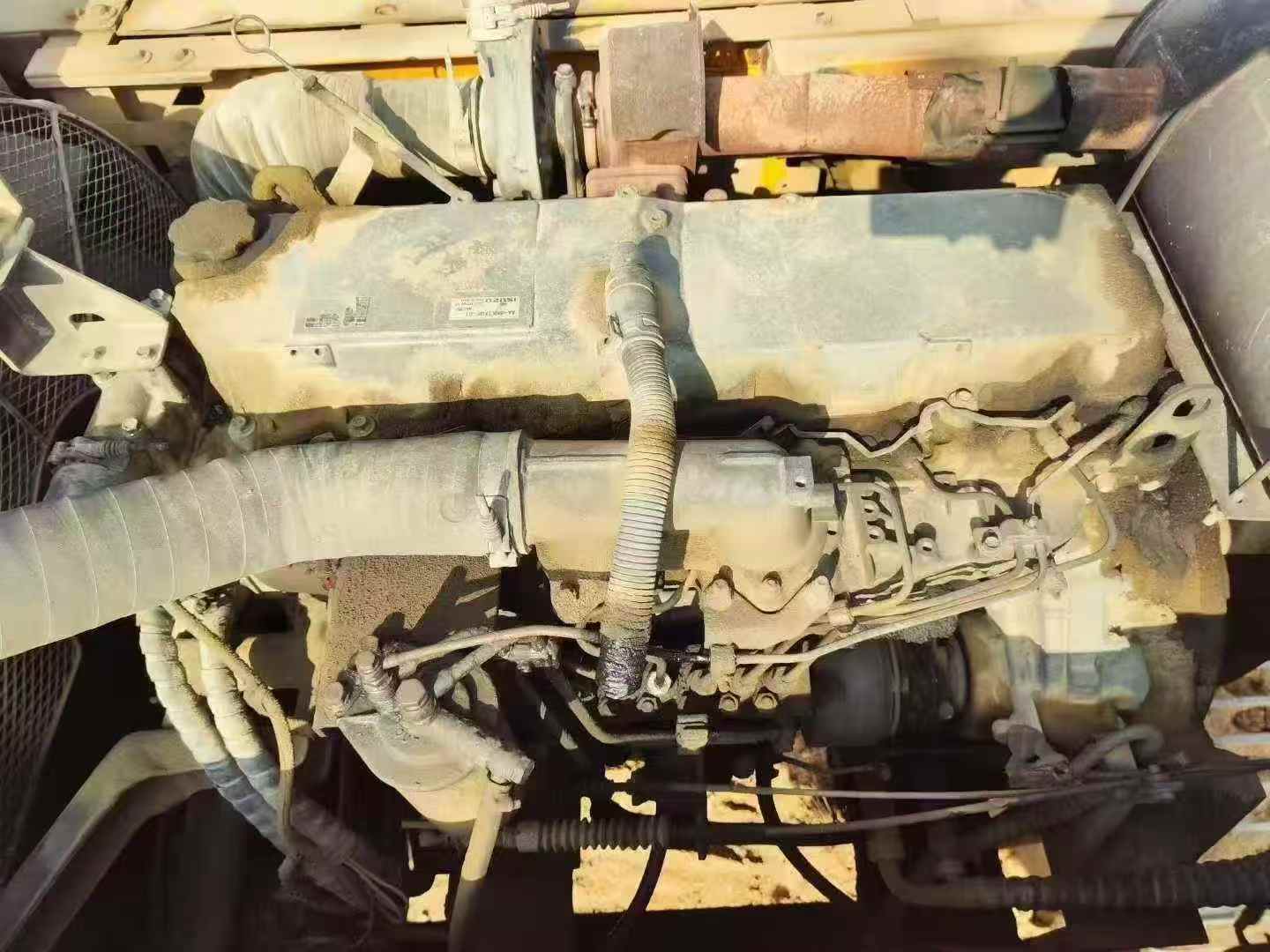

Built for demanding excavation work, this 2014 Sany SY365H-9 delivers 36 tons of working weight with exceptional operator-focused engineering. Powered by a robust Isuzu 6-cylinder turbocharged engine producing 190.5 kW at 2000 rpm, this machine combines reliable performance with precise control across challenging jobsites.
Operators benefit from superior visibility and stability throughout every shift:
- Full cab height of 3,320 mm provides commanding sightlines to the work area
- Ground specific pressure of just 63 kPa ensures stable operation on soft terrain
- 9.5 rpm rotation speed enables smooth, controlled movements
- Maximum digging depth of 7,040 mm with 10,610 mm reach extends your working envelope
- 235 kN bucket digging force tackles rock and hard-packed material efficiently
- 70% (35°) climbing ability handles steep grades with confidence
Currently located in Guizhou, this Shanghai-manufactured excavator features water-cooled operation and a 1.6 m³ rock bucket. With a 550 mm ground clearance and 4,140 mm track ground length, this SY365H-9 maintains stability while delivering consistent hydraulic power for medium to heavy-duty applications.
| Specifications | Value |
|---|---|
| No. | 1011821 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35000 |
| Bucket capacity (m³) | 1.6(Rock) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu |
| Rated power (kw/rpm) | 190.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four stroke six cylinder turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 63 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 180 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 11360 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3550 |
| Full cab height (mm) | 3320 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4330 |
| Back end turning radius (mm) | 3380 |
| Onboard width (mm) | 3150 |
| Total track length (mm) | 5065 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8600 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 7040 |
| Maximum excavation height (mm) | 9900 |
| Maximum unloading height (mm) | 6930 |
| Maximum vertical digging depth (mm) | 5180 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
