Product Description

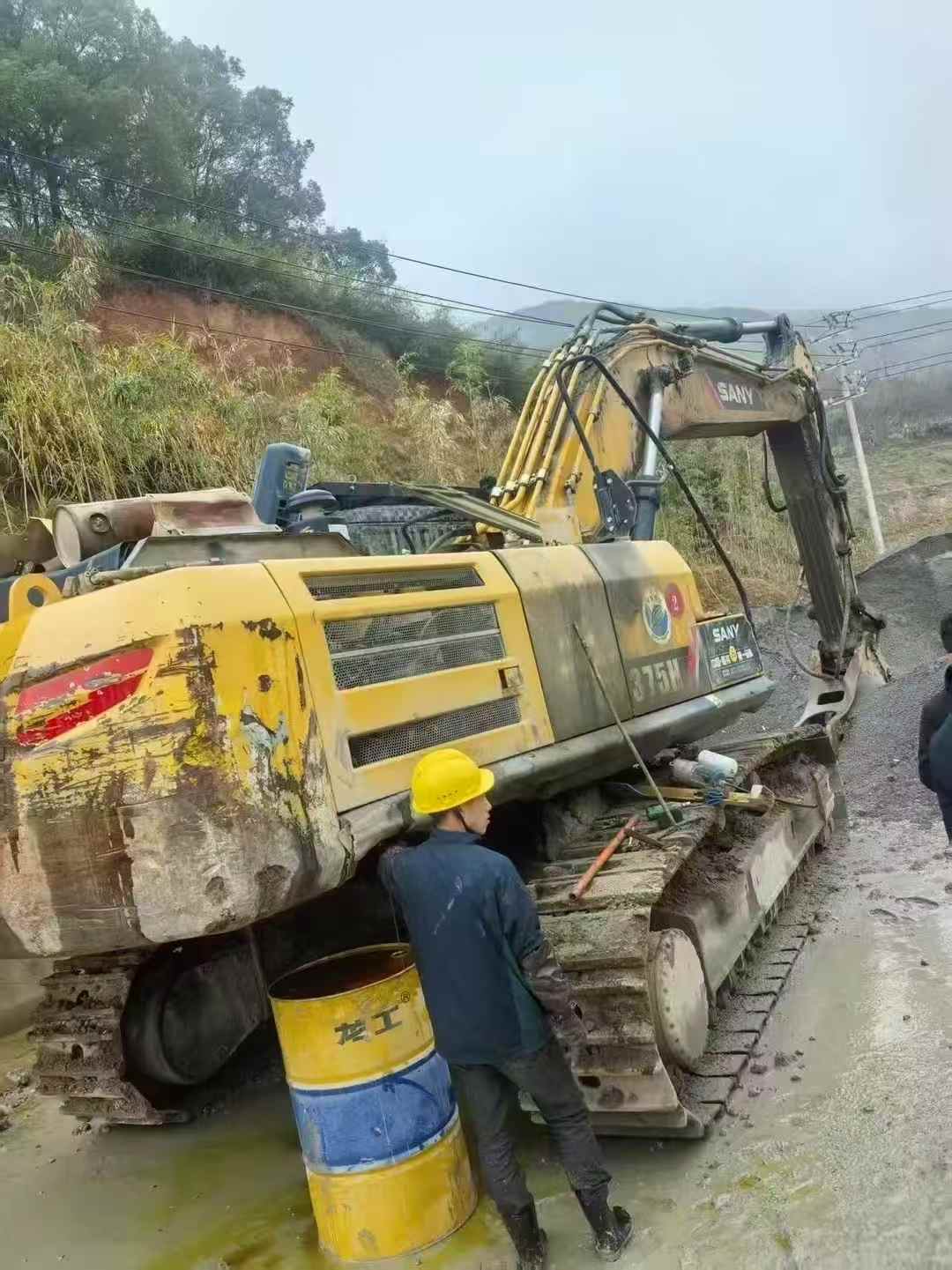

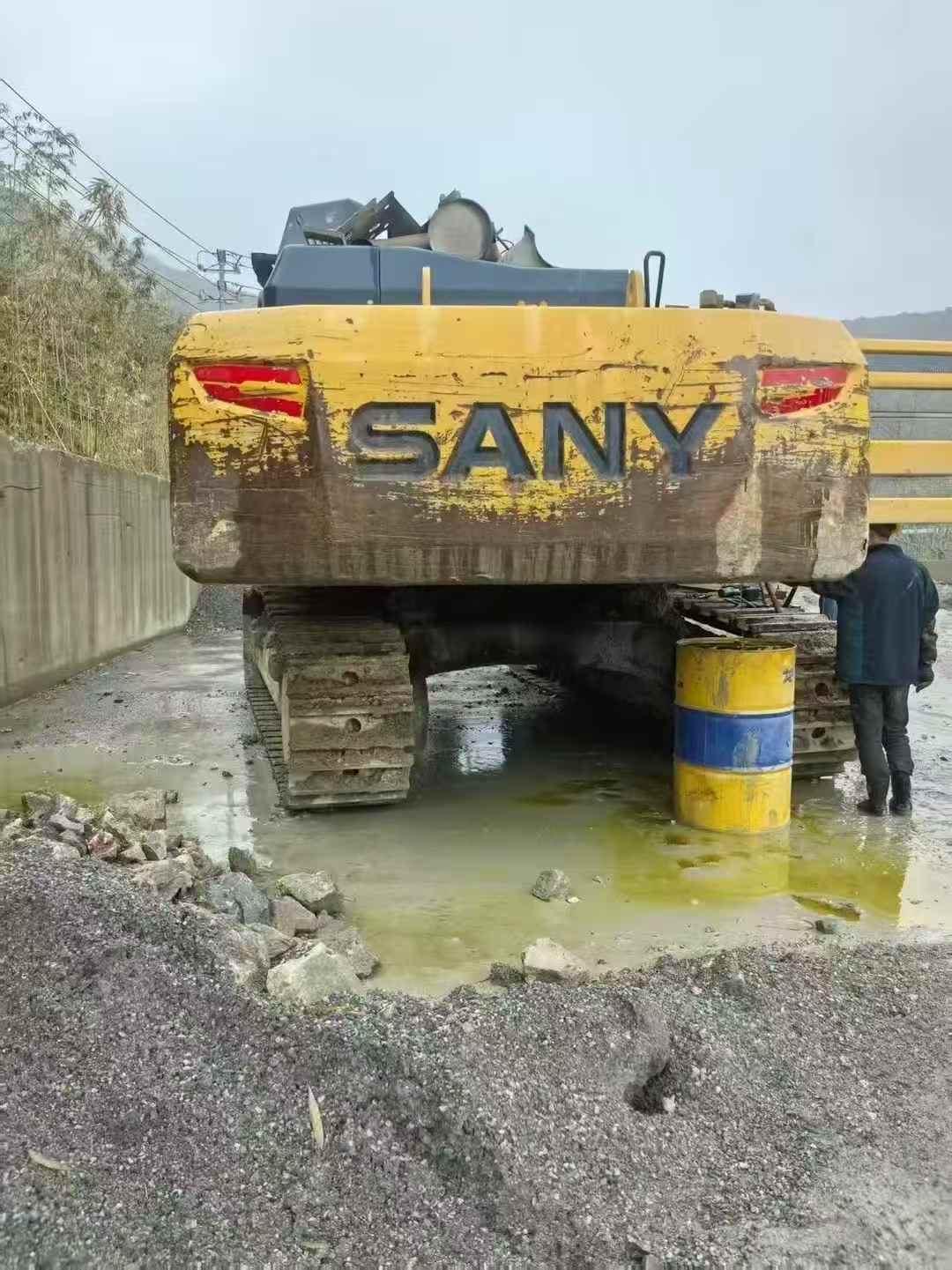

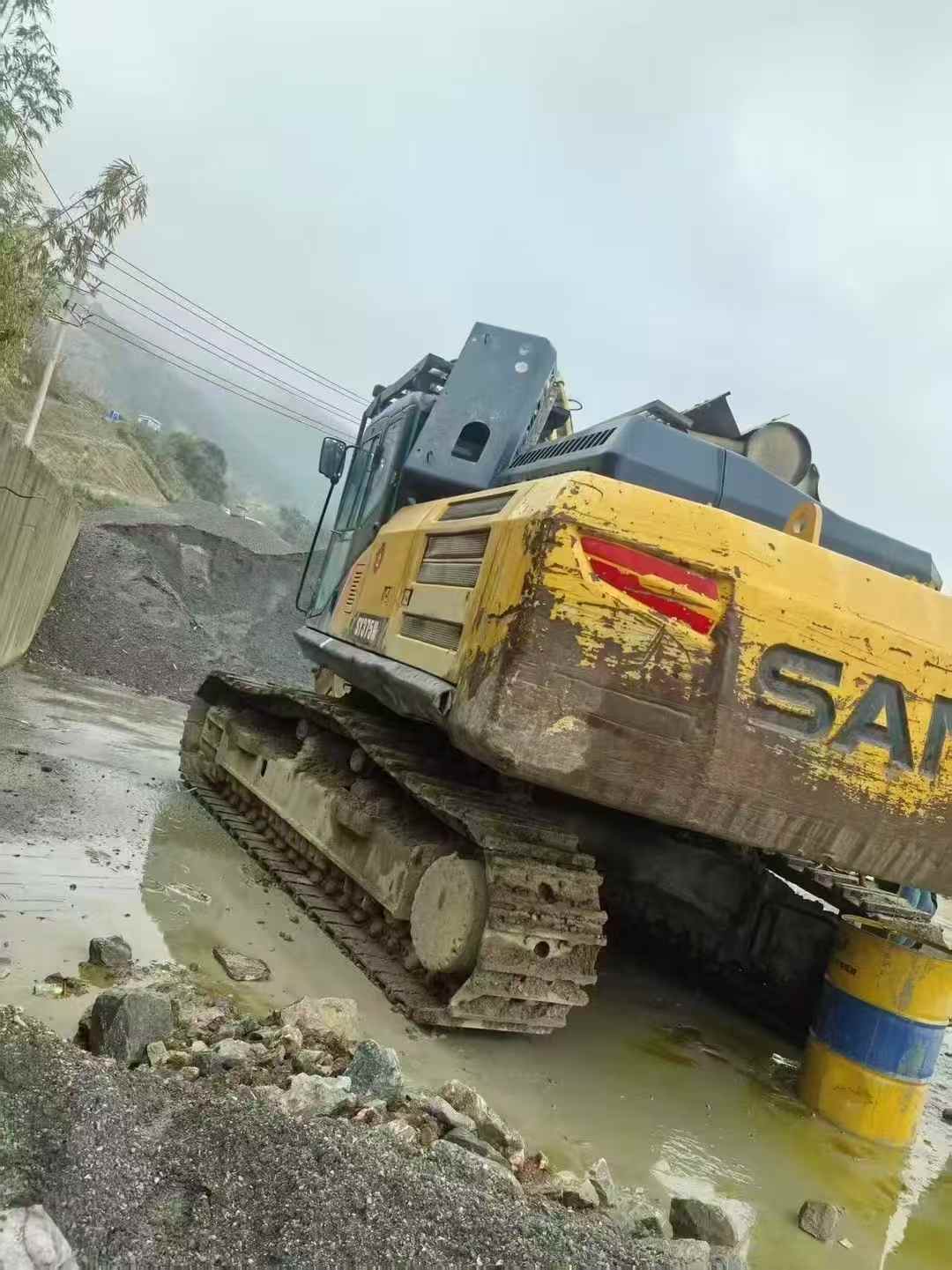

Built for high-output excavation, this 2016 Sany SY375H delivers 37 tons of working weight and 212 kW of turbocharged power to handle demanding earthmoving, foundation work, and demolition tasks. Equipped with a 1.9 m³ backhoe bucket and 235 kN digging force, this machine cuts through tough material with precision and speed. The 10,750 mm maximum digging radius and 7,155 mm digging depth provide extensive reach for deep trenching, slope grading, and mass excavation projects.

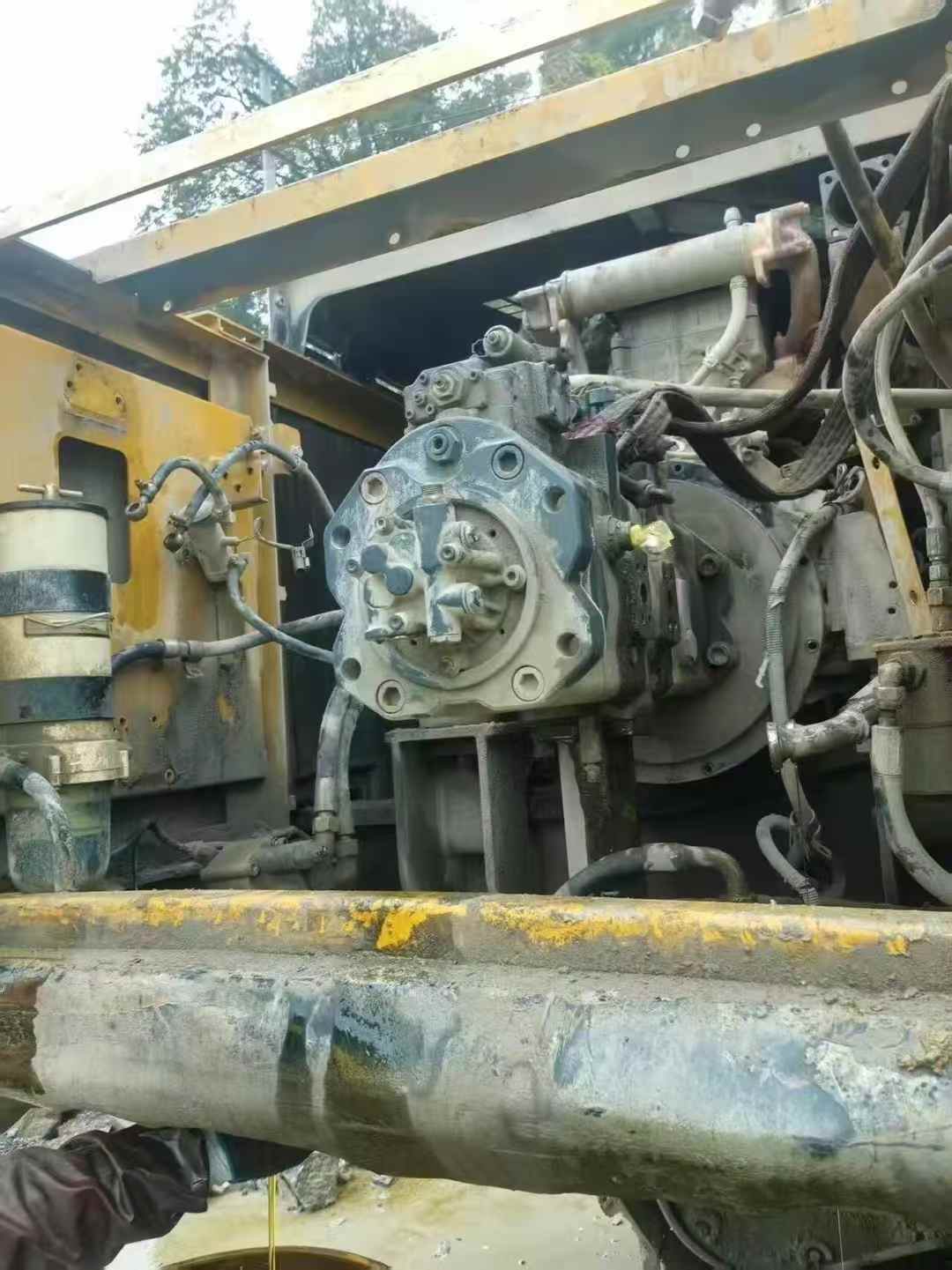

- GH-6HK1XKSC 6-cylinder engine: 212 kW at 2,000 rpm, water-cooled
- Heavy-duty digging performance: 235 kN bucket force, 210 kN arm force
- Extended working envelope: 9,920 mm max digging height, 7,010 mm unloading height
- Stable platform: 68.8 kPa ground pressure, 70% gradeability
- 540 L fuel capacity for extended shifts
- Currently located in Guizhou, China
This site-ready excavator arrives operational and prepared for immediate deployment on infrastructure, mining, or commercial construction sites requiring reliable 37-ton class performance.
| Specifications | Value |
|---|---|
| No. | 1023824 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
