2019 Sany SY375H

1/3
Buy Sany SY375H Used Excavator / 1

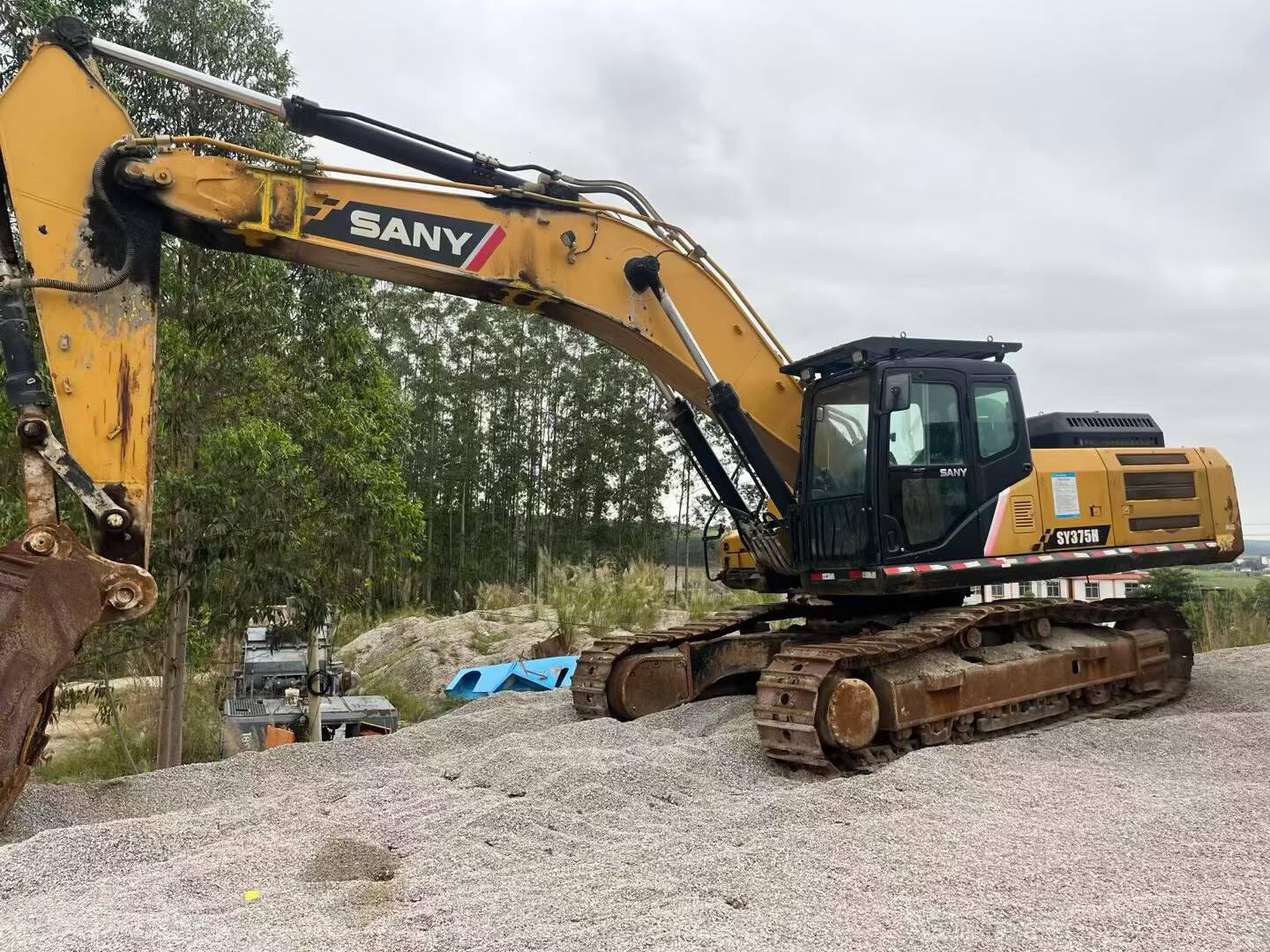

Buy Sany SY375H Used Excavator / 2

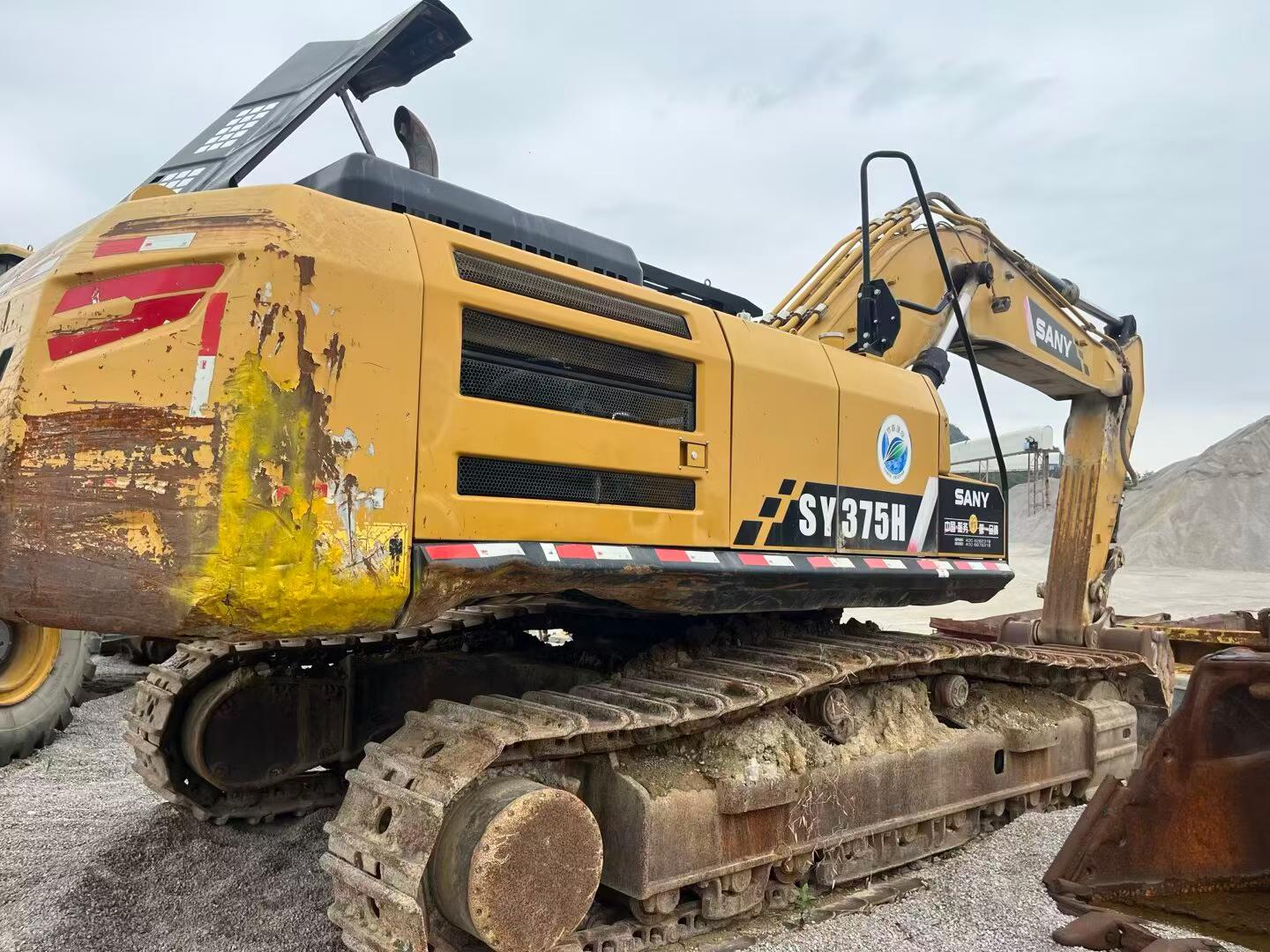

Buy Sany SY375H Used Excavator / 3

Product Description

Built for demanding excavation work, this 2019 Sany SY375H delivers 37-ton class performance with operator-centered engineering. Powered by a robust 212 kW turbocharged engine producing 1,080 N·m of torque, this crawler excavator combines reliable power with exceptional control. The spacious cab offers superior visibility across the 10,750 mm maximum digging radius, while advanced hydraulics provide 235 kN bucket digging force for tackling tough materials. Ergonomic controls and optimized cabin layout reduce operator fatigue during extended shifts.

  • Operating Weight: 37,500 kg with proven stability
  • Digging Reach: 10.75 m maximum radius, 7.15 m depth capability
  • Power System: Water-cooled 6-cylinder engine (7.79 L displacement)
  • Track Configuration: 600 mm wide shoes, 68.8 kPa ground pressure for soft terrain
  • Cab Comfort: Enhanced sightlines, minimal blind spots, accessible controls
  • Hydraulic Performance: 8.8 rpm swing speed for efficient cycle times
  • Current Location: Wenzhou, Zhejiang Province, China

Designed for contractors requiring pr

SpecificationsValue
No.1051175
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1051175

Brand Name:

Sany

Model Number:

SY375H

Year:

2019

Location:

Zhejiang China

Pub Date
