Product Description

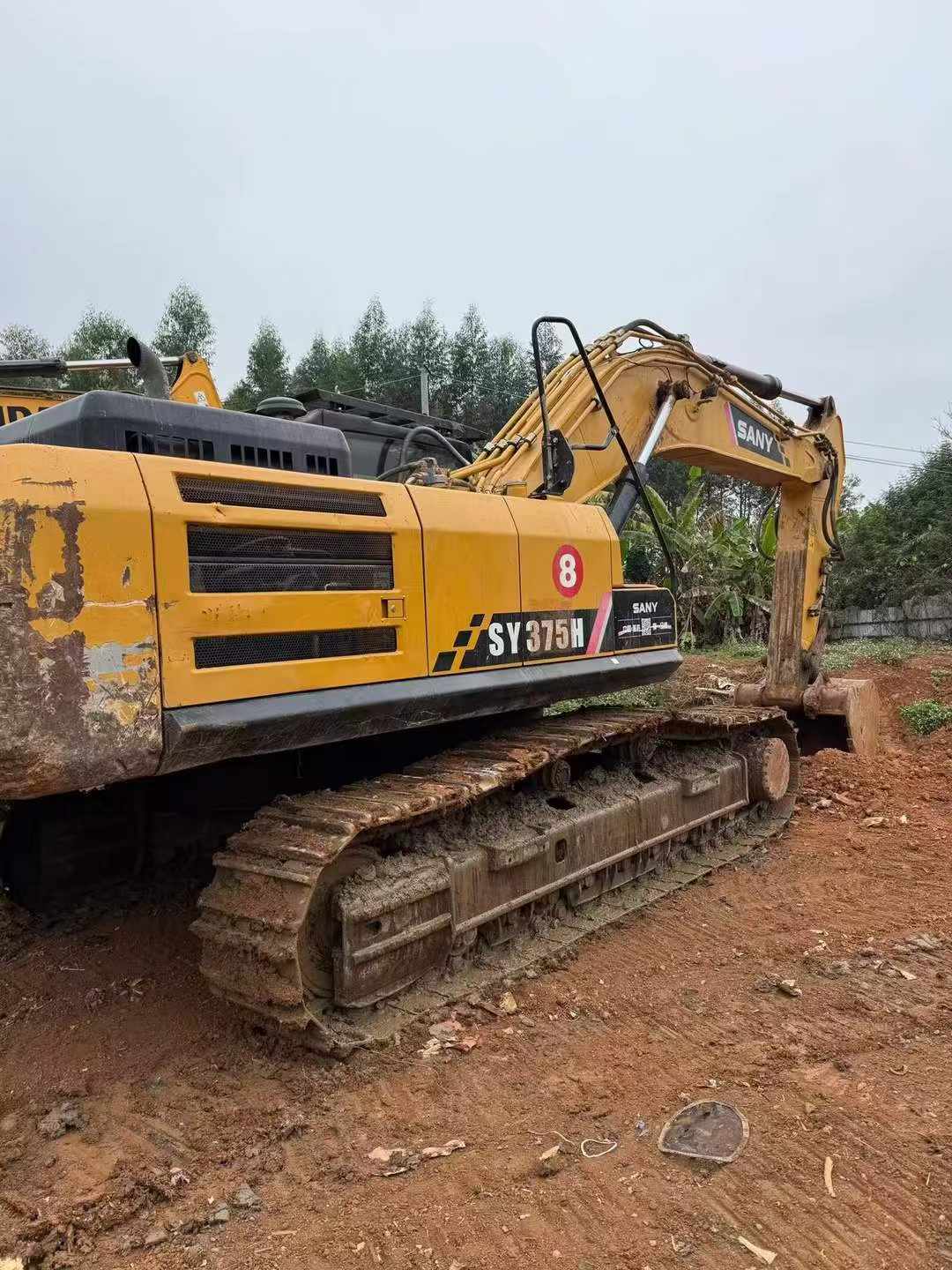

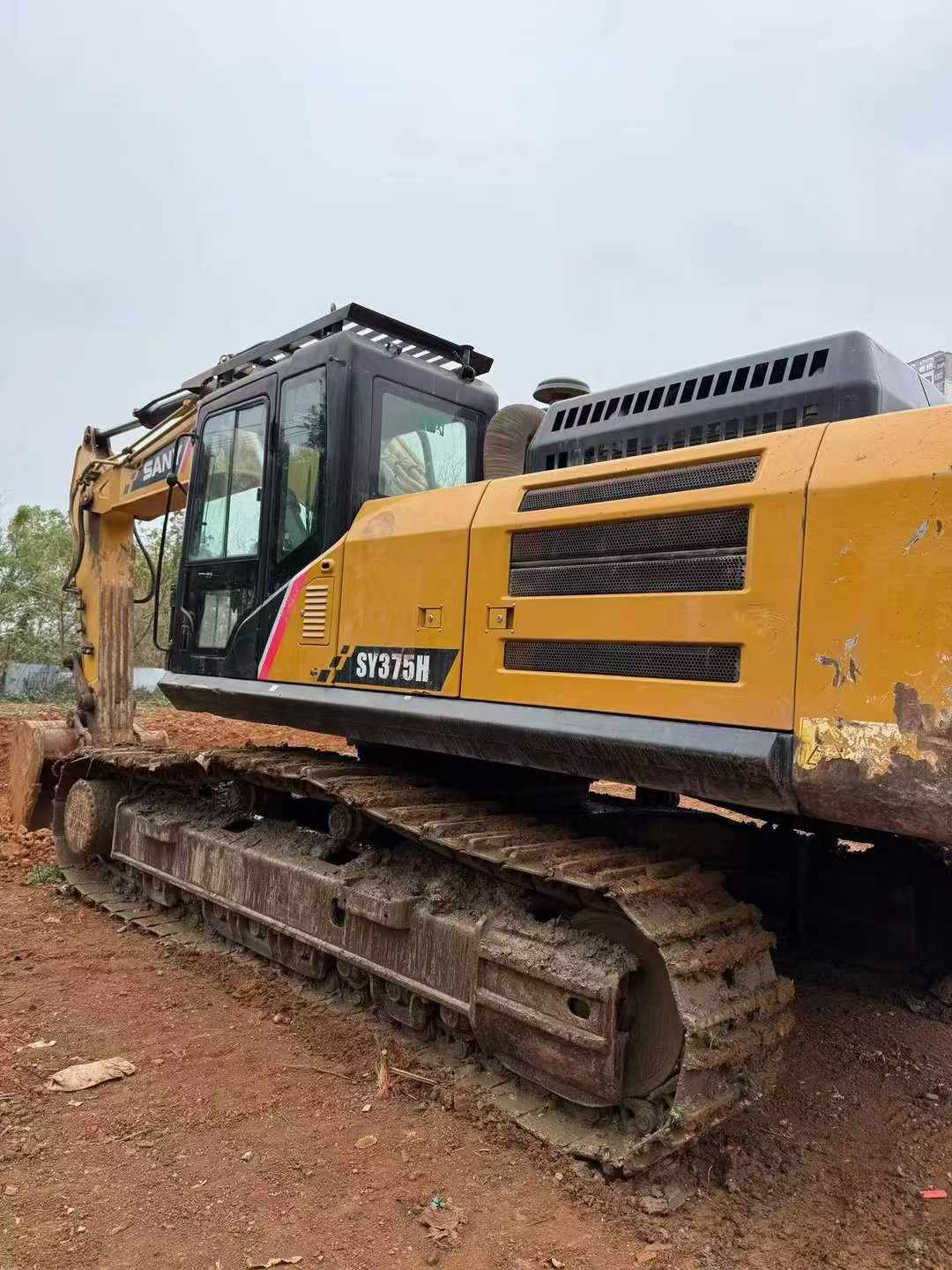

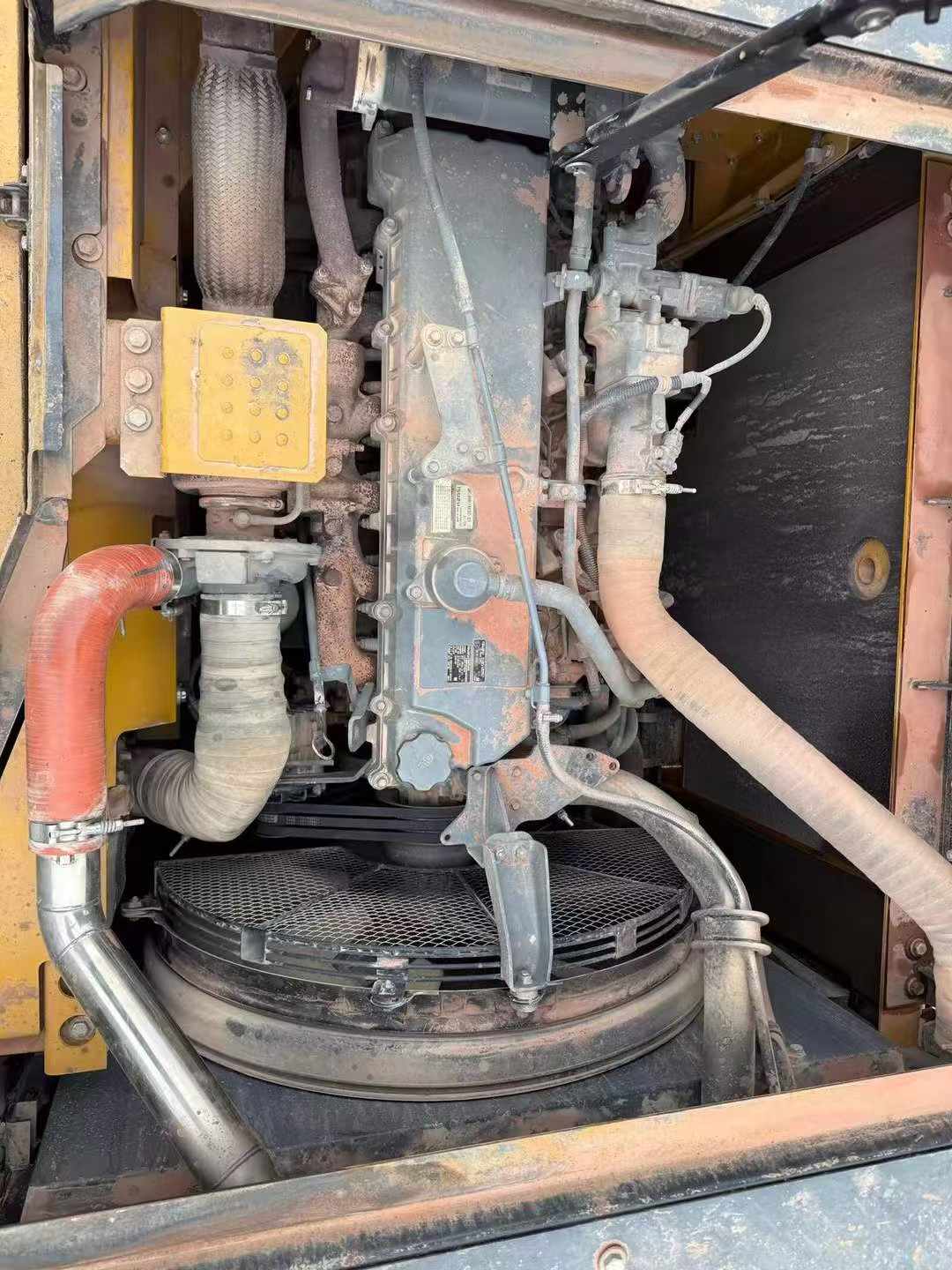

With a powerful GH-6HK1XKSC engine delivering 212 kW at 2000 rpm, this 2020 Sany SY375H excavator is designed for efficiency and durability. Located in 广西来宾, it's available now, ready to skip the factory lead times and deploy fast to your site. Weighing 37 tons with a working weight of 37,500 kg, it features a versatile bucket capacity ranging from 1.7 to 2.4 m³ (standard 1.9 m³). This machine boasts a maximum digging force of 235 kN and a rod digging force of 210 kN, ensuring robust performance. Its travel speed of 5.5 km/h (high) and 3.5 km/h (low) facilitates swift movement on various terrains. Equipped with a 540-liter fuel tank and 36 liters for engine oil changes, the SY375H ensures extended operational hours. The total transport dimensions of 11,425 mm (length), 3,190 mm (width), and 3,825 mm (height) make it suitable for easy transportation. Contact us today to secure this reliable excavator and expedite your project timelines.
| Specifications | Value |
|---|---|
| No. | 1033577 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
