Product Description

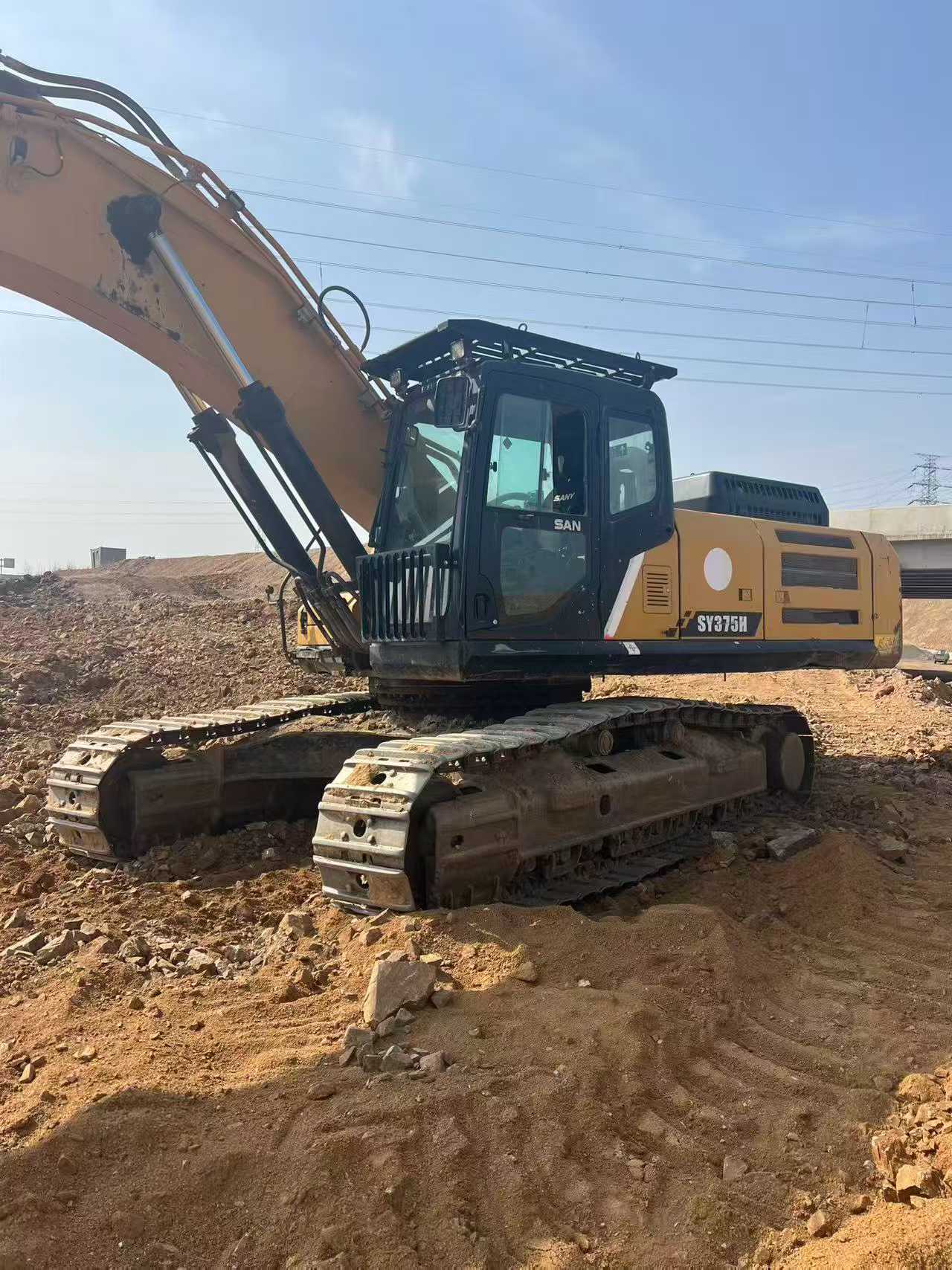

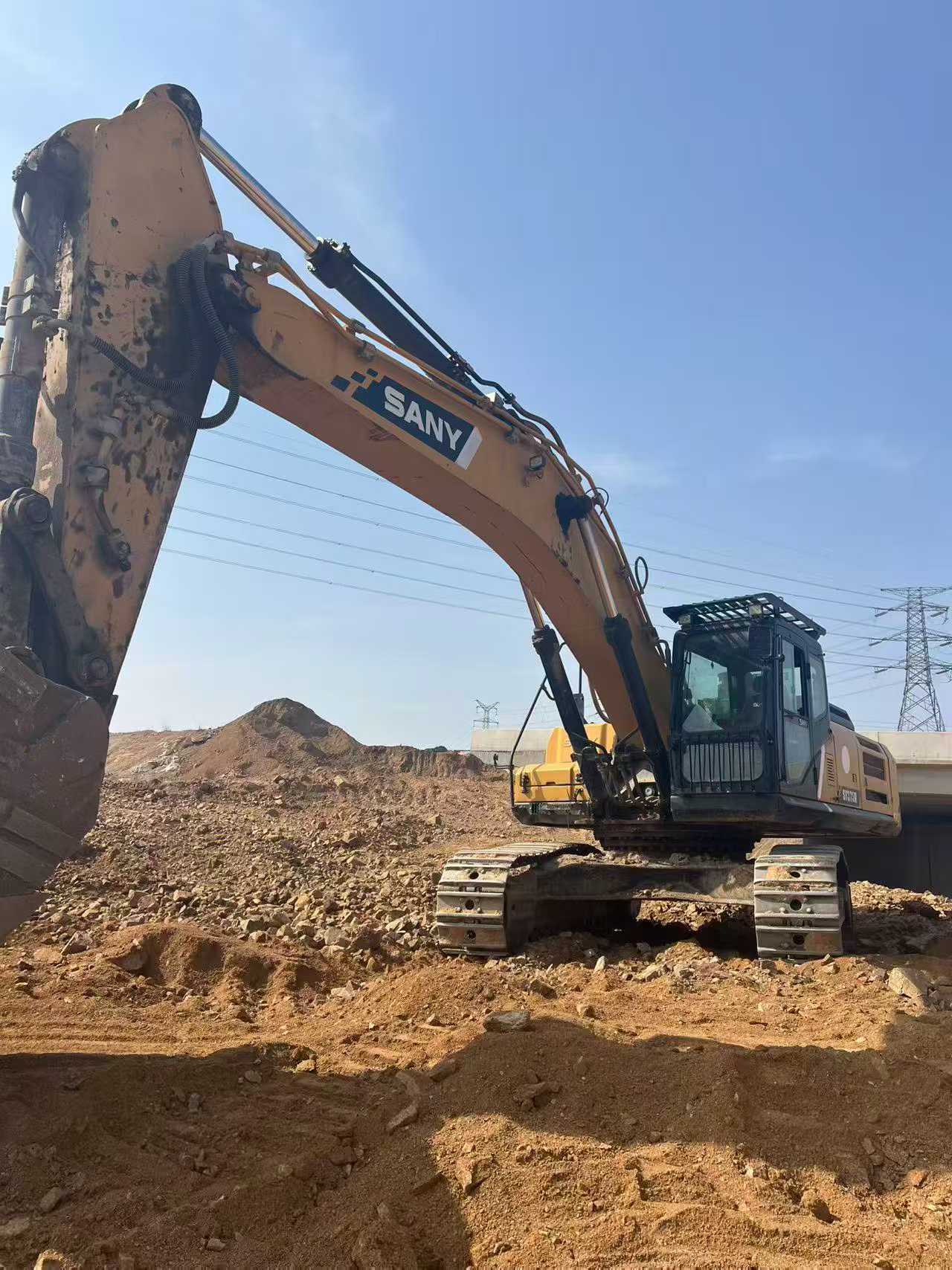

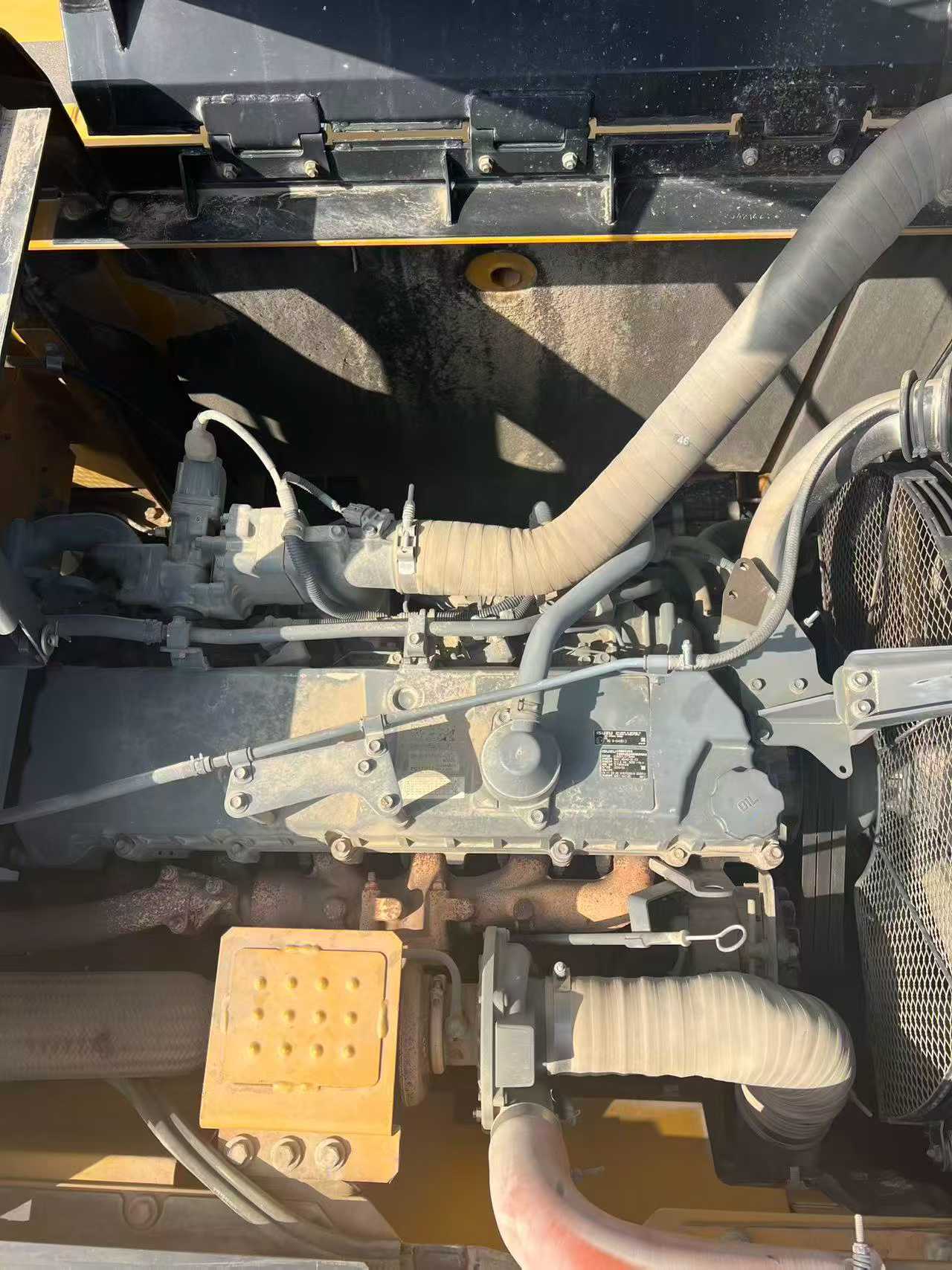

Commanding a 37-ton working weight with precision requires exceptional operator control, and this 2020 Sany SY375H delivers exactly that. Powered by a robust GH-6HK1XKSC engine producing 212kW at 2000rpm, this excavator combines reliable water-cooled performance with operator-focused engineering. The spacious cabin provides comprehensive visibility across a 10,750mm maximum digging radius, while the machine's 68.8kPa ground-specific pressure ensures stable operation across varied terrain in Kunming's demanding conditions.
- Smooth 8.8rpm rotation speed for controlled positioning and reduced operator fatigue
- 235kN bucket digging force with responsive hydraulics for precise material handling
- 550mm ground clearance and 70% climbing ability for confident site navigation
- Dual travel speeds (5.5/3.5 km/h) allowing operators to match pace to working conditions
- 1.9m³ standard bucket capacity optimized for production efficiency
- 540L fuel tank supporting extended shifts with minimal downtime
Built for operators who demand stability and control, this machine balances power with maneuverability through its 2,590mm track gauge and proven Chinese manufacturing standards.
| Specifications | Value |
|---|---|
| No. | 1034132 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
