2020 Sany SY375H

1/9
Buy Sany SY375H Used Excavator / 1
Buy Sany SY375H Used Excavator / 2

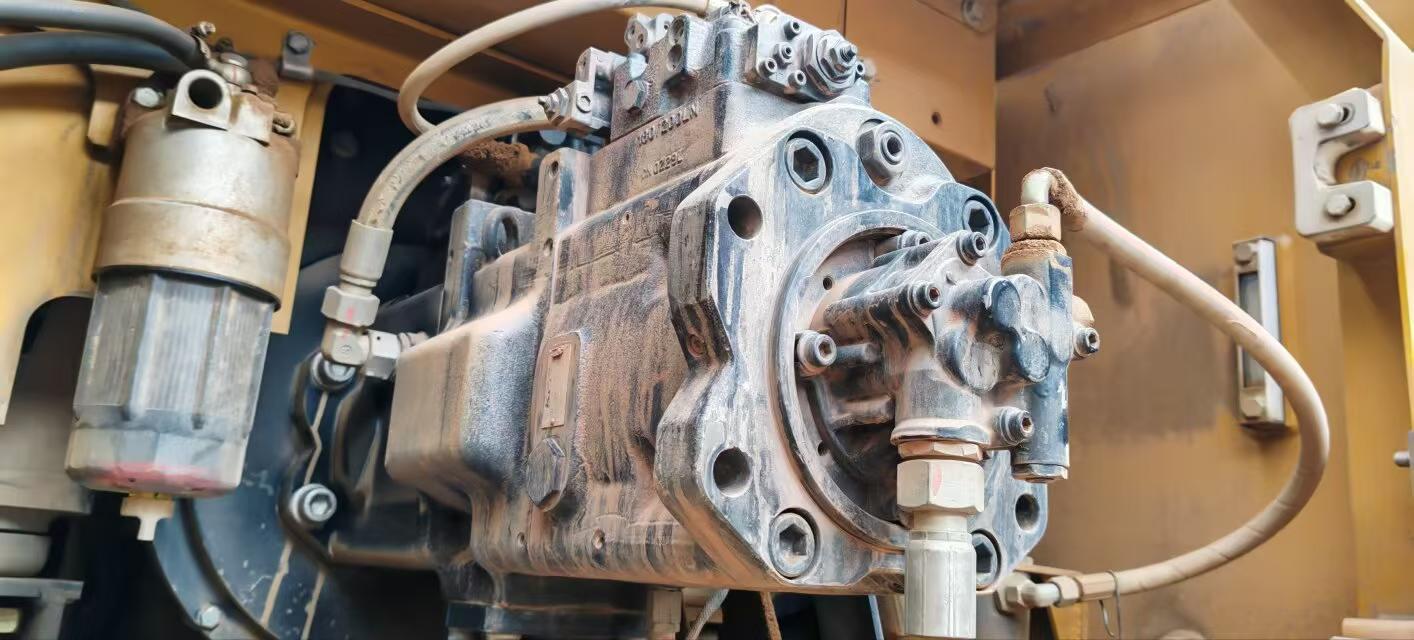

Buy Sany SY375H Used Excavator / 3
Buy Sany SY375H Used Excavator / 4
Buy Sany SY375H Used Excavator / 5
Buy Sany SY375H Used Excavator / 6
Buy Sany SY375H Used Excavator / 7
Buy Sany SY375H Used Excavator / 8
Buy Sany SY375H Used Excavator / 9

Product Description

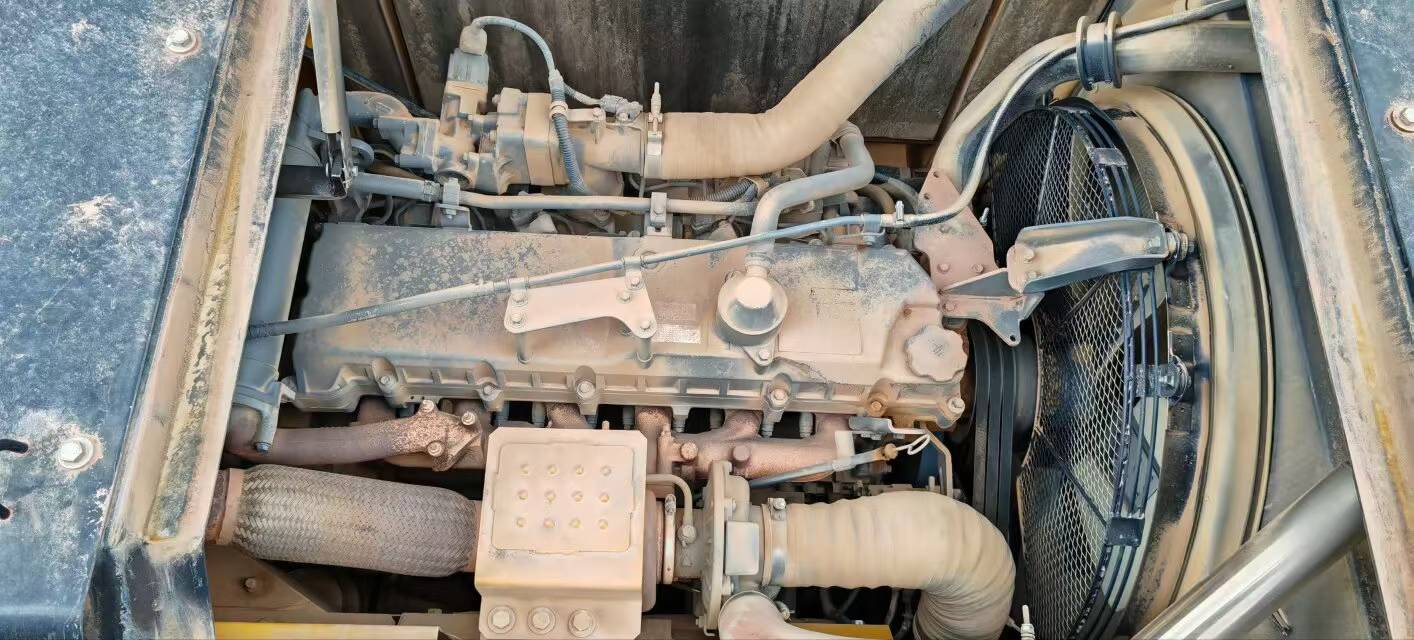

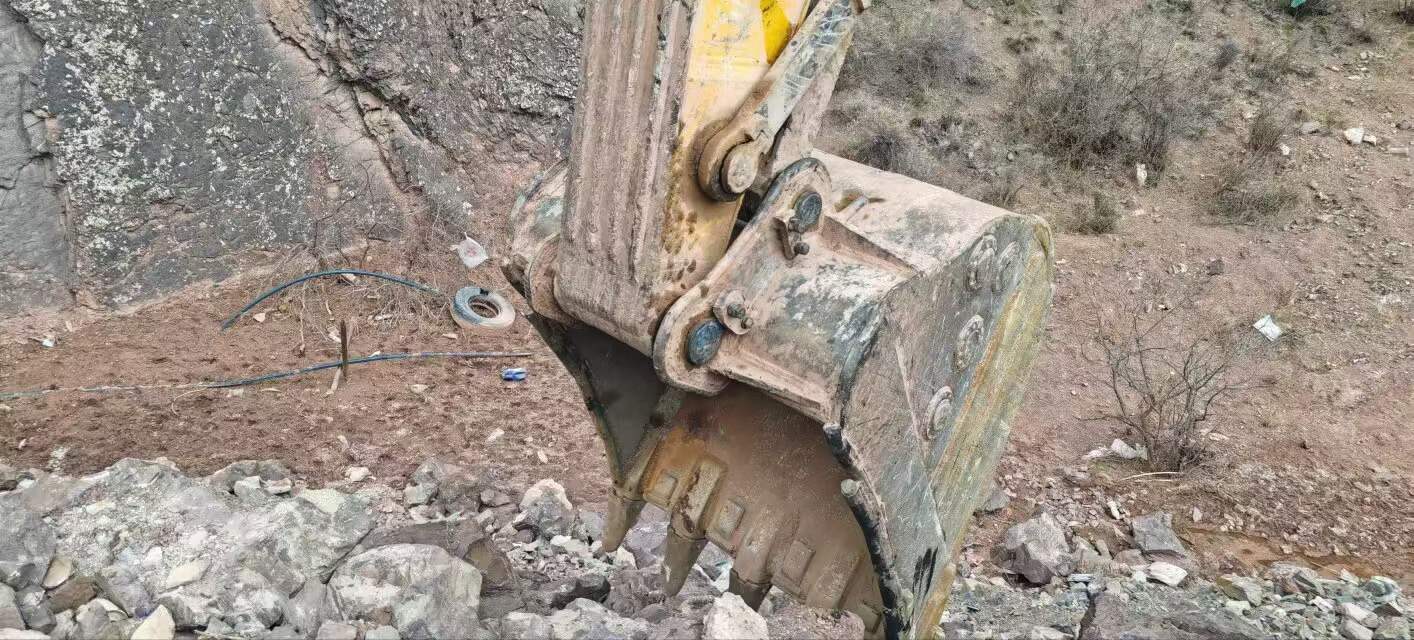

Built for high-output excavation, this 2020 Sany SY375H delivers 37 tons of working weight and 212 kW of proven power across demanding jobsites. Equipped with a 1.9 m³ bucket capacity and 235 kN bucket digging force, this machine tackles deep foundation work, mass earthmoving, and demolition projects with consistent reliability. Its 6-cylinder GH-6HK1XKSC engine produces 1080 N·m of torque at 1500 rpm, maintaining hydraulic performance in continuous duty cycles.

  • Maximum digging depth of 7,155 mm and reach extending to 10,750 mm for large-scale excavation
  • Water-cooled turbocharged engine with 540 L fuel capacity for extended shift operation
  • 70% grading ability and 8.8 rpm swing speed for efficient material handling
  • 210 kN arm digging force optimized for trench work and precision grading
  • Currently located in Guizhou, ready for immediate deployment

This China-manufactured excavator combines proven mechanical systems with field-tested durability. Site-ready condition means reduced downtime between acquisition and production. Contact Fair Trade Machinery for complete inspection reports and shipping coordination to your location.

SpecificationsValue
No.1039061
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230

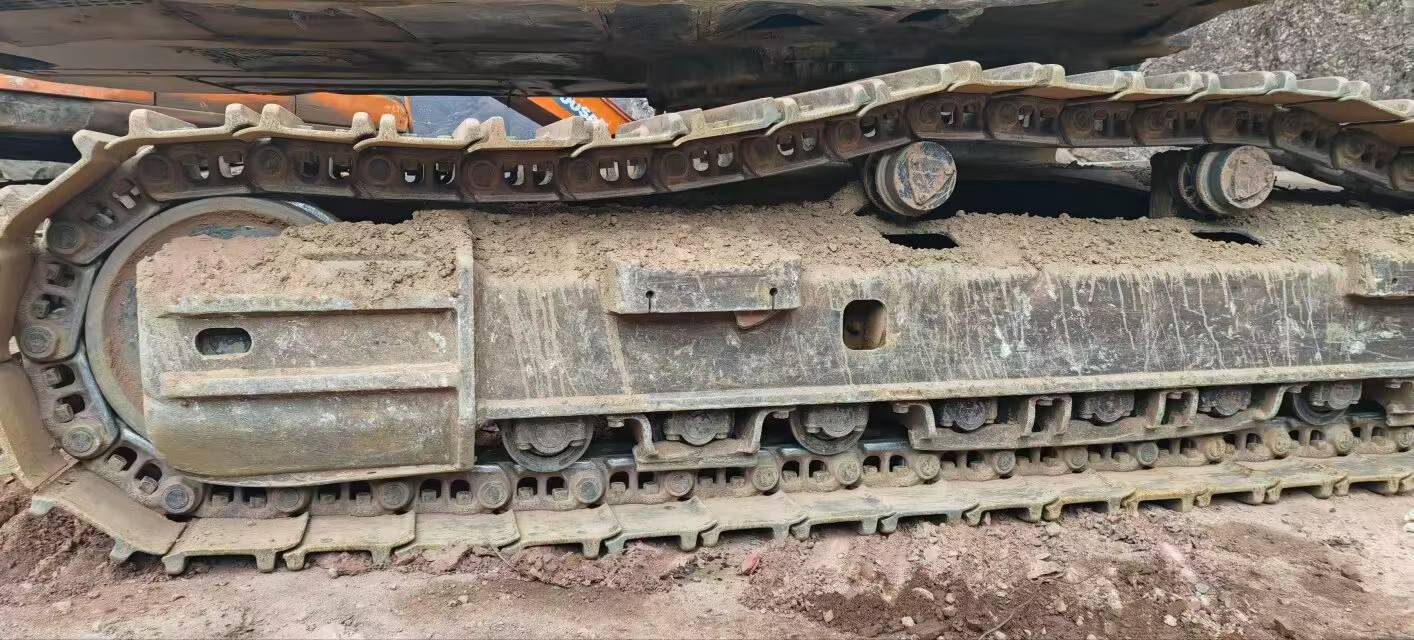

Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1039061

Brand Name:

Sany

Model Number:

SY375H

Year:

2020

Location:

Guizhou China

Pub Date
