2020 Sany SY375H

1/9
Buy Sany SY375H Used Excavator / 1

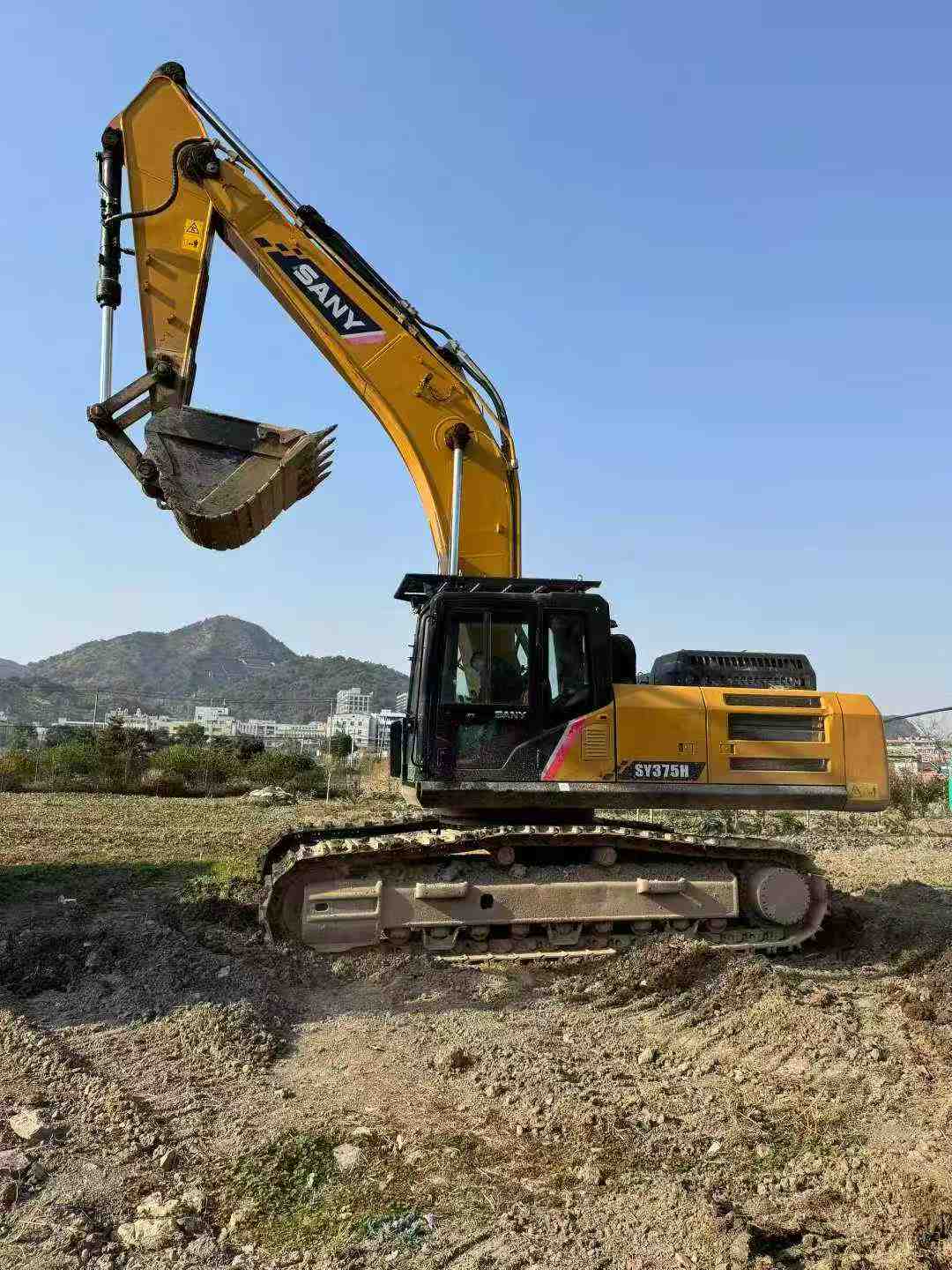

Buy Sany SY375H Used Excavator / 2

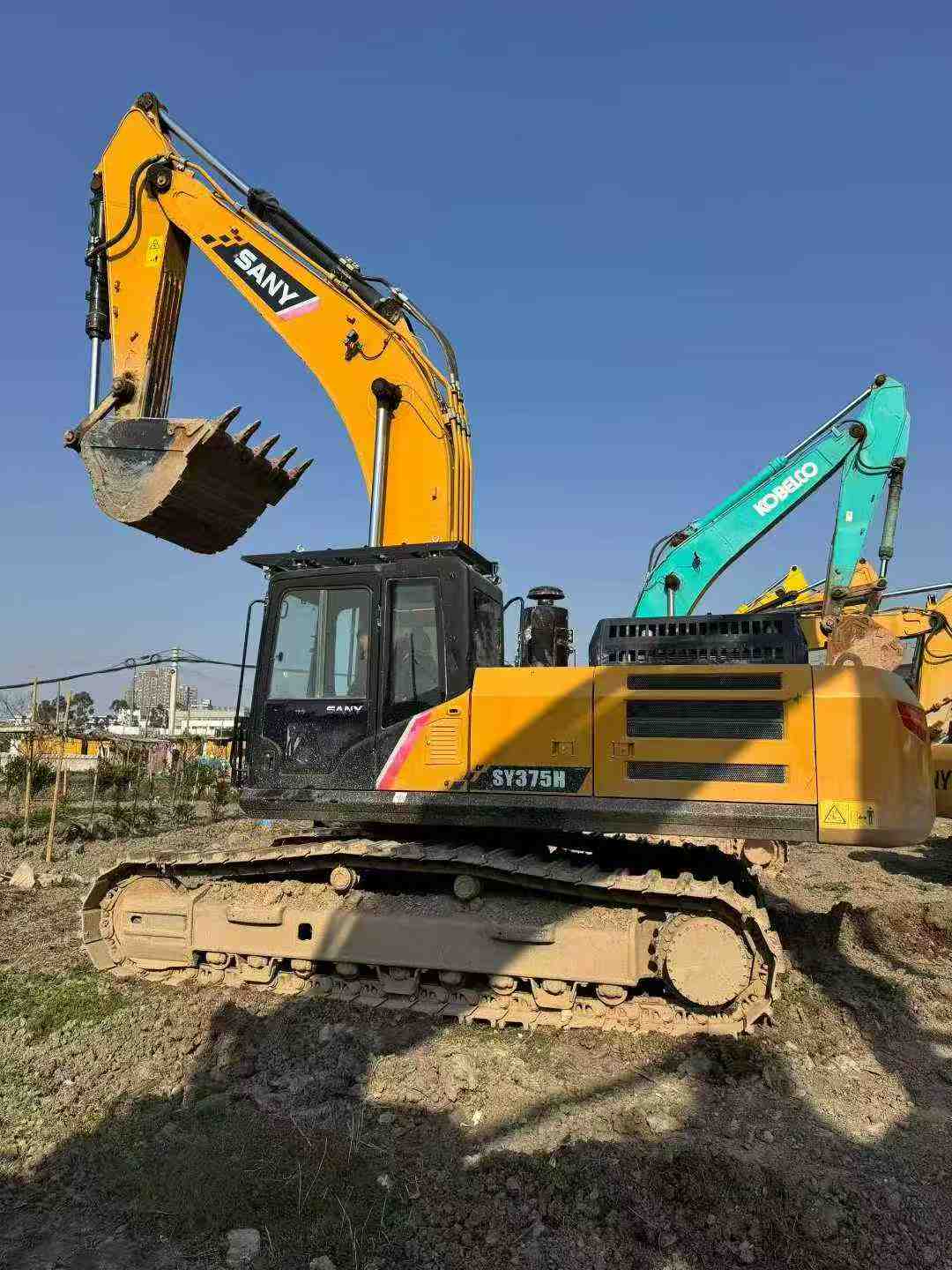

Buy Sany SY375H Used Excavator / 3

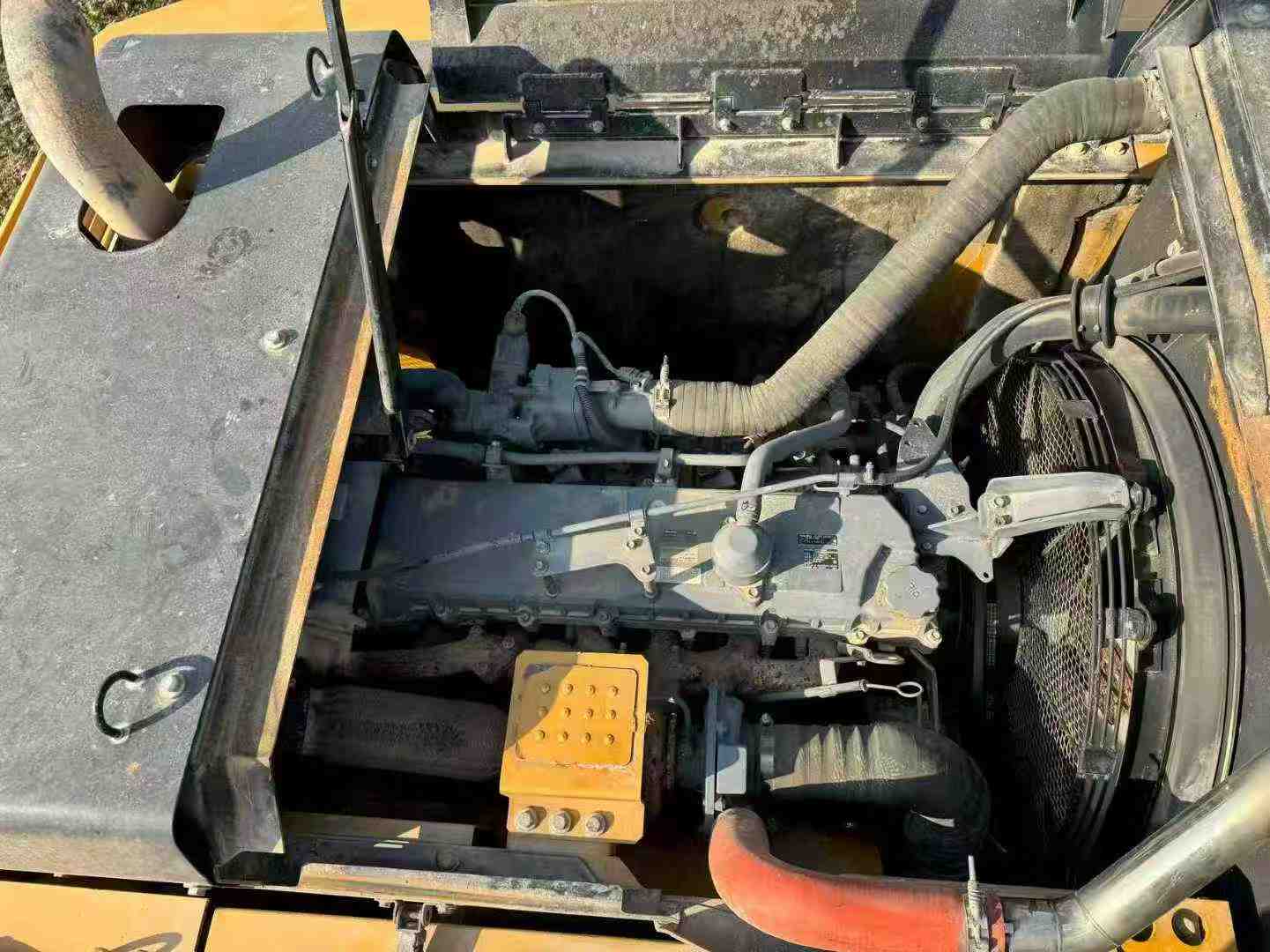

Buy Sany SY375H Used Excavator / 4

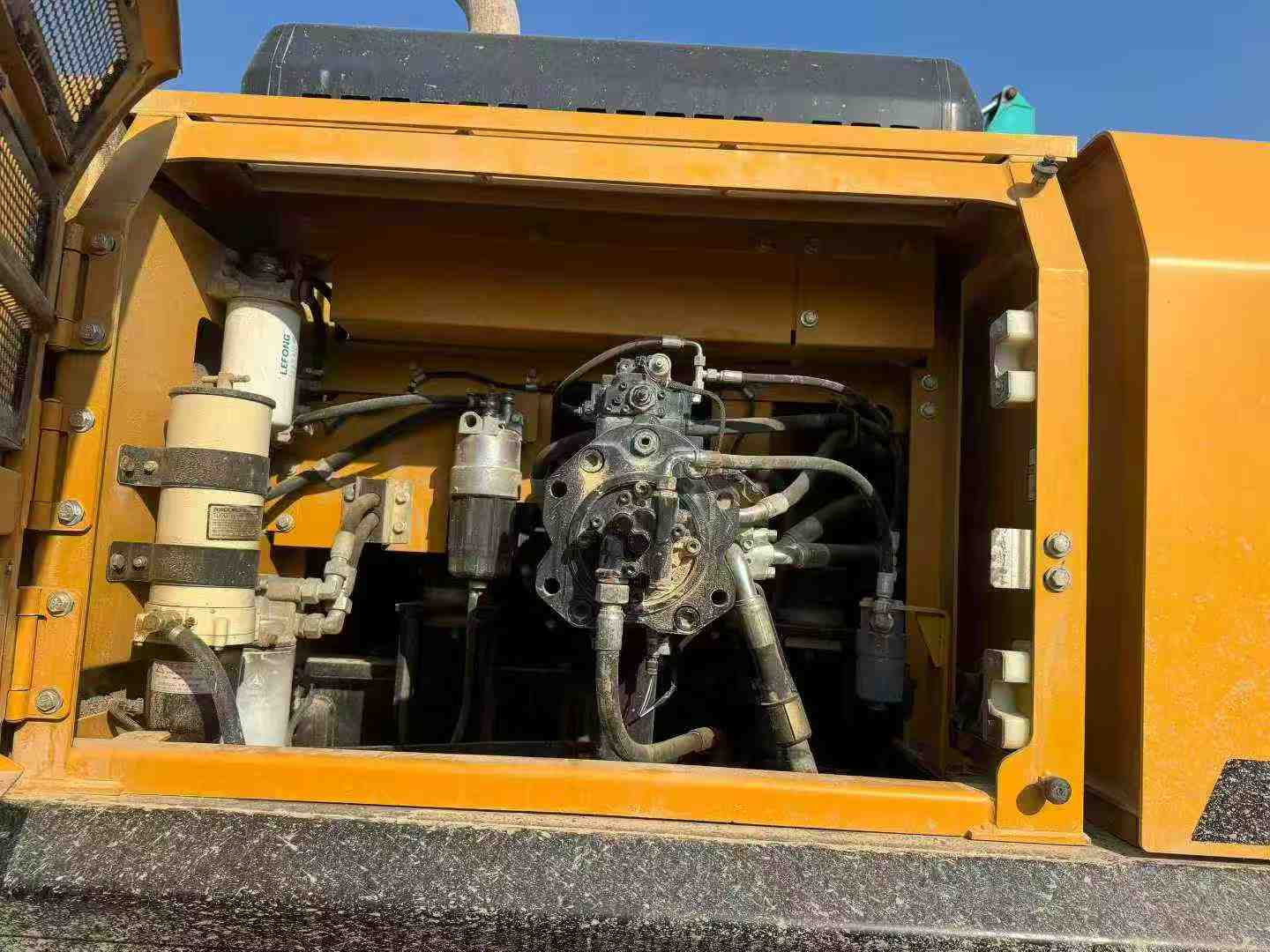

Buy Sany SY375H Used Excavator / 5

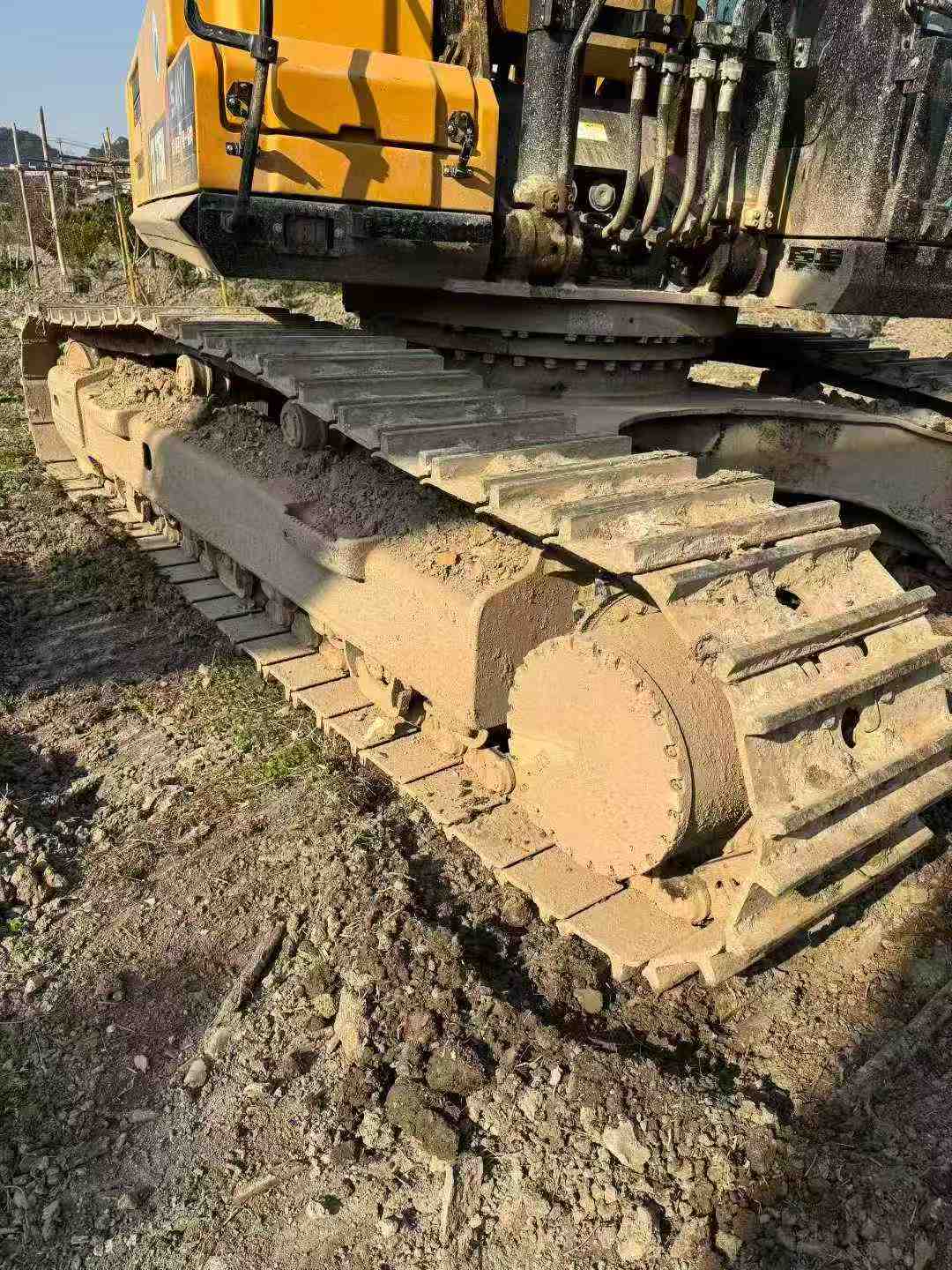

Buy Sany SY375H Used Excavator / 6

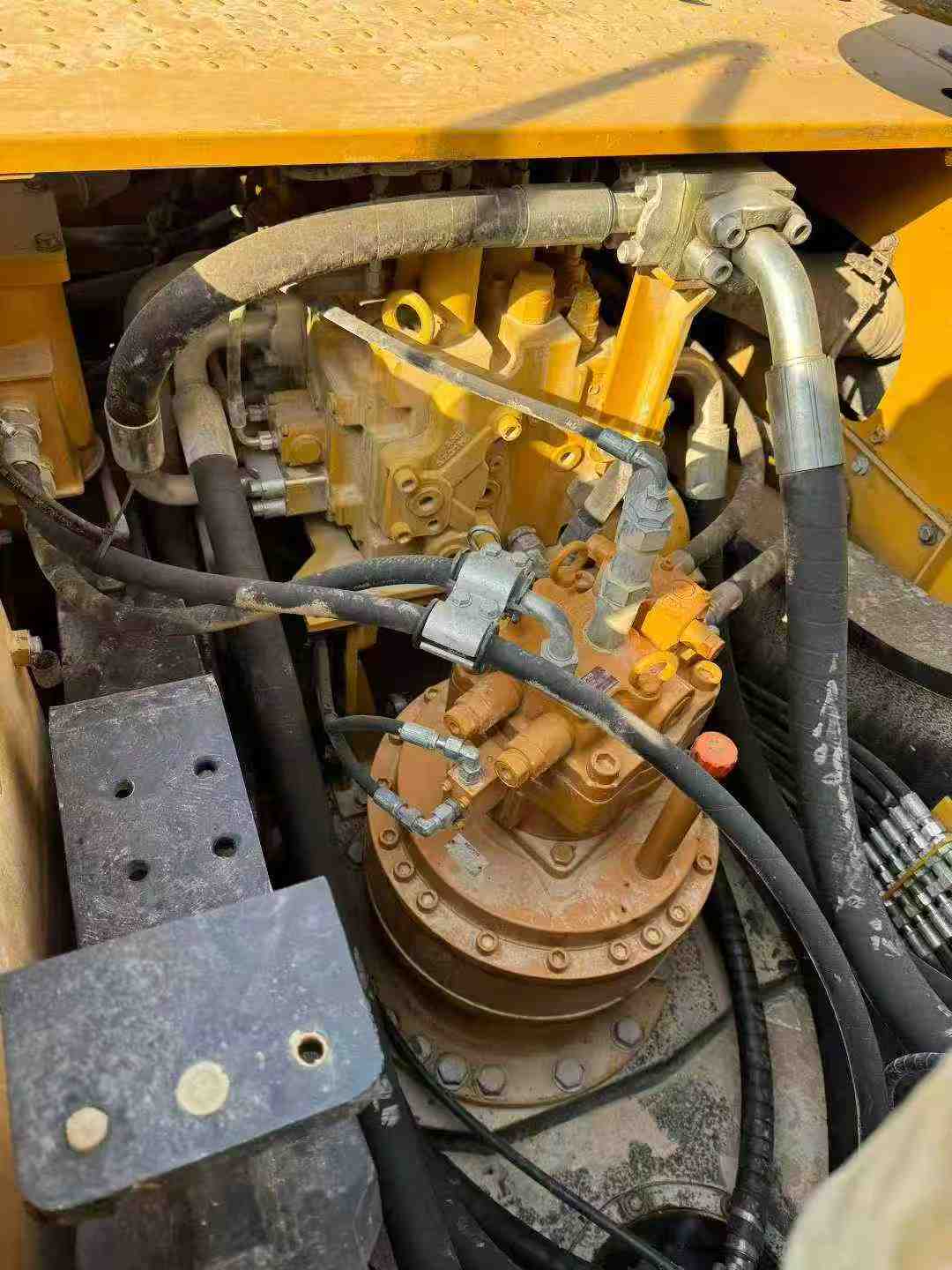

Buy Sany SY375H Used Excavator / 7

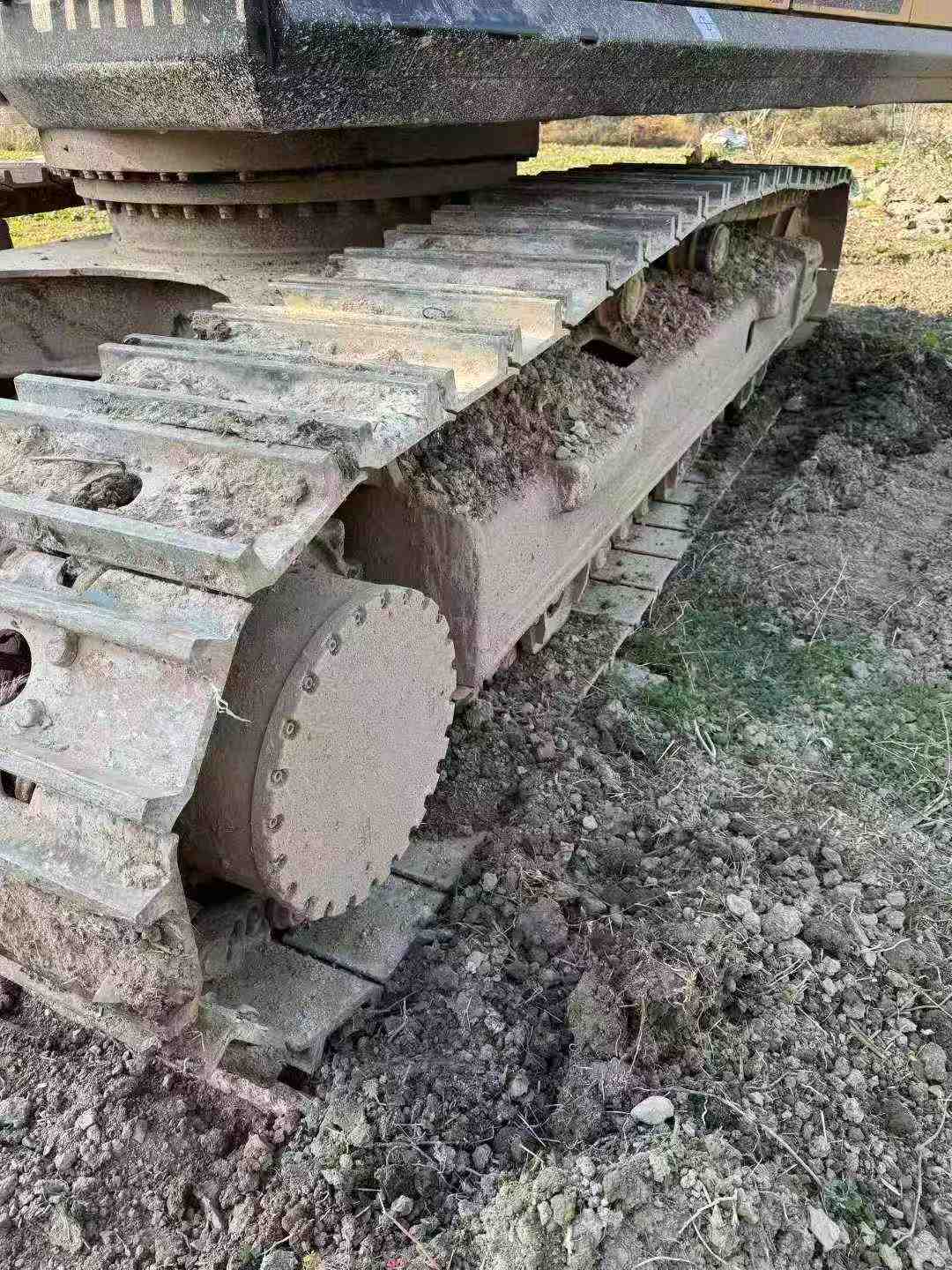

Buy Sany SY375H Used Excavator / 8
Buy Sany SY375H Used Excavator / 9

Product Description

Expand your operational capacity with this 2020 Sany SY375H crawler excavator, a proven 37-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by a robust GH-6HK1XKSC engine delivering 212 kW at 2000 rpm, this unit provides the consistent performance required when your primary fleet is stretched thin. With a maximum digging reach of 10,750 mm and bucket capacity up to 2.4 m³, it matches the productivity specs your operators expect without compromising efficiency.

  • Power & Torque: 212 kW rated power, 1080 N·m maximum torque for demanding excavation tasks
  • Digging Performance: 235 kN bucket force, 7,155 mm maximum digging depth
  • Mobility: 8.8 rpm rotation speed, 70% grading ability for versatile positioning
  • Extended Runtime: 540 L fuel tank minimizes refueling downtime during peak operations
  • Operational Dimensions: 11,425 mm transport length, 3,190 mm width for standard hauling

Currently located in Zhejiang, China, this machine integrates seamlessly into existing Sany fleets or serves as a reliable secondary unit. Ready for immediate deployment across

SpecificationsValue
No.1042982
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1042982

Brand Name:

Sany

Model Number:

SY375H

Year:

2020

Location:

Zhejiang China

Pub Date
