2020 Sany SY375H

1/6
Buy Sany SY375H Used Excavator / 1
Buy Sany SY375H Used Excavator / 2
Buy Sany SY375H Used Excavator / 3
Buy Sany SY375H Used Excavator / 4
Buy Sany SY375H Used Excavator / 5
Buy Sany SY375H Used Excavator / 6

Product Description

Strengthen your fleet capacity with this 2020 Sany SY375H excavator, a 37-ton workhorse engineered for high-output construction and earthmoving operations. Powered by a robust GH-6HK1XKSC engine delivering 212 kW at 2000 rpm and 1080 N·m of torque, this machine provides consistent performance across demanding job sites. With a maximum digging depth of 7,155 mm and a 10,750 mm reach, it handles deep excavation and material placement with precision.

  • Spec Highlights: 37,500 kg operating weight | 1.9 m³ bucket capacity | 235 kN bucket digging force

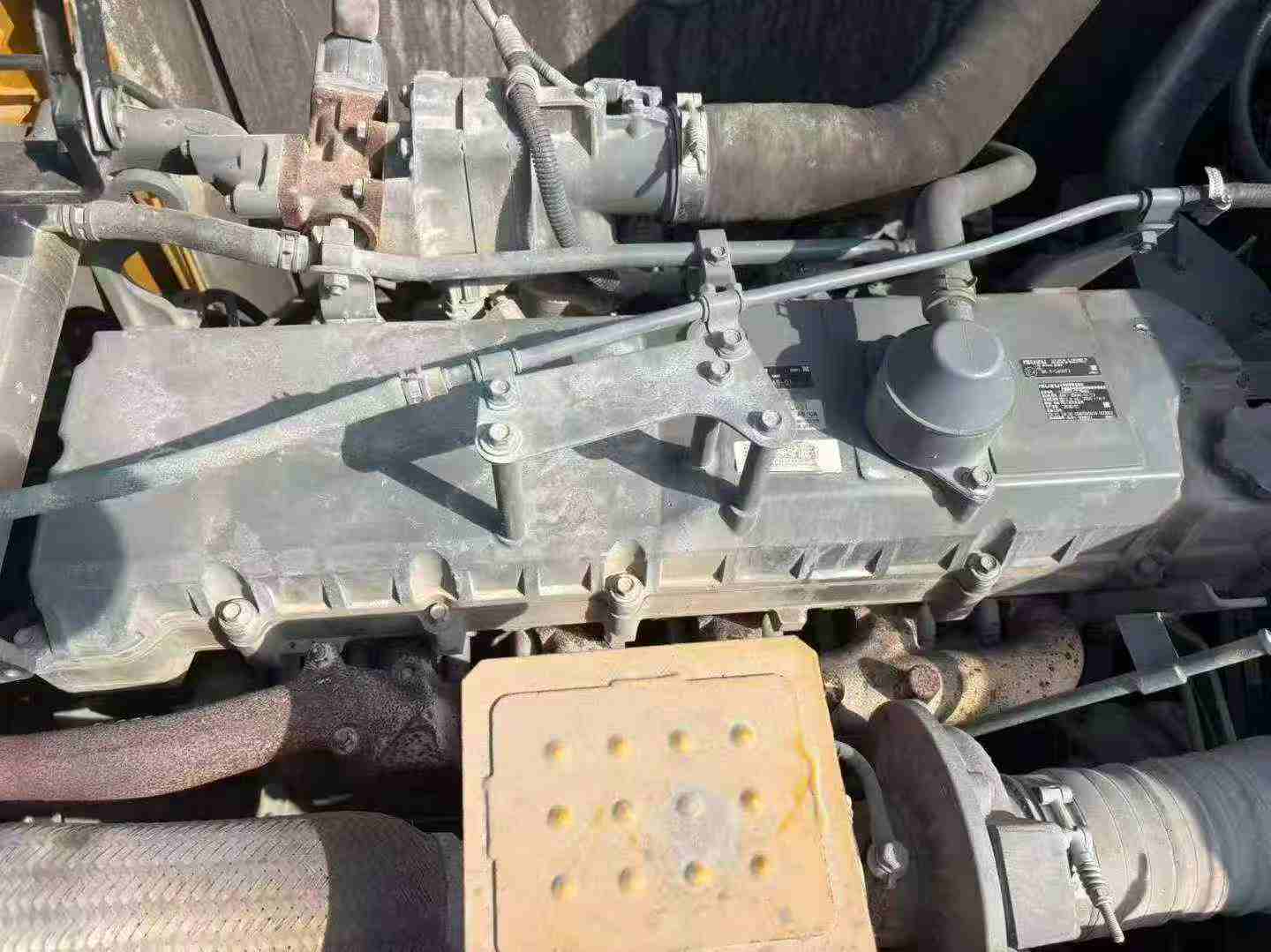

  • Engine: 6-cylinder turbocharged diesel, water-cooled, 7.79 L displacement
  • Mobility: 5.5 km/h travel speed | 70% gradeability | 8.8 rpm swing speed
  • Dimensions: 11,425 mm transport length | 3,190 mm width | 600 mm track plates
  • Fuel Capacity: 540 L tank for extended runtime

Currently located in Hangzhou, Zhejiang, this China-manufactured excavator serves as an ideal backup unit or fleet expansion asset for contractors managing multiple sites simultaneously. Ready for immediate deployment in civil construction, mining support, or heavy exc

SpecificationsValue
No.1043045
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
