2020 Sany SY375H

1/7
Buy Sany SY375H Used Excavator / 1

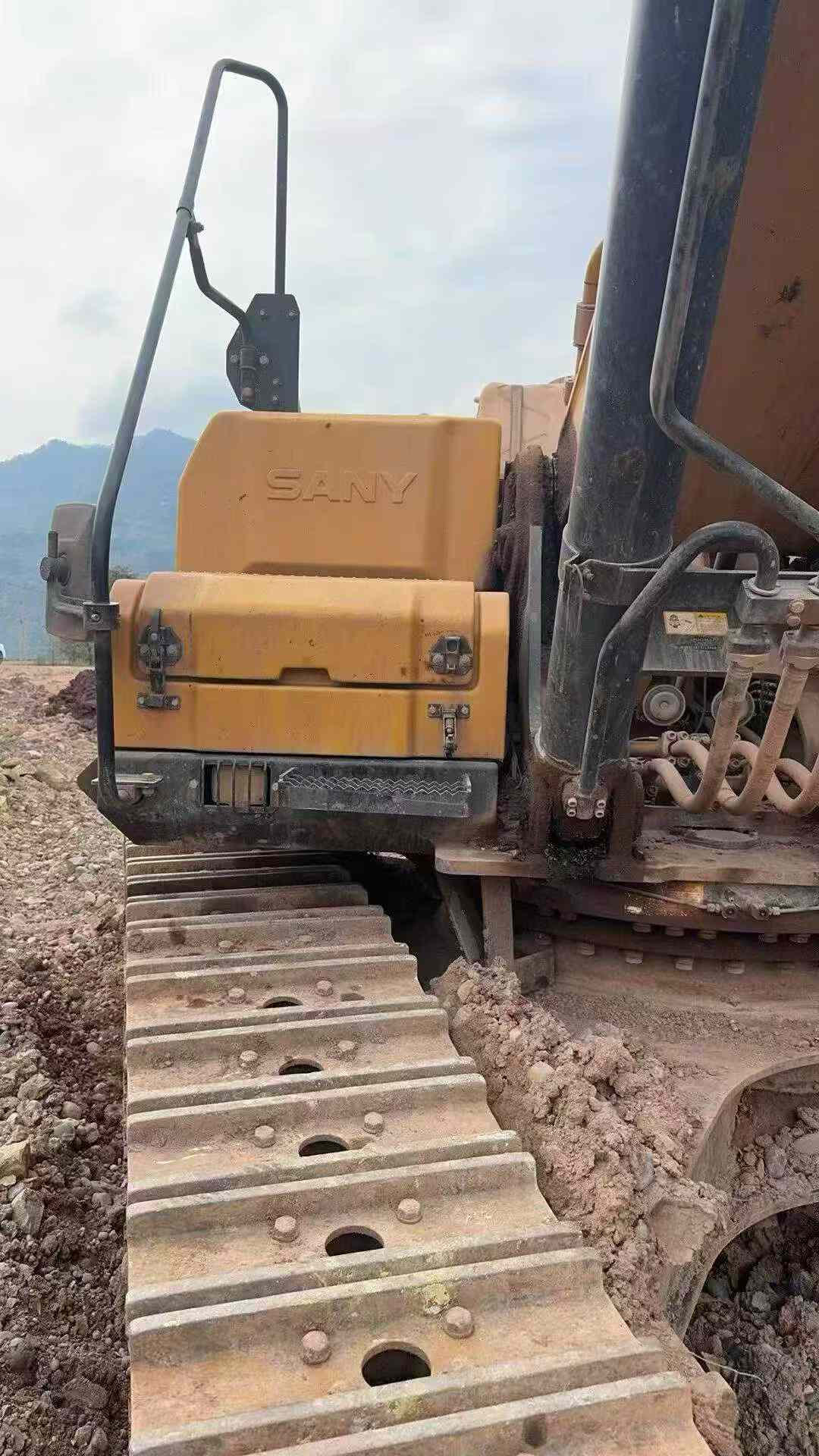

Buy Sany SY375H Used Excavator / 2

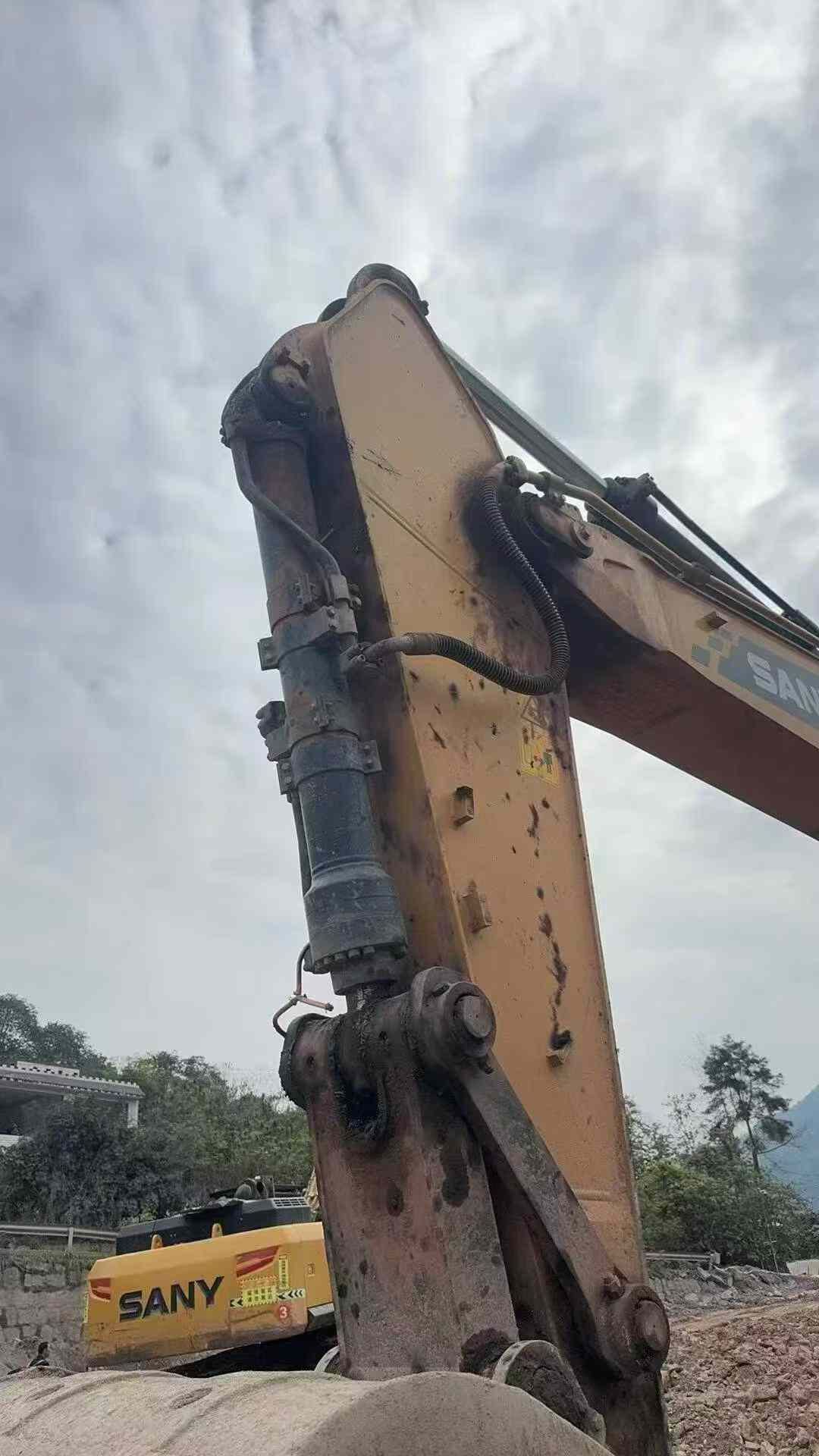

Buy Sany SY375H Used Excavator / 3

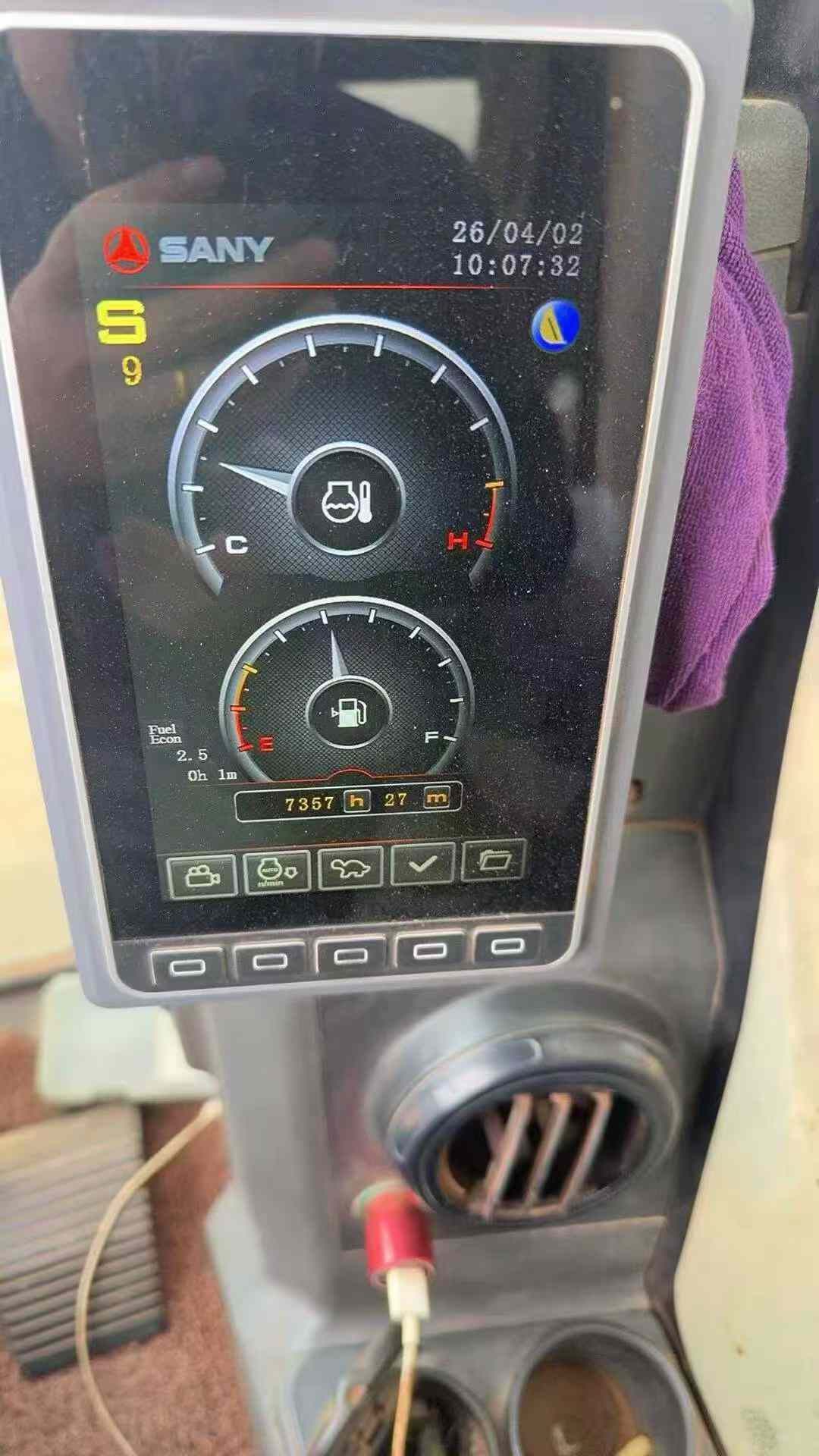

Buy Sany SY375H Used Excavator / 4

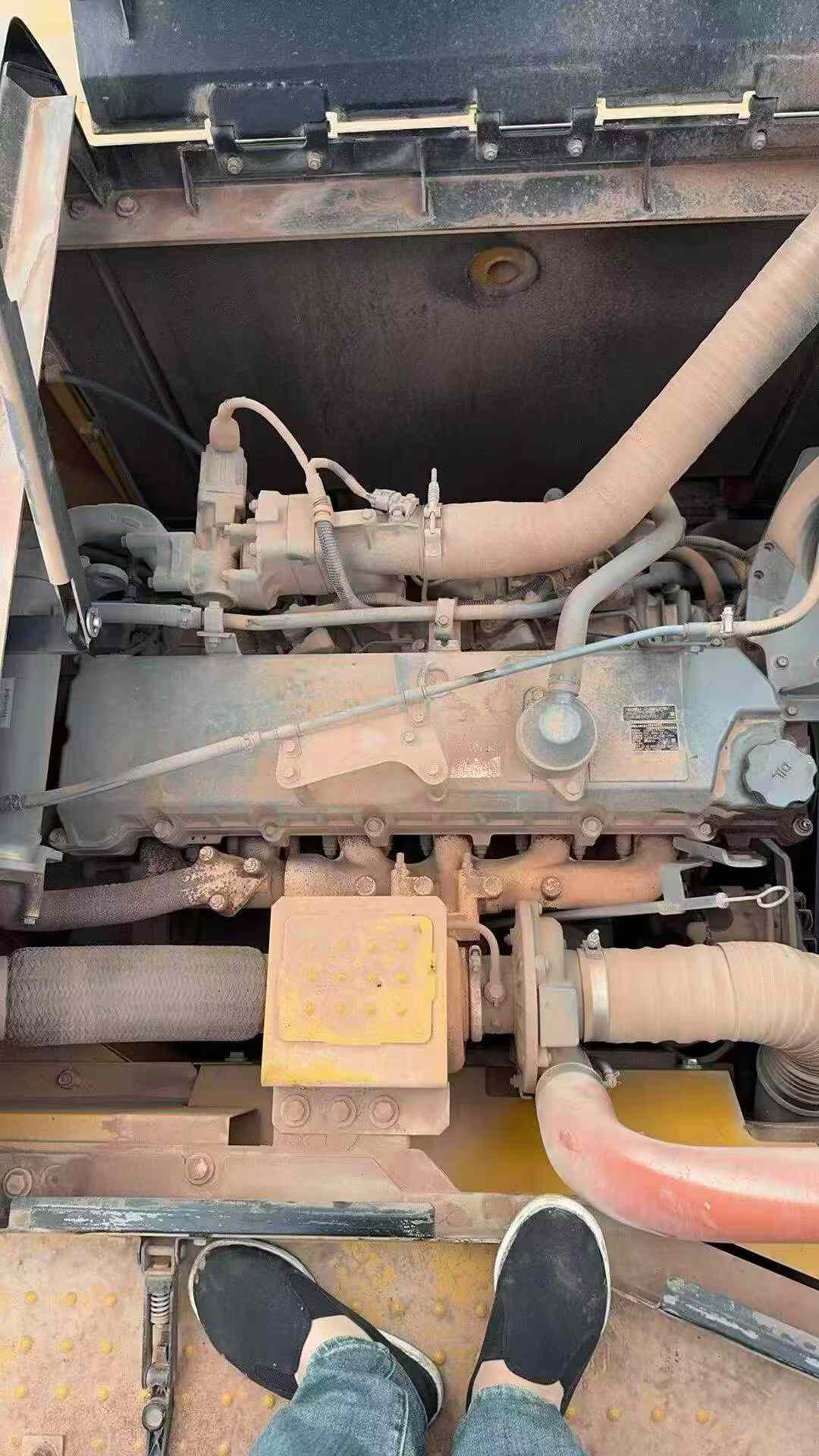

Buy Sany SY375H Used Excavator / 5

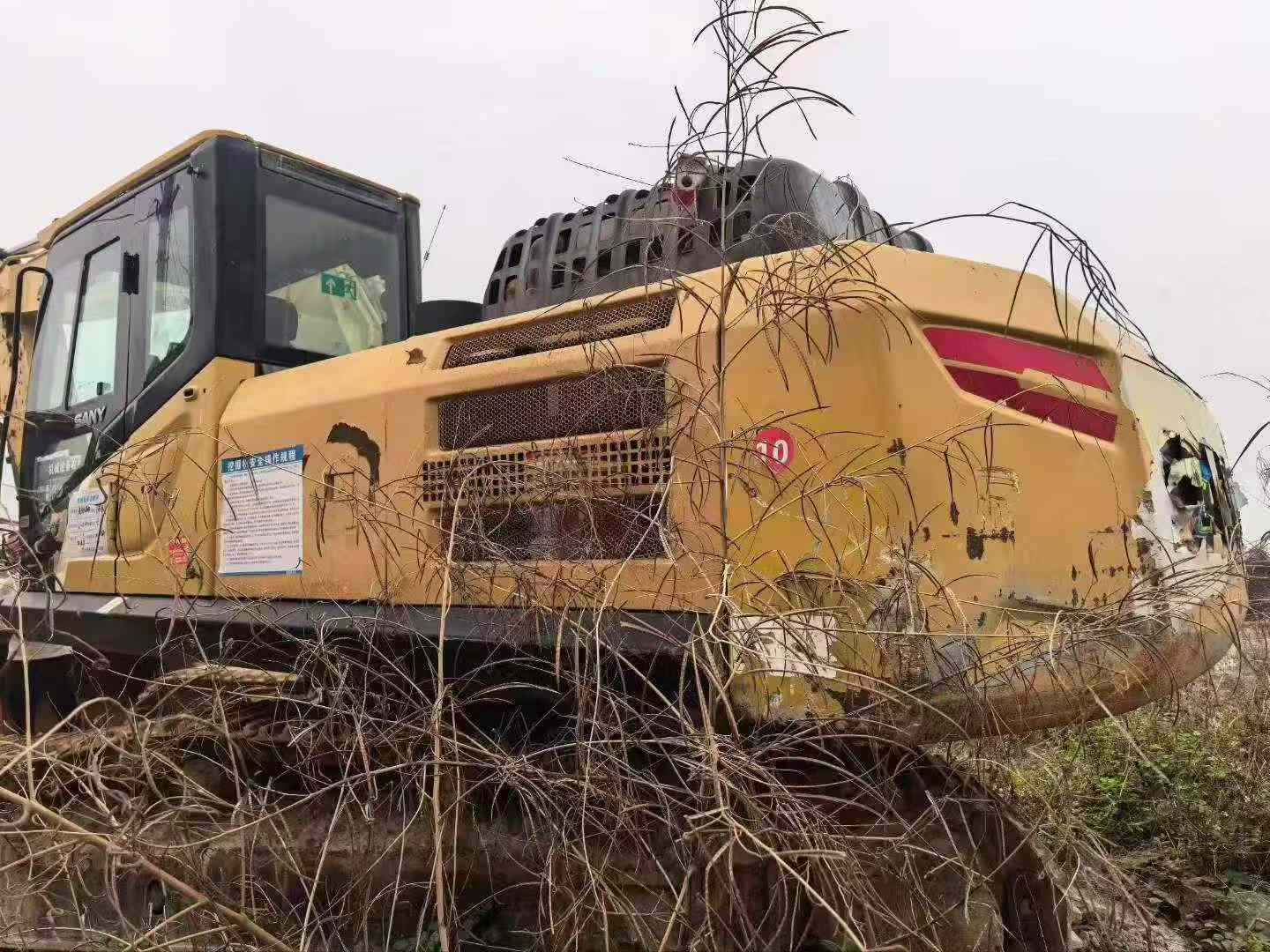

Buy Sany SY375H Used Excavator / 6

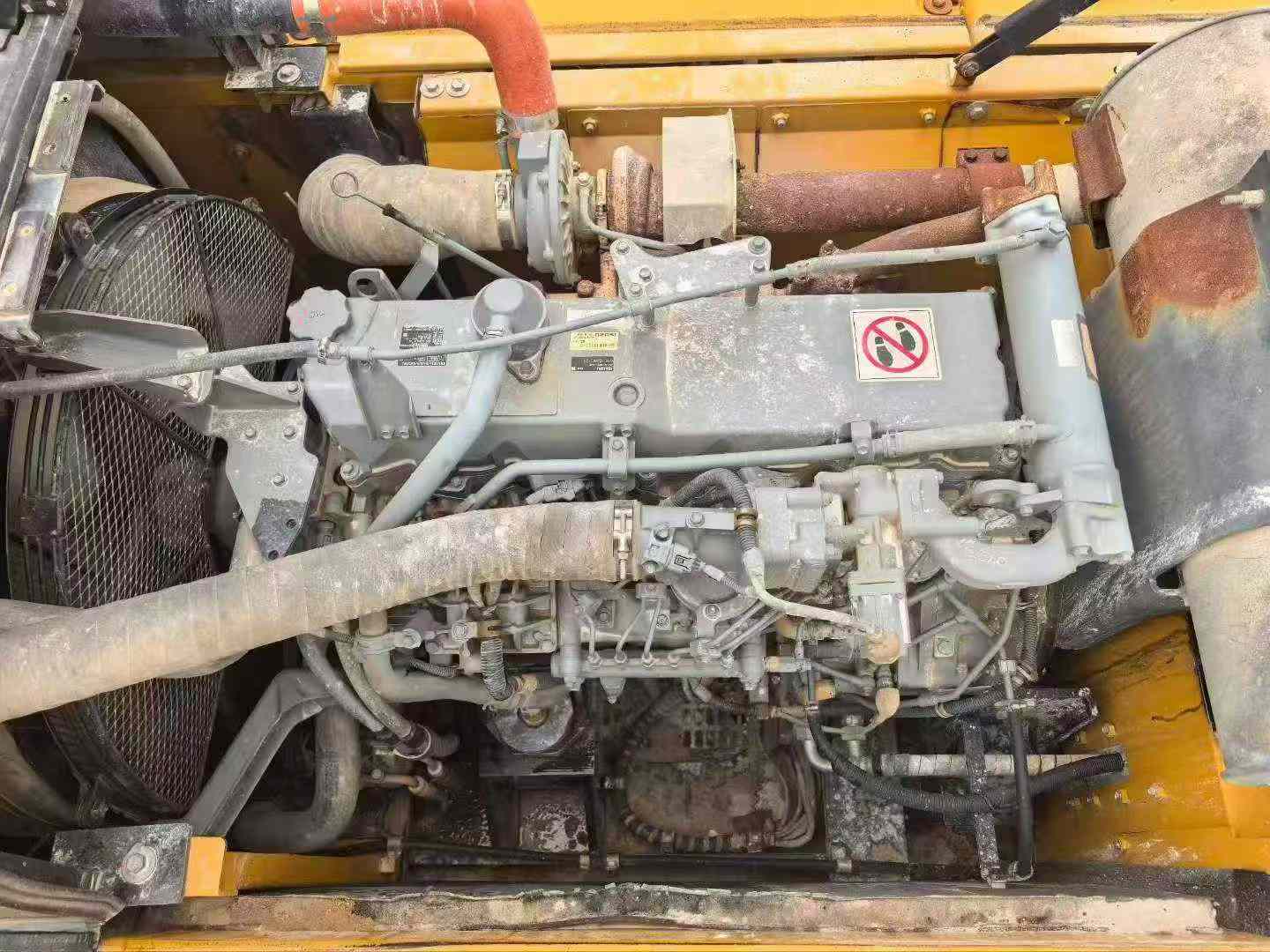

Buy Sany SY375H Used Excavator / 7

Product Description

With a working weight of 37,500 kg and a bucket capacity ranging from 1.7 to 2.4 m³, this 2020 Sany SY375H excavator is an ideal fleet addition for busy contractors. Equipped with a GH-6HK1XKSC engine, it delivers 212 kW at 2000 rpm, ensuring robust performance. The machine features a 6-cylinder, 4-stroke, turbocharged, water-cooled engine, providing reliable power and efficiency. Its maximum digging force of 235 kN and rod digging force of 210 kN make it suitable for demanding tasks. Traveling at speeds up to 5.5 km/h, it offers flexibility on various terrains. The SY375H also boasts a 540 L fuel tank, minimizing downtime for refueling. With a total transport length of 11,425 mm and a width of 3,190 mm, it is designed for easy transportation and maneuverability. Whether as a backup or a primary unit, this excavator integrates seamlessly into any fleet, enhancing productivity and reliability.

  • Working weight: 37,500 kg
  • Bucket capacity: 1.7-2.4 m³
  • Engine: GH-6HK1XKSC, 212 kW at 2000 rpm
  • Maximum digging force: 235 kN
  • Travel speed: 5.5/3.5 km/h
  • Fuel tank: 540 L
  • Total transport dimensions: 11,425 mm (length) x 3,190 mm (width)
SpecificationsValue
No.1048978
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1048978

Brand Name:

Sany

Model Number:

SY375H

Year:

2020

Location:

Guangdong China

Pub Date

Are you interested in this machine?

Please contact us
