2020 Sany SY375H

1/9

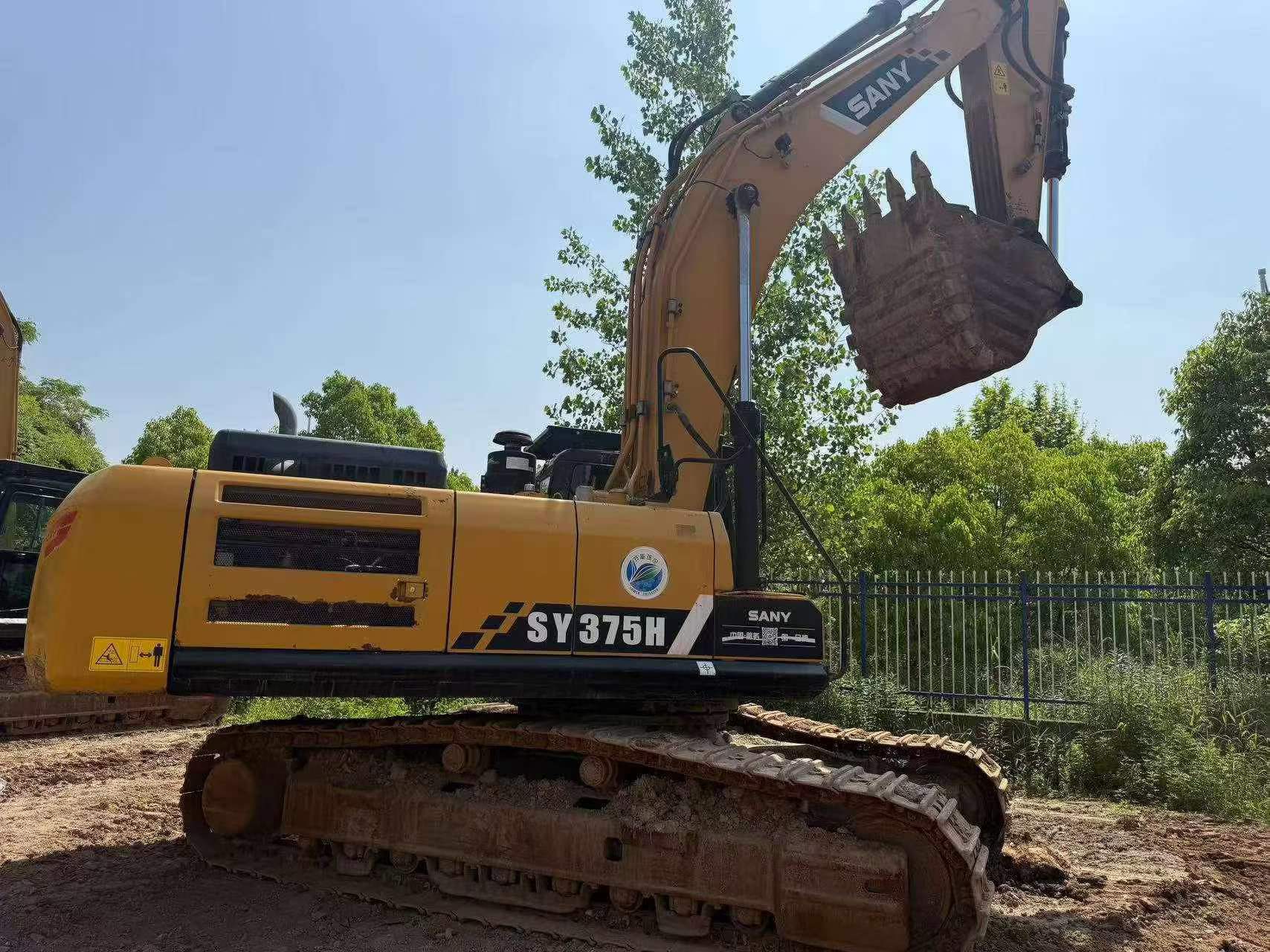

Buy Sany SY375H Used Excavator / 1
Buy Sany SY375H Used Excavator / 2
Buy Sany SY375H Used Excavator / 3
Buy Sany SY375H Used Excavator / 4
Buy Sany SY375H Used Excavator / 5
Buy Sany SY375H Used Excavator / 6
Buy Sany SY375H Used Excavator / 7
Buy Sany SY375H Used Excavator / 8
Buy Sany SY375H Used Excavator / 9

Product Description

Built for operators who demand precision and control, the 2020 Sany SY375H is a 37-ton hydraulic excavator engineered to perform in demanding excavation environments. Powered by a 6-cylinder, 7.79L turbocharged water-cooled engine producing 212 kW at 2000 rpm, this machine delivers 235 kN of bucket digging force with a maximum digging depth of 7,155 mm and a reach of 10,750 mm — giving operators the range and power to tackle large-scale earthmoving with confidence.

From the cab, visibility and ergonomics are central to the SY375H's design. The full cab height of 3,440 mm and a ground clearance of 550 mm position the operator for clear sightlines across the work area, while the machine's 70% gradeability and low ground pressure of 68.8 kPa ensure stable footing on uneven terrain.

  • Operating weight: 37,500 kg with 600 mm track plates for ground stability
  • Bucket capacity: 1.7–2.4 m³ (standard 1.9 m³) backhoe configuration
  • Travel speed: 5.5 / 3.5 km/h (high/low range)
  • Maximum excavation height: 9,920 mm; maximum unloading height: 7,010 mm
  • Fuel tank: 540 L for extended operational cycles
  • Located in Zhejiang, China — available for global export
SpecificationsValue
No.1068895
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1068895

Brand Name:

Sany

Model Number:

SY375H

Year:

2020

Location:

Zhejiang China

Pub Date
