Product Description

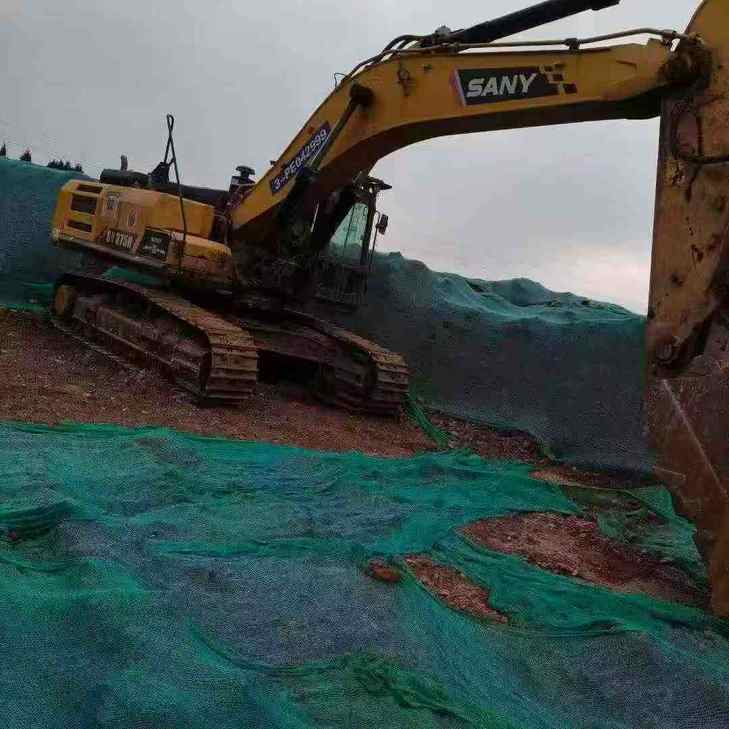

Engineered for demanding excavation projects, this 2021 Sany SY375H delivers proven reliability backed by robust Chinese manufacturing. Operating at 37 tons with a powerful 212kW engine, this backhoe excavator has already established itself as a dependable workhorse in challenging conditions. Its 235kN bucket digging force and 7,155mm maximum digging depth tackle heavy-duty applications with consistent performance day after day.
Built to last, this machine features a water-cooled 6-cylinder turbocharged engine producing 1,080 N.m of torque, ensuring sustained power under load. With a 540L fuel tank supporting extended operational periods and 68.8 Kpa ground pressure minimizing terrain impact, this excavator combines productivity with site versatility. Currently located in Luzhou, Sichuan, it represents a tested platform ready for immediate deployment.
- Operating Weight: 37,500 kg with 1.9m³ bucket capacity
- Maximum Reach: 10,750mm working radius
- Proven Durability: Direct injection GH-6HK1XKSC engine with 7.79L displacement
- Mobility: 70% climbing ability, 5.5 km/h travel speed
| Specifications | Value |
|---|---|
| No. | 1022772 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
