Product Description
Available now in Sichuan, this 2021 Sany SY375H crawler excavator delivers 37-ton performance without factory wait times. Powered by a robust 212kW GH-6HK1XKSC engine with 1080 N.m maximum torque, this machine tackles demanding excavation projects with 235 kN bucket digging force and a maximum digging depth of 7,155mm. Skip the lead times and deploy this ready-to-work excavator directly to your site.
- Operating Weight: 37,500 kg with 1.9m³ standard bucket capacity
- Performance: 10,750mm maximum digging radius, 9,920mm max excavation height
- Mobility: 8.8 rpm rotation speed, 70% climbing ability for versatile terrain handling

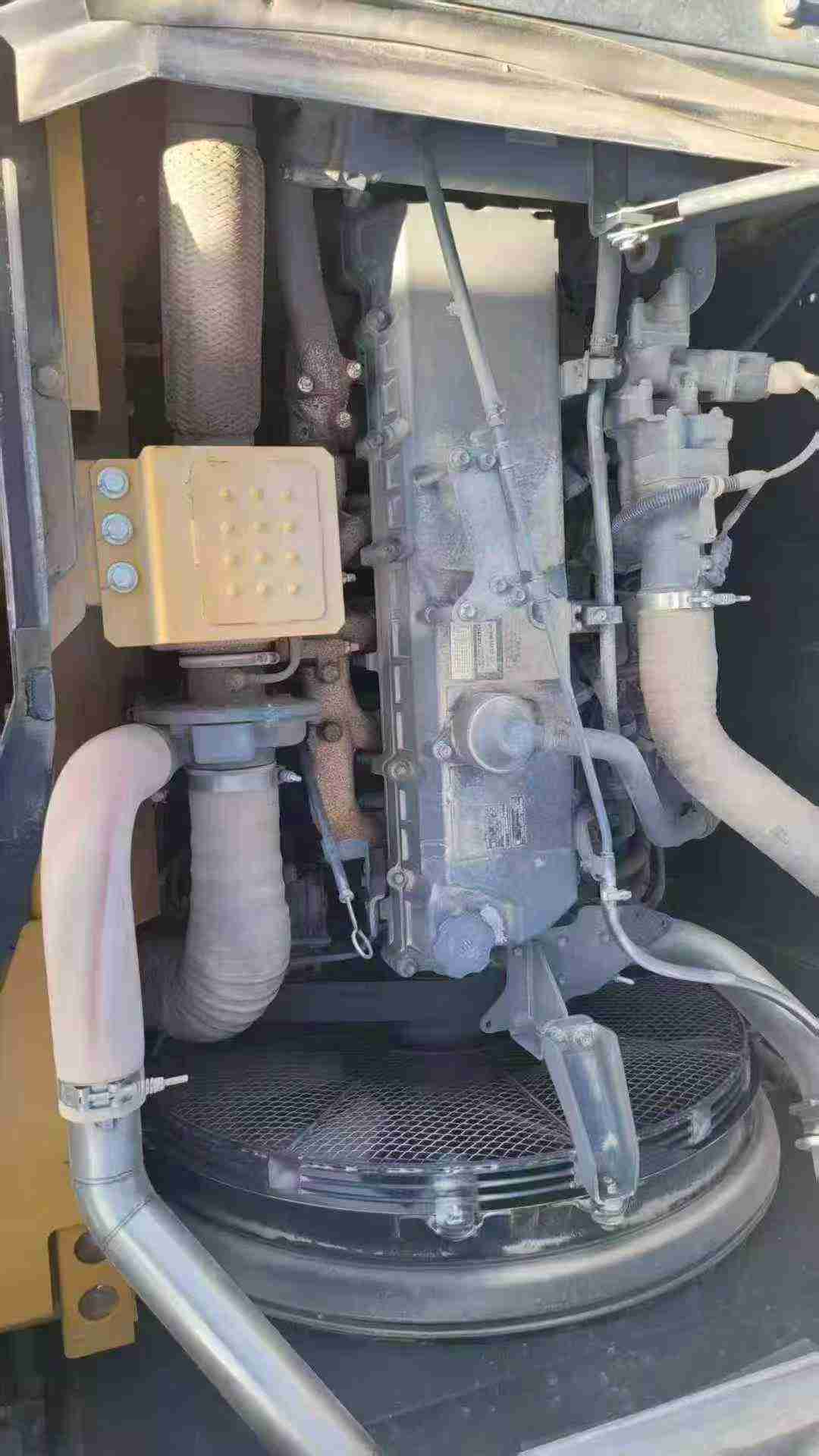

- Engine: Water-cooled 6-cylinder turbocharged diesel, 7.79L displacement
- Logistics Ready: Transport dimensions 11,425 × 3,190 × 3,825mm
- Location: Sichuan, China – fast deployment across regional and international sites
Backed by proven reliability and immediate availability, this SY375H eliminates procurement delays. Contact Fair Trade Machinery today for rapid delivery and competitive export terms.
| Specifications | Value |
|---|---|
| No. | 1024276 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
