Product Description

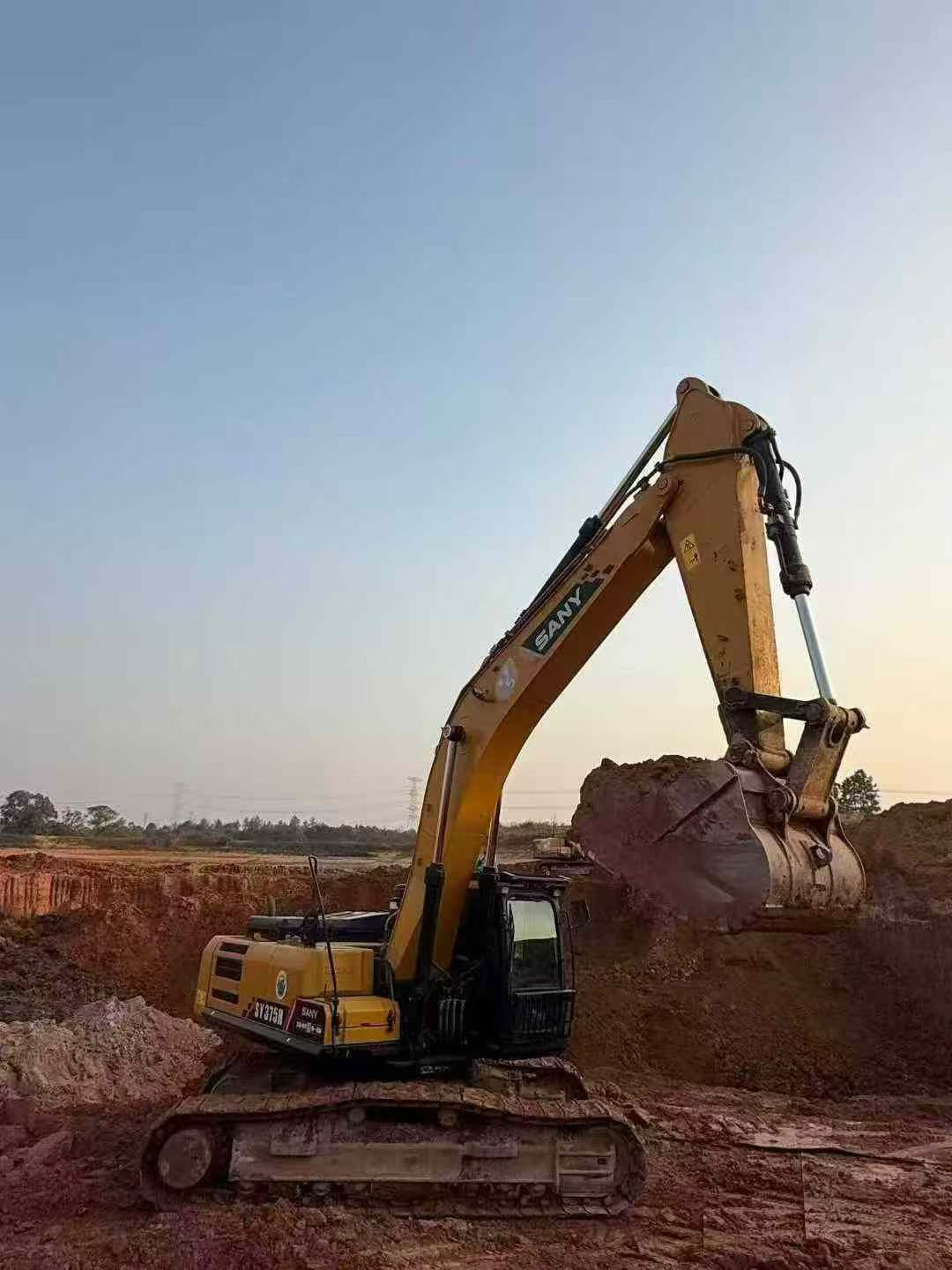

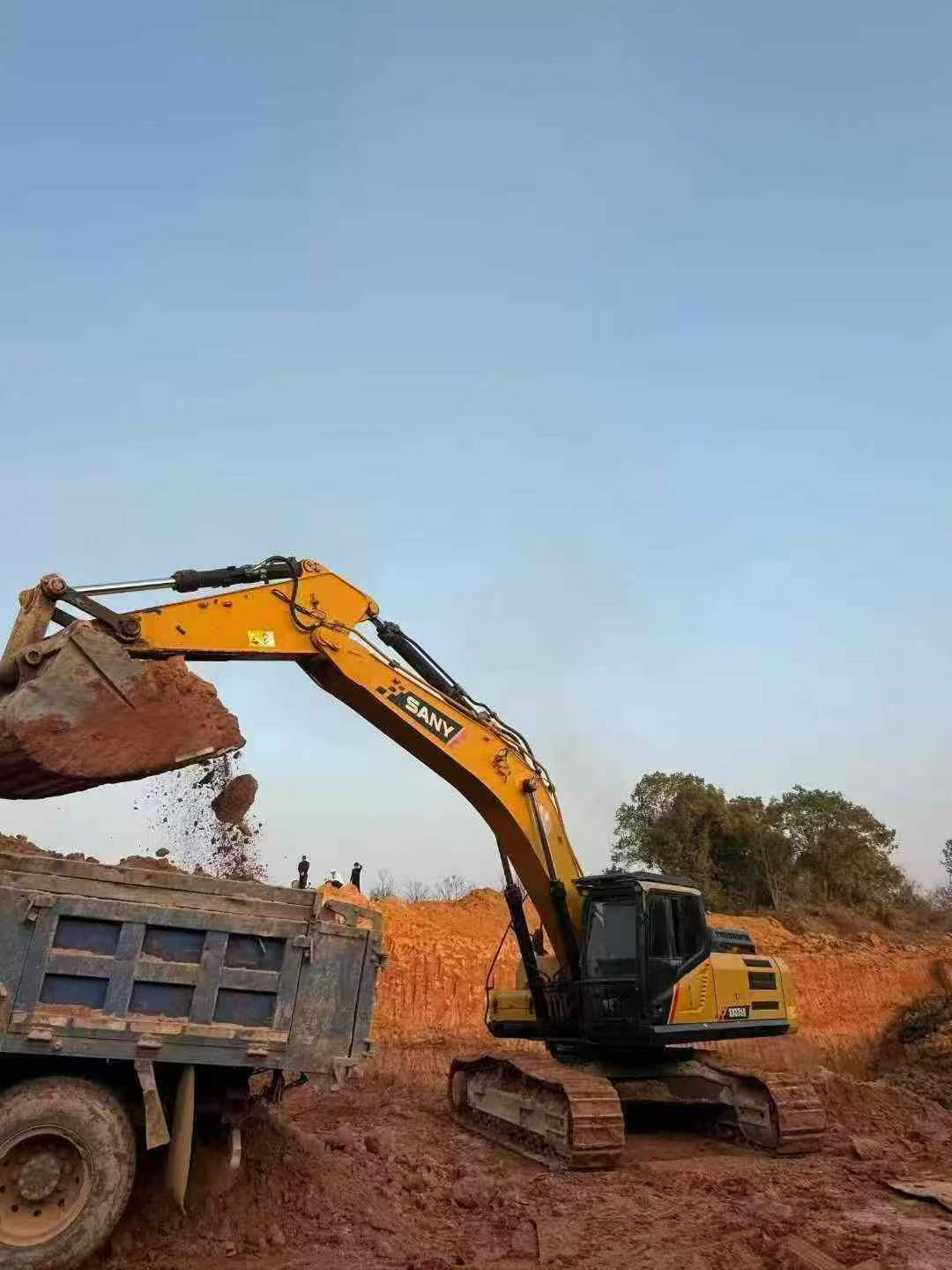

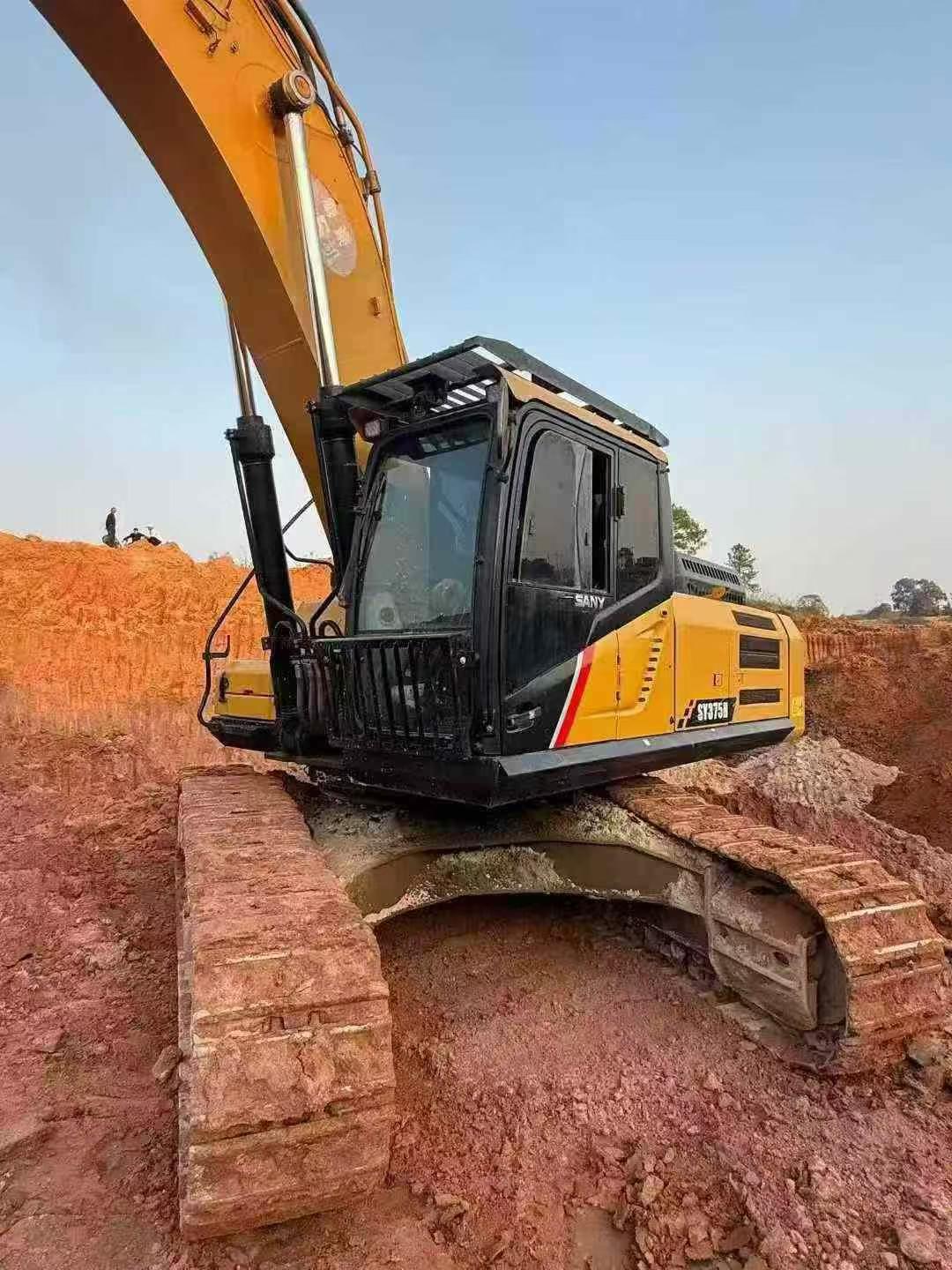

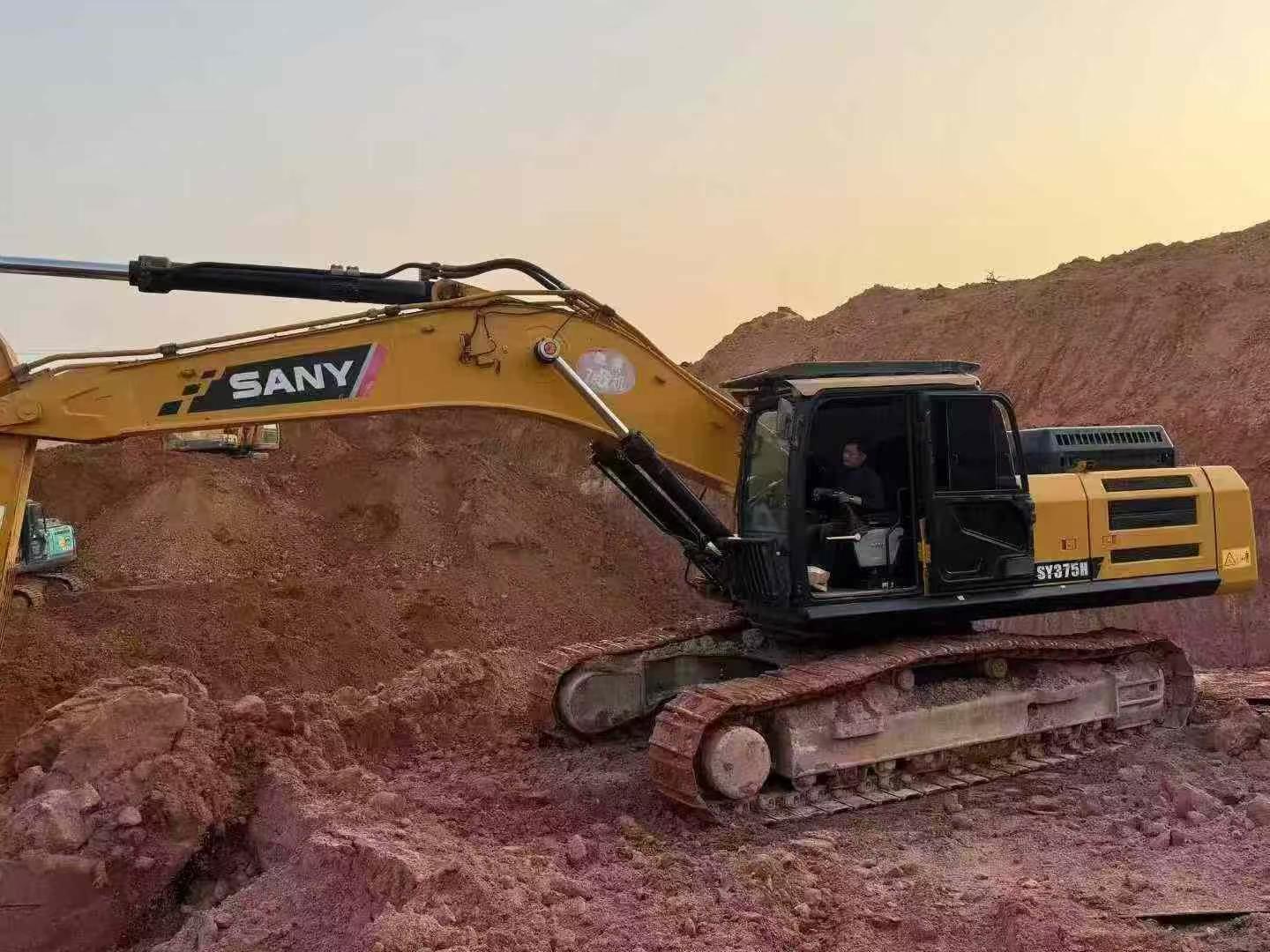

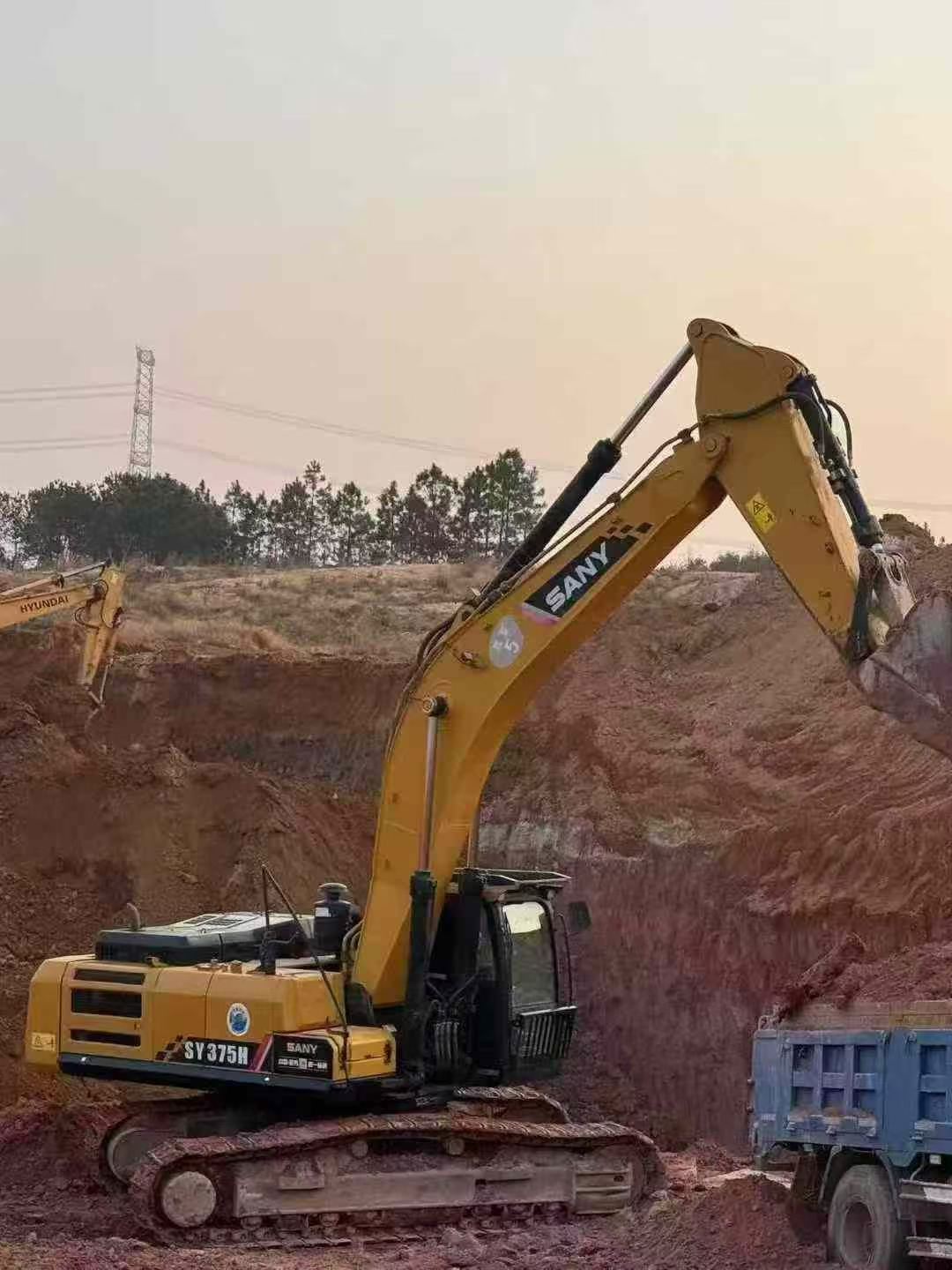

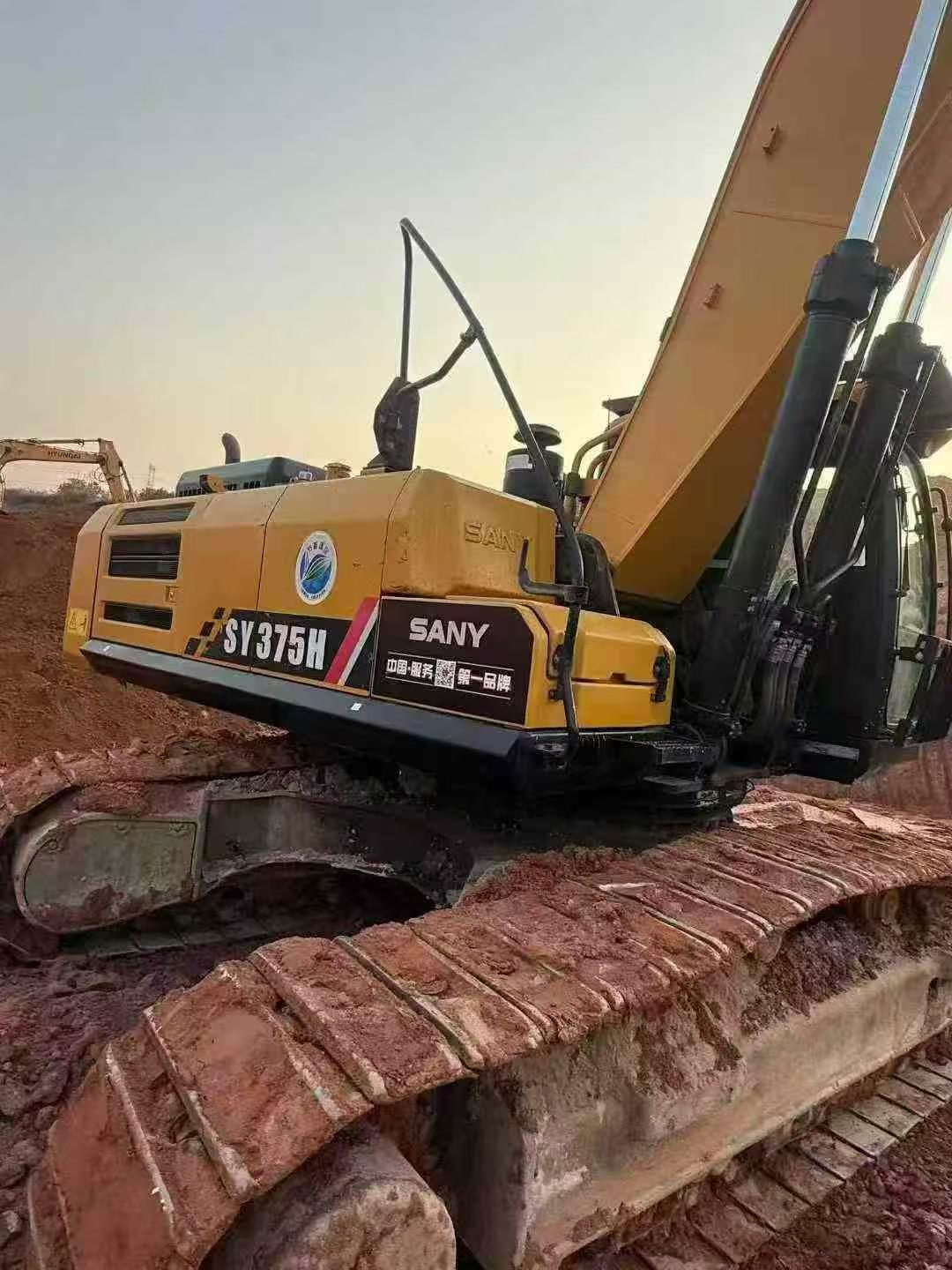

Engineered for relentless performance, this 2021 Sany SY375H excavator delivers proven reliability across demanding job sites. With 37 tons of working weight and a robust 212 kW engine generating 1080 N·m of torque, this machine handles heavy excavation with consistent power. The 1.9 m³ bucket capacity and impressive 235 kN digging force make quick work of challenging materials, while the 10,750 mm maximum digging radius extends your operational reach significantly.
Built on Sany's reputation for durability, this workhorse features a water-cooled 6-cylinder engine designed for extended service life. The reinforced undercarriage includes 9 track rollers per side and 600 mm track plates, distributing weight efficiently across varied terrain. Currently located in Jiangxi, China, this SY375H represents exceptional value for contractors seeking dependable performance without compromise.
- 37-ton operating weight with 235 kN bucket digging force

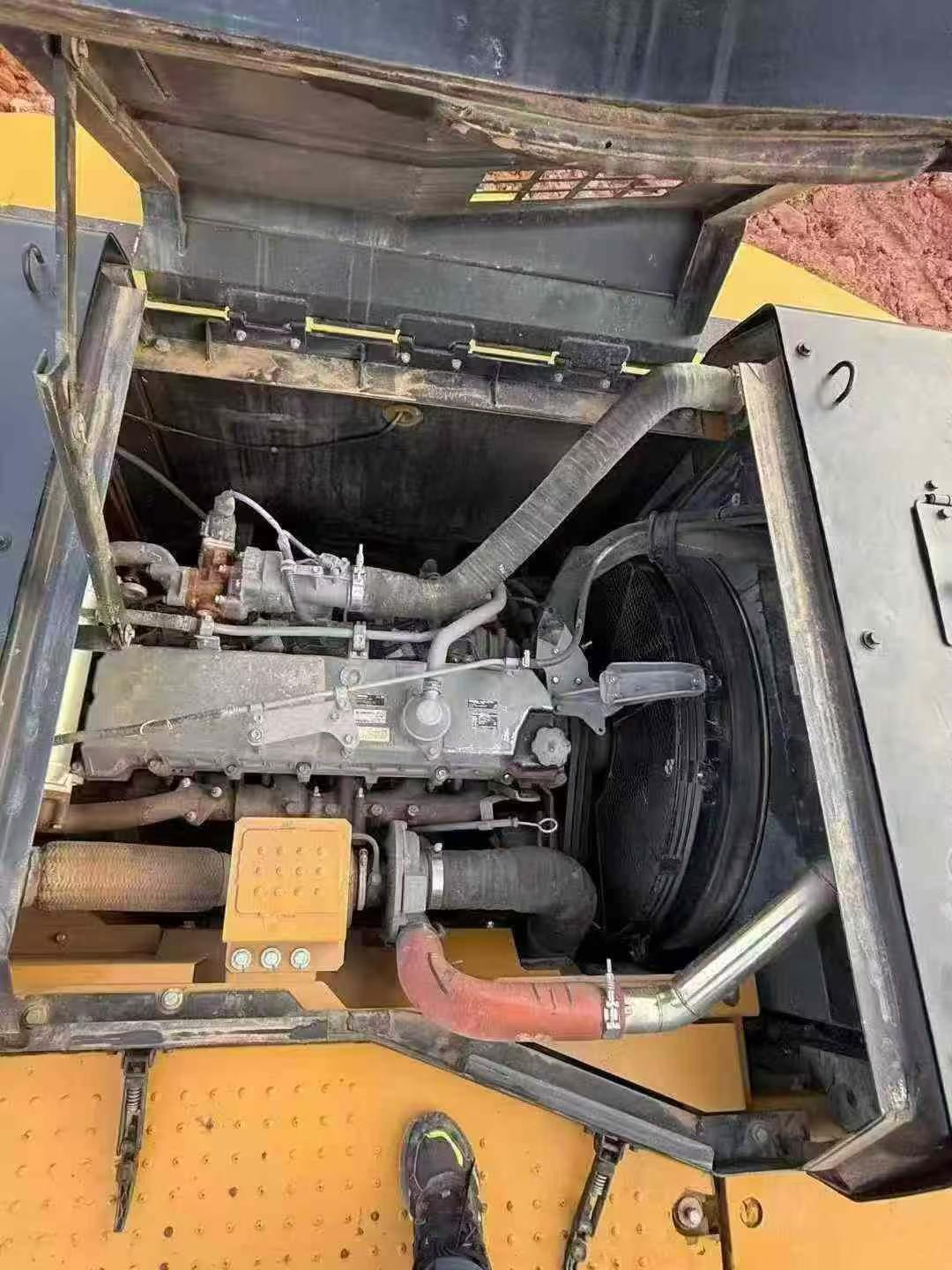

- 212 kW turbocharged engine with proven GH-6HK1XKSC reliability
- Maximum digging depth: 7,155 mm
- 540 L fuel capacity for extended operation
- 70% gradeability for challenging terrain
| Specifications | Value |
|---|---|
| No. | 1029873 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
