Product Description

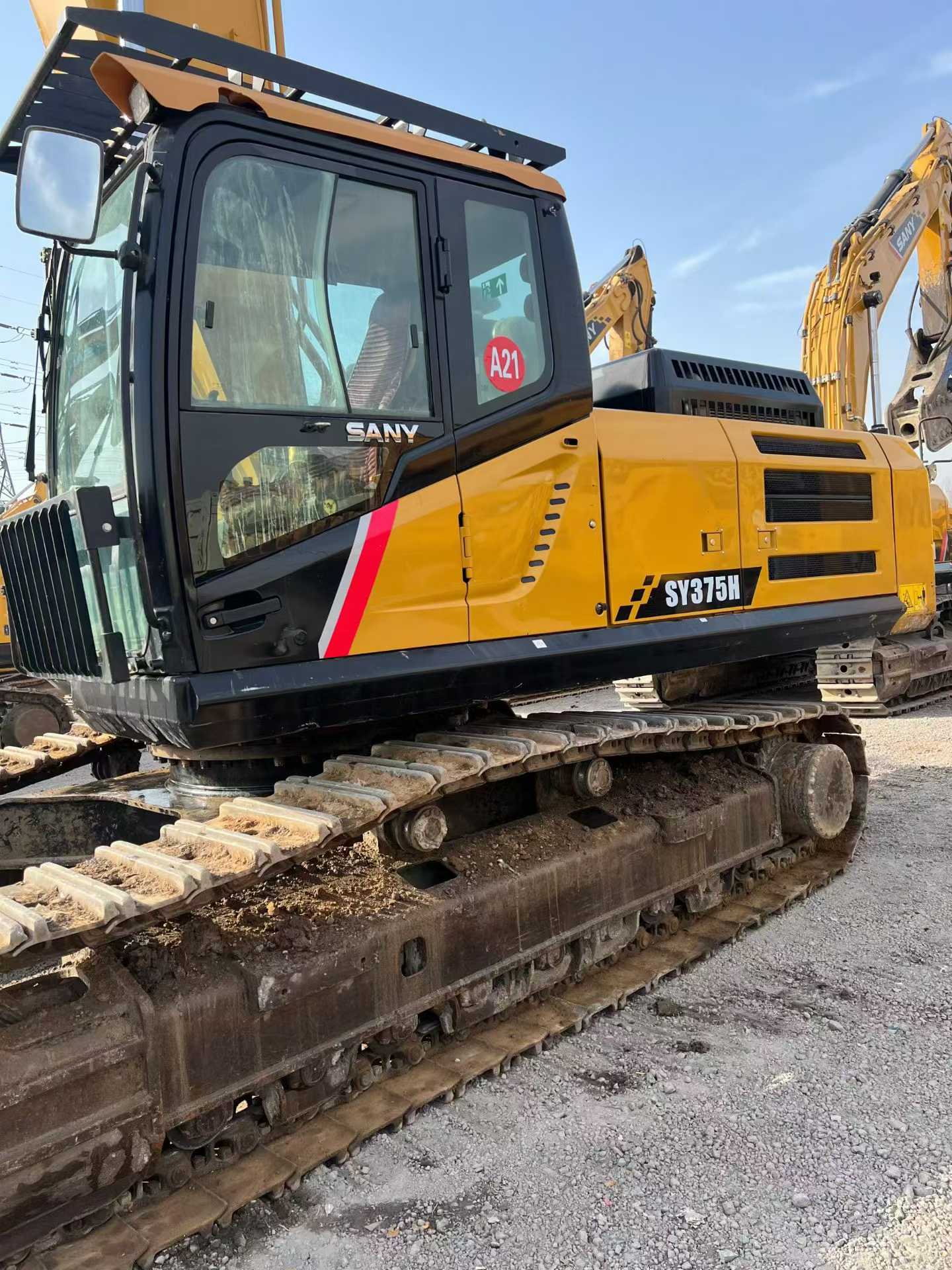

Engineered for the most demanding excavation projects, this 2021 Sany SY375H delivers 37-ton capacity with a proven track record of reliability. Powered by a robust GH-6HK1XKSC engine producing 212kW at 2000 rpm, this workhorse combines impressive digging force—235kN bucket and 210kN rod—with exceptional reach capabilities extending to 10,750mm maximum radius. Built to last through tough conditions, its water-cooled turbocharged system and 7.79L displacement ensure consistent performance across extended work cycles.
- Operating Weight: 37,500 kg with superior stability
- Bucket Capacity: 1.7-2.4 m³ (standard 1.9 m³)
- Maximum Digging Depth: 7,155mm for deep foundation work
- Maximum Digging Height: 9,920mm vertical reach
- Fuel Capacity: 540L tank for extended operation
- Climbing Ability: 70% gradient performance
- Current Location: Huizhou, Guangdong, China
Manufactured in China with proven durability standards, this machine represents a dependable addition to heavy construction fleets requiring consistent productivity and minimal downtime.
| Specifications | Value |
|---|---|
| No. | 1031022 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

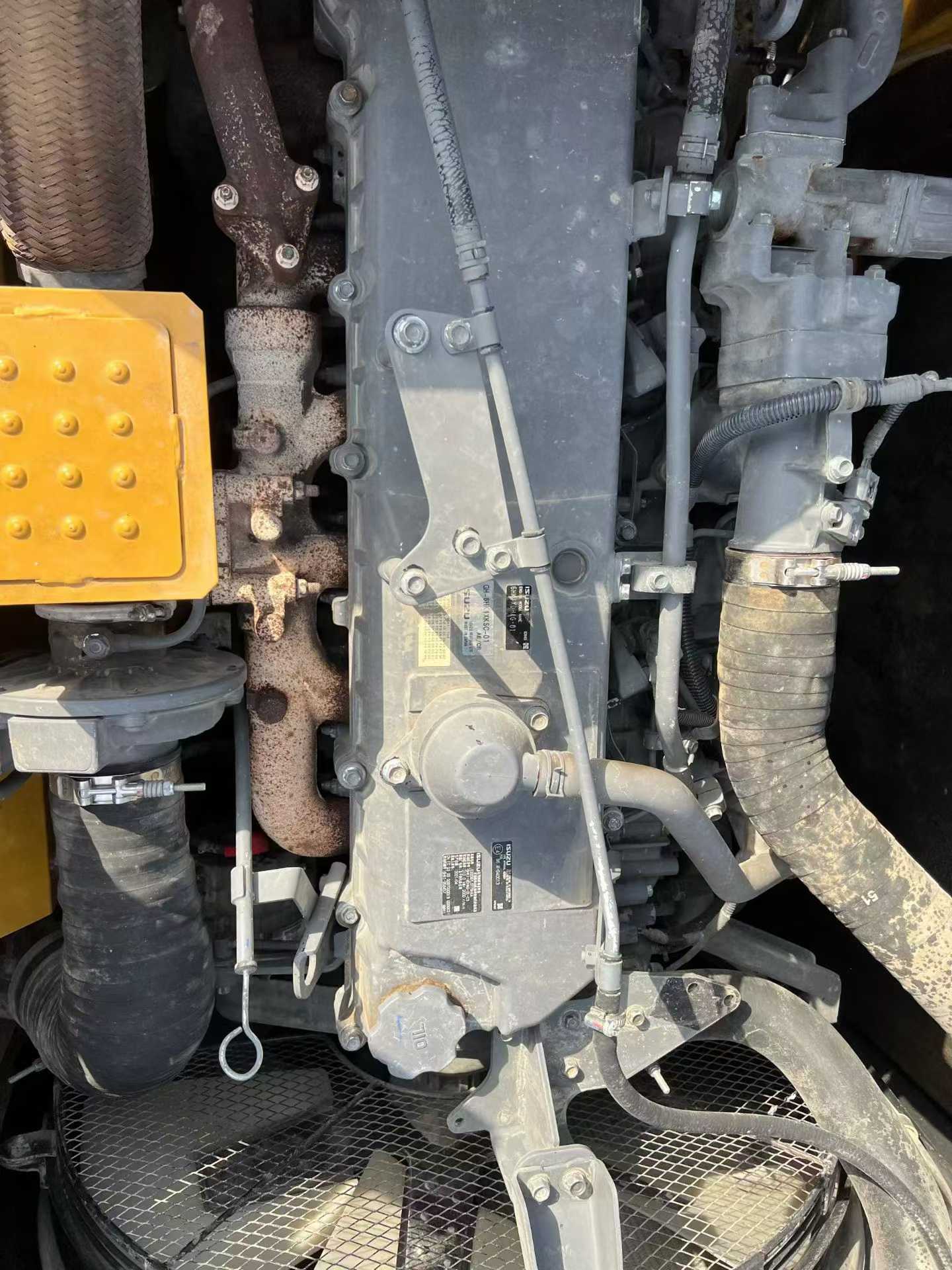

| Engine type | GH-6HK1XKSC |

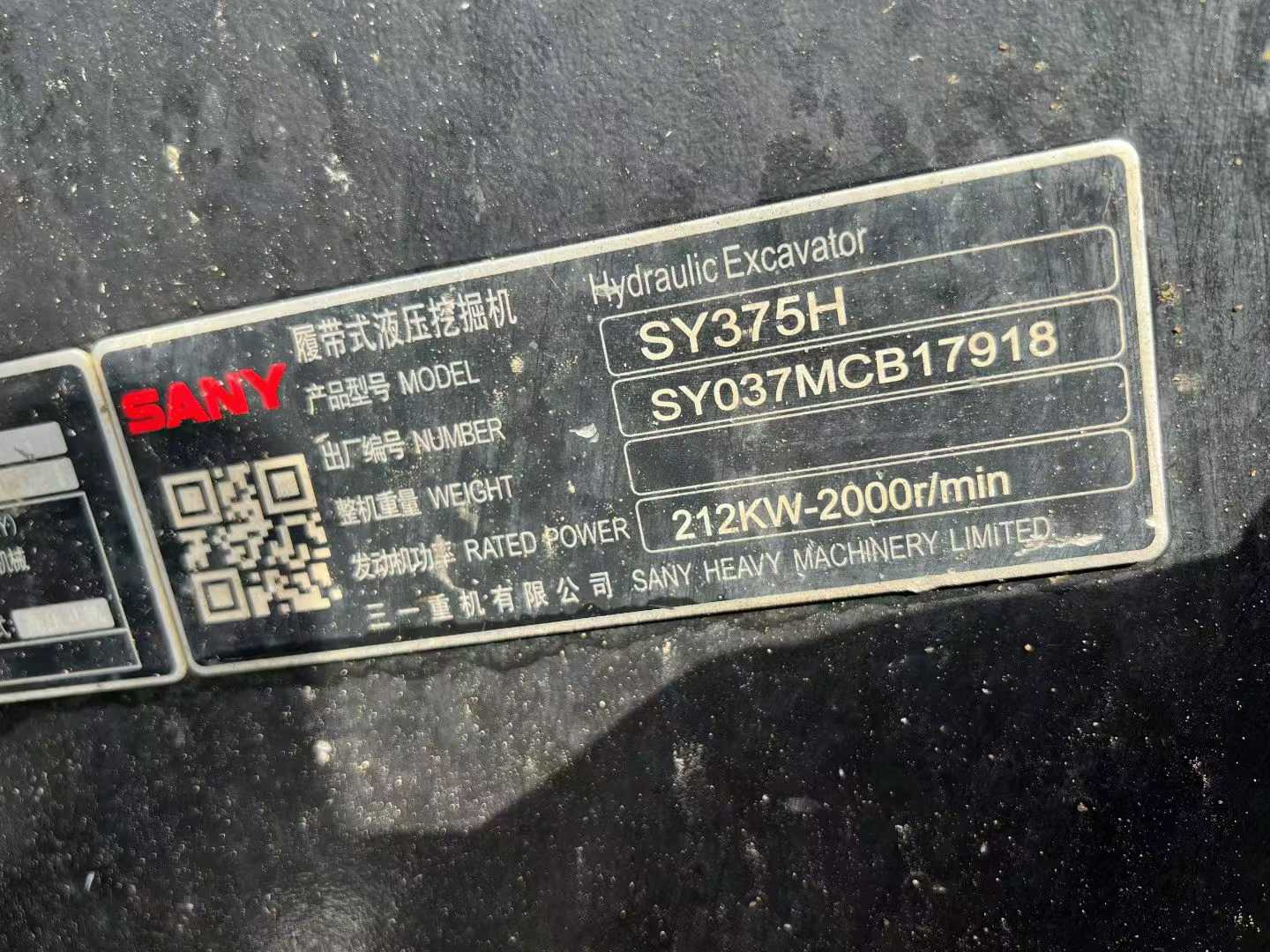

| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |

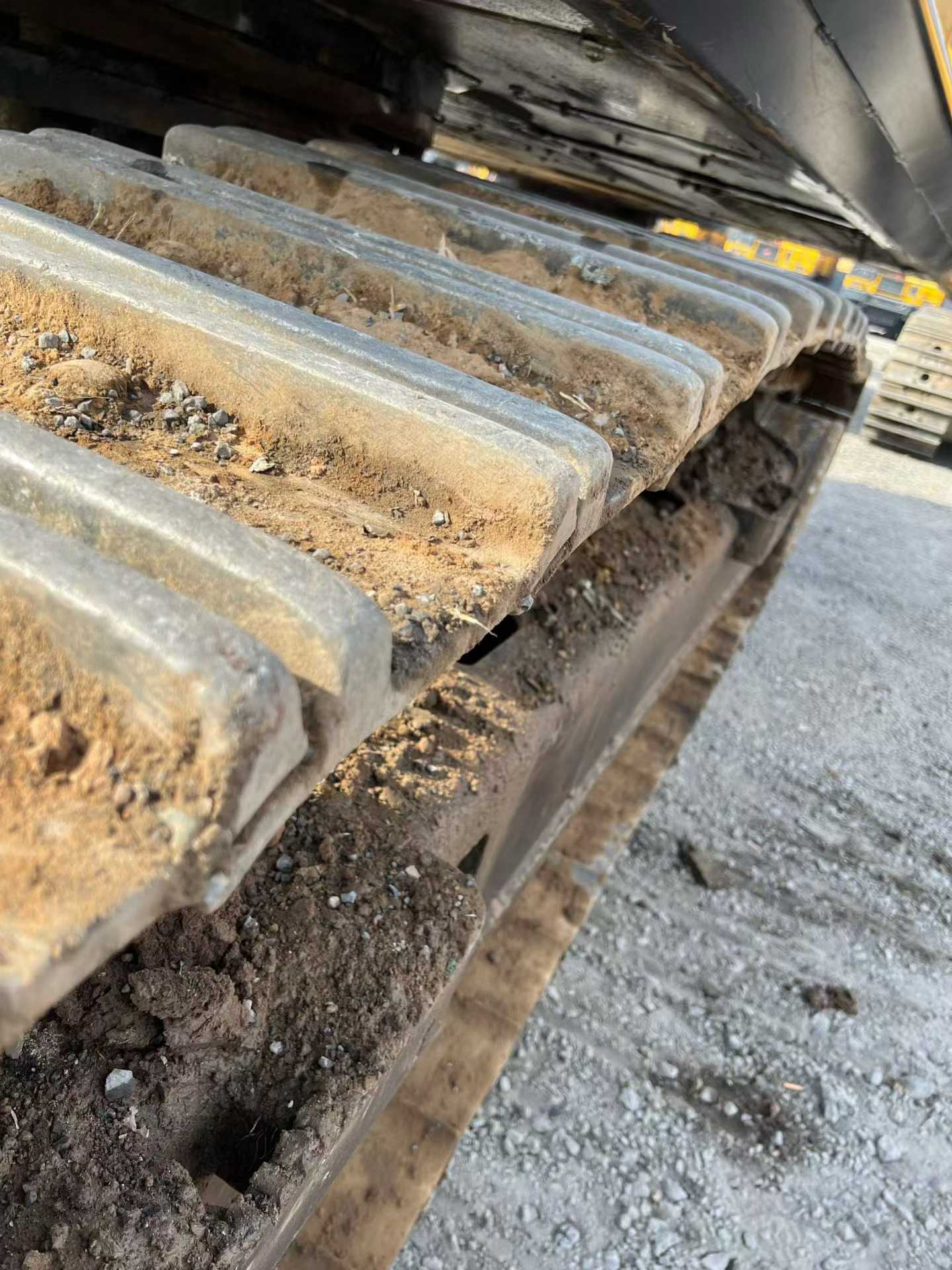

| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
