2021 Sany SY375H

1/7
Buy Sany SY375H Used Excavator / 1

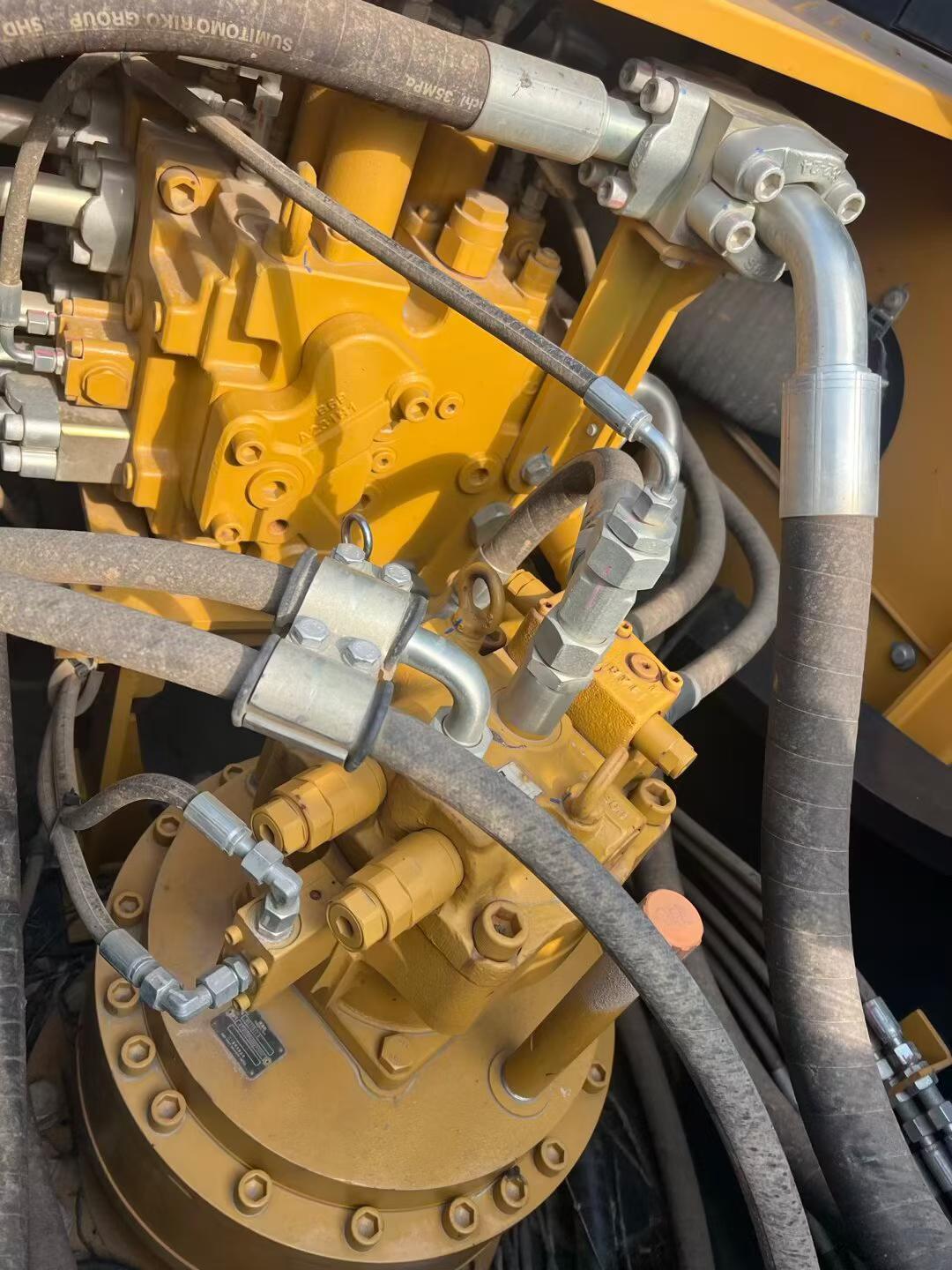

Buy Sany SY375H Used Excavator / 2
Buy Sany SY375H Used Excavator / 3

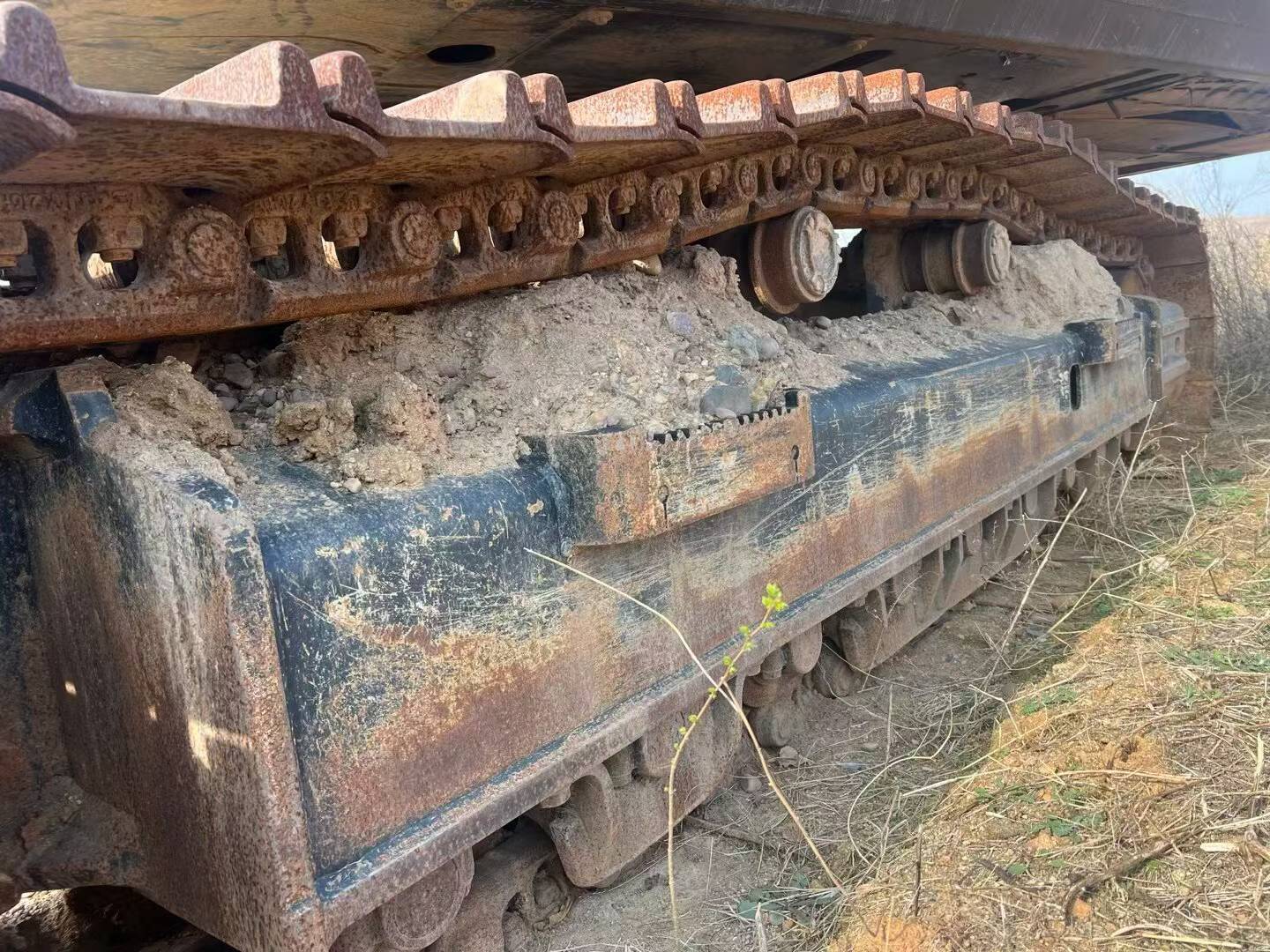

Buy Sany SY375H Used Excavator / 4

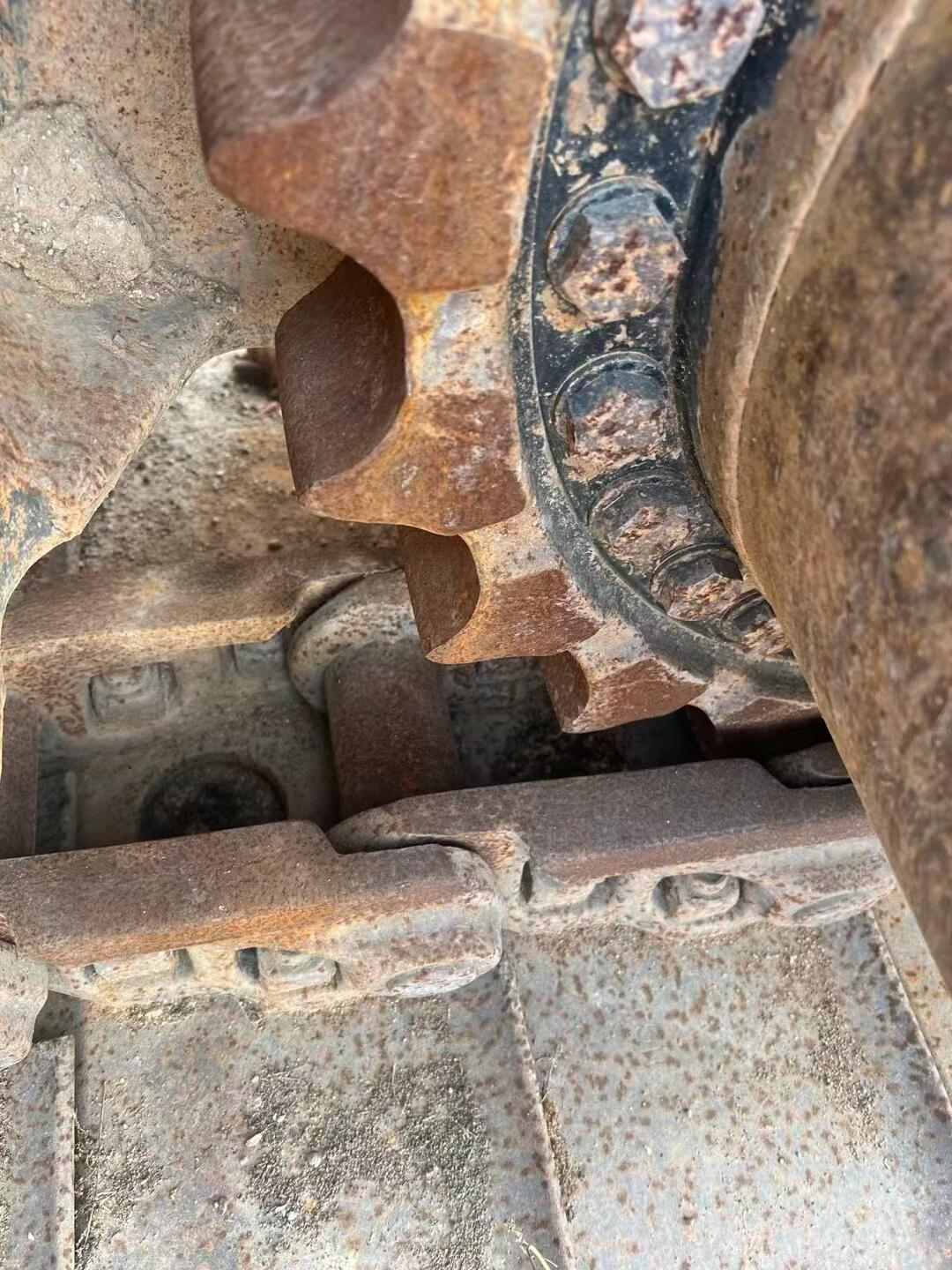

Buy Sany SY375H Used Excavator / 5

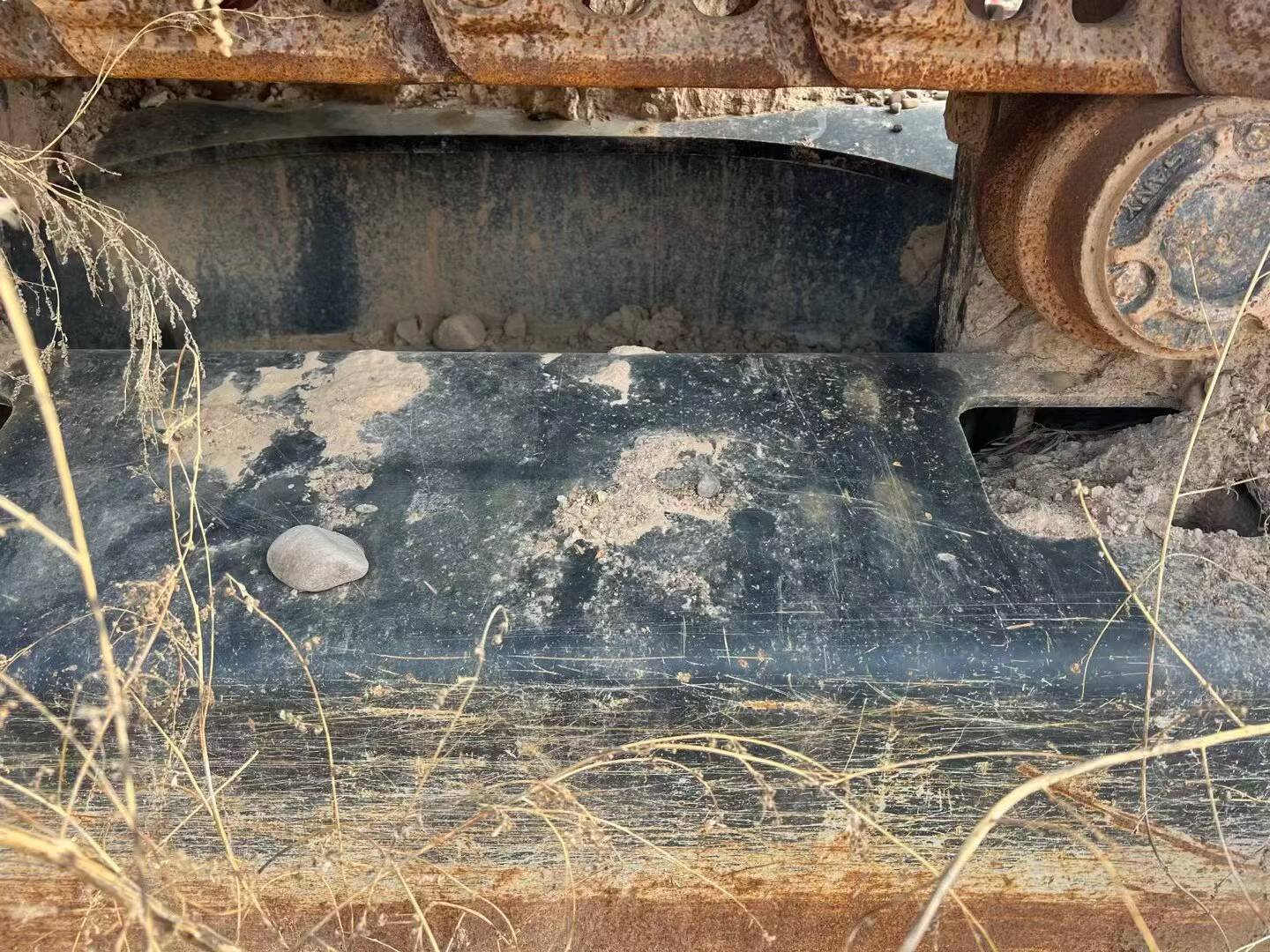

Buy Sany SY375H Used Excavator / 6

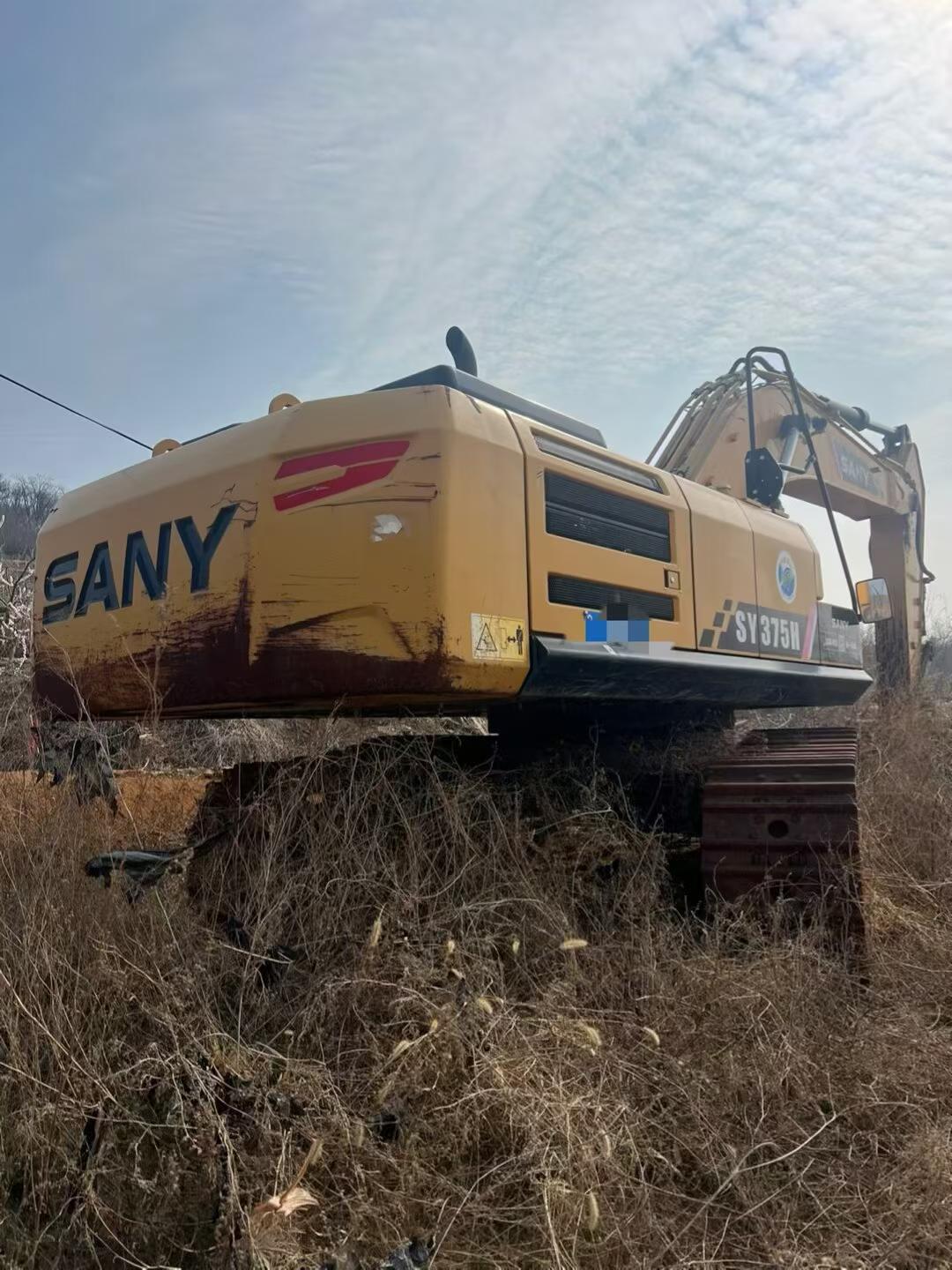

Buy Sany SY375H Used Excavator / 7

Product Description

Powered by a robust GH-6HK1XKSC engine delivering 212 kW at 2000 rpm and 1080 N·m of torque, this 2021 Sany SY375H represents precision engineering in the 37-ton excavator class. The 6-cylinder, water-cooled, turbocharged powerplant provides consistent performance across demanding applications, while the advanced hydraulic system generates an impressive 235 kN bucket digging force and 210 kN arm digging force for superior material penetration.

Engineered for large-scale earthmoving operations, this model combines a 10,750 mm maximum digging radius with a 7,155 mm maximum digging depth, supported by a 1.9 m³ standard bucket capacity. The undercarriage features reinforced dual-sprocket track frames with 9 rollers per side and 600 mm track plates, distributing the 37,500 kg operating weight to just 68.8 kPa ground pressure. An 8.8 rpm swing speed and 70% gradeability ensure productive cycle times on challenging terrain.

Currently located in Laibin, Guangxi, this machine maintains Sany's reputation for hydraulic efficiency and structural durability in heavy-duty construction environments.

SpecificationsValue
No.1040329
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1040329

Brand Name:

Sany

Model Number:

SY375H

Year:

2021

Location:

Guangxi China
