2021 Sany SY375H

1/5
Buy Sany SY375H Used Excavator / 1

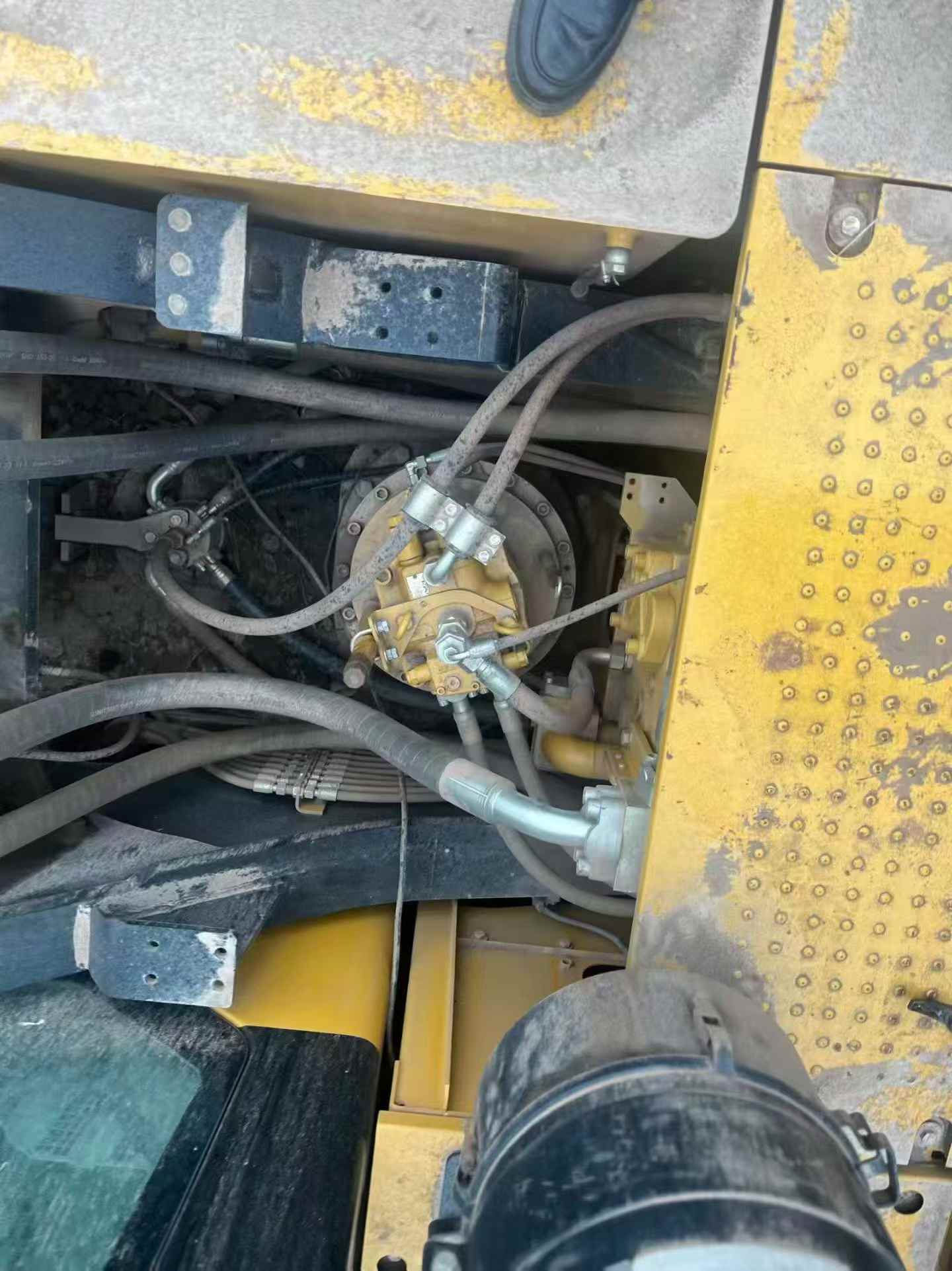

Buy Sany SY375H Used Excavator / 2

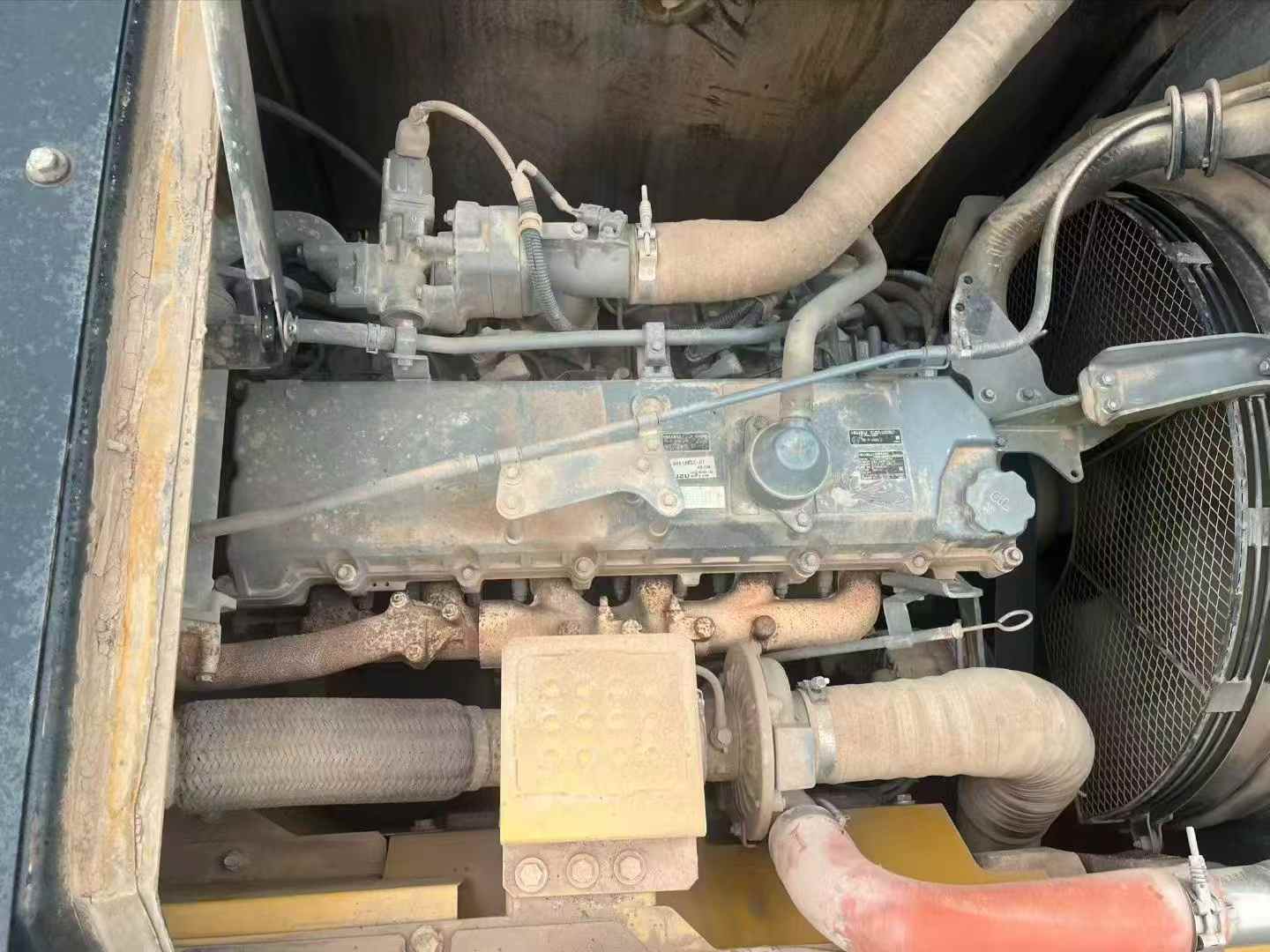

Buy Sany SY375H Used Excavator / 3

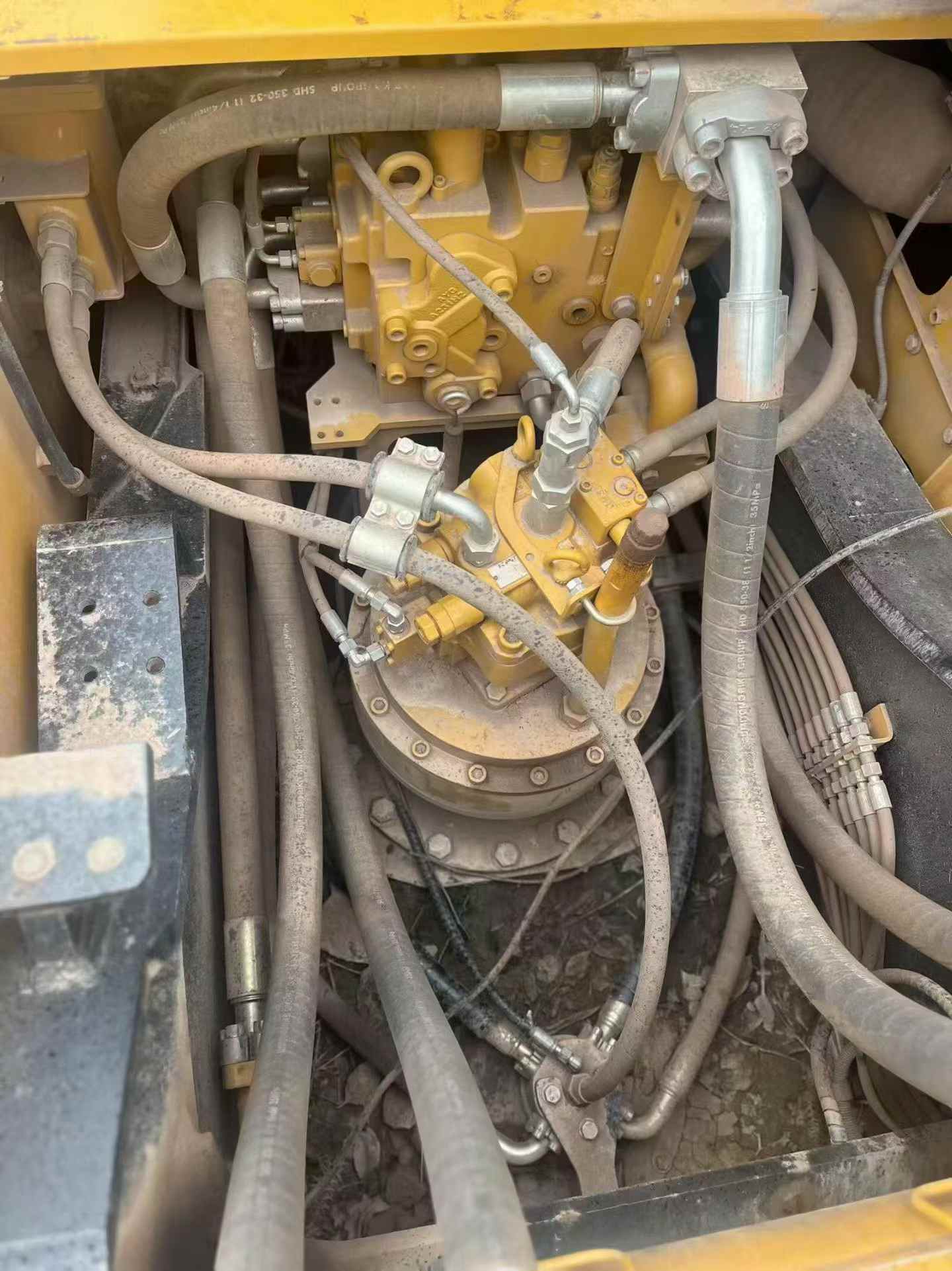

Buy Sany SY375H Used Excavator / 4

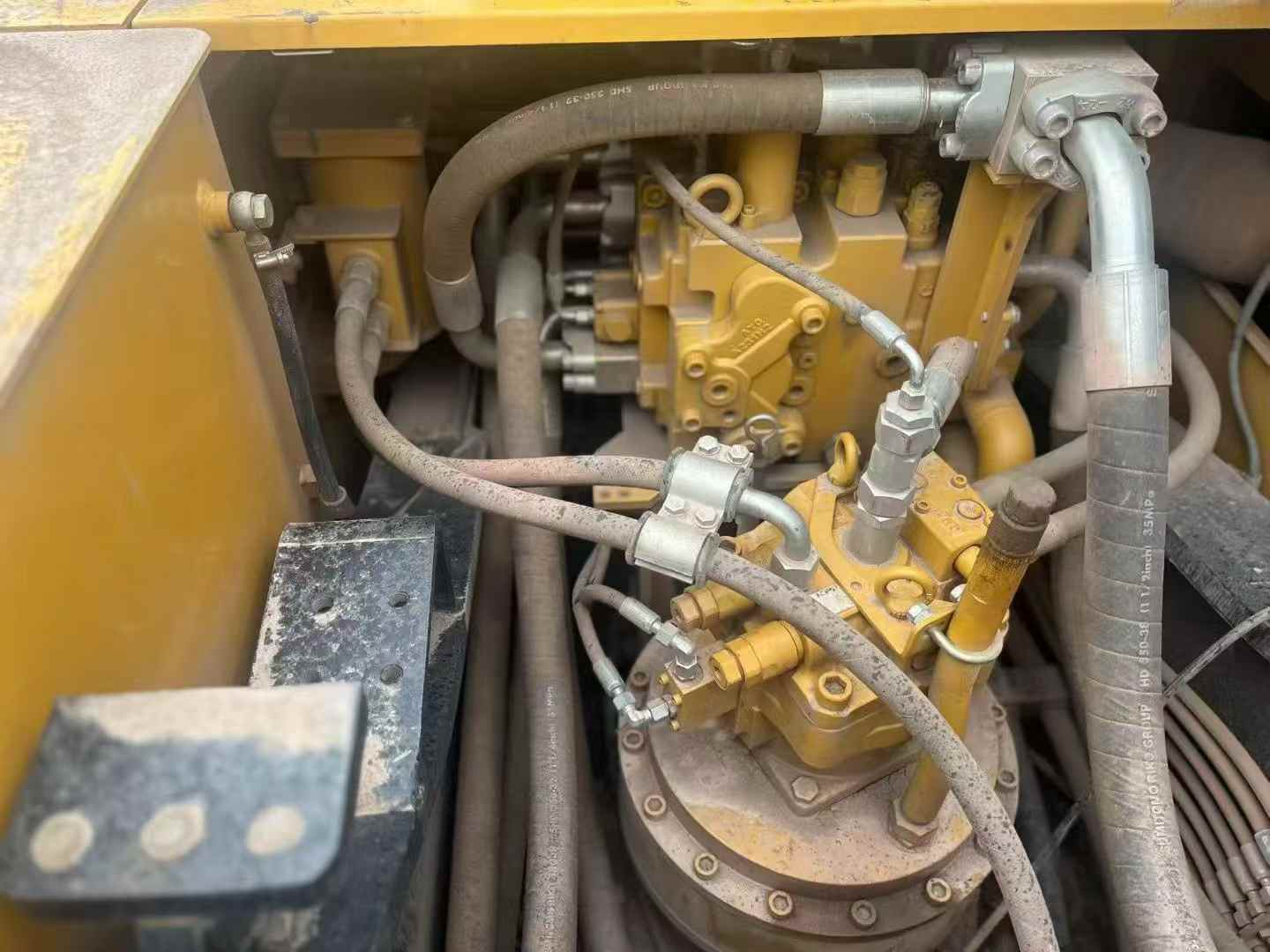

Buy Sany SY375H Used Excavator / 5

Product Description

Built for demanding excavation work, this 2021 Sany SY375H delivers 37-ton performance with operator-centric engineering. Powered by a robust 212kW GH-6HK1XKSC engine producing 1080 N·m of torque, this machine combines reliable Chinese manufacturing with proven hydraulic efficiency. Currently located in Guizhou, it offers exceptional stability through optimized ground pressure of just 68.8 kPa across 600mm track plates.

Operator advantages include:

  • Spacious cab positioned at 3440mm height for commanding 360-degree visibility across the 10,750mm working radius
  • Responsive 8.8 rpm rotation speed enabling precise positioning and reduced cycle times
  • Smooth dual-speed travel system (5.5/3.5 km/h) for confident maneuvering on grades up to 70%
  • Generous 1.9m³ backhoe bucket capacity backed by 235kN digging force
  • Extended 540L fuel tank minimizing refueling interruptions during long shifts

With maximum digging depth reaching 7,155mm and unloading height of 7,010mm, this SY375H handles bulk earthmoving, foundation work, and material loading with consistent control and minimal operator fatigue.

SpecificationsValue
No.1048631
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1048631

Brand Name:

Sany

Model Number:

SY375H

Year:

2021

Location:

Guizhou China
