Product Description

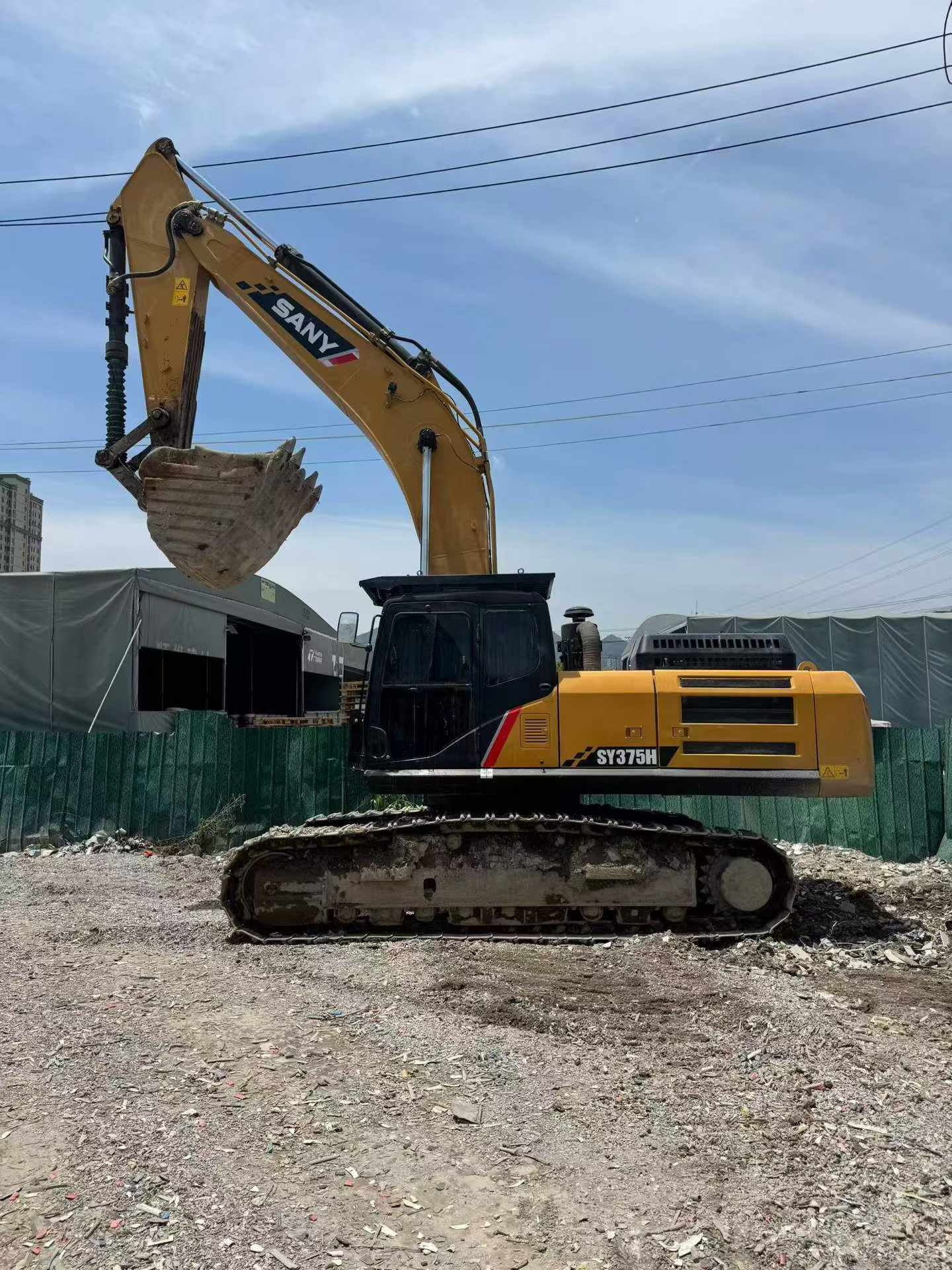

With a robust 37-ton working weight and a powerful GH-6HK1XKSC engine, this 2021 Sany SY375H excavator is site-ready for your most demanding tasks. Boasting a bucket capacity of 1.9 m³, it excels in digging, grading, and demolition. Capable of delivering 235 kN of bucket digging force and 210 kN of rod digging force, it ensures efficient and precise operations. The machine features a 212 kW rated power at 2000 rpm, providing the necessary muscle for heavy-duty work. Equipped with a water-cooled, turbocharged, and direct-injection engine, it maintains optimal performance under various conditions. Traveling at speeds up to 5.5 km/h, it offers flexibility on the job site. This excavator is designed with a 540 L fuel tank and 36 L engine oil capacity, ensuring long operational hours without frequent refueling or maintenance. Ready to tackle any project, the SY375H is a reliable and versatile addition to your fleet.
- Maximum digging depth: 7155 mm
- Maximum excavation height: 9920 mm
- Maximum unloading height: 7010 mm
- Ground specific pressure: 68.8 Kpa
- Track gauge: 2590 mm
| Specifications | Value |
|---|---|
| No. | 1057716 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
