Product Description

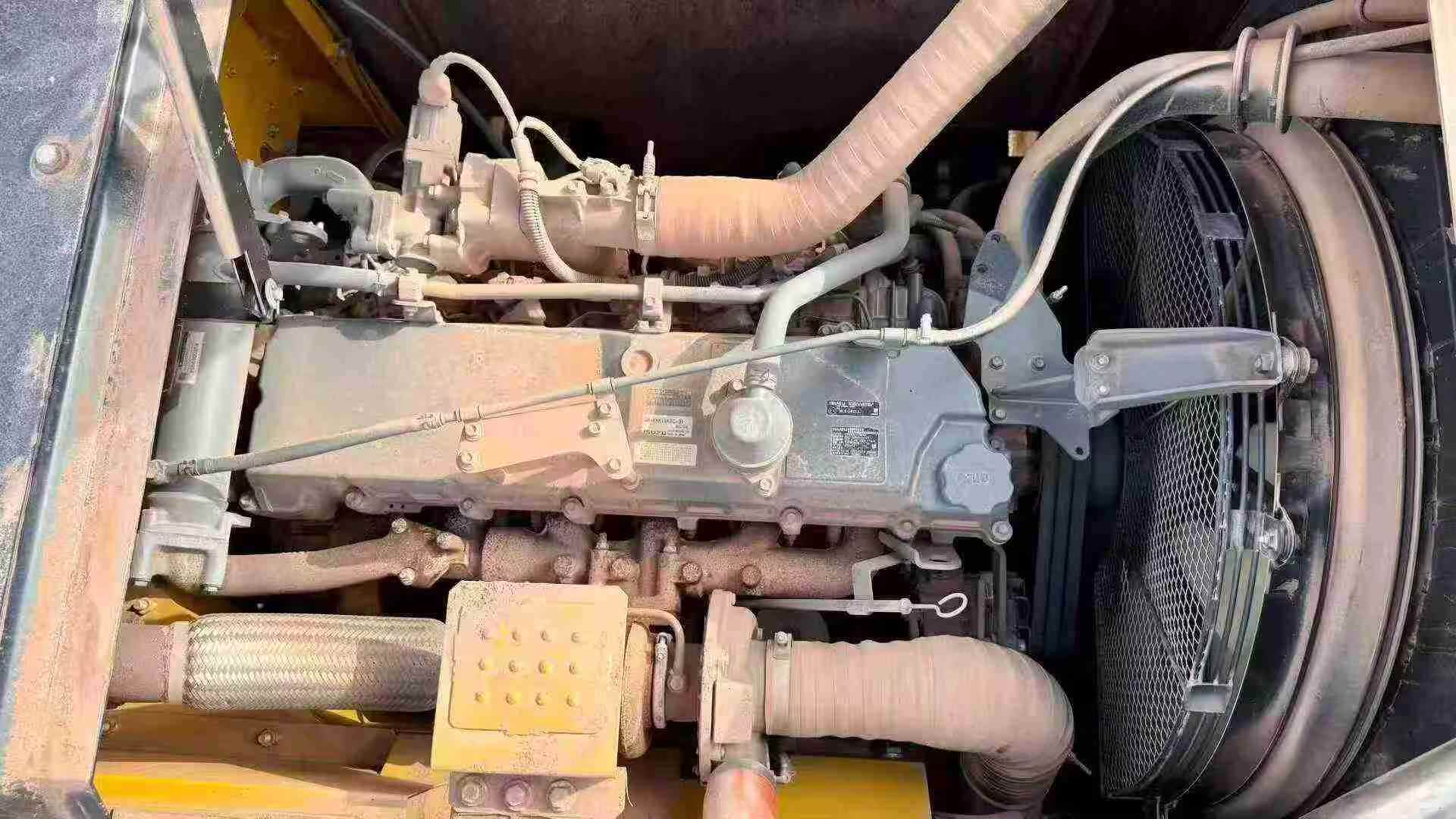

Built for high-output earthmoving, this 2022 Sany SY375H delivers 37 tons of proven digging power across demanding job sites. Powered by a GH-6HK1XKSC engine producing 212 kW at 2000 rpm, this excavator tackles deep foundation work with a maximum digging depth of 7155 mm and a digging radius extending to 10,750 mm. The 1.9 m³ backhoe bucket generates 235 kN of digging force, cutting through compacted soil and rock with authority.
Engineered for immediate deployment, key operational specs include:
- 37,500 kg working weight with 68.8 kPa ground pressure for stable operation
- Maximum digging height of 9920 mm for loading trucks and deep trenching
- 70% climbing ability and 5.5 km/h travel speed for efficient site mobility
- 540 L fuel tank supporting extended work shifts
- Water-cooled turbocharged engine with 1080 N·m torque at 1500 rpm
Currently located in Sichuan, this machine is site-ready for excavation, grading, demolition, and heavy earthwork projects requiring robust performance and reliable daily output.
| Specifications | Value |
|---|---|
| No. | 1019806 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
