2023 Sany SY375H

1/3
Buy Sany SY375H Used Excavator / 1
Buy Sany SY375H Used Excavator / 2
Buy Sany SY375H Used Excavator / 3

Product Description

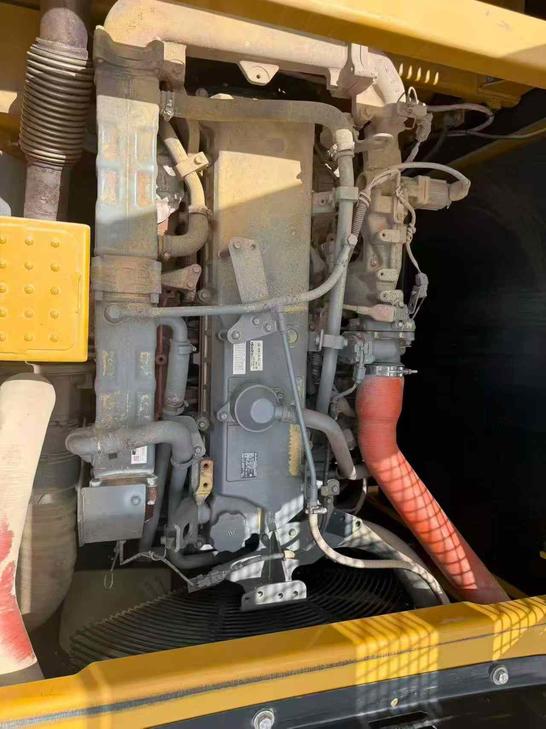

Built for operators who demand precision and control, this 2023 Sany SY375H delivers exceptional performance in a 37-ton platform. Powered by a robust GH-6HK1XKSC engine producing 212 kW at 2000 rpm, this excavator combines raw power with refined handling. The water-cooled, turbocharged 6-cylinder engine generates 1080 N.m of maximum torque, providing consistent hydraulic response across all digging operations.

Operator-focused engineering defines this machine's design. With 8.8 rpm rotation speed and dual travel speeds (5.5/3.5 km/h), maneuvering on congested job sites becomes intuitive and efficient. The spacious cabin offers commanding visibility across the 10,750 mm maximum digging radius, while the 550 mm ground clearance and 70% climbing ability ensure stable positioning on challenging terrain. Bucket digging force reaches 235 kN, supported by 210 kN rod force for confident material handling.

  • Working weight: 37,500 kg with 1.9 m³ bucket capacity
  • Maximum digging depth: 7,155 mm
  • 540-liter fuel tank for extended shifts
  • Currently located in Fujian, China
SpecificationsValue
No.1040675
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1040675

Brand Name:

Sany

Model Number:

SY375H

Year:

2023

Location:

Fujian China

Pub Date
