Product Description

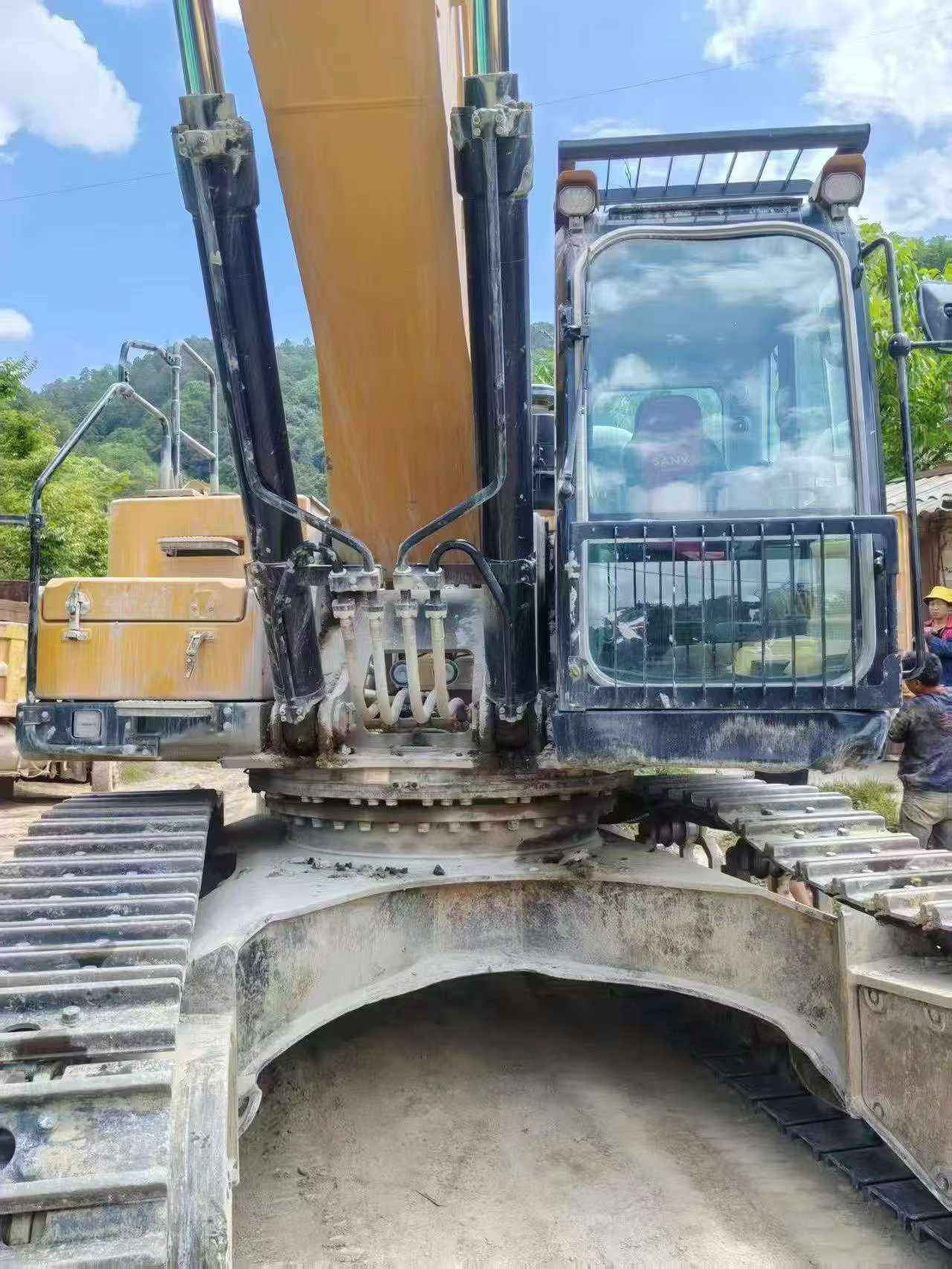

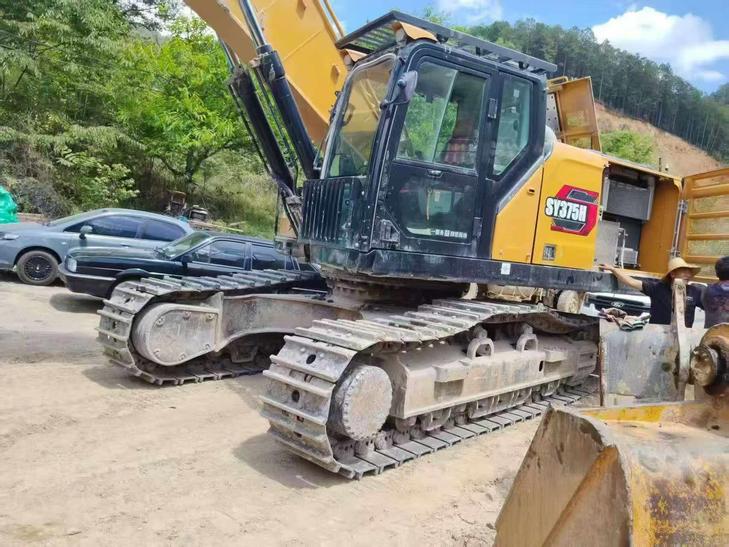

Built for contractors who can't afford downtime, the 2023 Sany SY375H is a 37-ton hydraulic excavator ready to slot into any heavy-duty fleet. Sourced directly from Fujian, China, this unit runs on a 6-cylinder, 7.79L turbocharged water-cooled engine producing 212 kW at 2,000 rpm — enough muscle to handle demanding dig cycles without breaking a sweat.
With a bucket capacity of 1.7–2.4 m³ and a bucket digging force of 235 kN, it holds its own alongside larger iron on site. A 540-liter fuel tank keeps shift interruptions to a minimum, while the 70% climbing ability means rough terrain stays manageable.
- Working weight: 37,500 kg
- Rated power: 212 kW / 2,000 rpm
- Max digging depth: 7,155 mm
- Max digging radius: 10,750 mm
- Bucket digging force: 235 kN
- Travel speed: 5.5 / 3.5 km/h
- Fuel tank capacity: 540 L
- Ground pressure: 68.8 kPa
Whether you're adding a reliable backup unit or scaling up for a large project push, the SY375H delivers consistent output with straightforward maintenance — a practical choice for fleet managers focused on uptime and cost control.
| Specifications | Value |
|---|---|
| No. | 1068214 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
